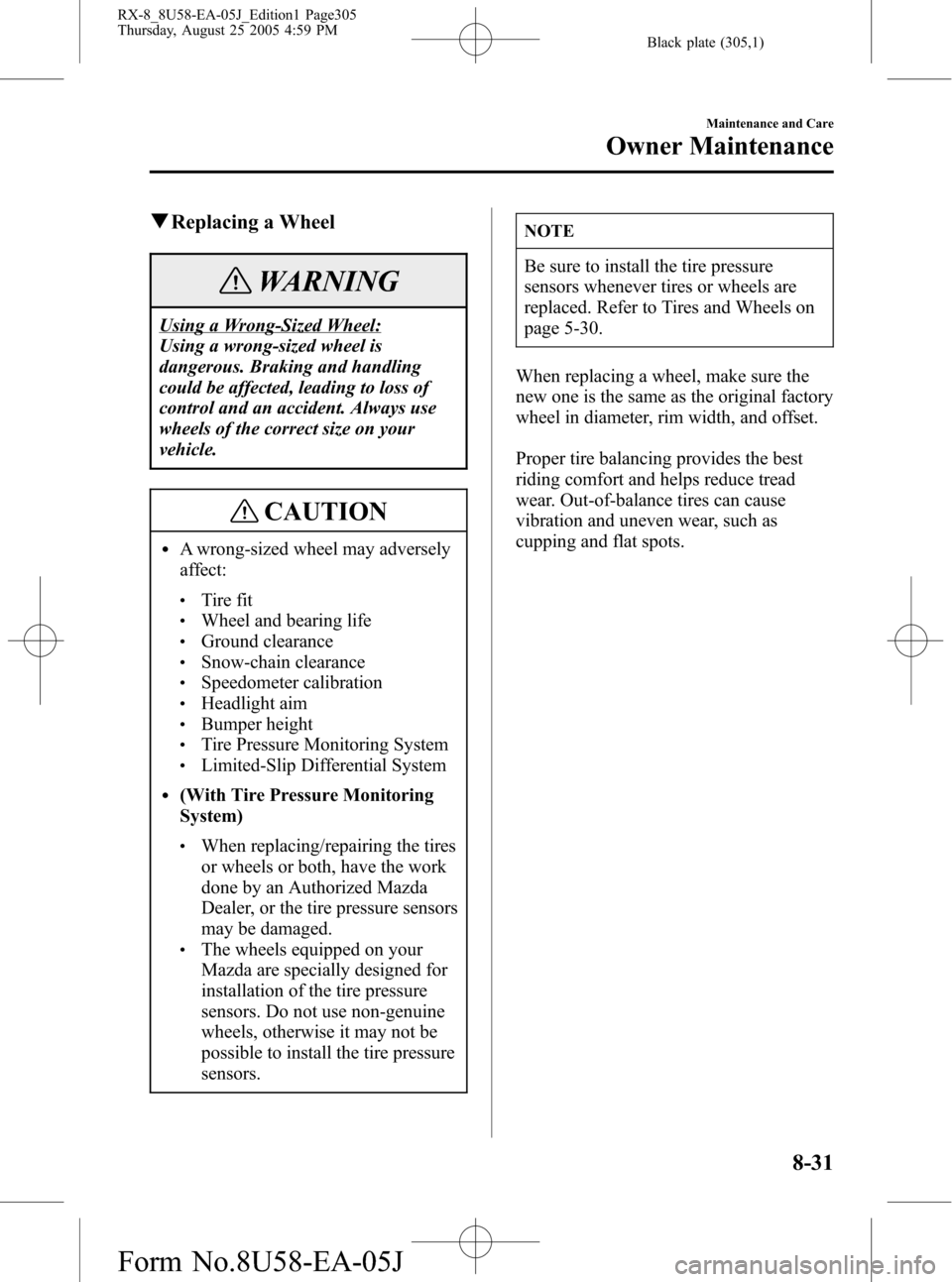

qReplacing a Wheel
WARNING
Using a Wrong-Sized Wheel:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident. Always use
wheels of the correct size on your
vehicle.
CAUTION
lA wrong-sized wheel may adversely
affect:
lTire fitlWheel and bearing lifelGround clearancelSnow-chain clearancelSpeedometer calibrationlHeadlight aimlBumper heightlTire Pressure Monitoring SystemlLimited-Slip Differential System
l(With Tire Pressure Monitoring
System)
lWhen replacing/repairing the tires
or wheels or both, have the work
done by an Authorized Mazda
Dealer, or the tire pressure sensors
may be damaged.
lThe wheels equipped on your
Mazda are specially designed for
installation of the tire pressure
sensors. Do not use non-genuine
wheels, otherwise it may not be
possible to install the tire pressure
sensors.
NOTE
Be sure to install the tire pressure
sensors whenever tires or wheels are
replaced. Refer to Tires and Wheels on
page 5-30.
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
Maintenance and Care
Owner Maintenance
8-31
RX-8_8U58-EA-05J_Edition1 Page305
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (306,1)
Light Bulbs
Headlights (High-beam)Front side-marker lights
Front turn signal lights
Headlights (Low-beam)
Fog lights
Parking lights Overhead light/Map lights (Front)
Vanity mirror lights
Courtesy lights
Overhead light (Rear)
Trunk light
High-mount brake light
License plate light
Brake lights/Taillights
Reverse lights
Rear side-marker lights
Rear turn signal lights
Some models.
8-32
Maintenance and Care
Owner Maintenance
RX-8_8U58-EA-05J_Edition1 Page306
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (307,1)
WARNING
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries could
be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
qReplacing a Headlight Bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. Lift the hood and find the high and low
beam bulbs in the rear of the headlight
unit.
The outboard bulb is the LOW beam,
and the inboard one is the HIGH beam.
Refer to Light Bulbs on page 8-32.
3. If you are changing the right headlight
bulb, start the engine, turn the steering
wheel all the way to the right, and turn
off engine. If you are changing the left
headlight bulb, turn the steering wheel
to the left.
4. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Removal
Installation
Maintenance and Care
Owner Maintenance
8-33
RX-8_8U58-EA-05J_Edition1 Page307
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (308,1)
High-beam bulb
1. Turn the socket and bulb assembly
counterclockwise and remove it.
Carefully remove the headlight bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
2. Disconnect the bulb from the electrical
connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
3. Install the new bulb in the reverse order
of removal.
NOTE
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lUse the protective cover and carton
of the replacement bulb to dispose of
the old bulb promptly out of the
reach of children.
Low-beam bulb
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself.The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulbs)
1. Detach the electrical connector from
the sealing cover by pulling it to the
rear.
2. Detach the sealing cover from the bulb.
3. Unhook the bulb retaining spring.
4. Swing the retaining spring out and
away to free the headlight bulb.
5. Carefully remove the headlight bulb
from the socket by pulling it straight
back.
6. Replace the bulb.
7. Install the new bulb in the reverse order
of removal.
8-34
Maintenance and Care
Owner Maintenance
RX-8_8U58-EA-05J_Edition1 Page308
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (309,1)
NOTE
lIf the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
lUse the protective cover and carton
of the replacement bulb to dispose of
the old bulb promptly out of the
reach of children.
qReplacing a Fog Light Bulbí
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
qReplacing a Bulb (Front)
1. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
2. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and partially peel back the
mudguard.
Removal
Installation
Front turn signal lights, Parking lights,
Front side-marker lights
1. Turn the socket and bulb assembly
counterclockwise and remove it.
2. Disconnect the bulb from the socket.
Front turn signal
lights
Parking lights
Front side-marker lights
3. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-35íSome models. RX-8_8U58-EA-05J_Edition1 Page309
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (310,1)

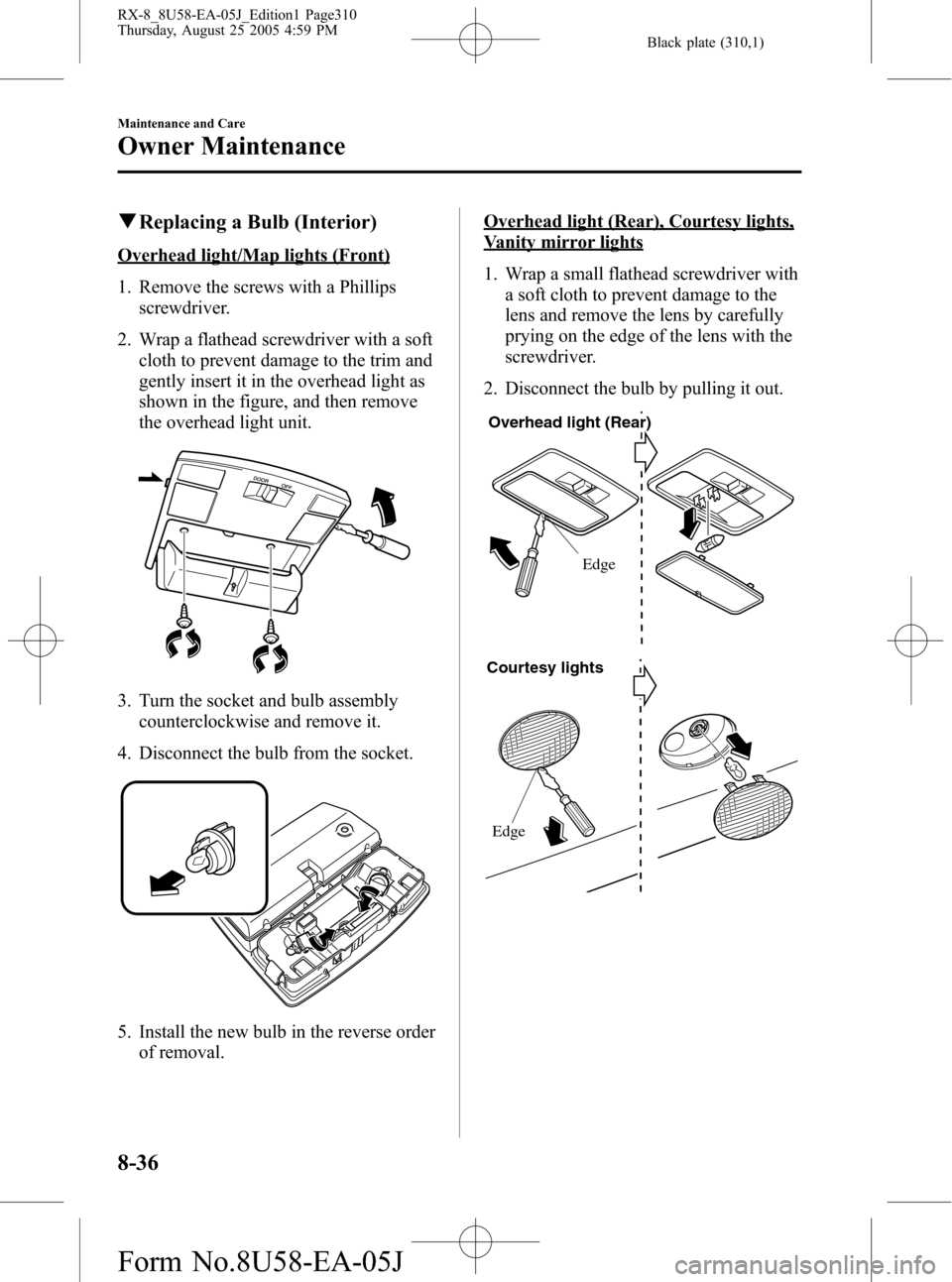

qReplacing a Bulb (Interior)
Overhead light/Map lights (Front)
1. Remove the screws with a Phillips
screwdriver.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
Overhead light (Rear), Courtesy lights,
Vanity mirror lights
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
screwdriver.
2. Disconnect the bulb by pulling it out.
Edge
Overhead light (Rear)
Courtesy lights
Edge
8-36
Maintenance and Care
Owner Maintenance
RX-8_8U58-EA-05J_Edition1 Page310
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (311,1)
Vanity mirror lights
Edge
3. Install the new bulb in the reverse order
of removal.
Trunk light
1. Press both sides of the lens cap to
remove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
qReplacing a Bulb (Rear)
Rear turn signal lights, Brake lights/
Taillights, Reverse lights
1. Pull the center section of the plastic
retainer and remove the retainers and
partially open the trunk side trim.
Removal
Installation
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Brake lights/Taillights Rear turn signal lights
Reverse lights
4. Install the new bulb in the reverse order
of removal.
Rear side-marker lights
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Maintenance and Care
Owner Maintenance
8-37
RX-8_8U58-EA-05J_Edition1 Page311
Thursday, August 25 2005 4:59 PM
Form No.8U58-EA-05J

Black plate (312,1)

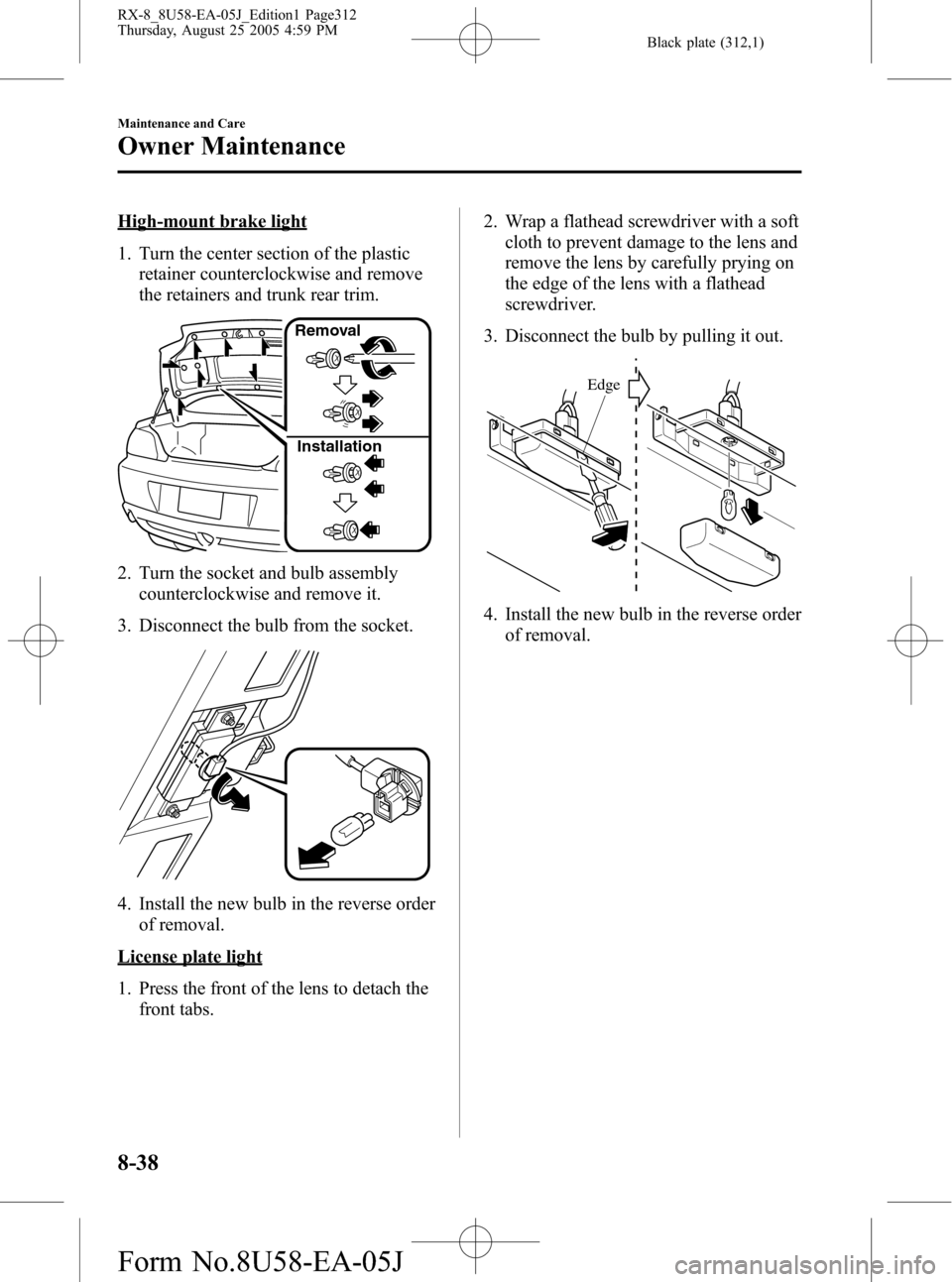

High-mount brake light
1. Turn the center section of the plastic
retainer counterclockwise and remove
the retainers and trunk rear trim.
Removal
Installation
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of removal.
License plate light
1. Press the front of the lens to detach the
front tabs.2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with a flathead
screwdriver.
3. Disconnect the bulb by pulling it out.
Edge
4. Install the new bulb in the reverse order
of removal.
8-38
