Steps for Determining the Correct Load Limit:
Steps for Determining Correct Load Limit:
(1) Locate the statement“The combined weight of occupants and cargo should never
exceed XXX kg or XXX lbs”on your vehicle's placard.
(2) Determine the combined weight of the driver and passengers that will be riding in your
vehicle.
(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load capacity.
For example, if the“XXX”amount equals 1400 lbs. and there will be five 150 lb
passengers in your vehicle, the amount of available cargo and luggage load capacity is
650 lbs. (1400_
750 (5 × 150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the vehicle.
That weight may not safely exceed the available cargo and luggage load capacity
calculated in Step 4.
(6) If your vehicle will be towing a trailer, the load from your trailer will be transferred to
your vehicle. Consult this manual to determine how this reduces the available cargo
and luggage load capacity of your vehicle.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-37
RX-8_8U58-EA-05J_Edition1 Page361
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (362,1)
Reporting Safety Defects (U.S.A.)
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying Mazda Motor
Corporation (Your Mazda Importer/Distributor).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Mazda Motor Corporation (Your Mazda
Importer/Distributor).
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153) ; go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh Street, SW., Washington, DC 20590. You
can also obtain other information about motor vehicle safety from http://
www.safercar.gov.
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:
Mazda North American Operations
7755 Irvine Center Drive
Irvine, California 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown
(page 9-8) in this booklet.
9-38
Customer Information and Reporting Safety Defects
Reporting Safety Defects
RX-8_8U58-EA-05J_Edition1 Page362
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (363,1)

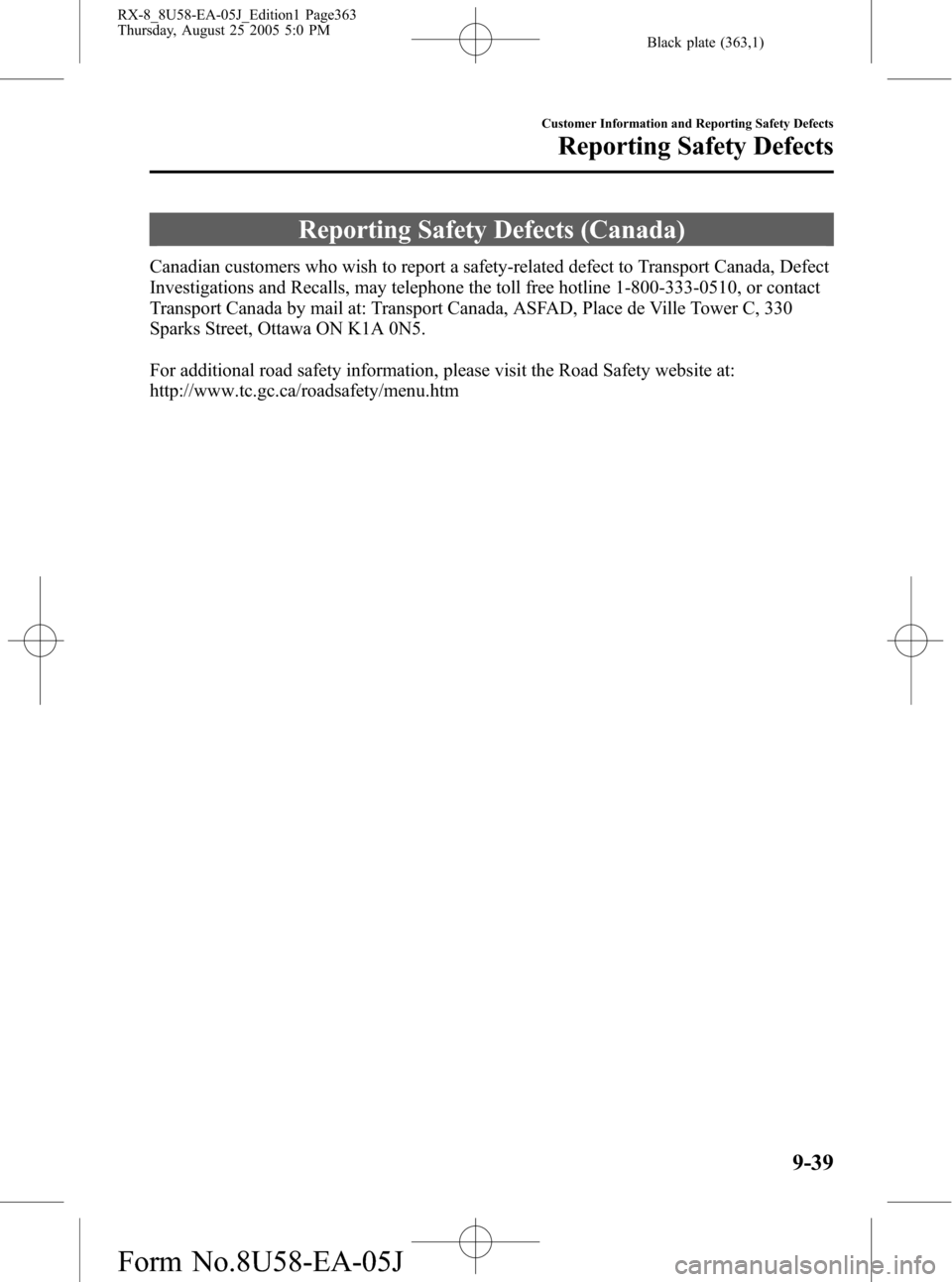

Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information and Reporting Safety Defects
Reporting Safety Defects
9-39
RX-8_8U58-EA-05J_Edition1 Page363
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (364,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they don't have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999-95-064B-06 2006 WORKSHOP MANUAL (English)
9999-95-040G-06 2006 WIRING DIAGRAM (English)
9999-95-079C-06 2006 OWNER'S MANUAL
9999-EC-079C-06 (Canada only) 2006 OWNER'S MANUAL
9999-PR-079C-06 (Puerto Rico only) 2006 OWNER'S MANUAL
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
9-40
Customer Information and Reporting Safety Defects
Service Publications
RX-8_8U58-EA-05J_Edition1 Page364
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (365,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2
Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4
Specifications .......................................................................... 10-4
10-1
RX-8_8U58-EA-05J_Edition1 Page365
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (366,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
qVehicle Emission Control
Information Label
qTire Pressure Label
10-2
Identification Numbers
RX-8_8U58-EA-05J_Edition1 Page366
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (367,1)
qEngine Number
Forward
Identification Numbers
10-3
RX-8_8U58-EA-05J_Edition1 Page367
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J

Black plate (368,1)
Specifications
qEngine
Item Model
Type Rotary engine
Displacement 654 ml × 2 (654 cc × 2, 40.0 cu in × 2)
Compression ratio 10.0
qElectrical System
Item Classification
Battery 12V-52AH/5HR
Alternator 12 V - 100 A
Starter 12 V - 2.0 kW
Spark-plug numberTrailing side N3Y1 18 110, N3H1 18 110C
*1*2
Leading side N3Y8 18 110, N3Y9 18 110, N3H5 18 110*1*2
Spark-plug gap 1.15―1.25 mm (0.046―0.049 in)
*1 Standard
*2 ex factory
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on
the iridium alloy and platinum tips could be damaged.
qLubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers on page 8-12.
Manual transmission oil API Service GL-4 (SAE 75W-90)
Automatic transmission fluid JWS3309
Rear differential oilAPI Service GL-5 (SAE 90)
API Service GL-5 (SAE 80W-90)
API Service GL-5 (SAE 75W-90)
*
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
* Not available from Mazda
10-4
Specifications
RX-8_8U58-EA-05J_Edition1 Page368
Thursday, August 25 2005 5:0 PM
Form No.8U58-EA-05J
