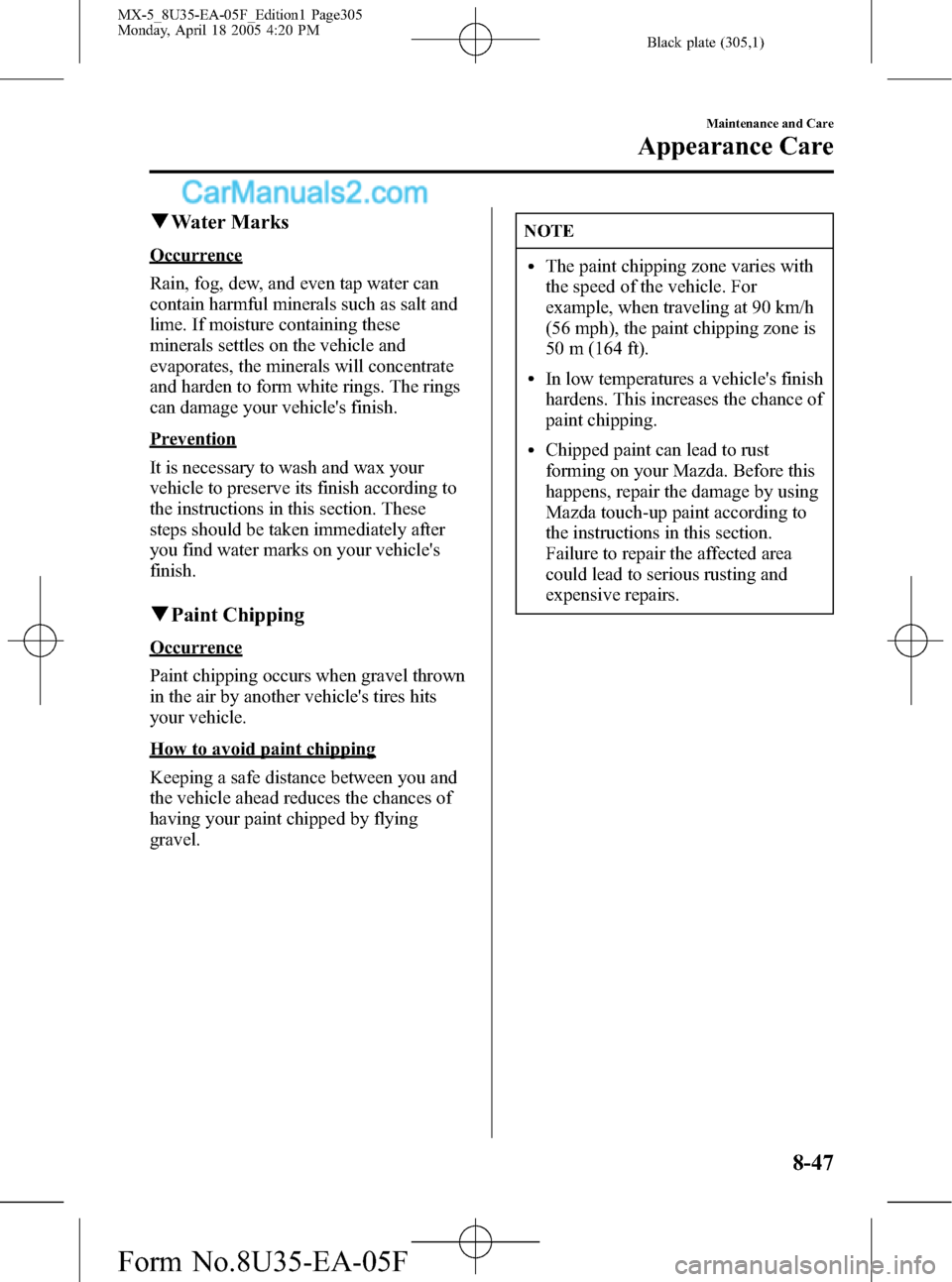

qWater Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
qPaint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.
NOTE
lThe paint chipping zone varies with
the speed of the vehicle. For
example, when traveling at 90 km/h
(56 mph), the paint chipping zone is
50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.
lChipped paint can lead to rust
forming on your Mazda. Before this
happens, repair the damage by using
Mazda touch-up paint according to
the instructions in this section.
Failure to repair the affected area
could lead to serious rusting and
expensive repairs.
Maintenance and Care
Appearance Care
8-47
MX-5_8U35-EA-05F_Edition1 Page305
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (306,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
qMaintaining the Finish
Washing
To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for
scratches caused by automatic car
washes or improper washing.
lScratches are more noticeable on
vehicles with darker paint finishes.To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDon't use abrasive cleansers or wax
that contain abrasives.
CAUTION
lDon't use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may damage
the protective coating; also, cleaners
and detergents may discolor or
deteriorate the paint.
lTo prevent damaging the antenna,
retract it before entering a car wash
facility or passing beneath a low
overhead clearance.
Pay special attention to removing salt,
dirt, mud, and other foreign material from
the underside of the fenders, and make
sure the drain holes in the lower edges of
the doors and rocker panels are clean.
8-48
Maintenance and Care
Appearance Care
MX-5_8U35-EA-05F_Edition1 Page306
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (307,1)
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.
Thoroughly rinse off all soap with
lukewarm or cold water. Don't allow soap
to dry on the finish.
After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.
Waxing
Your vehicle needs to be waxed when
water no longer beads on the finish.
Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.
1. Use wax which contains no abrasives.
Waxes containing abrasive will remove
paint and could damage bright metal
parts.
2. Use a good grade of natural wax for
metallic, mica, and solid colors.3. When waxing, coat evenly with the
sponge supplied or a soft cloth.
4. Wipe off the wax with a soft cloth.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas even if
the rest of the vehicle doesn't need it.
qRepairing Damage to the Finish
Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.
CAUTION
If your Mazda is damaged and needs
metal parts repaired or replaced, make
sure the body shop applies anti-
corrosion materials to all parts, both
repaired and new. This will prevent
them from rusting.
qBright-Metal Maintenance
lUse tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.
lTo prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.
lDuring cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.
Maintenance and Care
Appearance Care
8-49
MX-5_8U35-EA-05F_Edition1 Page307
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (308,1)
CAUTION
Don't use steel wool, abrasive cleaners,
or strong detergents containing highly
alkaline or caustic agents on chrome-
plated or anodized aluminum parts.
This may result in damage to the
protective coating and cause
discoloration or paint deterioration.
qUnderbody Maintenance
Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.
Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also
to do this every month.
Pay special attention to these areas
because they easily hide mud and dirt.It
will do more harm than good to wet
down the road grime without removing
it.
The lower edges of doors, rocker panels,
and frame members have drain holes that
should not be clogged. Water trapped
there will cause rusting.
WARNING
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been affected.
Dry the brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
NOTE
lDon't use a wire brush or any
abrasive cleaner, polishing
compound, or solvent on aluminum
wheels. They may damage the
coating.
lOnly use a mild soap or neutral
detergent and always use a sponge or
soft cloth to clean the wheels.
Rinse thoroughly with lukewarm or
cold water. Also, be sure to clean the
wheels after driving on dusty or
salted roads. This helps prevent
corrosion.
lAvoid washing your vehicle in an
automatic car wash that uses high-
speed or hard brushes.
lIf your aluminum wheels lose luster,
wax the wheels.
8-50
Maintenance and Care
Appearance Care
MX-5_8U35-EA-05F_Edition1 Page308
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (309,1)
qConvertible Top Maintenance
The convertible top is made of a special
high-grade material, but if it's not taken
good care of, hardening, staining, and loss
of luster will result. Maintain it under
these guidelines.
Washing
Don't wait until the top gets really dirty
before cleaning it. Dirt that's there too
long will cause deterioration.
1. Before washing, remove dust and
coarse particulate with a soft brush.
2. Gently clean the top with a synthetic
neutral detergent, lots of water, and a
soft brush.
3. Rinse it thoroughly with clean water to
remove all the soap.
4. Wipe it as dry as you can before the
water dries on it.
5. Then allow it to dry completely before
lowering it.
CAUTION
lAutomatic and high-pressure car
washes are harmful to a convertible
top. Avoid them.
lDon't spray water directly on the
area where the window glass and the
top meet. This would probably cause
water to enter the cabin.
Appearance(Polyvinyl only)
Dress the top once a month after washing
and drying it well. For best results, use a
water-based leather treatment or vinyl top
dressing. This will help maintain good
appearance and material condition of the
top.
CAUTION
lSome leather treatment products can
ruin the top's gloss. Be careful of the
one you choose.
lTest on an inconspicuous, small
corner of the top if you are not sure.
lDon't get any car wax on the top.
If you do, remove it with a good
leather cleaner.
lToo much treatment on the top can
be as damaging as too little. Follow
the manufacturer's directions.
Don't overdo it!
lLet the top dry completely before
lowering after applying treatment or
dressing.
qDetachable Hardtop Maintenance
Washing
To help protect the hardtop's finish, use a
soft cloth or sponge to wash it.
Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if they are not removed
immediately. When prompt washing with
plain water is ineffective use a mild soap
made for use on vehicles.
Maintenance and Care
Appearance Care
8-51
MX-5_8U35-EA-05F_Edition1 Page309
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (310,1)
CAUTION
lDon't use an automatic car wash.
lDon't use strong soap, chemical
detergents, or hot water, and don't
wash the hardtop in direct sunlight or
when the surface is warm.
Thoroughly rinse with lukewarm or cold
water. Don't allow soap to dry on the
finish.
Waxing
Wax the hardtop when water no longer
beads on the paint. Always wash and dry
it before waxing.
CAUTION
lWiping off dust or dirt with a dry
cloth will scratch the finish.
lDon't use abrasive wax. This may
damage the protective coating and
discolor or deteriorate the paint.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas.
Interior Care
qDashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
If the leather gets wet from rain, remove
the moisture as soon as possible and dry
in a shaded area.
If the seats get wet, promptly remove
moisture with a dry cloth and allow it to
further dry in a shaded area.
If moisture is not removed, it will cause
hardening and shrinkage of the leather.
Do not leave vinyl products on the seats
for long periods as they may affect the
leather quality and coloring.
8-52
Maintenance and Care
íSome models.
Appearance Care
MX-5_8U35-EA-05F_Edition1 Page310
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (311,1)
Fabric
Remove dust and loose dirt from fabric
with a whisk broom or vacuum cleaner.
Clean it with a mild soap solution good
for upholstery and carpets. Remove fresh
spots immediately with a fabric spot
cleaner.
To keep the fabric looking clean and
fresh, take care of it. Otherwise its color
will be affected, it can be stained easily,
and its fire-resistance may be reduced.
CAUTION
Use only recommended cleaners and
procedures. Others may affect
appearance and fire-resistance.
Piano black panelí
The following parts are fitted with panels
that have been treated with a special
coating that resists scratching.
Center panel
When the panel needs to be cleaned, use a
soft cloth to wipe off dirt from the surface.
NOTE
Scratches or nicks on the panels
resulting from the use of a hard brush or
cloth may not be repairable.
qCleaning the Lap/Shoulder Belt
Webbing
Clean the webbing with a mild soap
solution recommended for upholstery or
carpets. Follow instructions. Don't bleach
or dye the webbing; this may weaken it.
After cleaning the belts, thoroughly dry
the belt webbing and make sure there is
no remaining moisture before retracting
them.
WARNING
Damaged Seat Belt:
Using damaged seat belts is
dangerous. In a collision, damaged
belts cannot provide adequate
protection. Have an Authorized Mazda
Dealer replace damaged belts
immediately.
qCleaning the Window Interiors
If the windows become covered with an
oily, greasy, or waxy film, clean them
with glass cleaner. Follow the directions
on the container.
CAUTION
Don't scrape or scratch the inside of the
rear window. You may damage the rear
window defroster grid.
Maintenance and Care
Appearance Care
8-53íSome models. MX-5_8U35-EA-05F_Edition1 Page311
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F

Black plate (312,1)
8-54
MX-5_8U35-EA-05F_Edition1 Page312
Monday, April 18 2005 4:20 PM
Form No.8U35-EA-05F
