Black plate (257,1)
1. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
2. If the booster battery is in another
vehicle, don't allow the vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
3. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to a solid,
stationary, exposed metallic point
(for example, the engine hanger)
away from the discharged battery
(4).
Jumper
cables
Discharged
battery
Connect cables in
numerical order and
disconnect in reverse
order.Booster battery
4. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.5. When finished, carefully disconnect the
cables in the reverse order described in
Step 3.
In Case of an Emergency
Emergency Starting
7-21
Mazda MPV_8U61-EA-05G_Edition1 Page257
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (258,1)
Push-Starting
You can't start a vehicle with an automatic
transaxle by pushing it.
7-22
In Case of an Emergency
Emergency Starting
Mazda MPV_8U61-EA-05G_Edition1 Page258
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (259,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
front wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.
Wheel dollies
When towing with the rear wheels on the
ground, release the parking brake.
CAUTION
Don't tow the vehicle pointed backward
with driving wheels on the ground. This
may cause internal damage to the
transaxle.
CAUTION
Don't tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
In Case of an Emergency
Emergency Towing
7-23
Mazda MPV_8U61-EA-05G_Edition1 Page259
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (260,1)
Tiedown Hooks
CAUTION
Don't use the tiedown hooks under the
front and rear for towing.
They are designed ONLY for tying
down the vehicle when it's being
transported. Using them for towing will
damage the bumper.
qTiedown Hooks-Front
qTiedown Hook-Rear
Recreational Towing
An example of“recreational towing”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“Towing Description”(page 7-23) and
“Tiedown Hooks”(page 7-24) and
carefully follow the instructions.
7-24
In Case of an Emergency
Emergency Towing
Mazda MPV_8U61-EA-05G_Edition1 Page260
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (261,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance ............................................................ 8-3
Owner Maintenance ..................................................................... 8-8
Owner Maintenance Schedule .................................................. 8-8
Owner Maintenance Precautions ............................................... 8-9
Engine Compartment Overview .............................................. 8-10
Engine Oil ............................................................................... 8-11
Engine Coolant ....................................................................... 8-14
Brake Fluid ............................................................................. 8-17
Power Steering Fluid ............................................................... 8-18
Automatic Transaxle Fluid (ATF) ........................................... 8-18
Washer Fluid ........................................................................... 8-20
Body Lubrication .................................................................... 8-21
Air Filter .................................................................................. 8-21
Wiper Blades ........................................................................... 8-22
Battery ..................................................................................... 8-26
Tires ........................................................................................ 8-28
Light Bulbs ............................................................................. 8-33
Fuses ....................................................................................... 8-39
Appearance Care ........................................................................ 8-44
How to Minimize Environmental Paint Damage .................... 8-44
Exterior Care ........................................................................... 8-46
Interior Care ............................................................................ 8-49
8-1
Mazda MPV_8U61-EA-05G_Edition1 Page261
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (262,1)

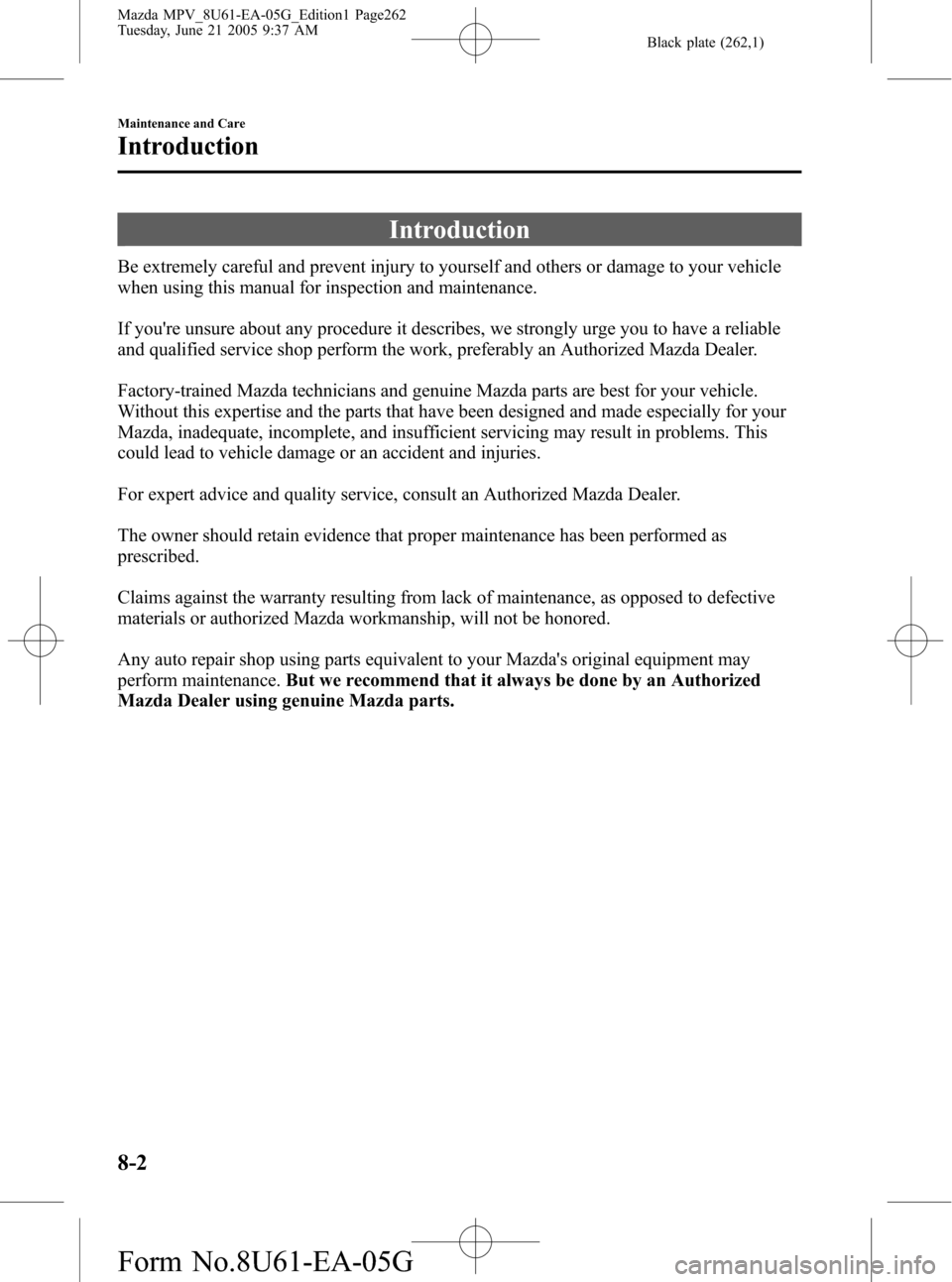

Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you're unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance.But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
8-2
Maintenance and Care
Introduction
Mazda MPV_8U61-EA-05G_Edition1 Page262
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (263,1)
Scheduled Maintenance
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).
lRepeated short-distance driving
lDriving in dusty conditions
lDriving with extended use of brakes
lDriving in areas where salt or other corrosive materials are being used
lDriving on rough or muddy roads
lExtended periods of idling or low-speed operation
lDriving for long periods in cold temperatures or extremely humid climates
lTowing a trailer
NOTE
After the prescribed period, continue to follow the described maintenance at the
recommended intervals.
Maintenance and Care
Scheduled Maintenance
8-3
Mazda MPV_8U61-EA-05G_Edition1 Page263
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (264,1)
qSchedule 1
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
ENGINE
Engine oilRRRRRRRR
Engine oil filterRRRRRRRR
Drive belts I I
PCV valve
*1I
IGNITION SYSTEM
Spark plugs (Platinum tipped type) Replace every 160,000 km (100,000 miles)
FUEL SYSTEM
Air filter R
Fuel lines and hoses
*1II
COOLING SYSTEM
Cooling system I I
Engine coolantFL22 type
*2Replace at first 192,000 km (120,000 miles) or 120 months;
after that, every 96,000 km (60,000 miles) or 60 months
OthersReplace at first 96,000 km (60,000 miles) or 48 months ;
after that, every 24 months
CHASSIS and BODY
Brake lines, hoses and connections I I
Disc brakesIIII
Drum brakes I I
Tire (rotation) Rotate every 12,000 km (7,500 miles)
Steering operation and linkages I I
Front suspension ball joints I I
Driveshaft dust boots I I
Exhaust system and heat shields Inspect every 72,000 km (45,000 miles) or 60 months
All locks and hingesLLLLLLLL
8-4
Maintenance and Care
Scheduled Maintenance
Mazda MPV_8U61-EA-05G_Edition1 Page264
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G
