2006 MAZDA MODEL MPV Owners Manual (in English)

Black plate (225,1)
With moonroof
Switch
PositionFront Overhead Lights
Light off
lLight on when any door or the
liftgate is open
l(With illuminated entry system)
Light on or off when the
illuminated entry system is on
Rear
Switch
PositionRear Overhead Lights
Light off
lLight on when any door or the
liftgate is open
l(With illuminated entry system)
Light on or off when the
illuminated entry system is on
Light on
qMap Lights
The map lights are switched on or off by
pressing the switches.
Without moonroof (with overhead
console)
Map light
Without moonroof (without overhead
console)
Map light
Map light
Interior Comfort
Interior Equipment
6-47
Mazda MPV_8U61-EA-05G_Edition1 Page225
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (226,1)
With moonroof
Map light
Map light
qLuggage Compartment Light
Switch
PositionLuggage Compartment Light
Light off
lLight on when any door or the
liftgate is open
l(With illuminated entry system)
Light on or off when the
illuminated entry system is on
qCourtesy Lights
Turns on when any door is open or the
illuminated entry system is on.
Courtesy
Light
6-48
Interior Comfort
Interior Equipment
Mazda MPV_8U61-EA-05G_Edition1 Page226
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (227,1)
Lighterí
The ignition switch must be in the ACC
or ON position.
Press the lighter in and release it. When
ready for use, it automatically pops out.
CAUTION
lDon't touch the metal part of the
lighter, you may burn yourself.
lDon't hold the lighter in because it
will overheat.
lDon't use the lighter socket for plug-
in accessories such as shavers and
coffee pots. They may damage it or
cause electrical failure. Use only a
genuine Mazda lighter or the
equivalent.
lIf the lighter doesn't pop out within
30 seconds, remove it to prevent
overheating.
Ashtrayí
CAUTION
Don't use the ashtray for trash. You
might start a fire.
qFront
To open, pull the tray out and open the
cover.
To remove, open and pull up the ashtray.
Interior Comfort
Interior Equipment
6-49íSome models. Mazda MPV_8U61-EA-05G_Edition1 Page227
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (228,1)
qRear
WARNING
Using Ashtray Removed from its
Fixed Position:
Using an ashtray removed from its
fixed position or not completely
inserted is dangerous. Cigarettes could
roll around or spill out of the ashtray
into the vehicle and start a fire.
Moreover, cigarette stubs will not
extinguish themselves completely even
if the ashtray lid is closed. Only use a
rear ashtray in its fixed position, and
make sure it is completely inserted.
Type A
To remove, open the cover and pull the
ashtray upward.
Type B
To remove, open and push down on the
lock spring.
6-50
Interior Comfort
Interior Equipment
Mazda MPV_8U61-EA-05G_Edition1 Page228
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (229,1)
Cup Holder
WARNING
Using Cup Holder:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded. Never use a cup
holder to hold hot liquids while the
vehicle is moving.
Don't Put Anything Other Than Cups
or Drink cans in Cup Holder:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
Using Cup Holder as Ashtray:
Using a cup holder as an ashtray is
dangerous because it could cause a
fire or damage the cup holder.
Be sure the removable ashtray is in
place before smoking and never use
the cup holder as an ashtray.
CAUTION
To reduce the possibility of injury in an
accident or a sudden stop, keep cup
holders closed when not in use.
NOTE
Replacement ashtrays are available
from an Authorized Mazda Dealer if
they are missing.
qFront
To use, pull the tray out.
qRear
Second seat (Passenger seat only)
The cup holder is located on the outboard
side of the right second-row seats. To use
the cup holder, pull it out.
Interior Comfort
Interior Equipment
6-51
Mazda MPV_8U61-EA-05G_Edition1 Page229
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (230,1)

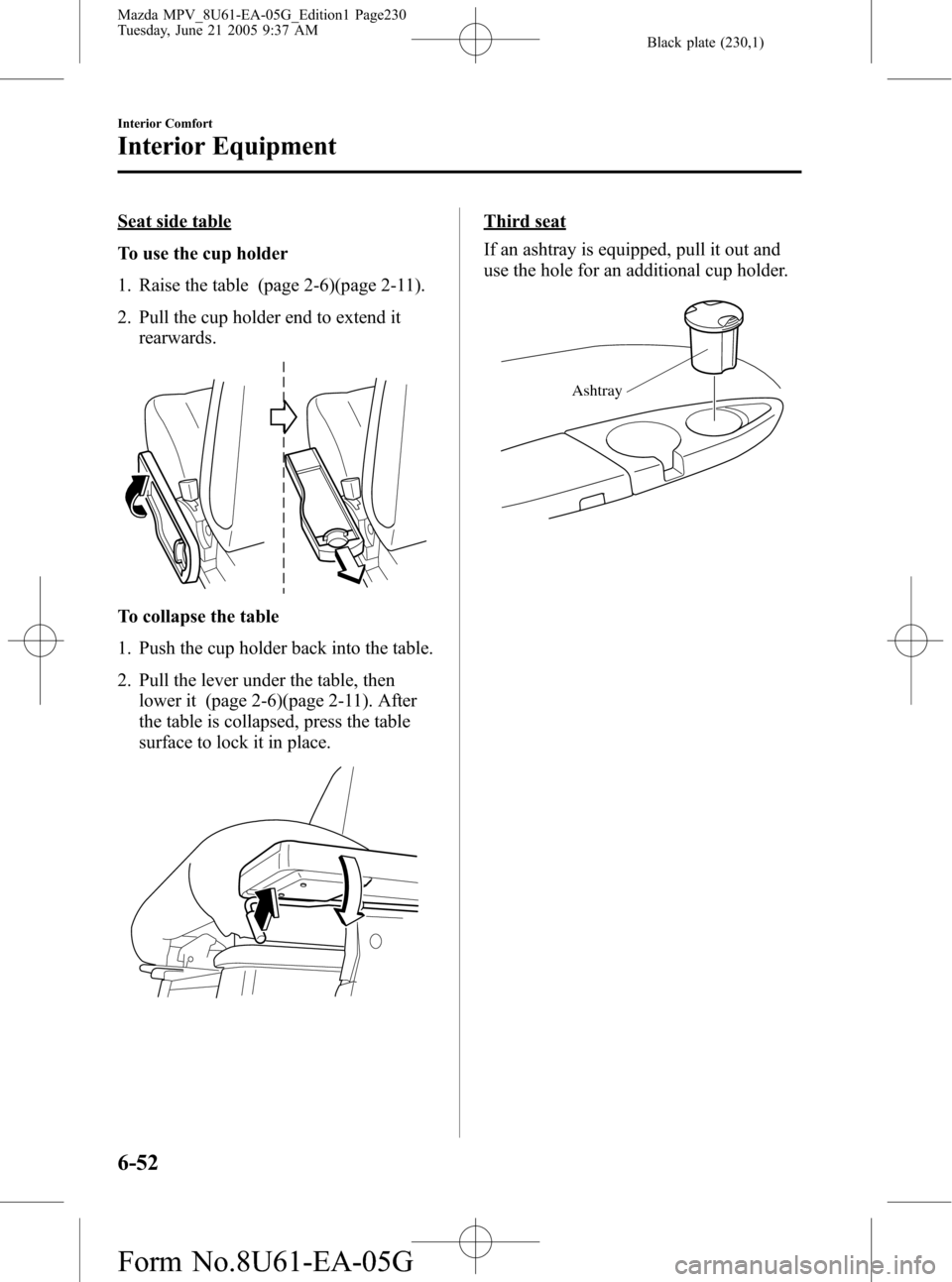

Seat side table
To use the cup holder
1. Raise the table (page 2-6)(page 2-11).
2. Pull the cup holder end to extend it
rearwards.
To collapse the table
1. Push the cup holder back into the table.
2. Pull the lever under the table, then
lower it (page 2-6)(page 2-11). After
the table is collapsed, press the table
surface to lock it in place.
Third seat
If an ashtray is equipped, pull it out and
use the hole for an additional cup holder.
Ashtray
6-52
Interior Comfort
Interior Equipment
Mazda MPV_8U61-EA-05G_Edition1 Page230
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (231,1)
Bottle Holder
Bottle holders are on the inside of the
sliding doors.
CAUTION
Don't use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
Storage Compartments
WARNING
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
CAUTION
Don't leave lighters or eyeglasses in the
storage boxes while parked under the
sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
qOverhead Consoleí
This console box is designed to store a
garage door opener or other accessories.
Push and release to open.
To store the garage door opener:
1. Open the console box.
2. Take out the urethane spacer.
Interior Comfort
Interior Equipment
6-53íSome models. Mazda MPV_8U61-EA-05G_Edition1 Page231
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G

Black plate (232,1)
3. Open the cap by pushing it from inside
the box.
Cap
4. Store the garage door opener by
adjusting the thickness with the
urethane spacers.
qEyeglass Holderí
Push the lid to open.
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the key and turn it clockwise to
lock, counterclockwise to unlock.
Unlock
Lock
qFront Console
Pull the latch to open.
6-54
Interior Comfort
íSome models.
Interior Equipment
Mazda MPV_8U61-EA-05G_Edition1 Page232
Tuesday, June 21 2005 9:37 AM
Form No.8U61-EA-05G
