2006 MAZDA MODEL MPV Owners Manual (in English)

Black plate (209,1)
MEMO
6-31
Mazda MPV_8U61-EA-05G_Edition1 Page209
Tuesday, June 21 2005 9:36 AM
Form No.8U61-EA-05G

Black plate (210,1)

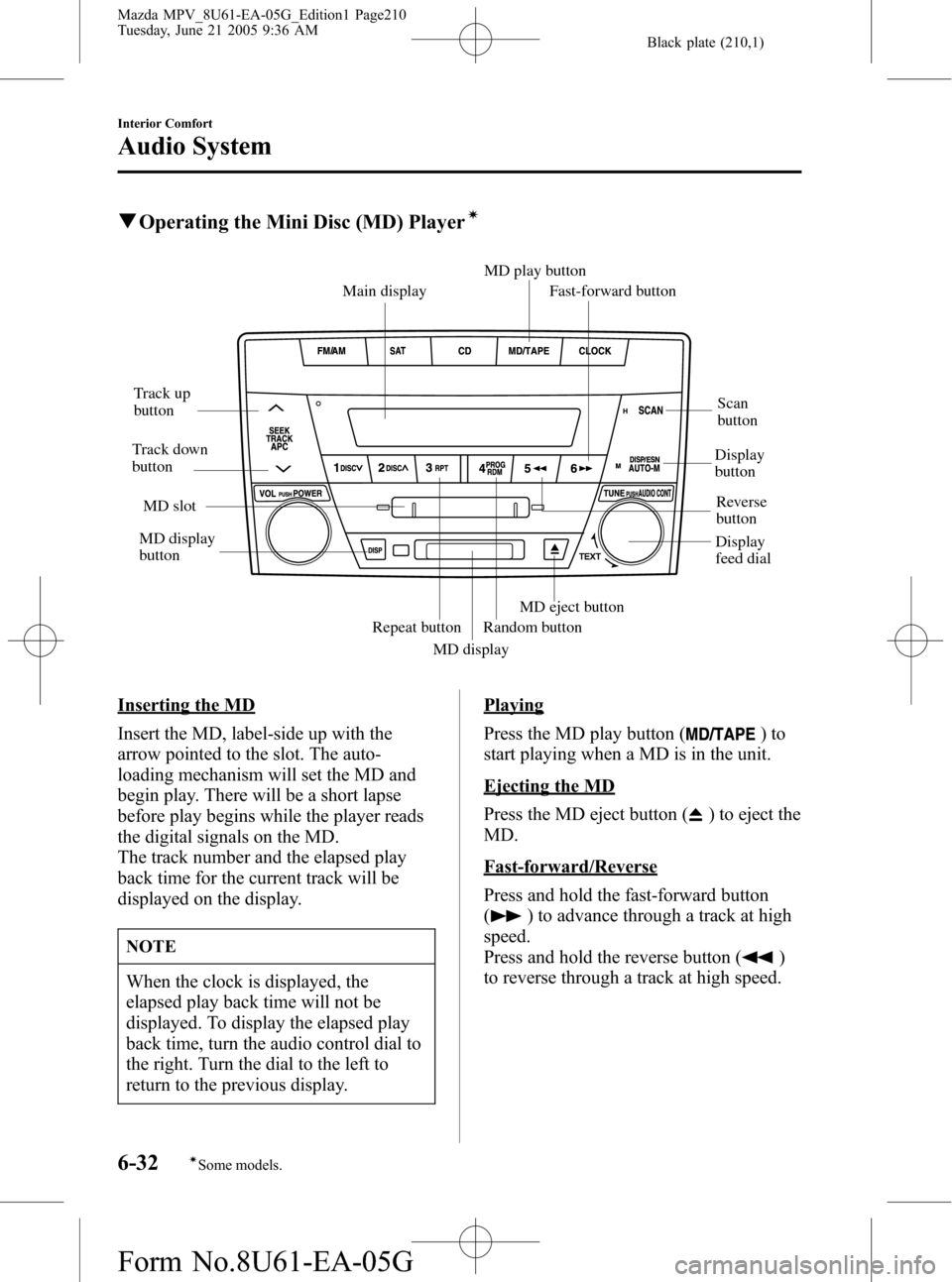

qOperating the Mini Disc (MD) Playerí
MD play button
Random button Repeat buttonFast-forward button
MD slot
MD eject button
MD display
Main display
Display
feed dial Display
buttonScan
button
Reverse
button
MD display
button Track down
buttonTrack up
button
Inserting the MD
Insert the MD, label-side up with the
arrow pointed to the slot. The auto-
loading mechanism will set the MD and
begin play. There will be a short lapse
before play begins while the player reads
the digital signals on the MD.
The track number and the elapsed play
back time for the current track will be
displayed on the display.
NOTE
When the clock is displayed, the
elapsed play back time will not be
displayed. To display the elapsed play
back time, turn the audio control dial to
the right. Turn the dial to the left to
return to the previous display.
Playing
Press the MD play button (
)to
start playing when a MD is in the unit.
Ejecting the MD
Press the MD eject button (
) to eject the
MD.
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
6-32
Interior Comfort
íSome models.
Audio System
Mazda MPV_8U61-EA-05G_Edition1 Page210
Tuesday, June 21 2005 9:36 AM
Form No.8U61-EA-05G

Black plate (211,1)
Track search
Press the track up button (
) once to
skip forward to the beginning of the next
track.
Press the track down button (
) once to
skip back to the beginning of the current
track.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button (
) during play
to start scan play operation (the track
number will flash).
Press the scan button (
) once again
to cancel scan play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button (
) during play.
The current selection will be repeated
(“RPT”will be displayed).
Press the repeat button (
) once again
to cancel repeat play.
Random play
This feature allows the MD player to
randomly select the order of the songs.
Press the random button (
) during
play. The next selection will be randomly
selected (“RDM”will be displayed).
Press the random button (
) once
again to cancel random play.
Changing the display
Display
To change the display during MD play,
press the display button (
) to advance
through each of the following displays:
Track number/Elapsed play back
time→Song title→Disc title.
NOTE
lIf there is no song or disc title
recorded on the MD,“No TITLE”
will be displayed.
lThe display can only display English
(including numerals) one-byte
characters. If any other character is
included“No TITLE”will be
displayed.
When long disc or song titles cannot be
completely displayed, rotate the display
feed dial (
) to the right.
The remainder of the title will proceed
and appear on the display to the end of the
title.
MD display
To change the MD display during MD
play, press and hold the MD display
button (
) for about half a second to
advance through each of the following
displays:
Song title→Disc title→No display.
NOTE
If there is no song or disc title recorded
on the MD,“No TITLE”will be
displayed.
Interior Comfort
Audio System
6-33
Mazda MPV_8U61-EA-05G_Edition1 Page211
Tuesday, June 21 2005 9:36 AM
Form No.8U61-EA-05G

Black plate (212,1)
When long disc or song titles cannot be
completely displayed, press the MD
display button (
) to display the
remaining part of the title.
6-34
Interior Comfort
Audio System
Mazda MPV_8U61-EA-05G_Edition1 Page212
Tuesday, June 21 2005 9:36 AM
Form No.8U61-EA-05G

Black plate (213,1)
MEMO
6-35
Mazda MPV_8U61-EA-05G_Edition1 Page213
Tuesday, June 21 2005 9:36 AM
Form No.8U61-EA-05G

Black plate (214,1)
qOperating the Compact Disc (CD) Playerí
Display CD slotCD play button CD eject button
Random button
Repeat buttonFast-forward buttonDisc-in indicator
Track up
button
Track down
buttonScan
button
Reverse
button
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play. There will be a short
lapse before play begins while the player
reads the digital signals on the CD.
The disc-in indicator will illuminate, and
the track number and the elapsed play
back time for the current track will be
displayed.
NOTE
When the clock is displayed, the
elapsed play back time will not be
displayed. To display the elapsed play
back time, turn the audio control dial to
the right. Turn the dial to the left to
return to the previous display.
Playing
Press the CD play button (
) to start
playing when a CD is in the unit.
Ejecting the CD
Press the CD eject button (
) to eject the
CD.
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
6-36
Interior Comfort
íSome models.
Audio System
Mazda MPV_8U61-EA-05G_Edition1 Page214
Tuesday, June 21 2005 9:36 AM
Form No.8U61-EA-05G

Black plate (215,1)
Track search
Press the track up button (
) once to
skip forward to the beginning of the next
track.
Press the track down button (
) once to
skip back to the beginning of the current
track.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button (
) during play
to start scan play operation (the track
number will flash).
Press the scan button (
) once again
to cancel scan play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button (
) during play.
The current selection will be repeated
(“RPT”will be displayed).
Press the repeat button (
) once again
to cancel repeat play.
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button (
) during
play. The next selection will be randomly
selected (“RDM”will be displayed).
Press the random button (
) once
again to cancel random play.
Interior Comfort
Audio System
6-37
Mazda MPV_8U61-EA-05G_Edition1 Page215
Tuesday, June 21 2005 9:36 AM
Form No.8U61-EA-05G

Black plate (216,1)
qOperating the In-Dash CD Changerí
CD eject button
Load button
Random button Repeat button
Disc up buttonReverse button
Power/Volume dial
DisplayCD slot
CD play button
Channel preset buttonsDisc-in indicator
Track up
button
Track down
button
Disc down
buttonScan
button
Fast-forward
button
Inserting the CD
The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play. There will
be a short lapse before play begins while
the player reads the digital signals on the
CD.
The disc number, the track number and
the elapsed play back time for the current
track will be displayed.NOTE
lWhen the clock is displayed, the
elapsed play back time will not be
displayed. To display the elapsed
play back time, turn the audio
control dial to the right. Turn the dial
to the left to return to the previous
display.
lA CD cannot be inserted while the
display reads“WAIT”. A beeping
sound can be heard during this
waiting time. Simultaneously
pressing the power/volume dial and
the load button (
) for about 2
seconds will turn this beeping sound
ON or OFF.
6-38
Interior Comfort
íSome models.
Audio System
Mazda MPV_8U61-EA-05G_Edition1 Page216
Tuesday, June 21 2005 9:36 AM
Form No.8U61-EA-05G
