IMPORTANT INFORMATION ABOUT YOUR LEXUS
vii
Tires and loading on your Lexus
Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of steering
ability and braking ability, leading to an accident.
Check the tire inflation pressure periodically and be
sure to keep the load limits given in this Owner’s
Manual. For details about tire inflation pressure and
load limits, see pages 570 and 489.
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your
Lexus contain explosive chemicals. If the vehicle is scrapped
with the airbags and seat belt pretensioners left as they are,
this may cause an accident such as fire. Be sure to have the
system of the SRS airbag and seat belt pretensioner removed
and disposed of by a qualified service shop or by your Lexus
dealer before you scrap your vehicle.
Onpavement and offroad driving tips
This vehicle belongs to the utility vehicle class. Utility vehicles
have a significantly higher rollover rate than other types of
vehicles. This vehicle will handle and maneuver differently
from an ordinary passenger car because it is designed for
off−road use also. In addition, this vehicle has a higher ground
clearance and center of gravity than that of an ordinary
passenger car. This vehicle design feature causes this type of
vehicle to be more likely to rollover. Failure to operate this
vehicle correctly may result in loss of control, accidents or
vehicle rollover causing death or serious injury. Be sure to read
“Off −road vehicle precautions” on page 468 and “Off −road
driving precautions” on page 472.

HOW TO USE THIS MANUAL
ix
SECTION 4 — IN CASE OF AN EMERGENCY
This Section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occurs, check the contents of this
Owner’s Manual and follow the instructions given.
SECTION 5 — MAINTENANCE
This Section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 — SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.
INDEX
The page number is listed for each item in the Owner ’s Manual
so that you can rapidly find the item and page you are
searching for.
GAS STATION INFORMATION
The information you need to know for appropriate servicing at
the gas station is provided here.
QUICK INDEX
This is designed so that you can quickly find the needed
information when an urgent situation arises.
Your Lexus Owner’s Manual provides you with a
considerable amount of information. To use this
information most effectively, please take the time to
familiarize yourself with the contents and use of the
manual.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
75
IF THIS INDICATOR OR
BUZZER COMES ON...
DO THIS.
(k)Replace bulb.
(l)Take vehicle to Lexus
dealer.
(m)Stop and check.
(n)Add washer fluid.
(o)Low fuel level
warning lightFill up tank.
(p)Take vehicle to Lexus
dealer.
IF THIS INDICATOR ORBUZZER COMES ON...DO THIS.
(q)
Adjust tire inflation
pressure.
If light remains,
contact Lexus dealer.
(r)Dynamic laser cruise
control master warning
light
Check condition
according to warning
code. If system
malfunctions, contact
Lexus dealer.
(s)Key reminder buzzerRemove key.
(t)Open moon roof
reminder buzzerClose moon roof.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
84
(o) Low Fuel Level Warning Light
This light comes on when the fuel level in the tank becomes
nearly empty. Fill the tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the low fuel level warning light may come on earlier than usual.
(p) Automatic Headlight Leveling System Warning Light (vehicles with discharge headlight only)
This light warns that when there is a problem somewhere in the
automatic headlight leveling system.
The light will come on when the ignition key is turned to the
“ON” position, and will go off after a few seconds.
If it comes on while driving, have your vehicle checked by your
Lexus dealer.
(q) Low Tire Pressure Warning Light
This light warns that tire inflation pressure is critically low. The
light comes on when the ignition key is turned to the “ON”
position. It goes off after a few seconds. This indicates that the
low tire pressure warning system is functioning properly. If the light comes on while driving, adjust tire inflation pressure
to the specified level. (See “Specifications” on page 564.)
Once the
ignition switch is turned off, the warning light also go
off. If the light comes on again when the vehicle is started after
adjusting the tire inflation pressure to the specified level, have
the low tire pressure warning system checked at your Lexus
dealer.
If the light blinks once every second, the low tire pressure
warning system may be malfunctioning. Have the system
checked at your Lexus dealer.
If the light blinks twice every second, the low tire pressure
warning system needs to be initialized. For details, see “Tire
pressure warning system” on page 462.
(r) Dynamic Laser Cruise Control Master Warning Light
This light warns that there is a problem somewhere in the
dynamic laser cruise control system.
The light will come on when the ignition key is turned to the
“ON” position and will go off after a few seconds.
When the light comes on, the alarm sounds and the warning
code will appear on the display. At this time, the dynamic laser
cruise control is cancelled. For details, see “Dynamic laser
cruise control” on page 416.

OCCUPANT RESTRAINT SYSTEMS
167
The front seat belt pretensioner system mainly consists of the
above components, and their locations are shown in the
illustration.
The front seat belt pretensioners are controlled by the airbag
sensor assembly. The airbag sensor assembly consists of a
safing sensor and airbag sensor.
When the front seat belt pretensioners are activated, an
operating
noise may be heard and a small amount of non −toxic
gas may be released. This does not indicate that a fire is
occurring. This gas is normally harmless.
Once the front seat belt pretensioners have been activated, the
seat belt retractors remain locked.
CAUTION
 Do not modify, remove, strike or open the seat belt
pretensioner assemblies, airbag sensor or
surrounding area or wiring. Failure to follow these
instruction may prevent the seat belt pretensioners
from activating correctly, cause sudden operation of
the system or disable the system, which could result
in death or serious injury. Consult your Lexus dealer
about any repair and modification.
 Do not modify or change the suspension system.
Such changes may cause the curtain shield airbags
to inflate accidentally, which could result in death or
serious injury . Consult your Lexus dealer about any
repair and modification.
 Do not use tires or wheels other than the
manufacture’s recommended size. Such a use may
cause the curtain shield airbags and seat belt
pretensioners to inflate accidentally, which could
result in death or serious injury. For details, see
“Checking and replacing tires” on page 585.
 Do not place luggage heavier than specified on the
roof luggage carrier. Such luggage may cause the
curtain shield airbags and seat belt pretensioners to
inflate accidentally, which could result in death or
serious injury. For details, see “Roof luggage
carrier” on page 136.

OCCUPANT RESTRAINT SYSTEMS
184

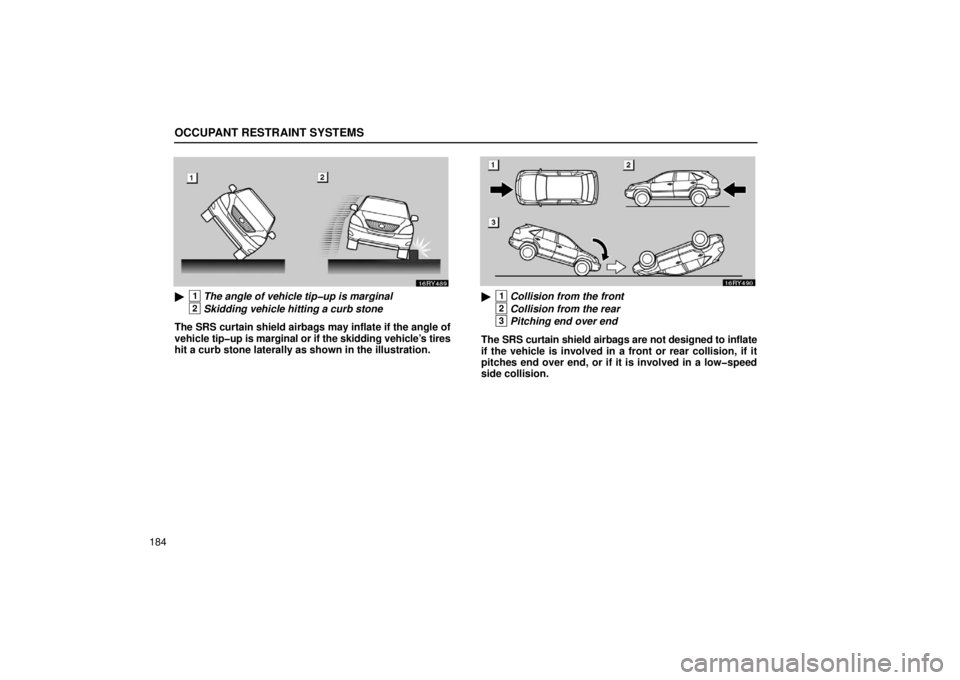

1The angle of vehicle tipup is marginal
2Skidding vehicle hitting a curb stone
The SRS curtain shield airbags may inflate if the angle of
vehicle tipup is marginal or if the skidding vehicle’s tires
hit a curb stone laterally as shown in the illustration.
1Collision from the front
2Collision from the rear
3Pitching end over end
The SRS curtain shield airbags are not designed to inflate
if the vehicle is involved in a front or rear collision, if it
pitches end over end, or if it is involved in a lowspeed
side collision.

OCCUPANT RESTRAINT SYSTEMS
189
Do not attach a microphone or any other device or
object around the area where the curtain shield
airbag activates such as on the windshield glass,
side door glass, front and rear pillars, roof side rail
and assist grips. When the curtain shield airbag
inflates, the microphone or other device or object will
be thrown away with great force or the curtain shield
airbag may not activate correctly, resulting in death
or serious injury.
 Do not hook a hanger , heavy or sharp pointed objects
on the coat hook. If the curtain shield airbag inflates,
those items will be thrown away with great force or
the curtain shield airbag may not activate correctly,
resulting in death or serious injury. When you hang
clothes, hang them on the coat hook directly.
 Do not use seat accessories which cover the parts
where the side airbags inflate. Such accessories may
prevent the side airbags from activating correctly,
causing death or serious injury.
 Do not modify or replace the seats or upholstery of
the seats with side airbags. Such changes may
prevent the side airbag system from activating
correctly, disable the system or cause the side
airbags to inflate accidentally, resulting in death or
serious injury.
 Do not disassemble or repair the front and rear pillars
and roof side rail containing the curtain shield
airbags. Such changes may disable the system or
cause the curtain shield airbags to inflate
accidentally, resulting in death or serious injury.
 Do not modify or change the suspension system.
Such changes may cause the curtain shield airbags
to inflate accidentally, which could result in death or
serious injury . Consult your Lexus dealer about any
repair and modification.
 Do not use tires or wheels other than the
manufacture’s recommended size. Such a use may
cause the curtain shield airbags and seat belt
pretensioners to inflate accidentally, which could
result in death or serious injury. For details, see
“Checking and replacing tires” on page 585.

STARTING AND DRIVING
409
CAUTION
Never depend on the rear view monitor system
entirely when backing up. Always make sure your
intended path is clear.
Use caution just as you would when backing up any
vehicle.
 Never back up while looking only at the screen. The
image on the screen is different from actual
conditions. Depicted distances between objects and
flat surfaces will differ from actual distances. If you
back up while looking only at the screen, you may hit
a vehicle, a person or an object. When backing up, be
sure to check behind and all around the vehicle
visually and with mirrors before proceeding.
 Do not use the system when the back door is not
completely closed.
 If the back of the vehicle is hit, the position and
mounting angle of the camera may change. Be sure
to have the camera’s position and mounting angle
checked at your Lexus dealer.
 If the temperature changes rapidly , such as when hot
water is poured on the vehicle in cold weather, the
system may not operate normally.
 If the camera lens becomes dirty, it cannot transmit
a clear image. If water droplets, snow, or mud adhere
to the lens, rinse with water and wipe with a soft cloth.
If the lens is extremely dirty, wash it with a mild
cleanser and rinse.
 Use your own eyes to confirm the vehicle’s
surroundings, as the displayed image may become
faint or dark, and moving images will be distorted, or
not entirely visible when the outside temperature is
low. When backing up, be sure to check behind and
all around the vehicle visually and with mirror before
proceeding.
