2006 Lexus ES330 Basic Functions In Frequent Use / OWNER'S MANUAL (OM33703U)

FOREWORD
1
Congratulations on your selection of this Lexus.
In Lexus vehicles we have invested all our
engineering and
design resources; all the know
how we have gained in over 60 years of making
automobiles; the highest motivation of our most
talented employees; and our tradition of
incessant striving toward ever greater quality.
This Owner’s Manual explains the features of your new
Lexus. P lease read it and follow the instructions carefully
so that you can enjoy many years of safe motoring.
When it comes to service, remember that your
Lexus dealer knows your vehicle very well and is
interested in your complete satisfaction. Your
Lexus dealer will provide quality maintenance
and any other assistance you may require.
If there is not a Lexus dealer near you, please call
the following number:
U.S. OWNERS If you need emergency assistance for any reason,
please call the following number.
 When traveling in the U.S. mainland or Canada:
Lexus Roadside Assistance
Tollfree:180025LEXUS or 18002553987
 Hawaii:
Servco Automotive Roadside Assistance/Customer
Services
Tollfree:180025LEXUS or 18002553987
CANADIAN OWNERS  When traveling in Canada or the U.S. mainland: Lexus Roadside Assistance/Customer Service
Tollfree:180026LEXUS or 18002653987
Please leave this Owner’s Manual in this vehicle at the
time of resale. The next owner will need this information
also. All information and specifications in this manual
are current at the time of printing. However,
because of the Lexus policy of continual product
improvement, we reserve the right to make
changes at any time without notice.
Please note that this manual applies to all models and
explains all equipment, including options. Therefore, you
may find some explanations for equipment not installed
on your vehicle.
Please access our websites for further
information.
 The U.S. mainland www.lexus.com
 Hawaii www.servcolexus.com
 Canada www.lexus.ca

IMPORTANT INFORMATION ABOUT THIS MANUAL
2
IMPORTANT INFORMATION ABOUTTHIS MANUAL
Safety and vehicle damage warnings
In this manual you will see CAUTION and NOTICE warnings.
These are used in the following ways:
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in order
to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning is
ignored. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to
your Lexus and its equipment.
Safety symbol
In this manual, you will also see a circle with a slash through
it. This means “Do not”, “Do not do this”, or “Do not le\
t this
happen”.

IMPORTANT INFORMATION ABOUT YOUR LEXUS
3
IMPORTANT INFORMATIONABOUT YOUR LEXUS
Occupant restraint systems
Lexus encourages you and your family to take the time to read
Section 1 −6 of this Owner’s Manual carefully. In terms of
helping you understand how you can receive the maximum
benefit of the occupant restraint systems this vehicle provides,
Section 1 −6 of this Owner’s Manual is the most important
Section for you and your family to read.
Section 1− 6 describes the function and operation concerning
seats, seat belts, SRS airbags and child restraint systems of
this vehicle and some potential hazards you should be aware
of. These systems work together along with the overall
structure of this vehicle in order to provide occupant restraint
in the event of a crash. The effect of each system is enhanced
when it is used properly and together with other systems. No
single occupant restraint system can, by itself, provide you or
your family with the equal level of restraint which these
systems can provide when used together. That is why it is
important for you and your family to understand the purpose
and proper use of each of these systems and how they relate
to each other. The purpose of all occupant restraint s
ystems is to help reduce
the possibility of death or serious injury in the event of a
collision. None of these systems, either individually or
together, can ensure that there is no injury in the event of
collision. However, the more you know about these systems
and how to use them properly, the greater your chances
become of surviving an accident without death or serious
injury.
Seat belts provide the primary restraint to all occupants of the
vehicle, and every occupant of the vehicle should wear seat
belts properly at all times. Children should always be secured
in child restraint systems that are appropriate for their age and
size. SRS (Supplemental Restraint System) airbags are, as
their names imply, designed to work with, and be supplemental
to, seat belts and are not substitutes for them. SRS airbags
can be very effective in reducing the risk of head and chest
injuries by preventing contact of the head and chest with
interior portions of the vehicle.

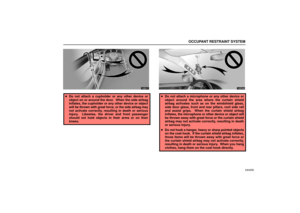

In order to be effective, the SRS airbags must deploy with
tremendous speed. The rapid deployment of the SRS airbags
makes the SRS airbags themselves potential sources of
serious injury if an occupant is too close to an airbag, or if an
object or some part of his or her body has been placed between
the occupant and the airbag at the time of deployment. This
is just one example of how the instructions in Section 1 −6 of
this Owner’s Manual will help ensure proper use of the
occupant restraint systems, and increase the safety they can
provide to you and your family in the event of an accident.

IMPORTANT INFORMATION ABOUT YOUR LEXUS
4Lexus recommends you to read
the provisions in Section 1−6
carefully and refer to them as needed during your time of
ownership of this vehicle.
Event data recorder
Your vehicle has computers that monitor and control certain
aspects of your vehicle. These computers assist in driving and
maintaining optimal vehicle performance. Besides storing
data useful for troubleshooting, there is a system to record data
in a crash or a near car crash event. This is called an Event
Data Recorder (EDR).
The SRS airbag sensor assembly contains the EDR. In a crash
or a near car crash event, this device may record some or all
of the following information:
 Engine speed
 Whether the brake pedal was applied or not
 Vehicle speed
 To what extent the accelerator pedal was depressed
 Position of the transmission selector lever
 Whether the driver and front passenger wore the seat belts
or not
 Driver’s seat position
 Front passenger’s occupant classification
 SRS airbag deployment data
 SRS airbag system diagnostic data If your vehicle is equipped with a vehicle stability control (VSC)
system,
its Electronic Control Unit (ECU) may contain another
EDR. There are a variety of driving situations which include
activating the VSC under which the VSC EDR will record
certain information. The VSC EDR may record some or all of
the following information:
 Behavior of the vehicle
 Steering wheel angle
 Vehicle speed
 To what extent the accelerator pedal was depressed
 To what extent the brake pedal was applied
 To what extent the ECU controlled the condition of the 4
wheels
 Vehicle stability control system diagnostic data
The information above is intended to be used for the purpose
of improving vehicle safety performance. Unlike general data
recorders, the EDR does not record sound data such as
conversation between passengers.
Lexus will not disclose the data recorded in an EDR to a third
party except when:
 An agreement from the vehicle’s owner (or the leasing
company for a leased vehicle) is obtained
 Officially requested by the police or other authorities
 Used as a defense for Lexus in a law suit
 Ordered by the court

IMPORTANT INFORMATION ABOUT YOUR LEXUS
5
However, if necessary Lexus will:

Use the data for research on Lexus vehicle safety
performance
 Disclose the data to a third party for research purposes
without disclosing details of the vehicle owner, and only
when it is deemed necessary
 Disclose summarized data cleared of vehicle identification
information to a non −Lexus organization for research
purposes
New vehicle warranty
Your new vehicle is covered by the following Lexus limited
warranties:
 New vehicle warranty
 Emission control systems warranty
 Others
For further information, please refer to the “Owner’s Guide”,
“Owner’s Manual Supplement” or “Warranty Booklet”.
Your responsibility for maintenance
It is the owner’s responsibility to make sure the specified
maintenance is performed. Section 5 of this Owner’s Manual
gives details of these maintenance requirements. Included in
Section 6 is general maintenance. For scheduled
maintenance information, please refer to the “Owner’s Manual
Supplement/Scheduled Maintenance”.
Important health and safety information about
your Lexus
CAUTION
 WARNING: Engine exhaust, some of its constituents,
and a wide variety of automobile components
contain or emit chemicals known to the State of
California to cause cancer and birth defects and
other reproductive harm. In addition, oils, fuels and
fluids contained in vehicles as well as waste
produced by component wear contain or emit
chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
 Battery posts, terminals and related accessories
contain lead and lead compounds. Wash your hands
after handling. Used engine oil contains chemicals
that have caused cancer in laboratory animals.
Always protect your skin by washing thoroughly with
soap and water.

IMPORTANT INFORMATION ABOUT YOUR LEXUS
6
Accessories, spare parts and modification of
your Lexus
A wide variety of non−genuine spare parts and accessories for
Lexus vehicles are currently available in the market. You
should know that Toyota does not warrant these products and
is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or adverse
effect they may have on, your Lexus vehicle.
This vehicle should not be modified with non −genuine Lexus
products. Modification with non −genuine Lexus products
could af fect its performance, safety or durability, and may even
violate governmental regulations. In addition, damage or
performance problems resulting f rom the modification may not
be covered under warranty.
Spark ignition system of your Lexus
The spark ignition system in your Lexus meets all requirements
of the Canadian Interference −Causing Equipment Standard.
Installation of a mobile twoway radio system
As the installation of a mobile two −way radio system in your
vehicle could affect electronic systems such as the multiport
fuel injection system/sequential multiport fuel injection system,
cruise control system, anti −lock brake system, SRS airbag
system and seat belt pretensioner system, be sure to check
with your Lexus dealer for precautionary measures or special
instructions regarding installation.
Tires and loading on your Lexus
Underinflated or overinflated tire pressure and the
excess load may result in the deterioration of steering
ability and braking ability, leading to an accident.
Check the tire inflation pressure periodically and be
sure to keep the load limits given in this Owner’s
Manual. For details about tire inflation pressure and
load limits, see pages ccclxix and ccxcvii.
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your
Lexus contain explosive chemicals. If the vehicle is scrapped
with the airbags and seat belt pretensioners left as they are,
this may cause an accident such as fire. Be sure to have the
systems of the SRS airbag and seat belt pretensioner removed
and disposed of by a qualified service shop or by your Lexus
dealer before you scrap your vehicle.

HOW TO USE THIS MANUAL
7
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly
on this page to help you make the best use of the
manual. Please read this page and the rest of the
Owner’s Manual carefully to make sure you fully
understand the operation of your vehicle.
This will help you enjoy safe and comfortable
driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION — QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 — INSTRUMENTS AND CONTROLS
The vehicle’s equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Occupant restraint systems 7. Steering wheel and mirrors
SECTION 2 — AIR CONDITIONING AND AUDIO
The features of the vehicle’s air conditioning and audio are
explained in detail. Be sure to r
ead this Section so that you can
make full use of them.
SECTION 3 — STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this Section, and remember — drive safely!
SECTION 4 — IN CASE OF AN EMERGENCY
This Section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire, etc.
If such a problem occurs, check the contents of this Owner’s
Manual and follow the instructions given.
SECTION 5 — MAINTENANCE
This Section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 — SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.

HOW TO USE THIS MANUAL
8
INDEX
The page number is listed for each item in the Owner’s Manual
so that you can rapidly find the item and page you are
searching for.
GAS STATION INFORMATION
The information you need to know for appropriate servicing at
the gas station is provided here.
QUICK INDEX
This is designed so that you can quickly find the needed
information when an urgent situation arises.
Your Lexus Owner’s Manual provides you with a
considerable amount of information. To use this
information most effectively, please take the time
to familiarize yourself with the contents and use
of the manual.
