2006 KIA Sportage window

Your vehicle at a glance22
1
2
3
4
5
6
7
8
9
EXTERIOR OVERVIEW
1. Door
2. Window
3. Sunroof (if equipped)
4. Wiper
5. Engine hood
6. Tire
7. Headlights
1KMA0001
KM CAN (ENG) 2.qxd 7/29/05 9:31 AM Page 2

Your vehicle at a glance42
1
2
3
4
5
6
7
8
9
INTERIOR OVERVIEW
1. Door lock/unlock button
2. Power window switches
3. Outside rearview mirror control switch(if equipped)
4. Hood release lever
5. Instrument panel illumination (if equipped)
6. Traction control system (if equipped) / Electronic stability program
(if equipped)
7. 4WD LOCK button (if equipped)
8. Steering wheel tilt
9. Brake pedal
10. Accelerator pedal
11. Seat
12. Parking brake lever
13. Fuel filler lid release lever
1KMB0004/1KMA2019A
KM CAN (ENG) 2.qxd 7/29/05 9:31 AM Page 4

375
1
2
3
4
5
6
7
8
9

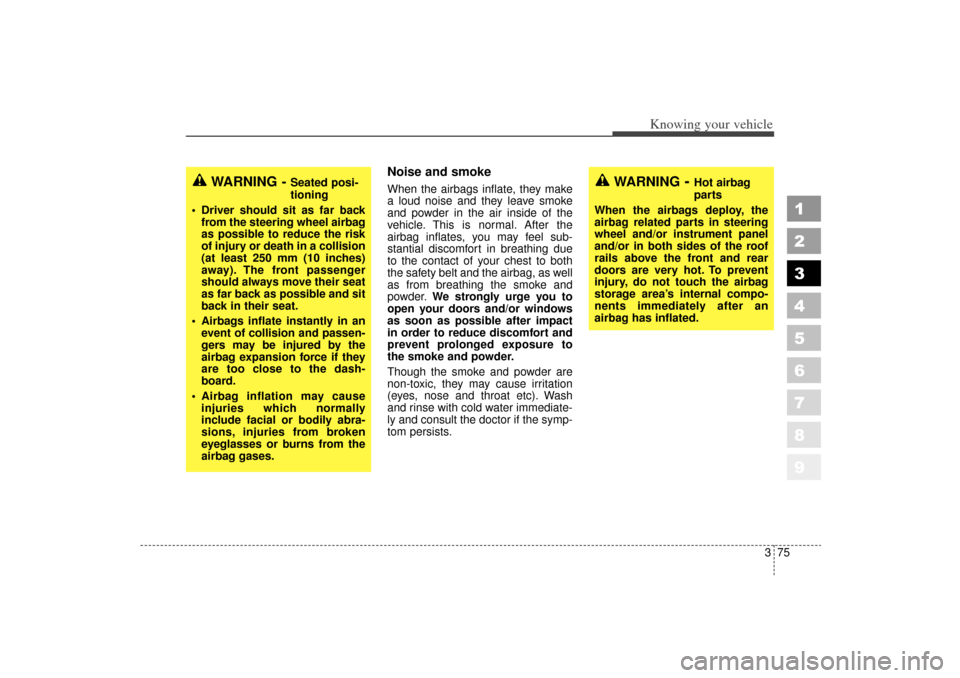

Knowing your vehicle
Noise and smokeWhen the airbags inflate, they make
a loud noise and they leave smoke
and powder in the air inside of the
vehicle. This is normal. After the
airbag inflates, you may feel sub-
stantial discomfort in breathing due
to the contact of your chest to both
the safety belt and the airbag, as well
as from breathing the smoke and
powder.We strongly urge you to
open your doors and/or windows
as soon as possible after impact
in order to reduce discomfort and
prevent prolonged exposure to
the smoke and powder.
Though the smoke and powder are
non-toxic, they may cause irritation
(eyes, nose and throat etc). Wash
and rinse with cold water immediate-
ly and consult the doctor if the symp-
tom persists.
WARNING -
Seated posi-
tioning
 Driver should sit as far back from the steering wheel airbag
as possible to reduce the risk
of injury or death in a collision
(at least 250 mm (10 inches)
away). The front passenger
should always move their seat
as far back as possible and sit
back in their seat.
 Airbags inflate instantly in an event of collision and passen-
gers may be injured by the
airbag expansion force if they
are too close to the dash-
board.
 Airbag inflation may cause injuries which normally
include facial or bodily abra-
sions, injuries from broken
eyeglasses or burns from the
airbag gases.
WARNING
- Hot airbag
parts
When the airbags deploy, the
airbag related parts in steering
wheel and/or instrument panel
and/or in both sides of the roof
rails above the front and rear
doors are very hot. To prevent
injury, do not touch the airbag
storage area’s internal compo-
nents immediately after an
airbag has inflated.
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 75

385
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Outside rearview mirror Be sure to adjust mirror angles
before driving.
Your vehicle is equipped with both
left-hand and right-hand outside
rearview mirrors. The mirrors can be
adjusted remotely with the control
levers or remote switch, depending
on the type of mirror control installed.
The mirror heads can be folded back
to prevent damage during an auto-
matic car wash or when passing in a
narrow street.
✽ ✽NOTICEDo not scrape ice off the mirror
face; this may damage the surface of
the glass. If ice should restrict move-
ment of the mirror, do not force the
mirror for adjustment. To remove
ice, use a deicer spray, or a sponge
or soft cloth with very warm water.
Manual remote control
(if equipped)
To adjust an outside mirror, move the
control lever located at the forward
inside area of the window frame.
MIRRORS
CAUTION -
Rearview mir-
rors
 The right outside rearview mirror is convex. Objects seen
in the mirror are closer than
they appear.
 Use your interior rearview mir- ror or direct observation to
determine the actual distance
of following vehicles when
changing lanes.
1KMB3081
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 85

387
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Outside rearview mirror heater
(if equipped)
The outside rearview mirror heater is
actuated in connection with the rear
window defroster. To heat the outside
rearview mirror glass, push the but-
ton for the rear window defroster.
The rearview mirror heater (and rear
window defroster) will not operate
unless the engine is running.
The outside rearview mirror glass will
be heated for defrosting or defogging
and will give you improved rear
vision in inclement weather condi-
tions. Push the button again to turn
the heater off. The outside rearview
mirror heater automatically turns off
after 20 minutes.
Day/night rearview mirror Adjust the rearview mirror to center
on the view through the rear window.
Make this adjustment before you
start driving.Manual type
Make this adjustment before you
start driving and while the day/night
lever is in the day position.
Pull the day/night lever toward you to
reduce glare from the headlights of
vehicles behind you during night
driving.
Remember that you lose some
rearview clarity in the night position.
CAUTION -
Rear visibility
Do not place objects in the rear
seat or cargo area which would
interfere with your vision out
the rear window.
1KMA2089
Day
Night
Day/Night lever
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 87

389
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Room lightFront (map light)
The lights are turned ON or OFF by
pressing the corresponding switch.Center (dome light)
➀
DOOR :
The light turns on or off when a
door is opened or closed.
The interior light goes out slowly if
the door is closed.
When a door is unlocked by the
transmitter, the interior light stays
on for 30 seconds as long as the
door is not opened.
➁
ON :
The light turns on and stays on
even when the doors are all
closed. Rear (dome light)
➀
OFF :
The light stays off even when the
rear hatch or rear hatch window
are open.
➁\f
DR :
The light turns on or off when the
rear hatch or rear hatch window
are opened or closed.
➂\f
ON :
The light turns on and stays on
even when the rear hatch or rear
hatch window are all closed.
INTERIOR LIGHTS
1KMA2122
1KMA2123
1KMA2121
➀
➁
➂
➀
➁
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 89

Knowing your vehicle90
3
1
2
3
4
5
6
7
8
9
Door courtesy lamp
(if equipped)The door courtesy lamp comes ON
when the door is opened to assist
entering or exiting the vehicle. It also
serves as a warning to passing vehi-
cles that the vehicle door is open.
Glove box lampThe glove box lamp comes ON when
the glove box is opened.
The parking lights or headlights must
be ON for the glove box lamp to func-
tion.
Cargo area lampThe cargo area lamp comes ON
when the rear hatch or rear hatch
window are opened.
1KMB5047
1KMB3086
1KMB3087
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 90

Knowing your vehicle96
3
1
2
3
4
5
6
7
8
9
Front
Cups or small beverage cans may be
placed in the cup holders. Rear
To use the cup holders in rear seat,
pull the rear cup holder cover (
➀)
out. Push the cover to close after
use.
✽ ✽ NOTICE Do not place heavy cups or cans in
cup holders. Cup holders could be
damaged.
 Be careful not to step on the rear cup holder.
SunvisorUse the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.
To use a sunvisor for a side window,
pull it downward, unsnap it from the
bracket (
➀) and swing it to the side.
Adjust the sunvisor forward or back-
ward.
To use the vanity mirror, pull down
the visor and pull up the mirror cover
(
➁).
1KMA2171
1KMB2170
➀
1KMN2158
➀
➁
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 96
