459
Driving your vehicle
1
2
3
4
5
6
7
8
9

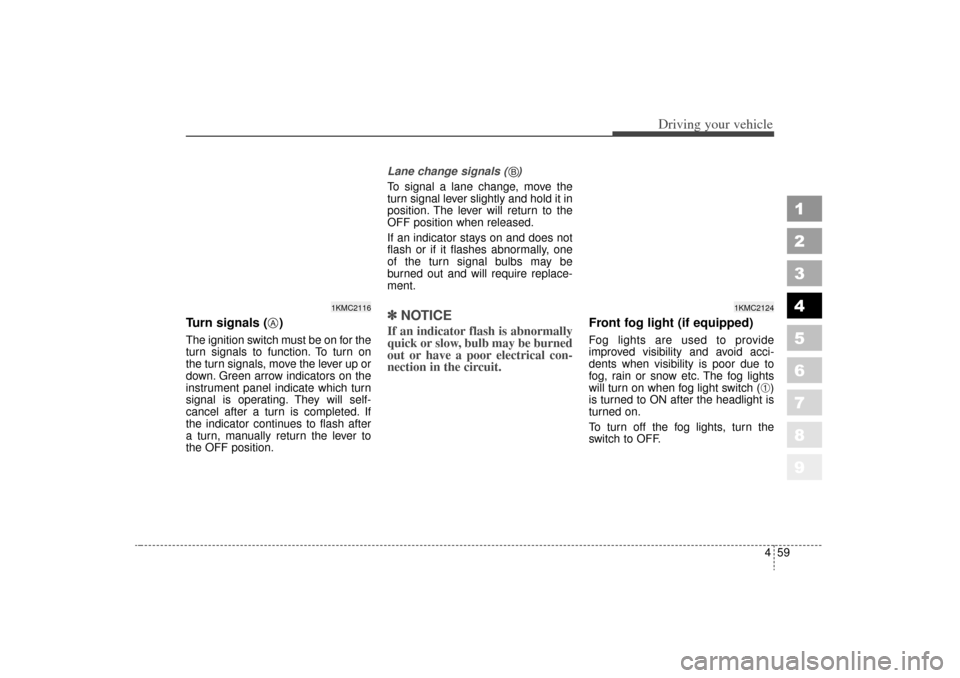

Turn signals ( )The ignition switch must be on for the
turn signals to function. To turn on
the turn signals, move the lever up or
down. Green arrow indicators on the
instrument panel indicate which turn
signal is operating. They will self-
cancel after a turn is completed. If
the indicator continues to flash after
a turn, manually return the lever to
the OFF position.Lane change signals ( )
To signal a lane change, move the
turn signal lever slightly and hold it in
position. The lever will return to the
OFF position when released.
If an indicator stays on and does not
flash or if it flashes abnormally, one
of the turn signal bulbs may be
burned out and will require replace-
ment.
✽ ✽
NOTICEIf an indicator flash is abnormally
quick or slow, bulb may be burned
out or have a poor electrical con-
nection in the circuit. Front fog light (if equipped)
Fog lights are used to provide
improved visibility and avoid acci-
dents when visibility is poor due to
fog, rain or snow etc. The fog lights
will turn on when fog light switch (
➀)
is turned to ON after the headlight is
turned on.
To turn off the fog lights, turn the
switch to OFF.
1KMC2116
A
1KMC2124
B
KM CAN (ENG) 4 new.qxd 7/29/05 9:35 AM Page 59
Specifications68
1
2
3
4
5
6
7
8
9

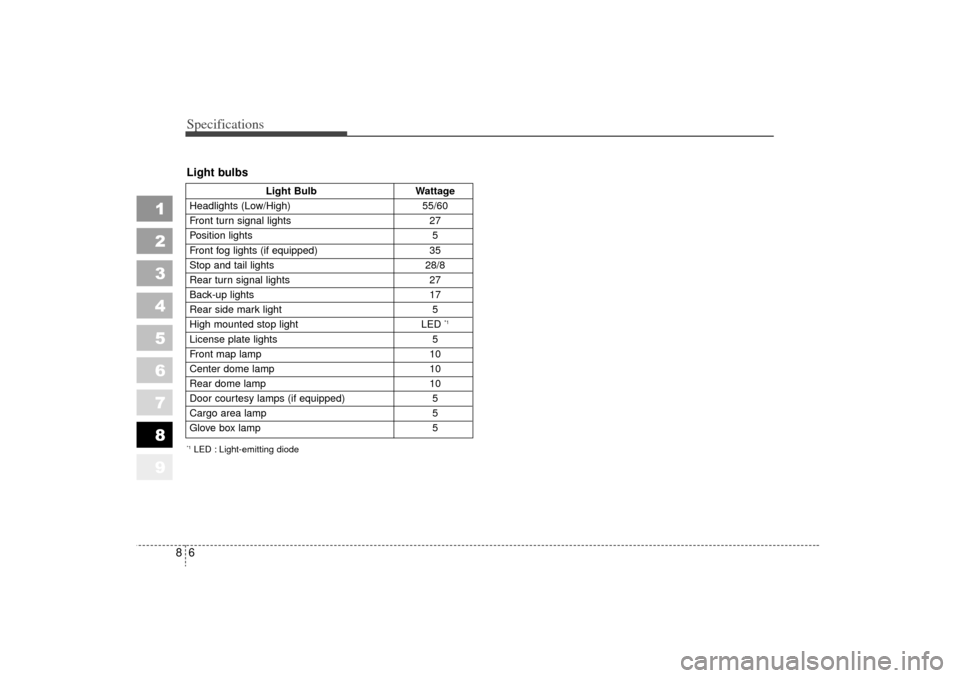

Light BulbWattage
Headlights (Low/High) 55/60
Front turn signal lights 27
Position lights 5
Front fog lights (if equipped) 35
Stop and tail lights 28/8
Rear turn signal lights 27
Back-up lights 17
Rear side mark light 5
High mounted stop light LED
*1
License plate lights 5
Front map lamp 10
Center dome lamp 10
Rear dome lamp 10
Door courtesy lamps (if equipped) 5
Cargo area lamp 5
Glove box lamp 5Light bulbs*1LED : Light-emitting diode
KM CAN (ENG) 8.qxd 7/29/05 9:43 AM Page 6
