Introduction21We want to help you get the greatest
possible driving pleasure from your vehi-
cle. Your Owner’s Manual can assist you
in many ways. We strongly recommend
that you read the entire manual. In order
to minimize the chance of death or injury,
you must read the WARNING and CAU-
TION sections spread throughout the
manual.
Illustrations complement the words in this
manual to best explain how to enjoy your
vehicle. By reading your manual, you
learn about features, important safety
information, and driving tips under vari-
ous road conditions.
The general layout of the manual is pro-
vided in the Table of Contents. A good
place to start is the index; it has an alpha-
betical listing of all information in your
manual.
Sections: This manual has seven sec-
tions plus an index. Each section begins
with a brief list of contents so you can tell
at a glance if that section has the infor-
mation you want.You’ll find various WARNING’s,
CAUTION’s, and NOTICE’s in this manu-
al. These were prepared to enhance your
personal safety. You should carefully read
and follow ALL procedures and recom-
mendations provided in these
WARNING’s, CAUTION’s and NOTICE’s.
✽ ✽

NOTICEA NOTICE indicates interesting or help-
ful information is being provided.
Your new Kia vehicle is designed to use
only unleaded fuel with a minimum
Octane Rating of 87 Anti-Knock Index
(AKI).
For improved vehicle performance, pre-
mium unleaded fuel with an octane rating
of AKI 91 or higher is recommended.
HOW TO USE THIS MANUAL
WARNING
A WARNING indicates a situation in
which harm, serious bodily injury or
death could result if the warning is
ignored.
CAUTION
A CAUTION indicates a situation in
which damage to your vehicle couldresult if the caution is ignored.
CAUTION
NEVER USE LEADED FUEL. The use of leaded fuel is detrimental tothe catalytic converter and will damage the engine control sys-tem’s oxygen sensor and affectemission control.
Never add any fuel system cleaningagents to the fuel tank other than what Kia has specified. (Consult anAuthorized Kia Dealer for details.)FUEL REQUIREMENTS

23
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Driver’s airbag ................................3-87
2. Light control / Turn signals ...........3-127
3. Instrument cluster.........................3-107
4. Wiper/Washer ...............................3-130
5. Auto cruise control* ........................4-11
6. Audio controls* .............................3-179
7. Steering wheel .............................3-100
8. Ignition switch ...................................4-3
9. Digital clock ..................................3-178
10. Climate control system* .............3-136
11. Hazard warning flasher switch ...3-135
12. Seat warmer* ...............................3-44
13. Shift lever .......................................4-5
14. Cigar lighter* ..............................3-173
15. Power outlet................................3-177
16. Ashtray* ......................................3-173
17. Passenger’s airbag .......................3-88
18. Storage compartment.................3-169
19. Vent controls ...............................3-140
20. Glove box ...................................3-171
21. Sunglass holder .........................3-172
22. Sunvisor .....................................3-176
23. Power sliding door and power tailgate controls* ...........................3-17
24. Sunroof* .......................................3-33
25. Conversation mirror ....................3-106
26. Trip computer* ............................3-111
27. Day/night rearview mirror ...........3-105
* : if equipped
OVQ026002N

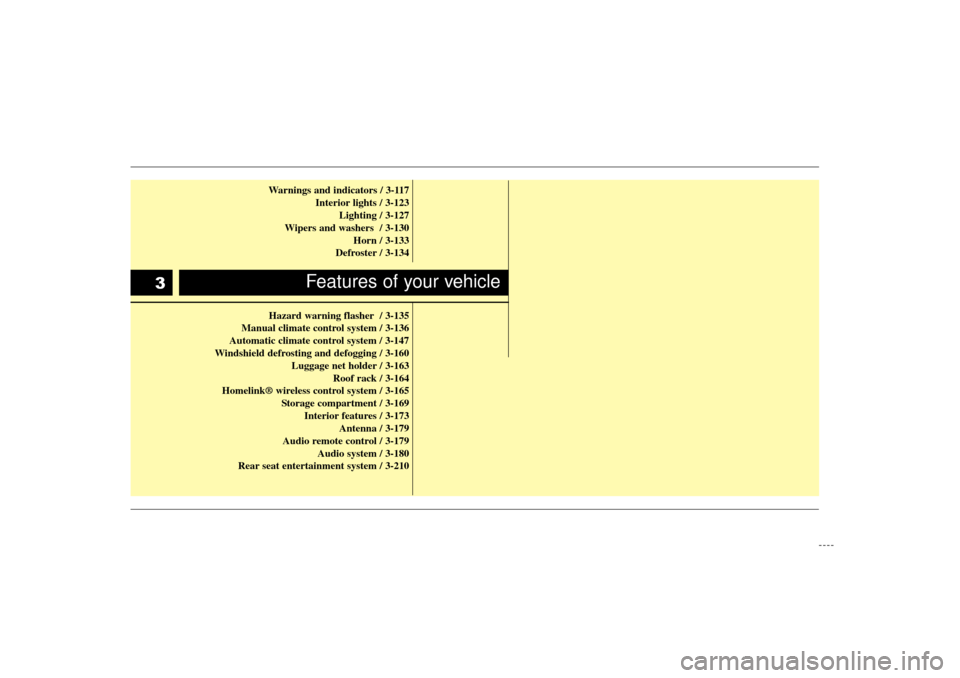

Warnings and indicators / 3-117Interior lights / 3-123Lighting / 3-127
Wipers and washers / 3-130 Horn / 3-133
Defroster / 3-134
Hazard warning flasher / 3-135
Manual climate control system / 3-136
Automatic climate control system / 3-147
Windshield defrosting and defogging / 3-160 Luggage net holder / 3-163Roof rack / 3-164
Homelink® wireless control system / 3-165 Storage compartment / 3-169Interior features / 3-173 Antenna / 3-179
Audio remote control / 3-179 Audio system / 3-180
Rear seat entertainment system / 3-210
Features of your vehicle
3

33
Features of your vehicle
The key code number is stamped on the
plate attached to the key set. Should you
lose your keys, this number will enable
an authorized Kia Dealer to duplicate the
keys easily. Remove the plate and store it
in a safe place. Also, record the code
number and keep it in a safe and handy
place, but not in the vehicle.
Key operationsMaster keyUsed to start the engine, lock and unlock
the doors, lock and unlock the glove box
and center console storage (if equipped).
KEYS
WARNING
- Ignition key
Leaving children unattended in a
vehicle with the ignition key is dan-
gerous even if the key is not in the
ignition. Children copy adults and
they could place the key in the igni-
tion. The ignition key would enable
children to operate power windows
or other controls, or even make the
vehicle move, which could result in
serious bodily injury or even death.
Never leave the keys in your vehicle
with unsupervised children.
1VQA2001
WARNING
Use only Kia original parts for the
ignition key in your vehicle. If an
aftermarket key is used, the ignition
switch may not return to ON after
START. If this happens, the starter
will continue to operate causing
damage to the starter motor and
possible fire due to excessive cur-
rent in the wiring.

Features of your vehicle43
(1) Lock ( )All doors are locked if the lock button
is pressed.
If all doors and engine hood are
closed, the hazard warning lights
blink once to indicate that all doors
are locked. However, if any door or
engine hood remains open, the haz-
ard warning lights are not operated.
After this, if all door and engine hood
are closed, the hazard warning lights
blink.
(2) Unlock ( ) Driver's door is unlocked if the unlock
button is pressed once.
The hazard warning lights will blink
twice to indicate that the driver's door
is unlocked.
All doors are unlocked if the unlock
button is pressed twice within 3 sec-
onds.
The hazard warning lights will blink
twice again to indicate that all doors
are unlocked.
After depressing this button, the
doors will be locked automatically
unless you open any door within 30
seconds. (3) Power tailgate opening or closing
( , if equipped)
The tailgate is opened or closed
automatically if the button is pressed.
The hazard warning lights will blink
and the chime will sound 3 times to
indicate that the tailgate will swing
upward or downward.
(4) Left power sliding door opening or closing ( , if equipped)
The left sliding door is opened or
closed automatically if the button is
pressed.
(5) Right power sliding door opening or closing ( , if equipped)
The right sliding door is opened or
closed automatically if the button is
pressed.
REMOTE KEYLESS ENTRY (IF EQUIPPED)
1VQA2002B1VQA2002A1VQA2002
Type B Type A
Type C

35
Features of your vehicle
✽
✽NOTICEThe power sliding door and power tail-
gate are not opened by pressing the cor-
responding button on the transmitter
directly when all power sliding doors
and power tailgate are locked and
closed. To open the power sliding door
or power tailgate from outside vehicle,
press the unlock button first and press
corresponding power sliding door or
power tailgate opening button.(6) Alarm ( )
The horn sounds and hazard warning
lights flash for about 27 seconds if
this button is pressed. To stop the
horn and lights, press any button on
the transmitter.
✽ ✽NOTICEThe transmitter will not work if any of
following occur:
• The ignition key is in ignition switch.
• You exceed the operating distance
limit (about 30 m [90 feet]).
• The battery in the transmitter is weak.
• Other vehicles or objects may be blocking the signal.
• The weather is extremely cold.
• The transmitter is close to a radio transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
When the transmitter does not work
correctly, open and close the door with
the ignition key. If you have a problem
with the transmitter, contact an autho-
rized Kia Dealer.
Operational distance may vary depend-
ing upon the area the transmitter is used
in. For example, if the vehicle is parked
near police stations, government and
public offices, broadcasting stations, mil-
itary installations, airports, or transmit-
ting towers, etc.
CAUTION
The power doors can be operated
when the engine is not running.However, the power doors consumelarge amounts of vehicle electricpower. To prevent the battery frombeing discharged, do not operatethem consecutively (more thanapproximately 10 times).
CAUTION
Keep the transmitter away fromwater or any liquid. If the keyless entry system is inoperative due toexposure to water or liquids, it will not be covered by your manufactur-er vehicle warranty.

Features of your vehicle63This device complies with Industry
Canada Standard RSS-210.Operation
is subject to the following two conditions:
1. This device may not cause interfer- ence, and
2. This device must accept any interfer- ence, including interference that may
cause undesired operation of the
device.
Battery replacementTransmitter uses a 3 volt lithium battery
which will normally last for several years.
When replacement is necessary, use the
following procedure.
1. Insert a slim tool into the slot and gen-tly pry open the transmitter center
cover (1).
2. Replace the battery with new one. When replacing the battery, make sure
the battery positive “+” symbol faces
up as indicated in the illustration.
3. Install the battery in the reverse order of removal.
For replacement transmitters, see an
Authorized Kia Dealer for reprogram-
ming.
CAUTION
The keyless entry system transmit- ter is designed to give you years of trouble-free use, however it canmalfunction if exposed to moisture or static electricity. If you areunsure how to use your transmitteror replace the battery, contact an authorized Kia dealer.
CAUTION
• Using the wrong battery can cause the transmitter to malfunc-tion. Be sure to use the correct battery.
 To avoid damaging the transmit- ter, don't drop it, get it wet, orexpose it to heat or sunlight.
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
1VQA2003

37
Features of your vehicle
This system is designed to provide pro-
tection from unauthorized entry into the
car. This system is operated in three
stages: the first is the "Armed" stage, the
second is the "Theft-alarm" stage, and
the third is the "Disarmed" stage. If trig-
gered, the system provides an audible
alarm with blinking of the hazard warning
lights.
Armed stagePark the car and stop the engine. Arm
the system as described below.
1. Remove the ignition key from the igni-tion switch.
2. Make sure that all doors, the engine hood and tailgate are closed and
latched.
3. Lock the doors using the transmitter of the keyless entry system.
After completion of the steps above, the
hazard warning lights will blink once to
indicate that the system is armed.
If any door, tailgate or engine hood
remains open, the hazard warning lights
won’t operate and theft-alarm will not
arm. After this, if all doors, tailgate and
engine hood are closed, the hazard
warning lights blink once.
The system can be armed by locking the
doors with the key from the front doors or
tailgate. However, the hazard warning
lights are not operated.  If any door, tailgate or engine hood
remains open, the system will not
be armed. If this happens, re-arm
the system as described previous.
 Do not arm the system until all pas- sengers have left the vehicle. If the
system is armed while a passen-
ger(s) remains in the vehicle, the
alarm may be activated when the
remaining passenger(s) leave the
vehicle. If any door, tailgate or
engine hood is opened within 30
seconds after entering the armed
stage, the system is disarmed to
prevent unnecessary alarm.
THEFT-ALARM SYSTEM (IF EQUIPPED)
Armed
stage
Theft-alarm stage
Disarmedstage
