Features of your vehicle83Theft-alarm stageThe alarm will be activated if any of the
following occurs while the system is
armed.
 A front or rear door is opened withoutusing the ignition key or transmitter.
 The tailgate is opened without using the ignition key or transmitter.
 The engine hood is opened.
The siren will sound and the hazard
warning lights will blink continuously for
27 seconds, and repeat the alarm 3
times unless the system is disarmed. To
turn off the system, unlock the doors with
the ignition key or transmitter.✽ ✽ NOTICEAvoid trying to start the engine while
the alarm is activated. The vehicle start-
ing motor is disabled during the theft-
alarm stage.
Disarmed stageThe system will be disarmed when the
doors are unlocked by depressing the
unlock button on the transmitter or
unlocked with the ignition key.
After depressing unlock button, the haz-
ard warning lights will blink twice to indi-
cate that the system is disarmed.
After depressing unlock button, if any
door is not opened within 30 seconds,
the system will be rearmed.
If the system is not disarmed with the
ignition key or transmitter, insert the key
in the ignition switch, turn the key to the
ON position and wait for 30 seconds.
Then the system will be disarmed.

Features of your vehicle10

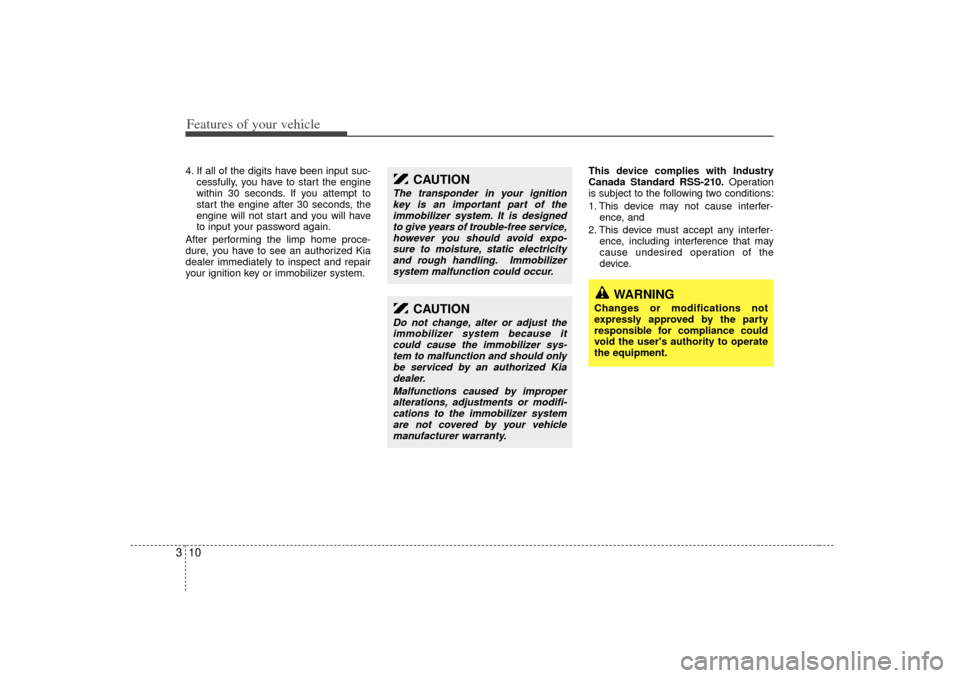

34. If all of the digits have been input suc-
cessfully, you have to start the engine
within 30 seconds. If you attempt to
start the engine after 30 seconds, the
engine will not start and you will have
to input your password again.
After performing the limp home proce-
dure, you have to see an authorized Kia
dealer immediately to inspect and repair
your ignition key or immobilizer system. This device complies with Industry
Canada Standard RSS-210.
Operation
is subject to the following two conditions:
1. This device may not cause interfer- ence, and
2. This device must accept any interfer- ence, including interference that may
cause undesired operation of the
device.
CAUTION
The transponder in your ignitionkey is an important part of the immobilizer system. It is designedto give years of trouble-free service,however you should avoid expo- sure to moisture, static electricityand rough handling. Immobilizer system malfunction could occur.
CAUTION
Do not change, alter or adjust theimmobilizer system because itcould cause the immobilizer sys- tem to malfunction and should onlybe serviced by an authorized Kia dealer.
Malfunctions caused by improperalterations, adjustments or modifi- cations to the immobilizer systemare not covered by your vehicle manufacturer warranty.
WARNING
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.

Features of your vehicle12
3
To lock a door without the key, push the
inside door lock button (1) or door lock
switch (2) to the “Lock” position and close
the door (3).
✽ ✽
NOTICEIf the door is locked/unlocked multiple
times in rapid succession with either the
vehicle key or door lock switch, the sys-
tem may stop operating temporarily in
order to protect the circuit and prevent
damage to system components.
WARNING
When the rear sliding door is not
fully open, it is not latched and may
move unintentionally. This could
result in a serious injury.
OVQ036001N1VQA2327
Front doorRear door
CAUTION
The left sliding door cannot be
opened when the fuel filler lid isopen. However, if the fuel filler lid isopened after the door is opened slightly, the left sliding door can beslide rearward. Close the left sliding door to prevent possible damage tothe door or the fuel filler lid.
WARNING
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.

313
Features of your vehicle
Operating door locks from inside
the vehicleWith the door lock button To unlock a door, pull the door lock but-ton (1) to the “Unlock” position. If the
door is unlocked, the red part (2) of the
button becomes visible.  To lock a door, push the door lock but-
ton (1) to the “Lock” position. If the door
is locked, red part (2) of the button
becomes invisible.
 To open a door, pull the door handle (3).
 If the inner door handle of the front door is pulled when the door lock but-
ton is in lock position, the button is
unlocked and door opens. (if equipped)
 Front doors cannot be locked if the ignition key is in the ignition switch and
door is open.
With central door lock switchThe central door locking switch is located
on the front door arm rest. It is operated
by depressing the door lock switch. If any
door is open when the switch is
depressed, the door will remain locked
when closed.
1VQA20071VQA2008
Front doorRear door
Lock
Unlock
Lock
Unlock
WARNING
- Door lock mal-function
If a power door lock ever fails to
function while you are in the vehi-
cle, try one or more of the following
techniques to exit:
 Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously
pulling on the door handle.
 Operate the other door locks and handles, front and rear.
 Lower a front window and use the key to unlock the door from out-
side.
OVQ026011N
Driver’s door

Features of your vehicle14
3 When pushing down on the front por-
tion (1) of the switch, all vehicle doors
will lock.
 When pushing down on the rear por- tion (2) of the switch, all vehicle doors
will unlock.
 However, if the key is in the ignition switch and any front door is open, the
doors will not lock when the front por-
tion of central door lock switch is
pressed.
1VQA2012
Passenger’s door
WARNING
- Unlocked
vehicles
Leaving your vehicle unlocked can
invite theft or possible harm to you
or others from someone hiding in
your vehicle while you are gone.
Always remove the ignition key,
engage the parking brake, close all
windows and lock all doors when
leaving your vehicle unattended.
WARNING
- Unattendedchildren
An enclosed vehicle can become
extremely hot, causing death or
severe injury to unattended chil-
dren or animals who cannot escape
the vehicle. Furthermore, children
might operate features of the vehi-
cle that could injure them, or they
could encounter other harm, possi-
bly from someone gaining entry to
the vehicle. Never leave children or
animals unattended in your vehicle.
WARNING -
Doors
 The doors should always be fully
closed and locked while the vehi-
cle is in motion to prevent acci-
dental opening of the door.
Locked doors will also discour-
age potential intruders when the
vehicle stops or slows.
 Be careful when opening doors and watch for vehicles, motorcy-
cles, bicycles or pedestrians
approaching the vehicle in the
path of the door. Opening a door
when something is approaching
can cause damage or injury.

315
Features of your vehicle
Child-protector rear door lockThe child safety lock is provided to help
prevent children from accidentally open-
ing the rear doors from inside the vehicle.
The rear door safety locks should be
used whenever children are in the vehi-
cle.
1. Open the rear door.
2. Push the child safety lock located onthe front edge of the door to the “Lock”
position. When the child safety lock is
in the “Lock ( )” position, rear door
will not open when the inner door han-
dle is pulled inside the vehicle or the
sub control button of the power sliding
door is pressed. 3. Close the rear door.
To open the rear door, pull the outside
door handle or push the main control but-
ton of the power sliding door.
Even though the doors may be unlocked,
the rear door will not open by pulling the
inner door handle or pushing the sub
control button until rear door child safety
lock is unlocked ( ).
TailgateOpening the tailgate Tailgate is locked or unlocked with a
key.
 If you lock the tailgate with a key, all doors will lock automatically.
 If you unlock the tailgate with a key, the the tailgate will unlock only.
 To open the tailgate, insert the key into the lock, turn it to the unlock position
and pull up the tailgate by pressing the
handle.
You can also lock/unlock the latch (but
not release it) with the central door lock
system.
 If unlocked, the tailgate can be opened by pressing the handle and pulling it
up.
WARNING
- Rear doorlocks
If children accidentally open the
rear doors while the vehicle is in
motion, they could fall out and be
severely injured or killed. To prevent
children from opening the rear
doors from the inside, the rear door
safety locks should be used when-
ever children are in the vehicle.
1VQA2013
Lock
Unlock
1VQA2009

Features of your vehicle16
3Closing the tailgateTo close the tailgate, lower and push
down the tailgate firmly. Make sure that
the tailgate is securely latched.
✽ ✽
NOTICEIn cold and wet climates door lock and
door mechanisms may not work proper-
ly due to freezing conditions.
1VQA2010
WARNING -
Tailgate
The tailgate swings upward. Make
sure no objects or people are near
the rear of the vehicle when open-
ing the tailgate.
CAUTION
Make certain that you close the tail-
gate before driving your vehicle. Possible damage may occur to thetailgate lift cylinders and attachinghardware if the tailgate is notclosed prior to driving.
WARNING
- Exhaust
fumes
If you drive with the tailgate open,
you will draw dangerous exhaust
fumes into your vehicle which can
cause serious injury or death to
vehicle occupants.
If you must drive with the tailgate
open, keep the air vents and all win-
dows open so that additional out-
side air comes into the vehicle.
WARNING
- Rear cargo
area
Occupants should never ride in the
rear cargo area where no restraints
are available. To avoid injury in the
event of an accident or sudden
stops, occupants should always be
properly restrained.

317
Features of your vehicle
(1) Left power sliding door main controlbutton
(2) Right power sliding door main control button
(3) Power tailgate main control button*
(4) Power ON/OFF button
(5) Left power sliding door sub control button
(6) Right power sliding door sub control button
(7) Power tailgate sub control button*
*: if equipped
The power sliding doors and power tail-
gate can be opened and closed automat-
ically with the transmitter key, the main
control buttons on the overhead console
or the sub control buttons on the center
pillar trim.
When the power ON/OFF button (PWR)
is OFF (not depressed), the power slid-
ing door and power tailgate can be
opened and closed manually by pulling
the door handles from inside or outside
vehicle.
✽ ✽ NOTICEIf the power sliding door or power tail-
gate is open approximately 6 hours, the
ECU will enter Sleep mode to conserve
battery power and the door or tailgate
might not close automatically. Close the
door or tailgate manually and then
operate the door or tailgate with the
power operating system.✽ ✽NOTICEIn cold and wet climates, power sliding
doors and tailgate may not work prop-
erly due to freezing conditions.✽ ✽NOTICEWhen the sliding doors are opened man-
ually (power OFF), more effort will be
required to open and close than on non-
power sliding doors.
POWER SLIDING DOOR AND POWER TAILGATE (IF EQUIPPED)
1VQA2014OVQ036002N1VQA2016
On the center pillar trimOn the tailgateOn the overhead console
WARNING
Never leave children or animals
unattended in your vehicle.
Children or animals might operate
the power sliding door or power
tailgate that could result in injury to
themselves or others or damage to
the vehicle.
