Knowing your vehicle
Power windows (if equipped)
The ignition switch must be in the ON
position for power windows to oper-
ate. Each door has a power window
switch that controls that door’s win-
dow. However, the driver has a power
window lock switch which can block
the operation of passenger windows.
If you notice buffeting and pulsation
(wind shock) with either side window
open, you should open the opposite
window slightly to reduce the condi-tion.
✽✽NOTICE
To prevent the power window sys-
tem from the possibility of damage,
do not open or close two windows at
the same time. This will also ensurethe longevity of the fuse.
Manual windows (if equipped)
Use the window crank to open and
close each window.
CAUTION
 Make sure heads and hands are safely out of the waybefore closing a window.
 Do not allow children to play with the power windows. Keepthe driver’s door power win-dow lock switch in the LOCK position (depressed). Seriousinjury can result from uninten-tional window operation by the child.
 Do not extend face or arms outside through the windowopening while driving.
 Always double check to make sure all arms, hands and otherobstructions are safely out of the way before closing a win-dow.
1SAA2014

Knowing your vehicle
16
3
1 23456789
Driver’s seat ➀ Seat adjustment, forward / back-
ward (see page 3- 18)
➁ Seatback recliner (see page 3- 19)
➂ Seat heater switch*(see page 3- 20)
➃ Headrest adjustment
(see page 3- 21)
Front passenger seat ➄ Seat adjustment, forward / back-
ward (see page 3- 22)
➅ Seatback recliner (see page 3- 23)
➆
Seat heater switch*(see page 3- 24)
➇Headrest adjustment (see page 3- 25)
Rear seat ➈ Folding the rear seat*
(see page 3- 26)
➉ Headrest adjustment*
(see page 3- 31)
* : if equipped
SEAT
1SAE2026
 Type A Type B

317
1 23456789
Knowing your vehicle
(Continued)
 Always drive and ride withyour seatback upright and the
lap portion of the safety belt,
or lap belt, snug and low
across the hips. This position
puts your safety belts in the
best position to protect you incase of an accident.
 In order to avoid unnecessary airbag injuries including the
possibility of severe injury or
death, always sit as far back
as possible from the steering
wheel so that your chest is
away at least 250 mm (10 inch-
es) away from the steeringwheel.WARNING
 Loose objects in the driver’s foot area could interfere with
the operation of the foot ped-
als, possibly causing an acci-
dent. Loose objects might
interfere with the seat slide
mechanism. Do not place any-
thing under the front seats.
 Children should never be left unattended in the car.WARNING - Driver’s seat
 Never attempt to adjust seat while the vehicle is moving. This could result in loss of
control, and an accident caus-
ing death, serious injury, or
property damage.
 Do not allow anything to inter- fere with the normal position
of the seatback. Storing items
against a seatback or in any
other way interfering with
proper locking of a seatbackcould result in serious or fatal
injury in a sudden stop or col-lision.
(Continued)

Knowing your vehicle
18
3
1 23456789
Driver’s seat adjustment
Adjusting the seat forward and
backward
To move the seat forward or back-
ward:
1. Pull the seat slide adjustment lever under the front edge of the seat cushion up and hold it. 2. Slide the seat to the position you
desire.
3. Release the lever and make sure the seat is locked in place. Adjust the seat before driving, and
make sure the seat is locked secure-
ly by trying to move forward and
backward without using the control
knob. If the seat moves, it is not
locked properly.
1SAA2027

319
1 23456789
Knowing your vehicle
Adjusting the driver’s seatbackrecliner
To recline the seatback:
1. Lean forward slightly and lift up on the seatback recline lever located on the outside of the seat, at the
rear.
2. Carefully lean back on the seat and adjust the seatback of the
seat to the position you desire. 3. Release the lever and make sure
the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
WARNING
Driving or riding in a vehicle
with a front seatback reclinedcould lead to serious or fatal
injury in an accident. If a front
seat is reclined during an acci-
dent, the occupant’s hips may
slide under the lap portion of
the safety belt applying great
force to the unprotected
abdomen or neck. Serious orfatal internal injuries could
result. Keep the seatbacks in a
comfortably upright position
whenever the vehicle is inmotion.
1SAA2029

Knowing your vehicle
20
3
1 23456789

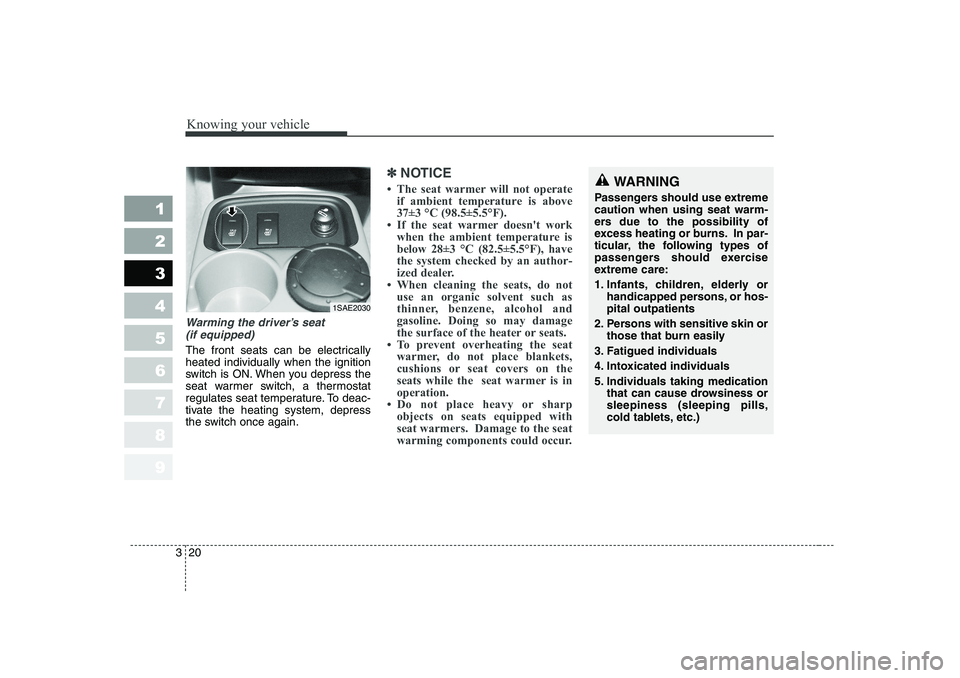

Warming the driver’s seat
(if equipped)
The front seats can be electrically heated individually when the ignition
switch is ON. When you depress the
seat warmer switch, a thermostat
regulates seat temperature. To deac-
tivate the heating system, depress
the switch once again.
✽✽ NOTICE

321
1 23456789
Knowing your vehicle
Headrest adjustment
Adjusting the height up and down
The headrest not only provides com-
fort for the driver and passengers,
but also helps to protect the head
and neck in the event of a collision.
To raise the headrest, pull it up to the desired position (➀). To lower the
headrest, push and hold the release
button ( ➁) on the headrest support
and lower the headrest to the desiredposition ( ➂). For best protection,
adjust the headrest so its center is as
high as your ears. Also adjust theheadrest so its distance from the
head is as wide as your fist. Removal
To remove the headrest, raise it as
far as it can go then press the
release lever (
➀) while pulling
upward ( ➁).
1SAA2034
WARNING
To reduce the risk of head and
neck injuries, do not drive the
vehicle with the headrest
removed or improperly posi-tioned.
Do not adjust the driver’s head- rest while driving.
1SAA2033

Knowing your vehicle
22
3
1 23456789
Adjusting the front passenger seat
Forward/backward position
adjustment
To move the seat forward or back-
ward:
1. Pull the seat slide adjustment
lever (under the front edge of the seat cushion) up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place. Adjust the seat before driving, and
make sure the seat is locked secure-
ly by trying to move forward and
backward without using the control
knob. If the seat moves, it is not
locked properly.
WARNING
In order to avoid unnecessary
airbag injuries including the
possibility of severe injury or
death, always sit as far back as
possible by moving the seat far
back, while still maintaining
good vehicle control. Serious
injury or death may be caused
due to the deployment of the
passenger’s airbag.
1SAA2035
