2006 KIA PICANTO Owners Manual

37
1 23456789
Knowing your vehicle
Your vehicle is equipped with an
electronic engine immobilizer system
to reduce the risk of unauthorized
vehicle use.
Your immobilizer system is com-
prised of a small transponder in the
ignition key, and antenna coil in the
key cylinder and ICU (Immobilizer
Control Unit) in the steering shaft.
With this system, whenever you
insert your ignition key into the igni-
tion switch and turn it to ON, the
antenna coil in the ignition switch
receives a signal from the transpon-
der in the ignition key and then sendsthe signal to the ECU (EngineControl Unit).
The ECU checks the signal whether
the ignition key is valid.
If the key is determined to be valid,
the engine will start.
If the key is determined to be invalid,
the engine will not start.To deactivate the immobilizer sys-tem:
Insert the ignition key into the key
cylinder and turn it to the ON posi-tion.
To activate the immobilizer sys- tem:
Turn the ignition key to the OFF posi-
tion. The immobilizer system acti-
vates automatically. Without a valid
ignition key for your vehicle, the
engine will not start.
✽✽
NOTICE
When starting the engine, do not use
the key with other immobilizer keys
around.Otherwise the engine may not start
or may stop soon after it starts. Keepeach key separately not to have any
malfunction after you receive yournew vehicle.
IMMOBILIZER SYSTEM (IF EQUIPPED)
CAUTION
The transponder in your ignition key is an important part of theimmobilizer system. It is designed to give years of trou-blefree service, however youshould avoid exposure to mois- ture, static electricity and roughhandling. Immobilizer systemmalfunction could occur.
CAUTION
Do not change, alter or adjustthe immobilizer system becauseit could cause the immobilizer system to malfunction andshould only be serviced by anauthorized Kia dealer. Malfunctions caused by improp-er alterations, adjustments ormodifications to the immobilizer system are not covered by yourvehicle manufacturer warranty.

Knowing your vehicle
8
3
1 23456789
Operating door locks from
outside the vehicle
 Turn the key toward rear of vehicle
to unlock and toward front of vehi-
cle to lock.
 Doors can also be locked and unlocked with the transmitter key.  Once the doors are unlocked, it
may be opened by pulling the door
handle.
 When closing the door, push the door by the hand. Make sure that
doors are closed securely.
 Central door locks (if equipped)
If you lock/unlock the front door
with a key, all vehicle doors will
lock/unlock automatically.
To lock a door without the key, push
the inside door lock lever (➀) to the
“LOCK” position and close the door( ➁ ).
✽✽
NOTICE
Always remove the ignition key, engage the parking brake, close allwindows and lock all doors when
leaving your vehicle unattended.
DOOR LOCKS
1SAA2004
LockUnlock
1SA2005

39
1 23456789
Knowing your vehicle

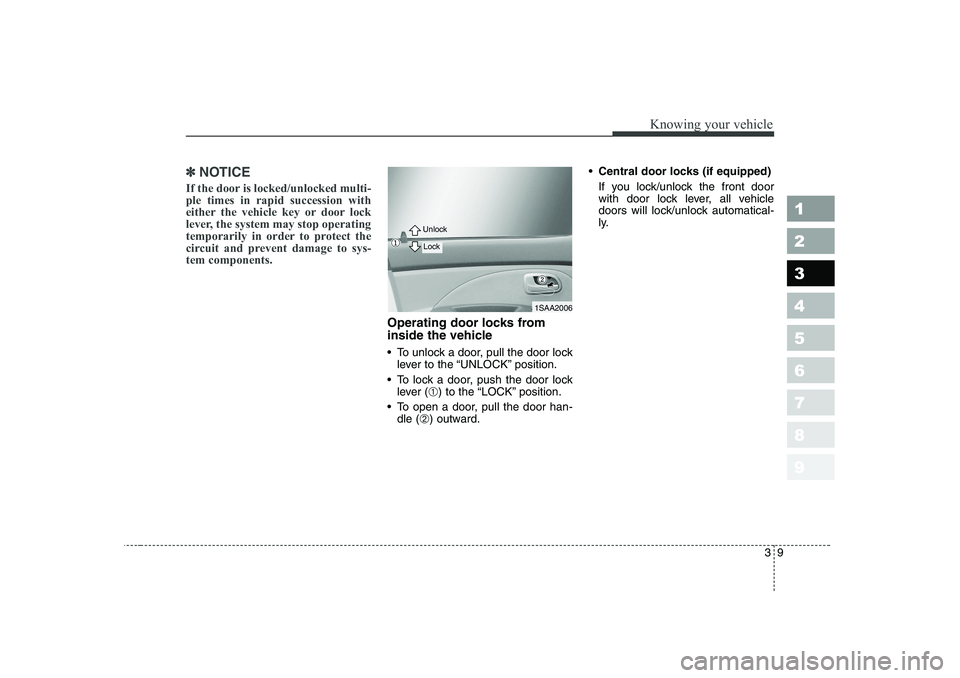

✽✽NOTICE
If the door is locked/unlocked multi- ple times in rapid succession with
either the vehicle key or door lock
lever, the system may stop operating
temporarily in order to protect the
circuit and prevent damage to sys-tem components.
Operating door locks from
inside the vehicle
 To unlock a door, pull the door lock lever to the “UNLOCK” position.
 To lock a door, push the door lock lever ( ➀) to the “LOCK” position.
 To open a door, pull the door han- dle ( ➁) outward.
Central door locks (if equipped)
If you lock/unlock the front door
with door lock lever, all vehicle
doors will lock/unlock automatical-
ly.
1SAA2006
Lock
Unlock

Knowing your vehicle
10
3
1 23456789
CAUTION
• The doors should always be
fully closed and locked whilethe vehicle is in motion to pre- vent accidental opening of thedoor. Locked doors will alsodiscourage potential intruders when the vehicle stops orslows.
 Be careful when opening doors and watch for vehicles,motorcycles, bicycles orpedestrians approaching thevehicle in the path of the door.Opening a door when some- thing is approaching cancause damage or injury.
WARNING
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone. Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving your
vehicle unattended.WARNING - Unattended
children
An enclosed vehicle can
become extremely hot, causing
death or severe injury to unat-
tended children or animals who
cannot escape the vehicle.
Furthermore, children might
operate features of the vehicle
that could injure them, or theycould encounter other harm,
possibly from someone gaining
entry to the vehicle. Never leave
children or animals unattended
in your vehicle.

311
1 23456789
Knowing your vehicle
Rear door child safety lock
The child safety lock is provided to
help prevent children from acciden-tally opening the rear doors from
inside the vehicle. The rear door
safety locks should be used whenev-
er children are in the vehicle.1. Open the rear door.
2. Push the child safety lock located
on the rear edge of the door to the
“lock” position. When the child
safety lock is in the “lock ( )”position, rear door will not openwhen the inner door handle is
pulled inside the vehicle.
3. Close the rear door.
4. To open the rear door, pull the out- side door handle.
Even though the doors may be
unlocked, the rear door will not open
by pulling the inner door handle ( ➀)
until rear door child safety lock is
unlocked ( ).
1SAA2008
WARNING - Rear door
locks
If children accidentally open the
rear doors while the vehicle is in
motion, they could fall out and
be severely injured or killed. To
prevent children from opening
the rear doors from the inside,
the rear door safety locks
should be used whenever chil-
dren are in the vehicle.

Knowing your vehicle
12
3
1 23456789

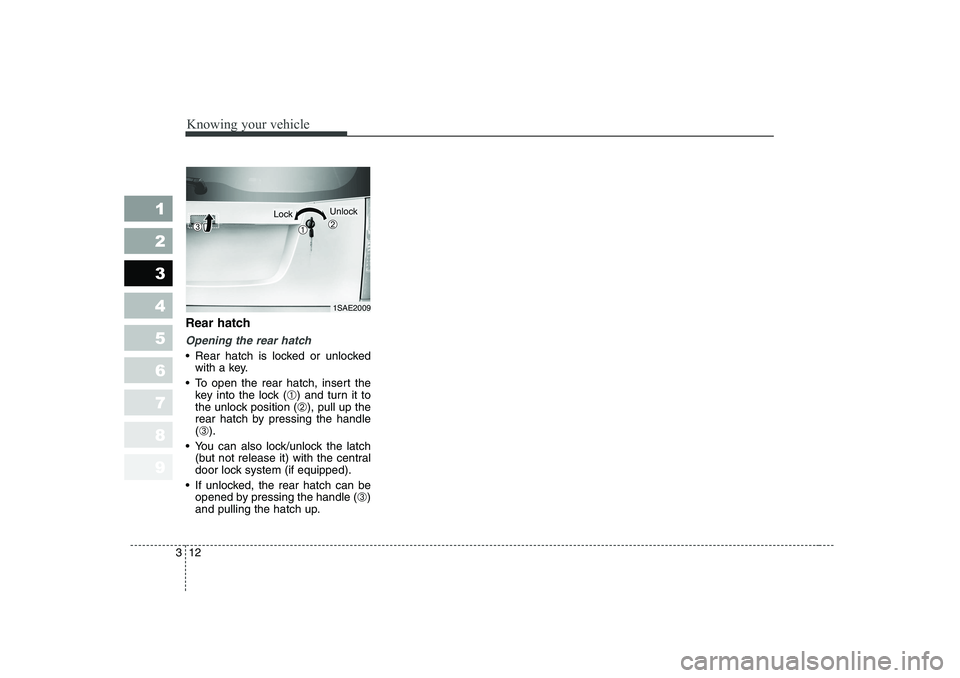

Rear hatch
Opening the rear hatch
 Rear hatch is locked or unlocked
with a key.
 To open the rear hatch, insert the key into the lock ( ➀) and turn it to
the unlock position ( ➁), pull up the
rear hatch by pressing the handle ( ➂ ).
 You can also lock/unlock the latch (but not release it) with the central
door lock system (if equipped).
 If unlocked, the rear hatch can be opened by pressing the handle ( ➂)
and pulling the hatch up.
1SAE2009
LockUnlock
➂➁➀

313
1 23456789
Knowing your vehicle
Power windows (if equipped) ➀Driver’s door power window switch
➁ Front passenger’s door power
window switch
➂ Rear door (left) power window
switch (if equipped)
➃ Rear door (right) power window
switch (if equipped)
➄ Window opening and closing
➅ Automatic power window down
(Driver’s window, if equipped)
➆ Power window lock switch(if equipped)
 Power window timer (if equipped)
The power windows can be operat-
ed for approximately 30 seconds
after the ignition key is removed or
turned to the ACC or LOCK posi-
tion. However, if the front doors are
opened, the power windows can-
not be operated even within the 30
seconds after the ignition key
removal.
WINDOWS
1SAA2010

Knowing your vehicle
14
3
1 23456789
Window opening and closing
The driver’s door has a master power
window switch that controls all the
windows in the vehicle. To open or
close a window, press down (
➄) or
pull up ( ➄) the front portion of the
corresponding switch. Automatic power window down
(driver’s window, if equipped)
Depressing the power window switch
momentarily to the second detentposition (
➅) completely lowers the
driver’s window even when the
switch is released. To stop the win-
dow at the desired position while the
window is in operation, pull up the
switch momentarily to the opposite
direction of the window movement.
If the battery has been discharged or disconnected, the automatic
power window system must be reset
as follows:
1. Turn the ignition key to ON posi- tion.
2. Close each window and continue pulling up on each power window
switch for at least 0.5 second after
the window is completely closed. Power window lock switch (if equipped)
 The driver can disable the power
window switches on a passenger
door by depressing the power win-
dow lock switch located on the dri-
ver’s door to LOCK (pressed).
 When the power window lock switch is ON, the driver’s master
control cannot operate the passen-
ger door power windows either.
1SAA2012
1SAA2011
 Type A Type B
1SAA2013
