2006 KIA AMANTI Owners Manual

Specifications48
1
2
3
4
5
6
7
8
910
Gear ratio
Tires
ItemFrontRear
Tire size 225/60R16 98H 225/60R16 98H
30 (210) 30 (210)
Wheel size 6.5J x 16 6.5J x 16
Wheel lug nut torque 65~79 65~79
lb·ft (kg·m, N·m) (9~11, 88~107) (9~11, 88~107)
Inflation pressure
psi (kPa)
Engine Gasoline Engine
Gear Automatic transaxle
1st 3.789
2nd 2.057
3rd 1.421
4th 1.039
5th 0.731
Reverse 3.865
F.G.R 3.333

85
1
2
3
4
5
6
7
8
910
Specifications
Light Bulbs1)HID(High Intensity Discharge) type2)With sunroof
* This mark indicates the filament is not used Capacities
Light Bulb
Wattage
Headlights (High/Low) 55/55 or 35
1)
Front turn signal lights (LED type) 13.2
Position lights 5
Side mark lights 5
Front fog lights (if equipped) 55
Stop and tail lights 28/8
Rear turn signal lights 28/8*
Back-up lights 16
High mounted stop light (LED type) 2.54
License plate lights 5
Front map lamp 5 or 10
2)
Center dome lamp 10
Door courtesy lamps 5
Vanity mirror lamps 3
Trunk room lamp 5
Foot lamp 5
Glove box lamp 5
LubricantVolume Classification
Engine oil
*1
4.5 qt. (4.3 l)
API Service SL or above,
(with filter change) ILSAC GF-3 or above
Transaxle
9.0 qt. (8.5 l)DIAMOND ATF SP-III,
fluid SK ATF SP-III
Power steering 1.1 qt. (1.0 l) PSF-IV
Coolant 10.8 qt.
Ethylene glycol base for
(10.2
l) aluminum radiator
Brake fluid0.7~0.8 qt.
FMVSS116 DOT-3
(
0.7~0.8
l) or DOT-4
Fuel 18.5 gal Unleaded gasoline with
(70 l) AKI 87 or higher
*¹Refer to the recommended SAE viscosity numbers on the page 7-52.

1
2
3
4
5
6
7
8
9101
2
3
4
5
6
7
8
910

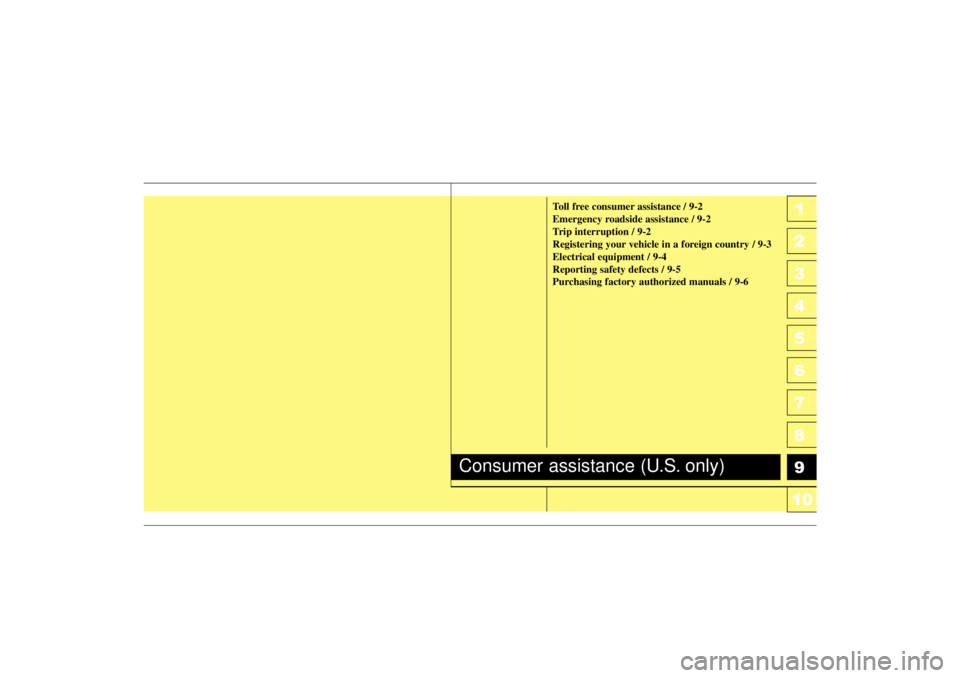

Toll free consumer assistance / 9-2
Emergency roadside assistance / 9-2
Trip interruption / 9-2
Registering your vehicle in a foreign country / 9-3
Electrical equipment / 9-4
Reporting safety defects / 9-5
Purchasing factory authorized manuals / 9-6
Consumer assistance (U.S. only)

Consumer assistance29Roadside Assistance is provided on all new 2006 model
Kia Vehicles from the date the vehicle is delivered to the
first retail buyer or otherwise put into use (in-service
date), whichever is earlier, for a period of 60
months/60000 miles.Toll Free Consumer AssistanceKia's toll-free Consumer Assistance hot line is staffed
from 5:00 AM to 6:00 PM PST, Monday through Friday
and is accessible by dialing 1-800-333-4Kia.
For more information regarding assistance available,
please refer to your Kia Warranty & Consumer
Information Manual.Emergency Roadside AssistanceKia's toll free Roadside Assistance hot line is staffed 24
hours a day, 365 days a year and is accessible by dialing
1-800-333-4Kia.
Kia has set up a network of over 17,000 roadside assis-
tance providers. Should you accidentally run out of fuel,
require a battery jump, or need help changing a tire, a Kia
Roadside Assistance Representative will dispatch (at no
charge to you) someone to deliver a small quantity of
gas, change a flat tire with your inflated spare, or arrange
a battery jump to allow you to proceed to your destina-
tion. Kia also has a network of over 10,000 locksmiths to
help you when you’re locked out of your Kia, also at no
charge.In the event that mechanical difficulty renders your vehi-
cle undriveable, Kia’s Roadside Assistance
Representative will arrange to transport your vehicle to
the nearest Kia dealer or to an alternative service loca-
tion.
Your vehicle must be accessible to our dispatch transport
vehicle, as determined by our driver, to receive this serv-
ice. In the event that Kia does not have a dealer or an
alternative service location available in a particular loca-
tion, Kia will work with a reputable local service facility to
ensure that you receive prompt service. Warranty repairs
are performed at no cost.
Trip InterruptionTrip interruption expense benefits are provided in the
event that a warranty-related disablement occurs more
than 150 miles from your home, and the repairs require
more than 24 hours to complete. Reasonable reimburse-
ment is included for meals, lodging, or rental car expens-
es. Trip interruption coverage is limited to $100 per day
subject to a three day maximum limit per incident, and
you are required to contact the Kia Roadside Assistance
Center to obtain pre-authorization of expenses. Once the
Kia Roadside Assistance Center gives authorization for
trip interruption benefits, they will assist you in making
the necessary arrangements. Insurance deductibles,
expenses, and claims paid by your insurance company or
other providers are not eligible for reimbursement.
1
2
3
4
5
6
7
8
910

93
Consumer assistance
Registering Your Vehicle in a Foreign CountryIf you plan to register your vehicle in a foreign country,
you should confirm that it conforms to the regulations in
that country. Even if you successfully register the vehicle
in a foreign country, you may experience the following
problems and should therefore consider the possibility of
having to deal with them:
1.The fuel specified for your vehicle may be unavailable.If other than the specified fuel is used, it could cause
damage to the engine, the fuel injection system, and
other fuel-related parts which may not be covered
under your New Vehicle Emissions Limited Warranty.
2.We must, therefore, clearly state that when you leave the country in which you purchased your Kia as a new
and register it in another country, problems arising from
the use of fuel other than the specified fuel are not sub-
ject to manufacturer’s warranty. Because vehicles like
yours may not be marketed in the new country of reg-
istration, parts, servicing techniques and tools neces-
sary to maintain and repair your vehicle may be
unavailable.
Even if vehicles like yours are sold there, mechanical
specifications required by the government may vary
enough from the country of purchase to cause addi-
tional problems. 3.There may not be an Authorized Kia Dealer in the area
in which you plan to register your vehicle. You may addi-
tionally experience difficulty in obtaining services in a
foreign country for any number of reasons.
Further, we cannot assume any responsibility for prob-
lems that result from unsatisfactory service or lack of
service outside of the United States.
1
2
3
4
5
6
7
8
910

Consumer assistance49ELECTRICAL EQUIPMENTThe electrical system of your vehicle is designed to per-
form under all reasonably expected operating conditions.
However, before any additional electrical equipment is
installed in your vehicle, consult an Authorized Kia
Dealer, in order to ensure that you do not void your war-
ranty.
Certain electrical equipment, or the way in which it is
installed, may adversely affect the operation of your vehi-
cle, including such systems as the engine control system,
the audio system and the electrical charging system and
thus potentially void all or part of your warranty.
We assume no responsibility for any expense you may
incur or for any malfunction of your vehicle or any of its
components or systems that may result from the installa-
tion of additional electrical equipment that is not supplied,
or recommended for installation by, Kia.
Installation of a Mobile Two-Way Radio SystemIf a mobile two-way radio system is installed improperly,
or if an excessively powerful type of system is used, other
electronic systems may be adversely affected. To avoid
damage to your vehicle, consult an Authorized Kia Dealer
concerning the proper equipment and installation.
1
2
3
4
5
6
7
8
910

95
Consumer assistance
REPORTING SAFETY DEFECTSIf you believe your vehicle has a defect which could
cause an accident or could cause injury or death, you
should inform the National Highway Traffic Safety
Administration (NHTSA) immediately, in addition to noti-
fying Kia Motors America, Inc.
If NHTSA receives similar complaints, it may open an
investigation. A recall and remedy campaign may be
ordered if a safety defect exists in a group of vehicles.
However, NHTSA cannot become involved in individual
problems between you, your dealer, or Kia Motors
America, Inc.
To contact NHTSA, you may either call the Auto Safety
Hotline toll-free at 1-800-424-9393 (or 366-0123 in
Washington, D.C. area) or write to:NHTSA
U.S. Department of Transportation
Washington, DC 20590
You can also obtain other information about motor vehi-
cle safety from the Auto Safety Hotline. All correspondence to Kia Motors America, Inc. concern-
ing safety issues and defects should be forwarded to:
National Consumer Affairs Manager
Kia Motors America, Inc.
P.O. Box 52410
Irvine, CA 92619-2410
1
2
3
4
5
6
7
8
910

Consumer assistance69
1
2
3
4
5
6
7
8
910

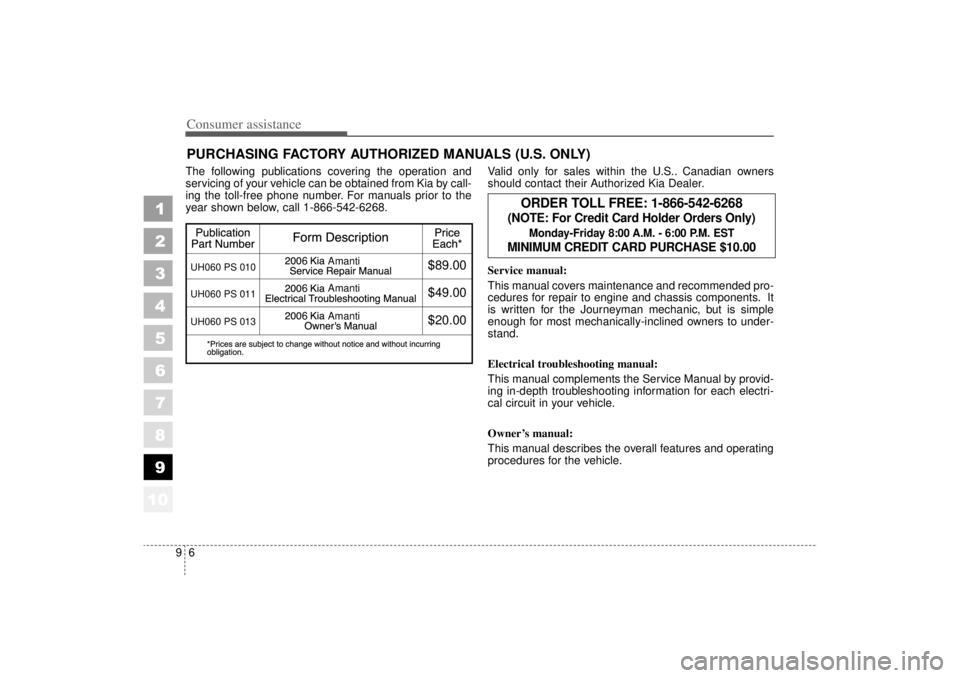

PURCHASING FACTORY AUTHORIZED MANUALS (U.S. ONLY)The following publications covering the operation and
servicing of your vehicle can be obtained from Kia by call-
ing the toll-free phone number. For manuals prior to the
year shown below, call 1-866-542-6268.Valid only for sales within the U.S.. Canadian owners
should contact their Authorized Kia Dealer.
Service manual:
This manual covers maintenance and recommended pro-
cedures for repair to engine and chassis components. It
is written for the Journeyman mechanic, but is simple
enough for most mechanically-inclined owners to under-
stand.
Electrical troubleshooting manual:
This manual complements the Service Manual by provid-
ing in-depth troubleshooting information for each electri-
cal circuit in your vehicle.
Owner’s manual:
This manual describes the overall features and operating
procedures for the vehicle.
Amanti
UH060 PS 010
UH060 PS 011
UH060 PS 013
Amanti
Amanti
6
6
6
89.0049.0020.00
ORDER TOLL FREE: 1-866-542-6268
(NOTE: For Credit Card Holder Orders Only)
Monday-Friday 8:00 A.M. - 6:00 P.M. EST
MINIMUM CREDIT CARD PURCHASE $10.00
