2006 INFINITI QX56 sensor

EC-322Revision: November 2009
DTC P0222, P0223 TP SENSOR
2006 QX56

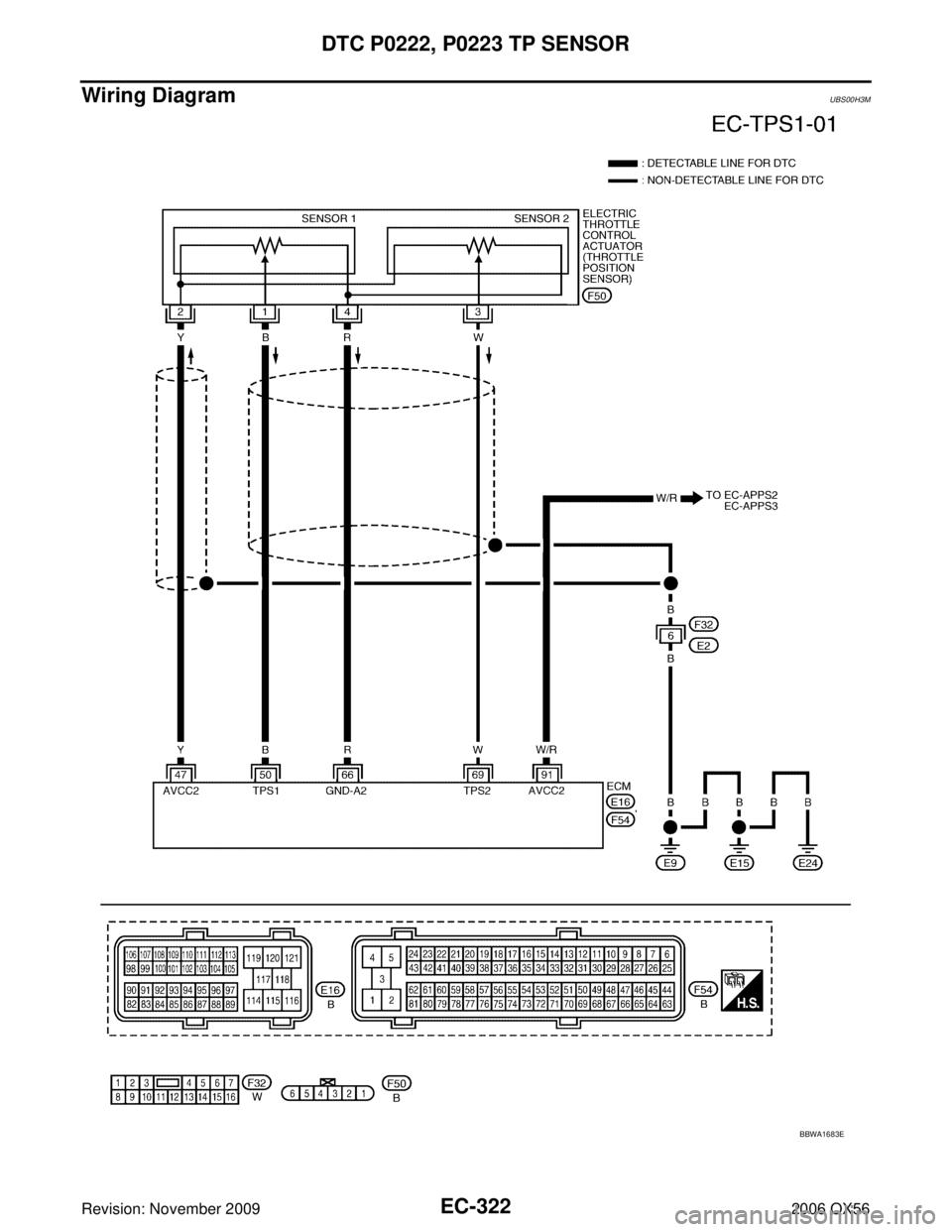

Wiring DiagramUBS00H3M
BBWA1683E

DTC P0222, P0223 TP SENSOREC-323
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureUBS00H3N
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-150, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
47 Y Sensor power supply
(Throttle position sensor) [Ignition switch: ON]
Approximately 5V
50 B Throttle position sensor 1 [Ignition switch: ON]

Engine: Stopped

Selector lever: D

Accelerator pedal: Fully released
More than 0.36V
[Ignition switch: ON]

Engine: Stopped

Selector lever: D

Accelerator pedal: Fully depressed Less than 4.75V
66 R Sensor ground
(Throttle position sensor) [Engine is running]

Warm-up condition

Idle speed
Approximately 0V
69 W Throttle position sensor 2 [Ignition switch: ON]

Engine: Stopped

Selector lever: D

Accelerator pedal: Fully released
Less than 4.75V
[Ignition switch: ON]

Engine: Stopped

Selector lever: D

Accelerator pedal: Fully depressed More than 0.36V
91 W/R Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V
BBIA0354E

EC-324Revision: November 2009
DTC P0222, P0223 TP SENSOR
2006 QX56
2. CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.
3. Check voltage between electric throttle control actuator terminal 2 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 7.
NG >> GO TO 3.
3. CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 2 and ECM terminal 47. Refer to Wiring Diagram.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit.
4. CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 5.
NG >> Repair short to ground or short to power in harness or connectors.
5. CHECK ACCELERATOR PEDAL POSITION SENSOR
Refer to EC-574, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 6.
BBIA0371E
Voltage: Approximately 5V
PBIB2065E
Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
47 Electric throttle control actuator terminal 2 EC-322
91APP sensor terminal 6 EC-569

DTC P0222, P0223 TP SENSOREC-325
C
DE
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace the accelerator pedal assembly.
2. Perform EC-78, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-78, "
Throttle Valve Closed Position Learning" .
4. Perform EC-78, "
Idle Air Volume Learning" .
>> INSPECTION END
7. CHECK THROTTLE POSITION SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between electric throttle control actuator terminal 4 and ECM terminal 66. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK THROTTLE POSITION SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 50 and electric throttle control actuator terminal 1. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK THROTTLE POSITION SENSOR
Refer to EC-326, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-78, "
Throttle Valve Closed Position Learning" .
3. Perform EC-78, "
Idle Air Volume Learning" .
>> INSPECTION END
11 . CHECK INTERMITTENT INCIDENT
Refer to EC-144, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Continuity should exist.
Continuity should exist.

EC-326Revision: November 2009
DTC P0222, P0223 TP SENSOR
2006 QX56
Component InspectionUBS00H3O
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-78, "
Throttle Valve Closed Position Learning" .
3. Turn ignition switch ON.
4. Set selector lever to D position.
5. Check voltage between ECM terminals 50 (TP sensor 1 signal), 69 (TP sensor 2 signal) and ground under the following condi-
tions.
6. If NG, replace electric throttle control actuator and go to the next step.
7. Perform EC-78, "
Throttle Valve Closed Position Learning" .
8. Perform EC-78, "
Idle Air Volume Learning" .
Removal and InstallationUBS00H3P
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-17, "INTAKE MANIFOLD" .
Terminal Accelerator pedal Voltage
50
(Throttle position sensor 1) Fully released
More than 0.36V
Fully depressed Less than 4.75V
69
(Throttle position sensor 2) Fully released
Less than 4.75V
Fully depressed More than 0.36V
PBIB1530E

DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-FIRE
EC-327
C
D E
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
PFP:00000
On Board Diagnosis LogicUBS00L0T
When a misfire occurs, engine speed will fluctuate. If the engine speed fluctuates enough to cause the crank-
shaft position (CKP) sensor (POS) signal to vary, ECM can determine that a misfire is occurring.
The misfire detection logic consists of the following two conditions.
1. One Trip Detection Logic (Three Way Catalyst Damage)
On the 1st trip that a misfire condition occurs that can damage the three way catalyst (TWC) due to over-
heating, the MIL will blink.
When a misfire condition occurs, the ECM monitors the CKP sensor signal every 200 engine revolutions
for a change.
When the misfire condition decreases to a level that will not damage the TWC, the MIL will turn off.
If another misfire condition occurs that can damage the TWC on a second trip, the MIL will blink.
When the misfire condition decreases to a level that will not damage the TWC, the MIL will remain on.
If another misfire condition occurs that can damage the TWC, the MIL will begin to blink again.
2. Two Trip Detection Logic (Exhaust quality deterioration) For misfire conditions that will not damage the TWC (but will affect vehicle emissions), the MIL will only
light when the misfire is detected on a second trip. During this condition, the ECM monitors the CKP sen-
sor signal every 1,000 engine revolutions.
A misfire malfunction can be detected on any one cylinder or on multiple cylinders.
DTC Confirmation ProcedureUBS00L0U
CAUTION:
Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws when driv-
ing.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
Sensor Input signal to ECM ECM function
Crankshaft position sensor (POS) Engine speedOn board diagnosis of misfire
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0300
0300 Multiple cylinder misfire
detected
Multiple cylinder misfire.

Improper spark plug

Insufficient compression

Incorrect fuel pressure

The injector circuit is open or shorted

Fuel injector

Intake air leak

The ignition signal circuit is open or
shorted

Lack of fuel

Signal plate

Air fuel ratio (A/F) sensor 1

Incorrect PCV hose connection
P0301
0301
No.1 cylinder misfire
detected
No. 1 cylinder misfires.
P0302
0302 No. 2 cylinder misfire
detected
No. 2 cylinder misfires.
P0303
0303 No. 3 cylinder misfire
detected
No. 3 cylinder misfires.
P0304
0304 No. 4 cylinder misfire
detected
No. 4 cylinder misfires.
P0305
0305 No. 5 cylinder misfire
detected
No. 5 cylinder misfires.
P0306
0306 No. 6 cylinder misfire
detected
No. 6 cylinder misfires.
P0307
0307 No. 7 cylinder misfire
detected
No. 7 cylinder misfires.
P0308
0308 No. 8 cylinder misfire
detected
No. 8 cylinder misfires.

DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-FIRE
EC-333
C
D E
F
G H
I
J
K L
M A
EC
Revision: November 2009 2006 QX56
13. CHECK A/F SENSOR 1 INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect A/F sensor 1 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals. Refer to Wiring Diagram.
5. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.
6. Also check harness for short to power.
OK or NG
OK >> GO TO 14.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK A/F SENSOR 1 HEATER
Refer to EC-162, "
Component Inspection" .
OK or NG
OK >> GO TO 16.
NG >> GO TO 15.
A/F sensor 1 terminal ECM terminal
Bank 1 11
6
27 5
53 5
65 6
Bank 2 17
6
27 7
55 7
65 8
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal 11 617 6
27 527 7
53 555 7
65 665 8
Continuity should not exist.
BBIA0376E

EC-334Revision: November 2009
DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-FIRE
2006 QX56
15. REPLACE AIR FUEL RATIO (A/F) SENSOR 1
Replace air fuel ratio (A/F) sensor 1.
CAUTION:

Discard any air fuel ratio (A/F) sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.

Before installing new air fuel ratio (A/F) sensor, clean exhaust system threads (using Oxygen Sen-
sor Thread Cleaner tool J-43897-18 or J-43897-12) and approved anti-seize lubricant.
>>INSPECTION END
16. CHECK MASS AIR FLOW SENSOR
Check mass air flow sensor signal in “DATA MONITOR ” mode with CONSULT-II.
With GST
Check mass air flow sensor signal in Service $01 with GST.
OK or NG
OK >> GO TO 17.
NG >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or ground. Refer to EC-171, "
DTC P0101 MAF SENSOR" .
17. CHECK SYMPTOM MATRIX CHART
Check items on the rough idle symptom in EC-92, "
Symptom Matrix Chart" .
OK or NG
OK >> GO TO 18.
NG >> Repair or replace.
18. ERASE THE 1ST TRIP DTC
Some tests may cause a 1st trip DTC to be set.
Erase the 1st trip DTC from the ECM memory after performing the tests. Refer to EC-61, "
HOW TO ERASE
EMISSION-RELATED DIAGNOSTIC INFORMATION" .
>> GO TO 19.
19. CHECK INTERMITTENT INCIDENT
Refer to EC-144, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
3.0 - 9.0 g·m/sec: at idling
9.0 - 28.0 g·m/sec: at 2,500 rpm
3.0 - 9.0 g·m/sec: at idling
9.0 - 28.0 g·m/sec: at 2,500 rpm
