2006 INFINITI QX56 torque

PS-24
HYDRAULIC LINE
Revision: November 20092006 QX56
Installation is in the reverse order of removal.

Confirm mating marks are aligned with hose and clamp, then
correct if needed.

To install eye joint, align projection of eye joint with notch of
power steering pump, and attach eye joint to power steering
pump properly. Tighten eye bolt by hand fully, then torque to
specification.
SGIA0563E
WGIA0089E

PS-26

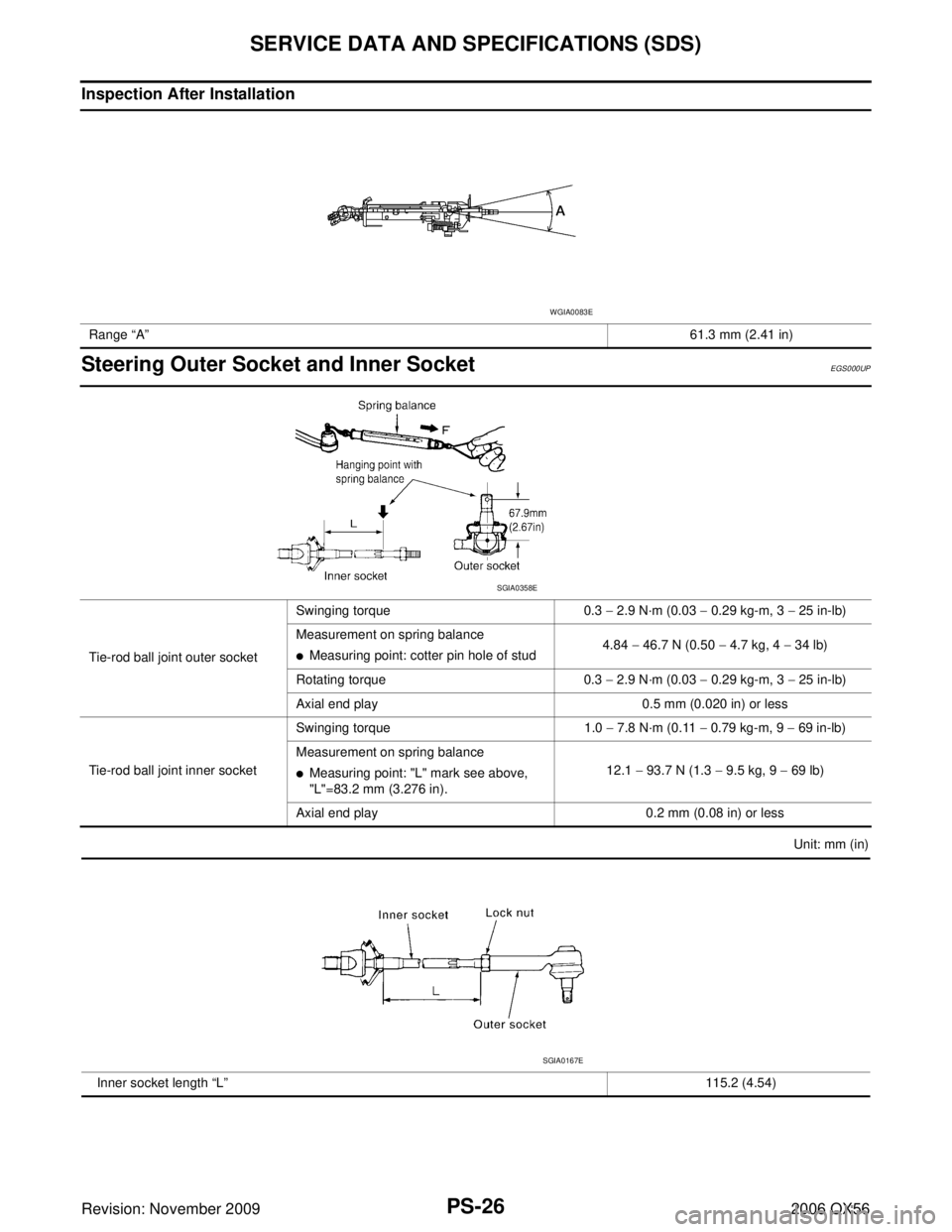

SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: November 20092006 QX56
Inspection After Installation
Steering Outer Socket and Inner SocketEGS000UP
Unit: mm (in)
Range
“A ” 61.3 mm (2.41 in)
WGIA0083E
Tie-rod ball joint outer socketSwinging torque
0.3 − 2.9 N ·m (0.03 − 0.29 kg-m, 3 − 25 in-lb)
Measurement on spring balance
Measuring point: cotter pin hole of stud 4.84
− 46.7 N (0.50 − 4.7 kg, 4 − 34 lb)
Rotating torque 0.3 − 2.9 N ·m (0.03 − 0.29 kg-m, 3 − 25 in-lb)
Axial end play 0.5 mm (0.020 in) or less
Tie-rod ball joint inner socket Swinging torque
1.0 − 7.8 N ·m (0.11 − 0.79 kg-m, 9 − 69 in-lb)
Measurement on spring balance

Measuring point: "L" mark see above,
"L"=83.2 mm (3.276 in). 12.1
− 93.7 N (1.3 − 9.5 kg, 9 − 69 lb)
Axial end play 0.2 mm (0.08 in) or less
SGIA0358E
Inner socket length “L ” 115.2 (4.54)
SGIA0167E

RF-2
PRECAUTIONS
Revision: November 20092006 QX56
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EIS004VI
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER ”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions EIS004VJ

Disconnect both battery cables in advance.

Never tamper with or force air bag lid open, as this may adversely affect air bag performance.

Be careful not to scratch pad and other parts.

When removing or disassembling any part, be careful not to damage or deform it. Protect parts which may
get in the way with cloth.

When removing parts with a screwdriver or other tool, protect parts by wrapping them with vinyl or tape.

Keep removed parts protected with cloth.

If a clip is deformed or damaged, replace it.

If an unreusable part is removed, replace it with a new one.

Tighten bolts and nuts firmly to the specified torque.

After re-assembly has been completed, make sure each part functions correctly.

Remove stains in the following way.
Water-soluble stains:
Dip a soft cloth in warm water, and then squeeze it tightly. After wiping the stain, wipe with a soft dry cloth.
Oil stain:
Dissolve a synthetic detergent in warm water (density of 2 to 3% or less), dip the cloth, then clean off the stain
with the cloth. Next, dip the cloth in fresh water and squeeze it tightly. Then clean off the detergent completely.
Then wipe the area with a soft dry cloth.

Do not use any organic solvent, such as thinner or benzine.

RF-24
SUNROOF
Revision: November 20092006 QX56
HEIGHT DIFFERENCE ADJUSTMENT
If an excessive height difference between glass lid assembly and roof panel is found, adjust in the following
manner:
1. Remove headlining. Refer to EI-38, "
HEADLINING" .
2. Loosen sunroof frame assembly nuts and sunroof bracket bolts.
3. Add shims until gap is within specification "A-A". NOTE:
Temporarily snug nuts and bolts to prevent movement between each adjustment.
4. Tilt glass lid assembly up and down several times to check that it moves and seals properly.
5. Tighten sunroof frame assembly nuts and sunroof bracket bolts. NOTE:
First tighten left front then right rear sunroof frame assembly to prevent uneven torque while tightening
remaining sunroof bracket bolts.
6. Install headlining. Refer to EI-38, "
HEADLINING" .
Removal and InstallationEIS007XH

After any adjustment, check sunroof operation and glass lid assembly alignment.

Handle glass lid assembly with care so not to cause damage.

For easier installation, mark each point before removal.
CAUTION:

Always work with a helper.

Before removal, fully close the glass lid assembly. Then, after removal, do not move the sunroof
motor assembly.

RFD-1
REAR FINAL DRIVE
D DRIVELINE/AXLE
CONTENTS
CE F
G H
I
J
K L
M
SECTION
A
B
RFD
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precautions for Servicing Rear Final Drive ......... ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tools ................................... ..... 5
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 7
NVH Troubleshooting Chart ................................ ..... 7
DIFFERENTIAL GEAR OIL ................................... ..... 8
Changing Differential Gear Oil ............................ ..... 8
DRAINING ........................................................ ..... 8
FILLING ............................................................ ..... 8
Checking Differential Gear Oil ............................. ..... 8
OIL LEAKAGE AND OIL LEVEL ...................... ..... 8
FRONT OIL SEAL ................................................. ..... 9
Removal and Installation ..................................... ..... 9
REMOVAL ........................................................ ..... 9
INSTALLATION ................................................ ..... 9
SIDE OIL SEAL ..................................................... ....11
Removal and Installation ..................................... .... 11
REMOVAL ........................................................ .... 11
INSTALLATION ................................................ .... 11CARRIER COVER .................................................
... 12
Removal and Installation ..................................... ... 12
REMOVAL ........................................................ ... 12
INSTALLATION ................................................ ... 12
REAR FINAL DRIVE ASSEMBLY ......................... ... 13
Removal and Installation ..................................... ... 13
REMOVAL ........................................................ ... 13
INSTALLATION ................................................ ... 14
Disassembly and Assembly ................................. ... 15
COMPONENTS ................................................ ... 15
ASSEMBLY INSPECTION AND ADJUSTMENT ... 16
DISASSEMBLY ................................................ ... 19
INSPECTION AFTER DISASSEMBLY ............. ... 23
ADJUSTING AND SELECTING WASHERS .... ... 24
ASSEMBLY ...................................................... ... 26
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 32
General Specifications ......................................... ... 32
Inspection and Adjustment .................................. ... 32
DRIVE GEAR RUNOUT ................................... ... 32
SIDE GEAR CLEARANCE ............................... ... 32
PRELOAD TORQUE ........................................... 32
BACKLASH ...................................................... ... 32
COMPANION FLANGE RUNOUT .................... ... 32
SELECTIVE PARTS ......................................... ... 32

RFD-2
PRECAUTIONS
Revision: November 20092006 QX56
PRECAUTIONSPFP:00001
Precautions for Servicing Rear Final DriveEDS0044K

Before starting diagnosis of the vehicle, understand the symptoms well. Perform correct and systematic
operations.

Check for the correct installation status prior to removal or disassembly. When matching marks are
required, be certain they do not interfere with the function of the parts they are applied to.

Overhaul should be done in a clean work area, a dust proof area is recommended.

Before disassembly, completely remove sand and mud from the exterior of the unit, preventing them from
entering into the unit during disassembly or assembly.

Always use shop paper for cleaning the inside of components.

Avoid using cotton gloves or a shop cloth to prevent the entering of lint.

Check appearance of the disassembled parts for damage, deformation, and abnormal wear. Replace
them with new ones if necessary.

Gaskets, seals and O-rings should be replaced any time the unit is disassembled.

Clean and flush the parts sufficiently and blow them dry.

Be careful not to damage sliding surfaces and mating surfaces.

When applying sealant, remove the old sealant from the mating surface; then remove any moisture, oil,
and foreign materials from the application and mating surfaces.

In principle, tighten nuts or bolts gradually in several steps working diagonally from inside to outside. If a
tightening sequence is specified, observe it.

During assembly, observe the specified tightening torque.

Add new differential gear oil, petroleum jelly, or multi-purpose grease, as specified.

RFD-4
PREPARATION
Revision: November 20092006 QX56
KV38100800
(J-25604-01)
AttachmentSecuring unit assembly
a: 541 mm (21.30 in) dia.
b: 200 mm (7.87 in) dia.
ST3127S000
(J-25765-A)
Preload gauge
1. GG91030000
(J-25765)
Torque wrench
2. HT62940000
(—)
Socket adapter (1/2 in)
3. HT62900000
(—)
Socket adapter (3/8 in) Measuring drive pinion bearing preload torque
and total preload torque
KV10111100
(J-37228)
Seal cutter Removing carrier cover
ST3306S001
(—)
Differential side bearing puller set
1.ST33051001
(—)
Puller
2.ST33061000
(J-8107-2)
Base Removing side bearing inner race
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.
ST30021000
(—)
Bearing puller Removing drive pinion rear bearing inner race
KV38100200
(J-26233)
Drift Installing side bearing inner race
a: 65 mm (2.55 in) dia.
b: 49 mm (1.92 in) dia.
Tool name
Tool number
(Kent-Moore No.)
Description
SDIA0267E
NT124
S-NT046
NT072
ZZA0700D
ZZA1143D

PREPARATIONRFD-5
CE F
G H
I
J
K L
M A
B
RFD
Revision: November 2009 2006 QX56
Commercial Service ToolsEDS0044M
ST33081000
(—)
DriftInstalling side bearing inner race
a: 43 mm (1.69 in) dia.
b: 33.5 mm (1.31 in) dia.
ST35325000
(—)
Drift Installing drive pinion front bearing outer race
(use with ST30621000)
ST30621000
(—)
Drift Installing drive pinion front bearing outer race
a: 79 mm (3.11 in) dia.
b: 59 mm (2.32 in) dia.
ST30022000
(—)
Drift Installing drive pinion rear bearing inner race
a: 110 mm (4.33 in) dia.
b: 46 mm (1.81 in) dia.
HT72400000
(—)
Slide hammer Removing differential case assembly
—
(J-8129)
Spring gauge Measuring turning torque
KV10112100
(BT-8653-A)
Angle wrench Tightening bolts for drive gear
Tool name
Tool number
(Kent-Moore No.)
Description
ZZA0810D
S-NT090
ZZA0810D
ZZA0920D
S-NT125
NT127
NT014
