LAN-2Revision: November 20092006 QX56
Wiring Diagram — CAN — ..................................
... 98
Check Sheet ........................................................... 99 CHECK SHEET RESULTS (EXAMPLE) .......... .102
TROUBLE DIAGNOSIS FOR SYSTEM ................. .123
Inspection Between TCM and ICC Sensor Circuit .123
Inspection Between TCM and Driver Seat Control
Unit Circuit ........................................................... .124
Inspection Between ICC Sensor and ICC Unit Cir-
cuit ....................................................................... .125
Inspection Between ICC Unit and Driver Seat Con-
trol Unit Circuit ..................................................... .126
Inspection Between Driver Seat Control Unit and
Data Link Connector Circuit ................................. .126
Inspection Between Data Link Connector and ABS
Actuator and Electric Unit (Control Unit) Circuit ... .127
ECM Circuit Inspection ........................................ .128TCM Circuit Inspection .........................................
.129
ICC Sensor Circuit Inspection .............................. .129
ICC Unit Circuit Inspection ................................... .130
Driver Seat Control Unit Circuit Inspection .......... .130
Combination Meter Circuit Inspection .................. .131
Display Control Unit Circuit Inspection ................. .131
BCM Circuit Inspection ........................................ .132
Data Link Connector Circuit Inspection ................ .132
Steering Angle Sensor Circuit Inspection ............. .133
Front Air Control Circuit Inspection ...................... .133
Transfer Control Unit Circuit Inspection ............... .134
ABS Actuator and Electric Unit (Control Unit) Circuit
Inspection ............................................................. .134
IPDM E/R Circuit Inspection ................................ .135
CAN Communication Circuit Inspection ............... .135
IPDM E/R Ignition Relay Circuit Inspection .......... .137

LAN-56
[CAN]
CAN SYSTEM (TYPE 1)
Revision: November 20092006 QX56
Case 16
Check IPDM E/R ignition relay circuit continuously sticks “OFF ”. Refer to LAN-137, "IPDM E/R Ignition Relay
Circuit Inspection" .
Case 17
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-137, "IPDM E/R Ignition Relay
Circuit Inspection" .

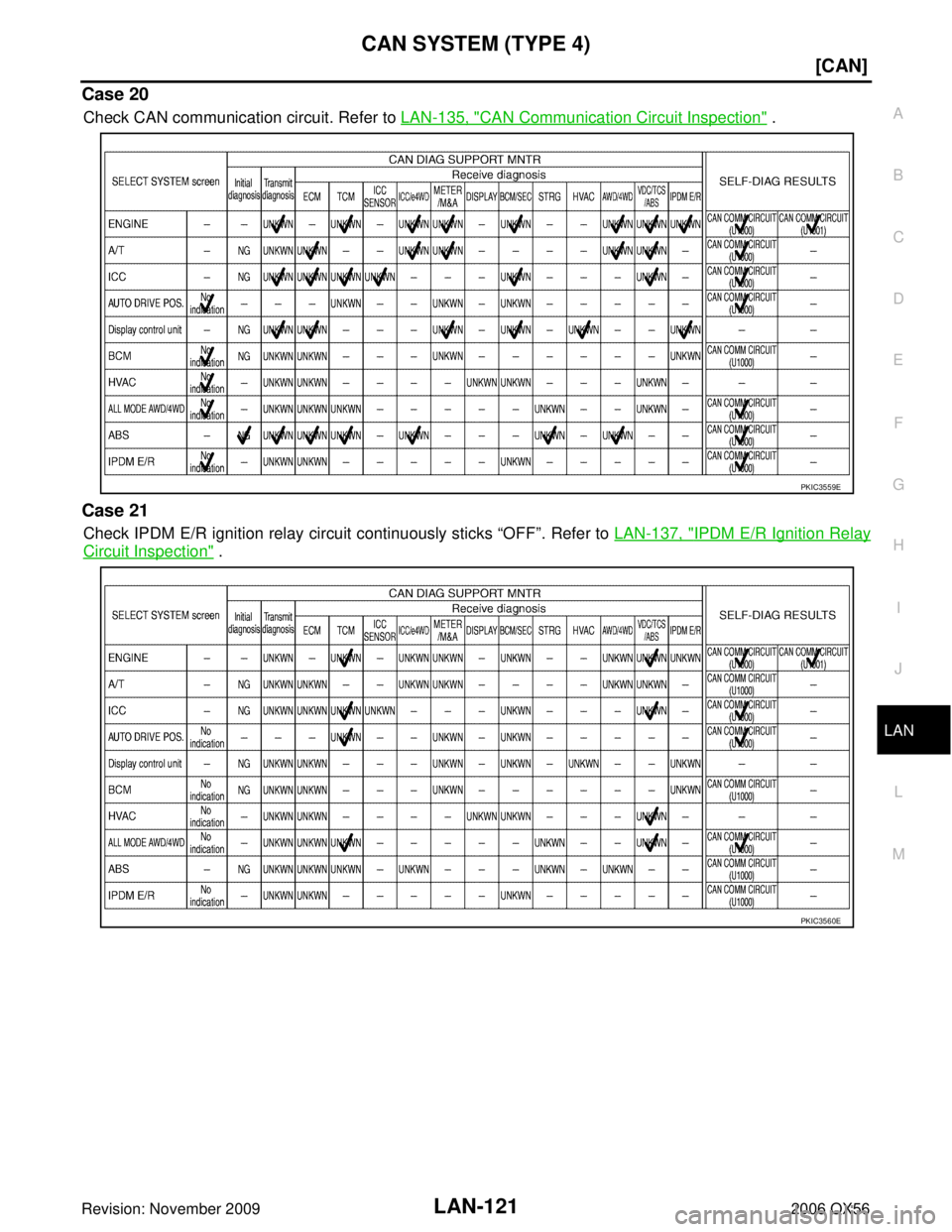

PKIC3289E
PKIC3290E

LAN-78
[CAN]
CAN SYSTEM (TYPE 2)
Revision: November 20092006 QX56
Case 20
Check IPDM E/R ignition relay circuit continuously sticks “OFF ”. Refer to LAN-137, "IPDM E/R Ignition Relay
Circuit Inspection" .
Case 21
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-137, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC3538E
PKIC3539E

CAN SYSTEM (TYPE 3)LAN-97
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56
Case 17
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-137, "IPDM E/R Ignition Relay
Circuit Inspection" .
Case 18
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-137, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC3515E
PKIC3516E

CAN SYSTEM (TYPE 4)LAN-121
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56
Case 20
Check CAN communication circuit. Refer to LAN-135, "CAN Communication Circuit Inspection" .
Case 21
Check IPDM E/R ignition relay circuit continuously sticks “OFF ”. Refer to LAN-137, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC3559E
PKIC3560E

LAN-122
[CAN]
CAN SYSTEM (TYPE 4)
Revision: November 20092006 QX56
Case 22
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-137, "IPDM E/R Ignition Relay
Circuit Inspection" .
PKIC3561E

TROUBLE DIAGNOSIS FOR SYSTEMLAN-137
[CAN]
C
DE
F
G H
I
J
L
M A
B
LAN
Revision: November 2009 2006 QX56
6. UNIT REPRODUCIBILITY INSPECTION
Perform the following procedure for each unit on the CAN network, and then perform reproducibility test.
1. Turn ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect the unit connector.
4. Connect the battery cable to the negative terminal.
5. Make sure that the symptom filled in the “Symptom” of the check sheet is reproduced. (Do not confuse it
with the symptom related to removed unit.)
6. Make sure that the same symptom is reproduced.
Inspection results
Reproduced>>Install removed unit, and then check the other unit.
Not reproduced>>Replace removed unit.
IPDM E/R Ignition Relay Circuit InspectionUKS004TW
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .

Ignition power supply circuit. Refer to PG-13, "IGNITION POWER SUPPLY — IGNITION SW. IN ON
AND/OR START" .
