2006 INFINITI QX56 sensor

TRANSFER ASSEMBLYTF-161
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
b. Remove the following from the control valve assembly:

Clutch pressure solenoid valve

2-4WD shift solenoid valve

Clutch pressure switch

Line pressure switch

Transfer fluid temperature sensor
c. Remove the O-rings from each solenoid valve, switch and termi- nal body.
d. Place the control valve with the lower body facing up. Remove the two bolts, and then remove the lower body and separator
plate from the upper body.
CAUTION:
Do not drop relief balls. Detach lower body carefully.
e. Make sure the reverse balls, relief balls, relief springs, accumu- lator pistons and valve springs are securely installed as shown,
and remove them.
f. Remove the retainer plates.
g. Remove each control valve, spring and plug.
WDIA0199E
SDIA3187E
SDIA2126E
SDIA2127E
SDIA3317E

TRANSFER ASSEMBLYTF-165
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
Bearing

Make sure the bearings roll freely and are free from noise, pit-
ting and cracks.
Main Oil Pump
1. Check the inner and outer circumference, tooth face, and side-
face of the inner and outer gears for damage or abnormal wear.
2. Measure the side clearance between the main oil pump housing edge and the inner and outer gears.
3. Make sure the side clearance is within specification. If the mea- surement is out of specification, replace the inner and outer
gears with new ones as a set. Refer to TF-165, "
Main Oil Pump"
.
Sub-oil Pump
1. Check the inner and outer circumference, tooth face, and side-
face of the inner and outer gears for damage or abnormal wear.
2. Measure the side clearance between the sub oil pump housing edge and the inner and outer gears.
3. Make sure the side clearance is within specification. If the mea- surement is out of specification, replace the inner and outer
gears with new ones as a set. Refer to TF-165, "
Sub-oil Pump" .
Control Valve

Check resistance between the terminals of the clutch pressure
solenoid valve, 2-4WD shift solenoid valve, clutch pressure
switch, line pressure switch and the transfer fluid temperature
sensor. Refer to TF-90, "
COMPONENT INSPECTION" (clutch
pressure solenoid valve), TF-94, "
COMPONENT INSPECTION"
(2-4WD solenoid valve), TF-107, "COMPONENT INSPECTION"
(clutch pressure switch), TF-110, "COMPONENT INSPECTION"
(line pressure switch) and TF-104, "COMPONENT INSPEC-
TION" (transfer fluid temperature sensor).
SDIA2175E
Specification : 0.015 - 0.035 mm (0.0006 - 0.0014 in)
SDIA2174E
Specification : 0.015 - 0.035 mm (0.0006 - 0.0014 in)
SDIA2173E
WDIA0199E

TRANSFER ASSEMBLYTF-169
CE F
G H
I
J
K L
M A
B
TF
Revision: November 2009 2006 QX56
d. Install the reverse balls, relief balls and relief springs, accumula-
tor pistons and valve springs to the upper body.
e. Install the lower body and new separator plate to the upper body.
CAUTION:
Do not reuse separator plate.
f. With the lower body down, tighten the two bolts shown.
g. Apply ATF to the new O-rings, and install them to each solenoid valve, switch and terminal body.
CAUTION:
Do not reuse O-rings.
h. Install the following to the control valve assembly:

Clutch pressure solenoid valve

2-4WD shift solenoid valve

Clutch pressure switch

Line pressure switch

Transfer fluid temperature sensor
10. Apply ATF to the new lip seals, and install them to the center case.
CAUTION:

Do not reuse lip seals.

There are 2 kinds of lip seals (lip seal of large inner diam-
eter: 5 pieces, lip seal of small inner diameter: 2 pieces).
Confirm their position for installation.
SDIA2126E
WDIA0200E
WDIA0198E
SDIA2123E

WT-1
ROAD WHEELS & TIRES
E SUSPENSION
CONTENTS
C
DF
G H
I
J
K L
M
SECTION
A
B
WT
Revision: November 2009 2006 QX56
PRECAUTIONS .....................................................
..... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tool ............................................ ..... 3
Commercial Service Tools ................................... ..... 3
NOISE, VIBRATION, AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 4
NVH Troubleshooting Chart ................................ ..... 4
WHEEL .................................................................. ..... 5
Inspection ............................................................ ..... 5
WHEEL AND TIRE ASSEMBLY ............................ ..... 6
Balancing Wheels ............................................... ..... 6
REMOVAL ........................................................ ..... 6
WHEEL BALANCE ADJUSTMENT ................. ..... 6
Rotation ............................................................... ..... 7
LOW TIRE PRESSURE WARNING SYSTEM ....... ..... 8
System Components ........................................... ..... 8
System Description ............................................. ..... 8
TRANSMITTER ................................................ ..... 8
REMOTE KEYLESS ENTRY RECEIVER ........ ..... 8
BCM (BODY CONTROL MODULE) ................. ..... 9
WARNING LAMP AND BUZZER ..................... ..... 9
COMBINATION METER .................................. ..... 9
DISPLAY UNIT ................................................. ..... 9
CAN COMMUNICATION ....................................... ... 10
System Description ............................................. ... 10
TROUBLE DIAGNOSES ....................................... ....11
Wiring Diagram – T/WARN – .............................. .... 11
Terminals and Reference Values for BCM .......... ... 13
ID Registration Procedure ................................... ... 14
ID REGISTRATION WITH TRANSMITTER
ACTIVATION TOOL ......................................... ... 14
ID REGISTRATION WITHOUT TRANSMITTER
ACTIVATION TOOL ......................................... ... 16
Transmitter Wake Up Operation .......................... ... 18
WITH TRANSMITTER ACTIVATION TOOL ..... ... 18
CONSULT-II Function (BCM) .............................. ... 19
Self-Diagnosis ..................................................... ... 20DESCRIPTION .................................................
... 20
FUNCTION ....................................................... ... 20
CONSULT-II ...................................................... ... 20
How to Perform Trouble Diagnosis for Quick and
Accurate Repair ................................................... ... 22
INTRODUCTION .............................................. ... 22
WORK FLOW ................................................... ... 22
Preliminary Check ............................................... ... 23
Malfunction Code/Symptom Chart ....................... ... 24
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC
ITEMS ..................................................................... ... 26
Inspection 1: Transmitter or Control Unit (BCM) .. ... 26
MALFUNCTION CODE NO. 21, 22, 23 OR 24
(DTC C1708, C1709, C1710 OR C1711) ......... ... 26
Inspection 2: Transmitter - 1 ................................ ... 26
MALFUNCTION CODE NO. 31, 32, 33, 34, 41,
42, 43, 44, 45, 46, 47 OR 48 ............................ ... 26
Inspection 3: Transmitter - 2 ................................ ... 27
MALFUNCTION CODE NO. 35, 36, 37 OR 38 ... 27
Inspection 4: Vehicle Speed Signal ..................... ... 28
MALFUNCTION CODE NO. 52 (DTC C1729) . ... 28
TROUBLE DIAGNOSIS FOR SYMPTOMS ........... ... 29
Inspection 1: Warning Lamp Does Not Come On
When Ignition Switch Is Turned On ..................... ... 29
Inspection 2: Low Tire Pressure Warning Lamp
Stays On When Ignition Switch Is Turned On ...... ... 30
Inspection 3: Warning Lamp Flashes When Ignition
Switch Is Turned On ............................................ ... 32
Inspection 4: Hazard Warning Lamp Flashes When
Ignition Switch Is Turned On ............................... ... 33
Inspection 5: “TIRE PRESSURE” Information In
Display Unit Does Not Exist ................................. ... 34
Inspection 6: ID Registration Cannot Be Completed ... 35
REMOVAL AND INSTALLATION .......................... ... 36
Transmitter (Pressure Sensor) ............................ ... 36
REMOVAL ........................................................ ... 36
INSTALLATION ................................................ ... 36
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 38
Road Wheel ............................................................ 38
Tire ...................................................................... ... 38

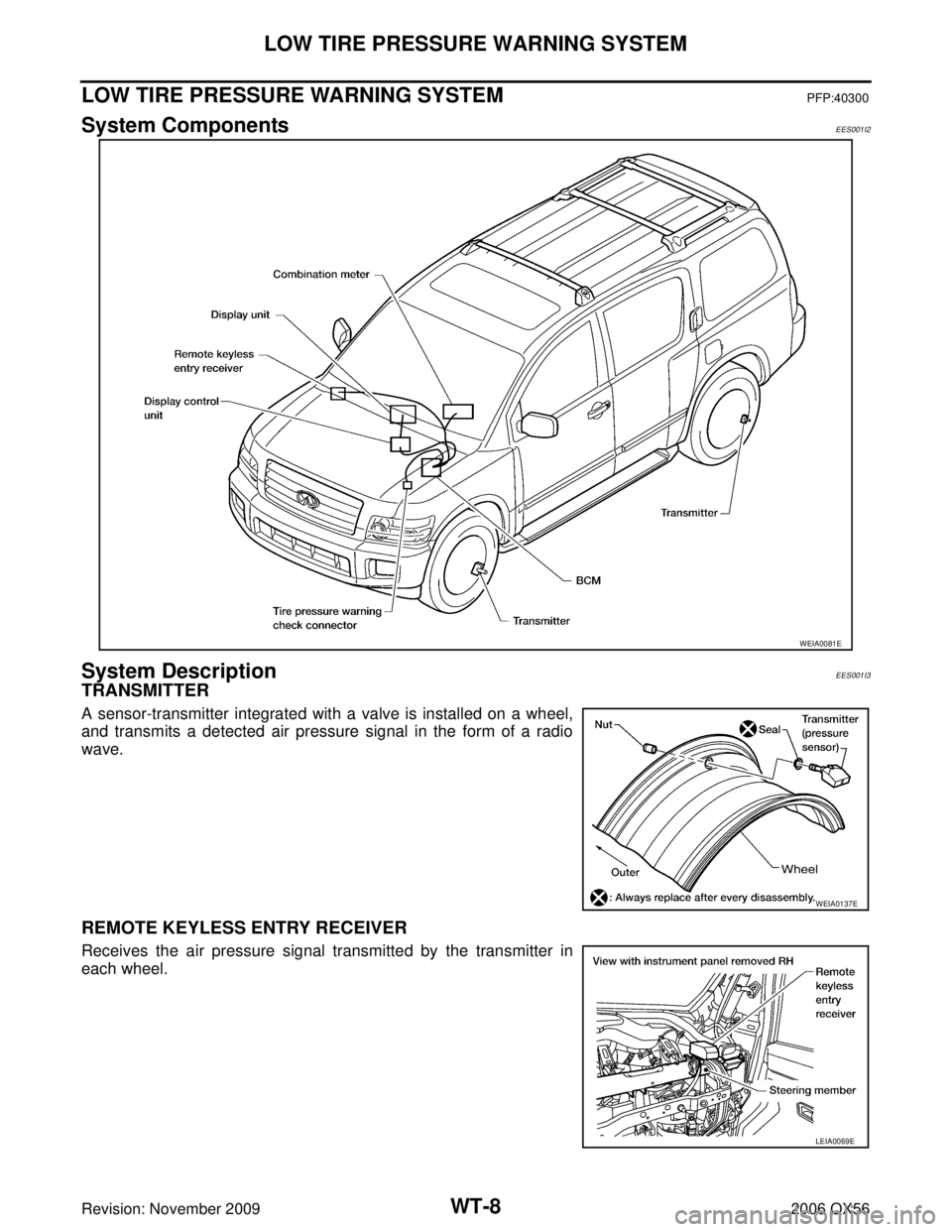

WT-8
LOW TIRE PRESSURE WARNING SYSTEM
Revision: November 20092006 QX56
LOW TIRE PRESSURE WARNING SYSTEMPFP:40300
System ComponentsEES001I2
System DescriptionEES001I3
TRANSMITTER
A sensor-transmitter integrated with a valve is installed on a wheel,
and transmits a detected air pressure signal in the form of a radio
wave.
REMOTE KEYLESS ENTRY RECEIVER
Receives the air pressure signal transmitted by the transmitter in
each wheel.
WEIA0081E
WEIA0137E
LEIA0069E

WT-26
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: November 20092006 QX56
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSPFP:00000
Inspection 1: Transmitter or Control Unit (BCM)EES001ID
MALFUNCTION CODE NO. 21, 22, 23 OR 24 (DTC C1708, C1709, C1710 OR C1711)
1. CHECK CONTROL UNIT
Drive for several minutes. Check all tire pressures with CONSULT-II “DATA MONITOR”.
Are all tire pressures displayed as 0 kPa?
YES >> GO TO 2.
NO >> GO TO 3.
2. CHECK REMOTE KEYLESS ENTRY RECEIVER CONNECTOR
Check remote keyless entry receiver connector for damage or loose connections.
OK or NG
OK >> Replace BCM, then GO TO 3. Refer to BCS-20, "BCM" .
NG >> Repair or replace remote keyless entry receiver connector.
3. ID REGISTRATION
Carry out ID registration of all transmitters.
Is there a tire that cannot register ID?
YES >> Replace transmitter of the tire, then GO TO 5. Refer to WT-36, "Transmitter (Pressure Sensor)" .
NO >> GO TO 4.
4. VEHICLE DRIVING
Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.
Check all tire pressures with CONSULT-II “DATA MONITOR” within 15 minutes after vehicle speed becomes
17 km/h (11 MPH).
Does
“DATA MONITOR” display tire pressure as normal without any warning lamp?
YES >> Inspection End.
NO >> GO TO 5.
5. ID REGISTRATION AND VEHICLE DRIVING
1. Carry out ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10 minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR” within 5 minutes.
Does
“DATA MONITOR” display tire pressure as normal without any warning lamp?
YES >> Inspection End.
NO >> GO TO the inspection applicable to DTC.
Inspection 2: Transmitter - 1EES001IE
MALFUNCTION CODE NO. 31, 32, 33, 34, 41, 42, 43, 44, 45, 46, 47 OR 48
1. ID REGISTRATION (CORRECTION OF TRANSMITTER LOCATION)
1. Carry out ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10 minutes.
>> GO TO 2.

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMSWT-27
C
DF
G H
I
J
K L
M A
B
WT
Revision: November 2009 2006 QX56
2. REPLACE TRANSMITTER
1. Check low tire pressure warning lamp again for flashing, replace malfunctioning transmitter.
2. Carry out ID registration of all transmitters.
Can ID registration of all transmitters be completed?
YES >> GO TO 3.
NO >> GO TO Inspection 1. Refer to WT-26, "
Inspection 1: Transmitter or Control Unit (BCM)" .
3. VEHICLE DRIVING
Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10
minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR” within 5 minutes.
Does
“DATA MONITOR” display tire pressure as normal without any warning lamp?
YES >> Inspection End.
NO >> Replace malfunctioning transmitter, and perform Step 3 again. Refer to WT-36, "
Transmitter
(Pressure Sensor)" .
Inspection 3: Transmitter - 2EES001IF
MALFUNCTION CODE NO. 35, 36, 37 OR 38
1. CHECK ALL TIRE PRESSURES
Check all tire pressures. Refer to WT-38, "
Tire"
Are there any tires with pressure of 64 psi or more?
YES >> Adjust tire pressure to specified value.
NO >> GO TO 2.
2. VEHICLE DRIVING
1. Carry out ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping. Check all tire pressures with CONSULT-II “DATA MONITOR ” within 15 minutes after vehicle speed
becomes 17 km/h (11 MPH).
>> Replace transmitter with new one if “DATA MONITOR” displays 64 psi or more. Refer to WT-36,
"Transmitter (Pressure Sensor)" . Then GO TO 3.
3. ID REGISTRATION AND VEHICLE DRIVING
1. Carry out ID registration of all transmitters.
2. Drive at a speed of 40 km/h (25 MPH) or more for 3 minutes, and then drive the vehicle at any speed for 10 minutes. Then check all tire pressures with CONSULT-II “DATA MONITOR” within 5 minutes.
Does
“DATA MONITOR” display tire pressure as normal without any warning lamp?
YES >> Inspection End.
NO >> GO TO the inspection applicable to DTC.

WT-28
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: November 20092006 QX56
Inspection 4: Vehicle Speed SignalEES001Q3
MALFUNCTION CODE NO. 52 (DTC C1729)
1. SELF-DIAGNOSTIC RESULT CHECK
1. With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link con- nector, then turn the ignition switch ON.
2. Select “START (NISSAN BASED VHCL) ”.
3. Select "BCM" on “SELECT SYSTEM” screen.
NOTE:
If the BCM is not indicated, refer to GI-40, "
CONSULT-II Data
Link Connector (DLC) Circuit" .
4. Select "BCM" on "SELECT TEST ITEM" screen, and select "SELF-DIAG RESULTS".
5. Check display contents in self-diagnostic results.
Is "CAN COMM CIRCUIT" displayed in the self-diagnosis display items?
YES >> Malfunction in CAN communication system. GO TO LAN-26, "CAN COMMUNICATION"
NO >> GO TO 2.
2. CHECK BCM
Perform BCM diagnosis. Refer to BCS-11, "
CONSULT–II INSPECTION PROCEDURE" .
Inspection results OK?
OK >> Perform Vehicle Speed Sensor Inspection. Refer to EC-443, "Diagnostic Procedure" .
NG >> Replace BCM. Refer to BCS-20, "
BCM" .
BCIA0029E
BCIA0030E
BCIA0031E
