2006 INFINITI M35 check

CAN SYSTEM (TYPE 2)
LAN-101
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

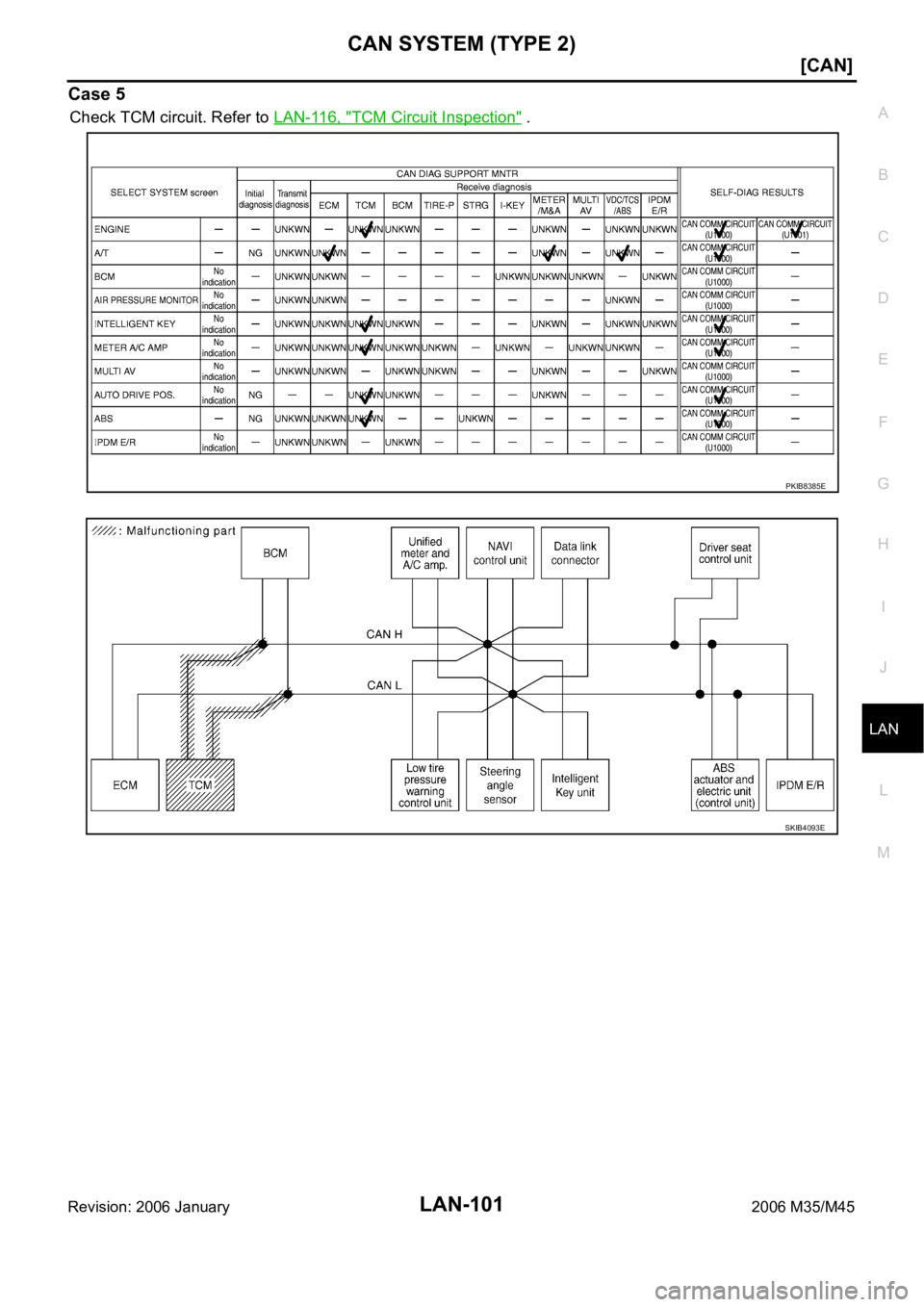

Case 5
Check TCM circuit. Refer to LAN-116, "TCM Circuit Inspection" .
PKIB8385E
SKIB4093E

LAN-102
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 January2006 M35/M45

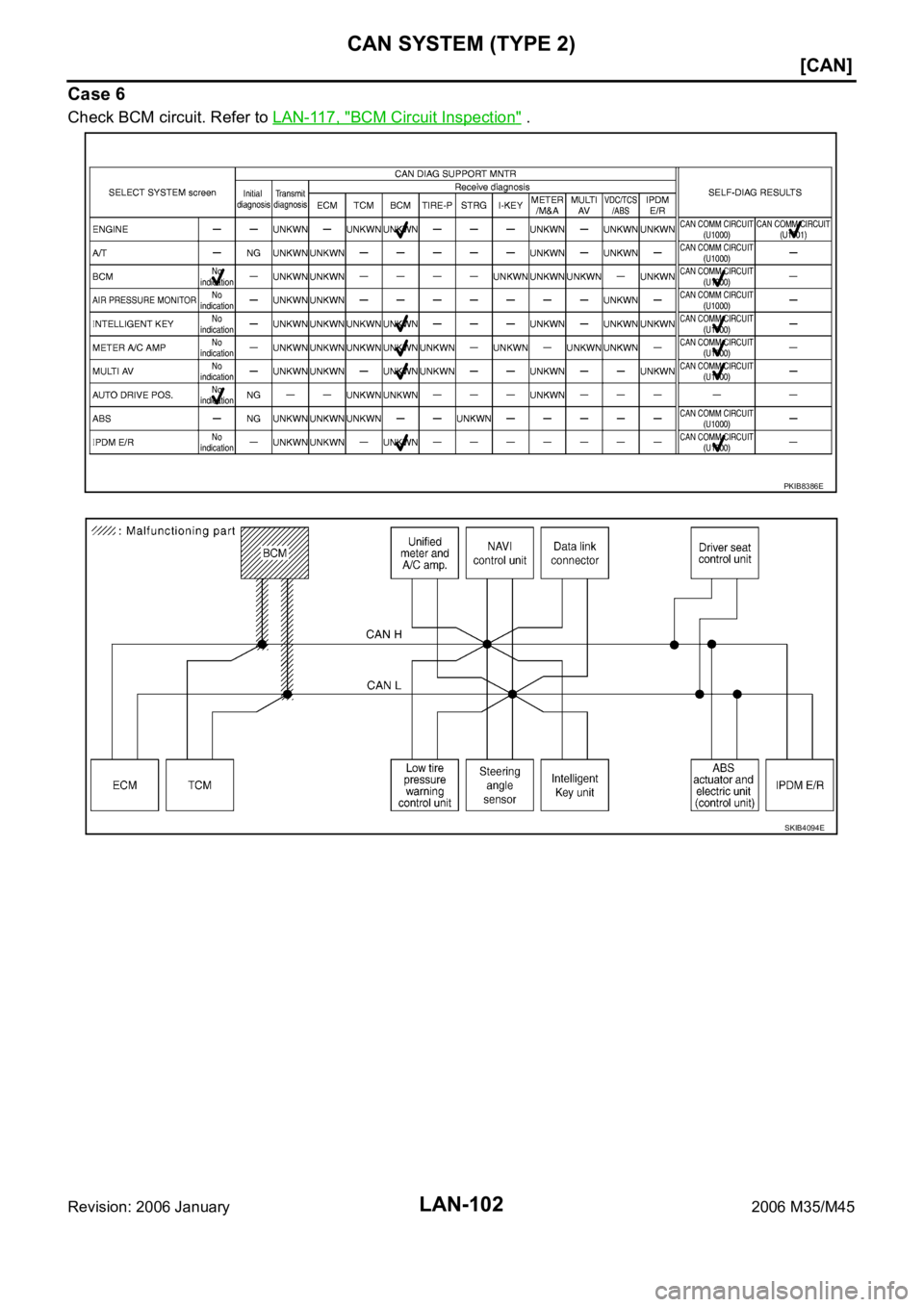

Case 6
Check BCM circuit. Refer to LAN-117, "BCM Circuit Inspection" .
PKIB8386E
SKIB4094E

CAN SYSTEM (TYPE 2)
LAN-103
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 7
Check low tire pressure warning control unit circuit. Refer to LAN-117, "Low Tire Pressure Warning Control
Unit Circuit Inspection" .
PKIB8387E
SKIB4095E

LAN-104
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 January2006 M35/M45
Case 8
Check steering angle sensor circuit. Refer to LAN-118, "Steering Angle Sensor Circuit Inspection" .
PKIB8388E
SKIB4096E

CAN SYSTEM (TYPE 2)
LAN-105
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45
Case 9
Check Intelligent Key unit circuit. Refer to LAN-118, "Intelligent Key Unit Circuit Inspection" .
PKIB8389E
SKIB4097E

LAN-106
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 January2006 M35/M45

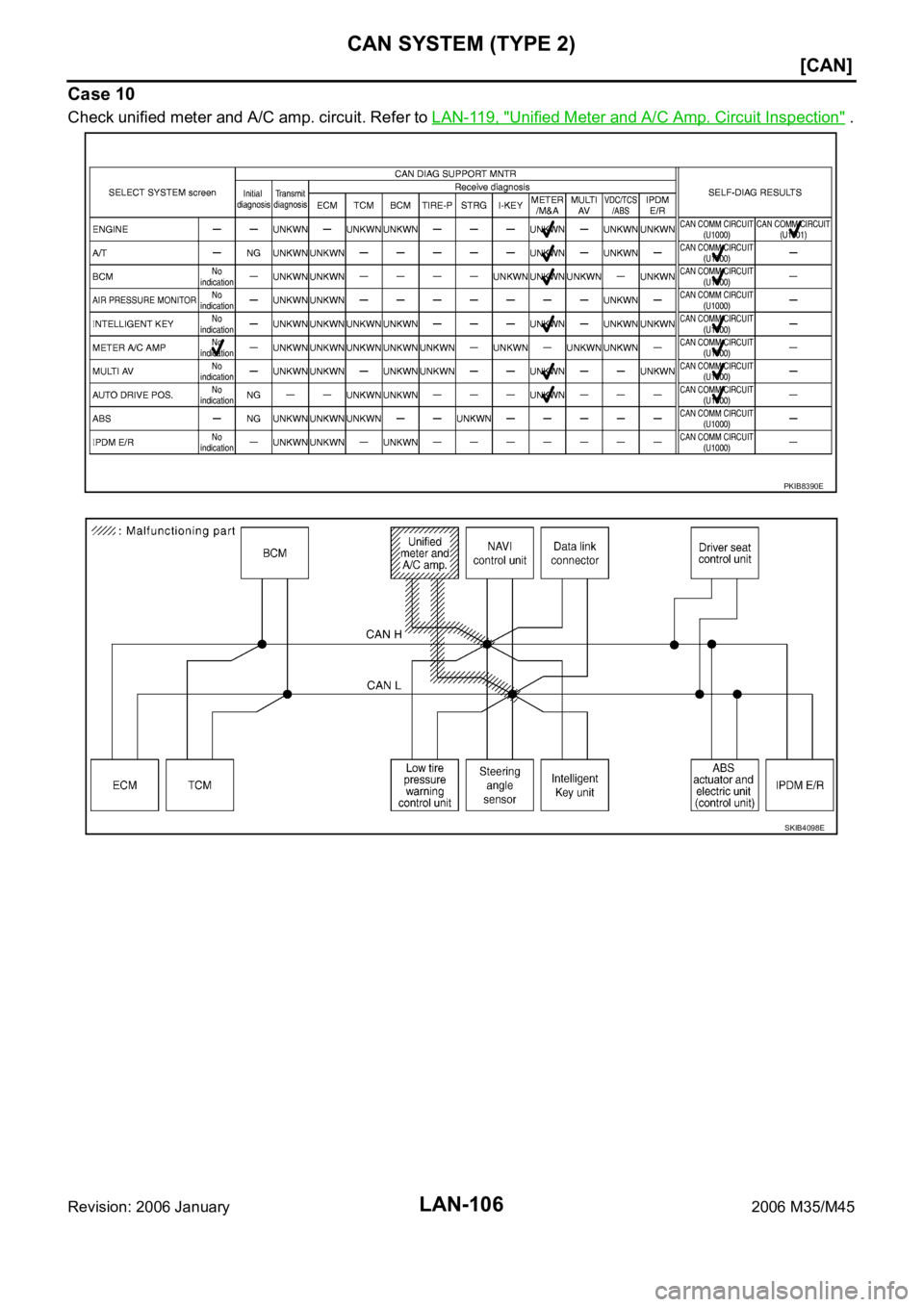

Case 10
Check unified meter and A/C amp. circuit. Refer to LAN-119, "Unified Meter and A/C Amp. Circuit Inspection" .
PKIB8390E
SKIB4098E

CAN SYSTEM (TYPE 2)
LAN-107
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2006 January2006 M35/M45

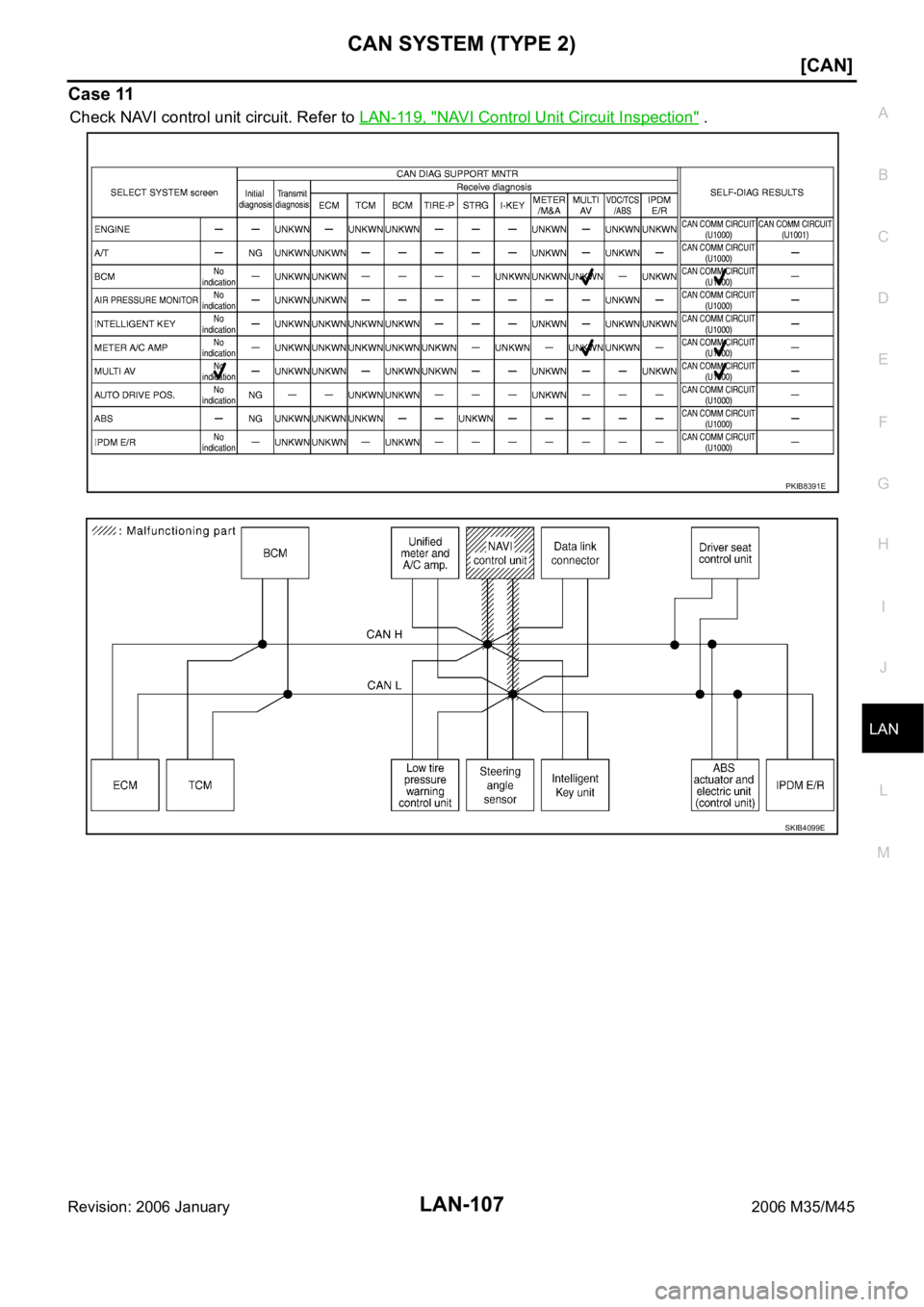

Case 11
Check NAVI control unit circuit. Refer to LAN-119, "NAVI Control Unit Circuit Inspection" .
PKIB8391E
SKIB4099E

LAN-108
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2006 January2006 M35/M45
Case 12
Check data link connector circuit. Refer to LAN-120, "Data Link Connector Circuit Inspection" .
PKIB8392E
SKIB4100E
