2006 INFINITI M35 crankshaft

CAMSHAFT
EM-223
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
2. Measure the valve clearance as follows:
a. Set No. 1 cylinder at TDC of its compression stroke.
Rotate crankshaft pulley in clockwise to align TDC identifica-
tion notch (without paint mark) with timing indicator on front
cover.
Make sure that both intake and exhaust cam noses of No. 1
cylinder (engine front side of left bank) are located as shown
in the figure.
If not, turn crankshaft one revolution (360 degrees) and align
as shown in the figure.
b. Use feeler gauge, measure the clearance between valve lifter
and camshaft.
Valve clearance:
Unit: mm (in)
*:Approximately 80
C (176F)
PBIC2341E
KBIA0400J
SEM139D
Cold Hot * (reference data)
Intake 0.26 - 0.34 (0.010 - 0.013) 0.304 - 0.416 (0.012 - 0.016)
Exhaust 0.29 - 0.37 (0.011 - 0.015) 0.308 - 0.432 (0.012 - 0.017)

EM-224
[VK45DE]
CAMSHAFT
Revision: 2006 January2006 M35/M45
By referring to the figure, measure the valve clearances at
locations marked “
” as shown in the table below (locations
indicated with black arrow in figure).
NOTE:
Firing order 1-8-7-3-6-5-4-2
No.1 cylinder at compression TDC
c. Rotate crankshaft pulley clockwise (when view from engine
front) by 270 degrees from the position of No. 1 cylinder com-
pression TDC to align No. 3 cylinder at TDC of its compression
stroke.
NOTE:
Crankshaft pulley mounting bolt flange has a angle mark every
90 degrees. They can be used as a guide to rotation angle.
By referring to the figure, measure the valve clearances at
locations marked “
” as shown in the table below (locations
indicated with white arrow in figure)
No. 3 cylinder at compression TDC
Measuring position (right bank)No. 2
CYL.No. 4
CYL.No. 6
CYL.No. 8
CYL.
No. 1 cylinder at
compression TDC EXH
INT
Measuring position (left bank)No. 1
CYL.No. 3
CYL.No. 5
CYL.No. 7
CYL.
No. 1 cylinder at
compression TDCINT

EXH
PBIC2358E
PBIC2346E
Measuring position (right bank)No. 2
CYL.No. 4
CYL.No. 6
CYL.No. 8
CYL.
No. 3 cylinder at
compression TDC EXH
INT
Measuring position (left bank)No. 1
CYL.No. 3
CYL.No. 5
CYL.No. 7
CYL.
No. 3 cylinder at
compression TDCINT

EXH
PBIC2358E

CAMSHAFT
EM-225
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
d. Rotate crankshaft pulley clockwise (when view from engine
front) by 90 degrees from the position of No. 3 cylinder compres-
sion TDC to align No. 6 cylinder at TDC of its compression
stroke.
By referring to the figure, measure the valve clearances at
locations marked “
” as shown in the table below.
No. 6 cylinder at compression TDC
3. Perform adjustment if the measured value is out of the standard. Refer to EM-225, "
ADJUSTMENT" .
ADJUSTMENT
NOTE:
Adjust valve clearance while engine is cold.
1. Thoroughly wipe off engine oil around adjusting shim using rag.
2. Rotate crankshaft to position cam nose on camshaft of valve that must be adjusted upward.
3. Using small screwdriver, turn the round hole of adjusting shim in
the direction of the arrow.
CAUTION:
Perform the above procedure so as not to contact camshaft
with adjusting shim.
4. Install lifter stopper [SST: 10115120 (J38972-2)] as follows:
a. Except exhaust side of No. 7 and 8 cylinder;
i. Place camshaft pliers (SST) around camshaft as shown in the
figure.
ii. Rotate camshaft pliers so that valve lifter is pushed down.
CAUTION:
Be careful not to damage cam surface, valve lifter and cylin-
der head with camshaft pliers.
PBIC2346E
Measuring position (right bank)No. 2
CYL.No. 4
CYL.No. 6
CYL.No. 8
CYL.
No. 6 cylinder at
compression TDC EXH

INT
PBIC0824E
PBIC0047E
PBIC2276E

EM-226
[VK45DE]
CAMSHAFT
Revision: 2006 January2006 M35/M45
iii. Place lifter stopper between camshaft and the edge of valve
lifter to retain valve lifter.
CAUTION:
Lifter stopper must be placed as close to camshaft
bracket as possible.
Be careful not to damage cam surface, valve lifter and
cylinder head with lifter stopper.
iv. Remove camshaft pliers.
CAUTION:
Camshaft pliers should be removed by rotating it slowly
because lifter stopper hits and damages journal portion by
rotating camshaft pliers quickly.
b. Exhaust side of No. 7 and 8 cylinder;
NOTE:
Exhaust side of No. 7 and 8 cylinder does not have space for installing camshaft pliers [SST: KV10115110
(J38972-1)]. therefore, install lifter stopper [SST: KV10115120 (J38972-2)] according to the following
instructions.
i. Rotate crankshaft to press cam nose to the adjusting part of valve lifter.
ii. Place lifter stopper between camshaft and the edge of valve lifter to retain valve lifter.
CAUTION:
Lifter stopper must be placed as close to camshaft bracket as possible.
Be careful not to damage cam surface, valve lifter and cylinder head with lifter stopper.
iii. Rotate crankshaft slowly 180 degrees clockwise.
CAUTION:
Rotating crankshaft slowly because lifter stopper hits and damages journal portion by rotating
crankshaft quickly.
5. Blow air into the round hole to separate adjusting shim from
valve lifter.
CAUTION:
When blowing, use goggles to protect your eye.
6. Remove adjusting shim with magnetic hand.
7. Use the equation below to calculate adjusting shim thickness for replacement.
PBIC1565E
PBIC1566E
PBIC2359E

EM-228
[VK45DE]
CAMSHAFT
Revision: 2006 January2006 M35/M45
i. Perform same procedure for removal, place camshaft pliers
(SST).
ii. Remove lifter stopper (SST).
iii. Remove camshaft pliers.
b. Exhaust side of No. 7 and 8 cylinder.
Rotate crankshaft slowly 180 degrees clockwise. then remove lifter stopper.
10. Manually turn crankshaft pulley a few turns.
11. Make sure that the valve clearance is within the standard. Refer to EM-222, "
INSPECTION" .
12. Install all removed parts in the reverse order of removal. Refer to EM-219, "
INSTALLATION" .
13. Warm up the engine, and check for unusual noise and vibration.
PBIC1569E

OIL SEAL
EM-229
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45

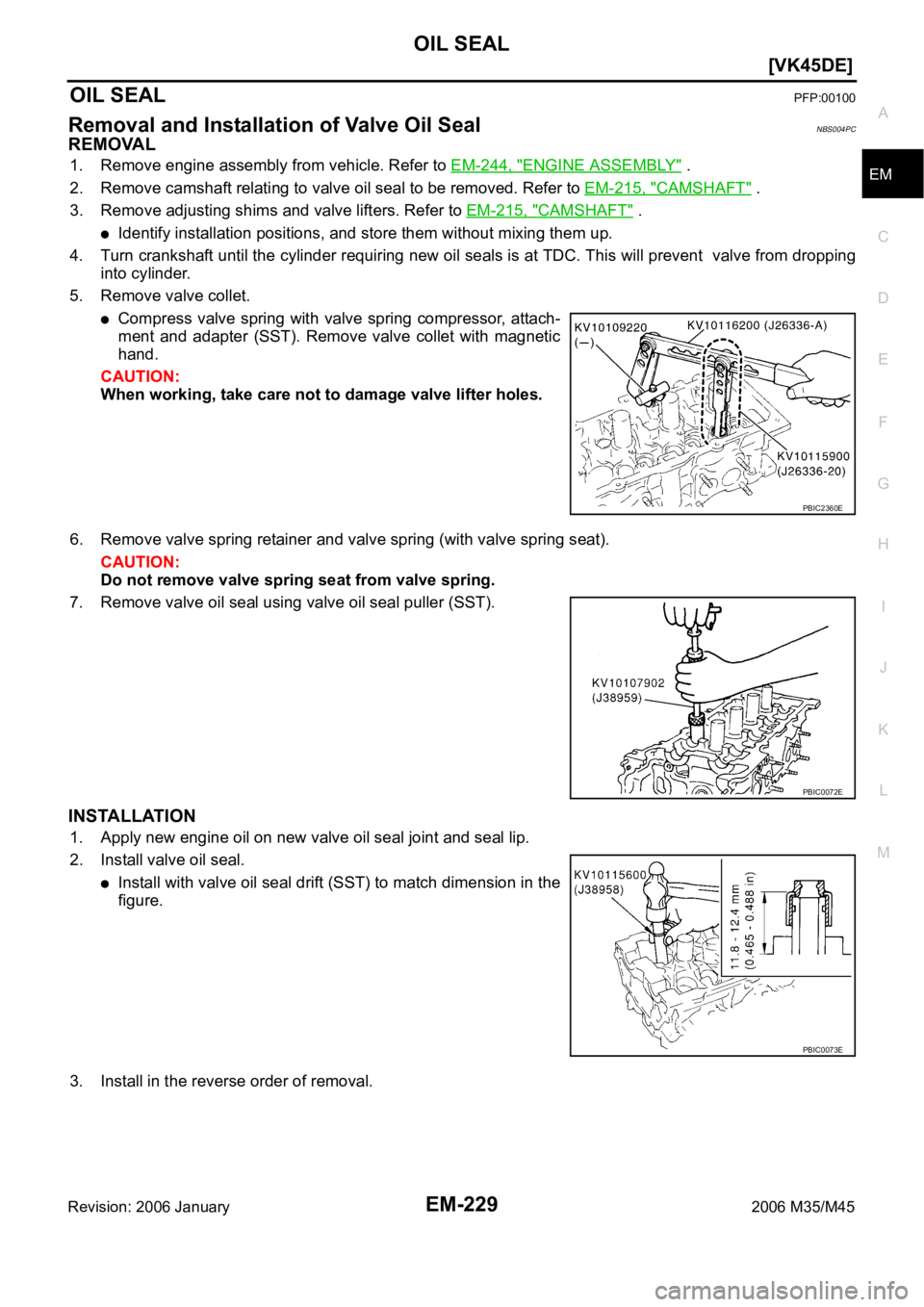

OIL SEALPFP:00100
Removal and Installation of Valve Oil SealNBS004PC
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-244, "ENGINE ASSEMBLY" .
2. Remove camshaft relating to valve oil seal to be removed. Refer to EM-215, "
CAMSHAFT" .
3. Remove adjusting shims and valve lifters. Refer to EM-215, "
CAMSHAFT" .
Identify installation positions, and store them without mixing them up.
4. Turn crankshaft until the cylinder requiring new oil seals is at TDC. This will prevent valve from dropping
into cylinder.
5. Remove valve collet.
Compress valve spring with valve spring compressor, attach-
ment and adapter (SST). Remove valve collet with magnetic
hand.
CAUTION:
When working, take care not to damage valve lifter holes.
6. Remove valve spring retainer and valve spring (with valve spring seat).
CAUTION:
Do not remove valve spring seat from valve spring.
7. Remove valve oil seal using valve oil seal puller (SST).
INSTALLATION
1. Apply new engine oil on new valve oil seal joint and seal lip.
2. Install valve oil seal.
Install with valve oil seal drift (SST) to match dimension in the
figure.
3. Install in the reverse order of removal.
PBIC2360E
PBIC0072E
PBIC0073E

EM-230
[VK45DE]
OIL SEAL
Revision: 2006 January2006 M35/M45
Removal and Installation of Front Oil SealNBS004PD
REMOVAL
1. Remove the following parts:
Front engine undercover (power tool)
Radiator; Refer to CO-43, "RADIATOR" .
Drive belt; Refer to EM-174, "DRIVE BELTS" .
Rear plate cover; Refer to EM-187, "OIL PAN AND OIL STRAINER" .
2. Remove crankshaft pulley as follows:
a. Set ring gear stopper (SST).
b. Loosen crankshaft pulley bolt, and then pull crankshaft pulley
with both hands to remove it.
CAUTION:
Do not remove crankshaft pulley bolt. Keep loosened
crankshaft pulley bolt in place to protect removed crank-
shaft pulley from dropping.
Do not remove balance weight (inner hexagon bolt) at the
front of crankshaft pulley.
3. Remove front oil seal using suitable tool.
CAUTION:
Be careful not to damage front cover and oil pump drive
spacer.
INSTALLATION
1. Apply new engine oil to both oil seal lip and dust seal lip of new front oil seal.
2. Install front oil seal.
PBIC1656E
SBIA0358E
SBIA0359E

OIL SEAL
EM-231
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Install front oil seal so that each seal lip is oriented as shown
in the figure.
Using front oil seal drift, press fit until the height of front oil
seal is level with the mounting surface.
Make sure the garter spring is in position and seal lips not
inverted.
CAUTION:
Be careful not to damage front cover and oil pump drive
spacer.
Press fit straight and avoid causing burrs or tilting oil seal.
3. Install in the reverse order of removal.
Removal and Installation of Rear Oil SealNBS004PE
REMOVAL
1. Remove transmission assembly. Refer to AT- 2 7 1 , "TRANSMISSION ASSEMBLY" .
a. Remove drive plate. Refer to EM-249, "
CYLINDER BLOCK" .
b. Remove rear plate. Refer to EM-249, "
CYLINDER BLOCK" .
2. Remove rear oil seal using suitable tool.
CAUTION:
Be careful not to damage crankshaft and oil seal retainer
surface.
INSTALLATION
1. Apply new engine oil to both oil seal lip and dust seal lip of new rear oil seal.
2. Install rear oil seal.
Install rear oil seal so that each seal lip is oriented as shown
in the figure.
SEM715A
Front oil seal drift
Outer diameter : 56 mm (2.20 in)
Inner diameter : 49 mm (1.93 in)
SBIA0359E
SBIA0360E
SEM715A
