2006 INFINITI M35 engine

DRIVE BELTS
EM-15
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
DRIVE BELTSPFP:02117
Checking Drive BeltsNBS004MU
WAR NING :
Be sure to perform when engine is stopped.
1. Inspect belts for cracks, fraying, wear and oil. If necessary, replace.
2. Inspect drive belt deflection or tension at a point on belt midway
between pulleys.
Inspection should be done only when engine is cold, or over
30 minutes after engine is stopped.
Measure the belt tension with belt tension gauge (Commercial
service tool: BT3373-F or equivalent) at points marked
shown in the figure.
When measuring the deflection, apply 98 N (10 kg, 22 lb) at
the marked point.
Adjust if the belt deflection exceeds the limit or if the belt ten-
sion is not within specifications.
CAUTION:
When checking the belt deflection or the tension immediately after installation, first adjust it to
the specified value. Then, after turning crankshaft two turns or more, re-adjust to the specified
value to avoid variation in deflection between pulleys.
Tighten idler pulley lock nut by hand and measure the deflection or the tension without loose-
ness.
Belt Deflection and Tension
*: If belt tension gauge cannot be installed at check points shown, check drive belt tension at different location on belt.
Tension AdjustmentNBS004MV
CAUTION:
When belt is replaced with a new one, adjust it to value for “New belt” to accommodate for insuffi-
cient adaptability with pulley grooves.
When deflection or tension of belt being used exceeds “Limit”, adjust it to value for “After adjust-
ment”.
When checking belt deflection or tension immediately after installation, first adjust it to the speci-
fied value. Then, after turning crankshaft two turns or more, re-adjust to the specified value to
avoid variation in deflection between pulleys.
When installing belt, make sure that it is correctly engaged with pulley grooves.
Keep engine oil, working fluid and engine coolant away from belt and pulley grooves.
Do not twist or bend belt excessively.
KBIA1731J
ItemsDeflection adjustment Unit: mm (in) Tension adjustment* Unit: N (kg, lb)
Used belt
New beltUsed belt
New belt
Limit After adjustment Limit After adjustment
Alternator and
power steering
oil pump belt7 (0.28)4 - 5
(0.16 - 0.20)3.5 - 4.5
(0.138 - 0.177)294 (30, 66)730 - 818
(74.5 - 83.5,
164 - 184)838 - 926
(85.5 - 94.5,
188 - 208)
A/C compressor
belt12 (0.47)9 - 10
(0.35 - 0.39)8 - 9
(0.31 - 0.35)196 (20, 44)348 - 436
(35.5 - 44.5,
78 - 98)470 - 559
(48 - 57,
106 - 126)
Applied pushing
force98 N (10 kg, 22 lb) —
PortionBelt tightening method for adjustment
Alternator and power steering oil pump belt Adjusting bolt on idler pulley
A/C compressor belt Adjusting bolt on idler pulley

EM-16
[VQ35DE]
DRIVE BELTS
Revision: 2006 January2006 M35/M45
ALTERNATOR AND POWER STEERING OIL PUMP BELT
1. Remove front engine undercover with power tool.
2. Loosen idler pulley lock nut (A) and adjust tension by turning
adjusting bolt (B).
For the specified belt tension, refer to EM-15, "Checking Drive
Belts" .
3. Tighten nut (A).
A/C COMPRESSOR BELT
1. Remove front engine undercover with power tool.
2. Loosen idler pulley lock nut (C) and adjust tension by turning adjusting bolt (D).
For the specified belt tension, refer to EM-15, "Checking Drive Belts" .
3. Tighten nut (C).
Removal and InstallationNBS004MW
REMOVAL
1. Remove front engine undercover with power tool.
2. Remove alternator and power steering oil pump belt. Refer to EM-16, "
ALTERNATOR AND POWER
STEERING OIL PUMP BELT" .
3. Remove A/C compressor belt. Refer to EM-16, "
A/C COMPRESSOR BELT" .
CAUTION:
Grease is applied to idler pulley adjusting bolt. Be careful to keep grease away from belt.
INSTALLATION
1. Install belts to pulley in reverse order of removal.
CAUTION:
Make sure drive belt is correctly engaged with pulley groove.
Make sure that for engine oil and engine coolant do not adhere to belt and each pulley grooves.
2. Adjust belt tension. Refer to EM-15, "
Tension Adjustment" .
3. Tighten each adjusting bolt and nut to the specified torque.
4. Make sure that tension of each belt is within the standard. Refer to EM-15, "
Checking Drive Belts" . : 34.8 Nꞏm (3.5 kg-m, 26 ft-lb)
SBIA0532E
: 34.8 Nꞏm (3.5 kg-m, 26 ft-lb)

AIR CLEANER AND AIR DUCT
EM-17
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
AIR CLEANER AND AIR DUCTPFP:16500
ComponentsNBS004MX
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS004MY
REMOVAL
1. Remove engine room cover (RH and LH). Refer to EM-14, "ENGINE ROOM COVER" .
2. Remove air duct (inlet).
3. Disconnect mass air flow sensor harness connector.
4. Disconnect PCV hose.
5. Remove air cleaner case/mass air flow sensor assembly and air duct/air hose disconnecting their joints.
Add marks as necessary for easier installation.
6. Remove mass air flow sensor from air cleaner case, as necessary.
CAUTION:
Handle mass air flow sensor with the following cares.
Do not shock it.
Do not disassemble it.
Do not touch its sensor.
INSTALLATION
Note the following, and install in the reverse order of removal.
Align marks. Attach each joint. Screw clamps firmly.
1. Air cleaner filter 2. Holder 3. Air duct (inlet)
4. Grommet 5. Air cleaner case 6. O-ring
7. Mass air flow sensor 8. Air hose 9. Air duct
10. Air hose 11. PCV hose
A. To electric throttle control actuator B. To rocker cover (left bank)
KBIA3542J

EM-18
[VQ35DE]
AIR CLEANER AND AIR DUCT
Revision: 2006 January2006 M35/M45
Changing Air Cleaner FilterNBS004MZ
REMOVAL
1. Remove engine room cover (LH). Refer to EM-14, "ENGINE ROOM COVER" .
2. Unhook clips (1) and remove holder (3) from air cleaner case
(2).
3. Remove air cleaner filter (2) from air cleaner case (1).
INSTALLATION
Note the following, and install in the reverse order of removal.
Install the air cleaner filter by aligning the seal with the notch of air cleaner case.
KBIA3584J
KBIA3585J

INTAKE MANIFOLD COLLECTOR
EM-19
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
INTAKE MANIFOLD COLLECTORPFP:14003
ComponentsNBS004N0
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS004N1
REMOVAL
WAR NING :
To avoid the danger of being scalded, never drain engine coolant when the engine is hot.
Gasket for intake manifold collector (upper) is secured together with mounting bolt for intake man-
ifold collector (lower). Thus, even when only gasket for upper side is replaced, gasket for lower
side must be also replaced.
1. Vacuum hose 2.EVAP canister purge volume control
solenoid valve3. Vacuum hose
4. Bracket 5. Intake manifold collector (upper) 6. Water hose
7. Water hose 8. Gasket 9. Electric throttle control actuator
10. Bracket 11. PCV hose 12. Bracket
13. Gasket 14. Intake manifold collector (lower) 15. Gasket
16. Intake manifold collector cover
A. To vacuum pipe B. To water outlet C. To heater pipe
D. To PCV valve
KBIA3590J

EM-20
[VQ35DE]
INTAKE MANIFOLD COLLECTOR
Revision: 2006 January2006 M35/M45
1. Remove engine cover (1) with power tool.
2. Disconnect water hoses from intake manifold collector (upper), attach blind plug to prevent engine coolant
leakage.
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
3. Remove air cleaner case and air duct. Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
4. Remove electric throttle control actuator as follows:
a. Disconnect harness connector.
b. Loosen mounting bolts in reverse order as shown in the figure.
CAUTION:
Handle carefully to avoid any shock to electric throttle
control actuator.
Do not disassemble.
5. Remove fuel sub-tube mounting bolt to disconnect from rear of intake manifold collector (lower). Refer to
EM-45, "
FUEL INJECTOR AND FUEL TUBE" .
6. Disconnect vacuum hose from intake manifold collector (upper).
7. Remove EVAP canister purge volume control solenoid valve and bracket mounting bolt from intake mani-
fold collector (upper).
PBIC3507E
KBIA0957E

INTAKE MANIFOLD COLLECTOR
EM-21
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
8. Loosen mounting bolts in reverse order of illustration to remove
intake manifold collector (upper) with power tool.
9. Remove PCV hose [between intake manifold collector (lower) and rocker cover (right bank)].
10. Loosen mounting bolts in reverse order as shown in the figure,
and remove intake manifold collector cover, gasket, intake man-
ifold collector (lower) and gasket with power tool.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
INSPECTION AFTER REMOVAL
Surface Distortion
Check the surface distortion of both the intake manifold collector
(upper and lower) mating surfaces with a straightedge and a
feeler gauge.
If it exceeds the limit, replace intake manifold collector (upper
and/or lower).
PBIC1094E
PBIC0774E
Limit : 0.1 mm (0.004 in)
PBIC0775E

EM-24
[VQ35DE]
INTAKE MANIFOLD
Revision: 2006 January2006 M35/M45

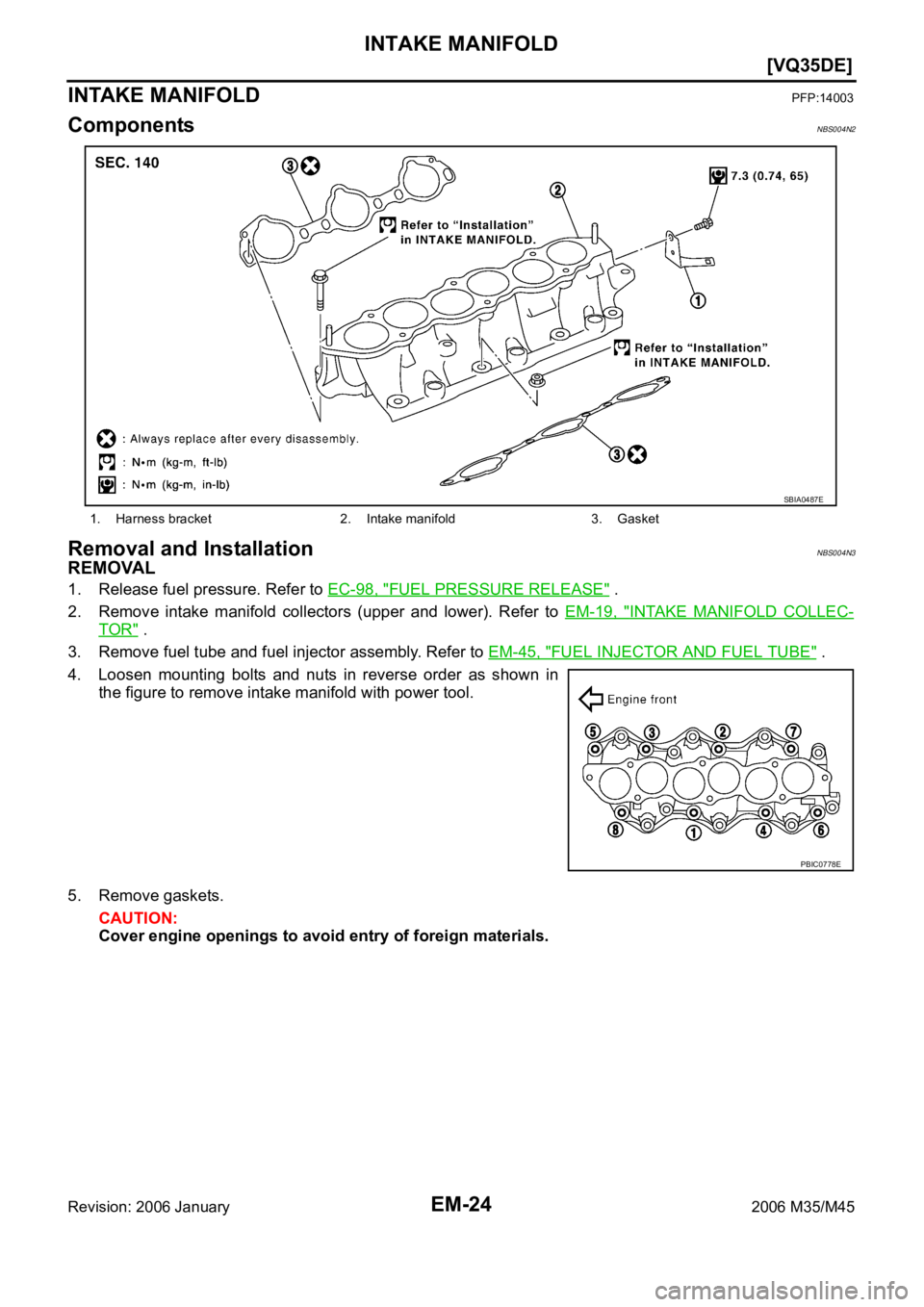

INTAKE MANIFOLDPFP:14003
ComponentsNBS004N2
Removal and InstallationNBS004N3
REMOVAL
1. Release fuel pressure. Refer to EC-98, "FUEL PRESSURE RELEASE" .
2. Remove intake manifold collectors (upper and lower). Refer to EM-19, "
INTAKE MANIFOLD COLLEC-
TOR" .
3. Remove fuel tube and fuel injector assembly. Refer to EM-45, "
FUEL INJECTOR AND FUEL TUBE" .
4. Loosen mounting bolts and nuts in reverse order as shown in
the figure to remove intake manifold with power tool.
5. Remove gaskets.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
1. Harness bracket 2. Intake manifold 3. Gasket
SBIA0487E
PBIC0778E
