the ground or place the vehicle on a flat
bed truck as illustrated.
CAUTION O Never tow automatic transmission
models with the rear wheels on the ground or four wheels on the ground
(forward or backward) as this may cause
serious and expensive damage to the
transmission. If it is necessary to tow the
vehicle with the front wheels raised, al-
ways use towing dollies under the rear
wheels.
O When towing rear wheel drive models
with the front wheels on the ground or
on towing dollies:
Turn the ignition key to the OFF position,
and secure the steering wheel in a
straight ahead position with a rope or
similar device. Never secure the steering
wheel by turning the ignition key to the
LOCK position. This may damage the
steering lock mechanism.
O If you have to tow manual transmission
models with the rear wheels on the
ground or four wheels on the ground (if
you do not use towing dollies):
O Always release the parking brake.
O Move the transmission shift lever to
the N (Neutral) position. SCE0387A
Automatic transmission (AT) models
In case of emergency
6-13
w 06.1.4/V35-D/V5.0
X

O Observe the following restricted towing
speeds and distances for manual trans-
mission models only:
Ð Speed: Below 60 MPH (95 km/h)
Ð Distance: Less than 500 miles (800
km)
If the speed or distance must necessarily
be greater, remove the propeller shaft be-
fore towing to prevent damage to the
transmission.
All-wheel drive (AWD) models INFINITI recommends that towing dollies
be used when towing your vehicle, or the
vehicle be placed on a flat bed truck as il-
lustrated.
CAUTION Never tow AWD models with any of the
wheels on the ground as this may cause se-
rious and expensive damage to the power
train. SCE0488
All-wheel drive (AWD) models
6-14 In case of emergency
w 06.1.4/V35-D/V5.0
X

VEHICLE RECOVERY (Freeing a
stuck vehicle) After removing the front license plate (or
the bumper cover), securely install the re-
covery hook
q 1
. (Located with jacking
tools.)
Reinstall the license plate on the lower fit-
ting point. WARNING O Stand clear of a stuck vehicle.
O Do not spin your tires at high speed. This
could cause them to explode and result
in serious injury. Parts of your vehicle
could also overheat and be damaged.
CAUTION O Tow chains or cables must be attached
only to the vehicle recovery hooks or
main structural members of the vehicle.
Otherwise, the vehicle body will be dam-
aged.
O Do not use the vehicle tie downs to free a
vehicle stuck in sand, snow, mud, etc.
Never tow a vehicle using the vehicle tie
downs or recovery hooks.
O Always pull the cable straight out from
the front of the vehicle. Never pull the ve-
hicle at an angle. O Pulling devices should be routed so they
do not touch any part of the suspension,
steering, brake or cooling systems.
O Pulling devices such as ropes or canvas
straps are not recommended for use in
vehicle towing or recovery.
If your vehicle is stuck in sand, snow,
mud, etc., use the following procedure:
1. Turn off the Vehicle Dynamic Control
(VDC) system.
2. Make sure the area in front and be-
hind the vehicle is clear of obstruc-
tions.
3. Turn the steering wheel right and left
to clear an area around the front tires.
4. Slowly rock the vehicle forward and
backward.
O Shift back and forth between R (re-
verse) and D (drive) (automatic trans-
mission models) or 1st (low) and R (re-
verse) (manual transmission models).
O Apply the accelerator as little as pos-
sible to maintain the rocking motion.SCE0524
In case of emergency
6-15
w 06.1.4/V35-D/V5.0
X

O Release the accelerator pedal before
shifting between R and D (automatic
transmission models) or 1st and R
(manual transmission models).
O Do not spin the tires above 35 MPH (55
km/h).
5. If the vehicle cannot be freed after a
few tries, contact a professional
towing service to remove the vehicle.
6-16 In case of emergency
w 06.1.4/V35-D/V5.0
X

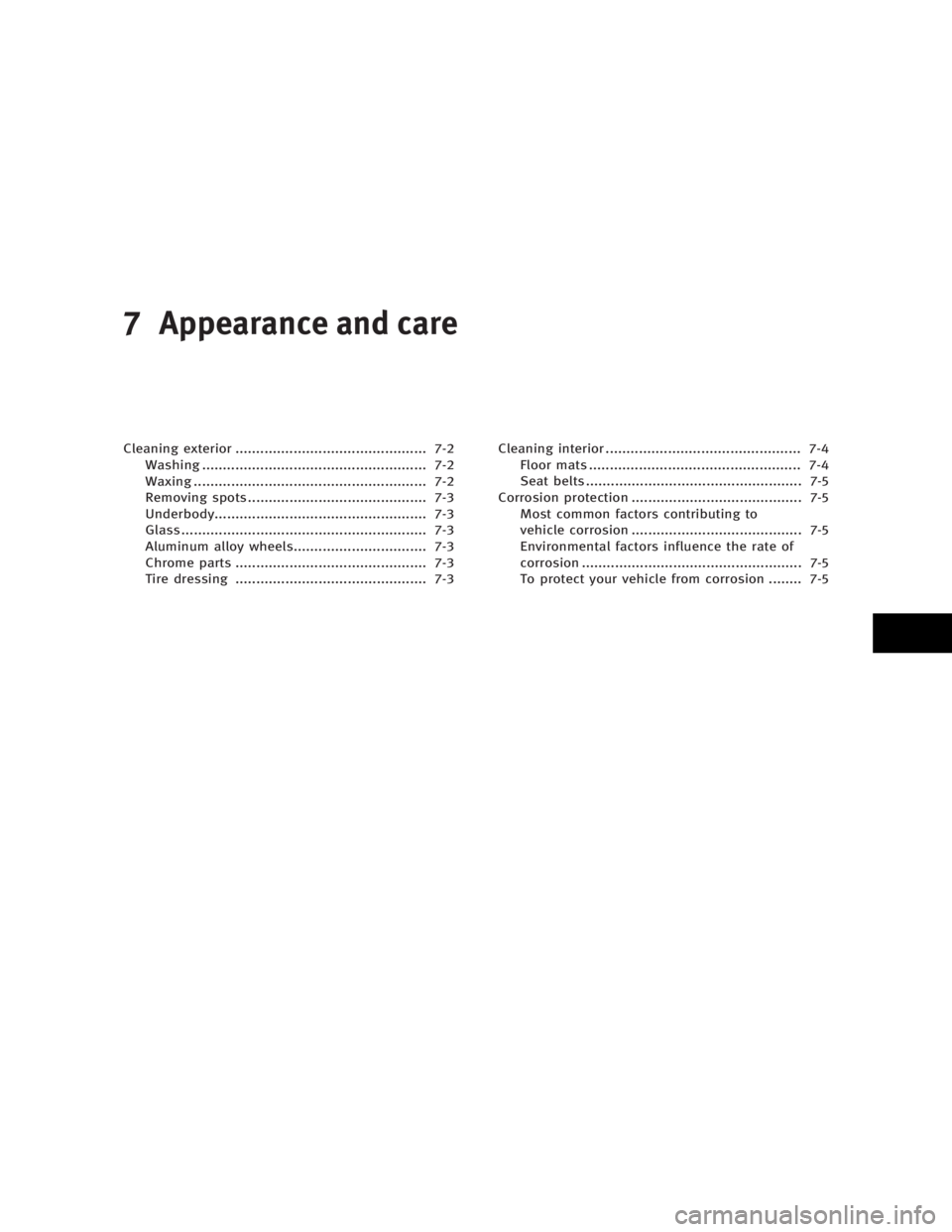

7 Appearance and care Cleaning exterior .............................................. 7-2
Washing ...................................................... 7-2
Waxing ........................................................ 7-2
Removing spots ........................................... 7-3
Underbody................................................... 7-3
Glass ........................................................... 7-3
Aluminum alloy wheels................................ 7-3
Chrome parts .............................................. 7-3
Tire dressing .............................................. 7-3 Cleaning interior ............................................... 7-4
Floor mats ................................................... 7-4
Seat belts .................................................... 7-5
Corrosion protection ......................................... 7-5
Most common factors contributing to
vehicle corrosion ......................................... 7-5
Environmental factors influence the rate of
corrosion ..................................................... 7-5
To protect your vehicle from corrosion ........ 7-5
w 06.1.4/V35-D/V5.0
X

In order to maintain the appearance of
your vehicle, it is important to care for it
properly.
To protect the paint surfaces, please
wash your vehicle as soon as you can.
O After a rainfall to prevent possible
damage from acid rain.
O After driving in coastal areas to pre-
vent possible damage from sea salt.
O When foreign objects, such as soot,
bird droppings, tree sap, metal par-
ticles, or insects get on the paint sur-
faces.
O When dust or mud builds up on the
paint surfaces.
Whenever possible, store or park your ve-
hicle inside garage or in covered area.
When it is necessary to park outside, park
in a shady area or protect the vehicle with
a body cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.
WASHING Wash dirt off the vehicle with a wet
sponge and plenty of water. Clean the ve- hicle thoroughly using a mild soap, spe-
cial vehicle soap or general purpose dish-
washing liquid mixed with clean, luke-
warm (never hot) water.
CAUTION O Do not use strong household soap,
strong chemical detergents, gasoline or
solvents.
O Do not wash the vehicle in direct sun-
light or while the vehicle body is hot, as
the surface may become water-spotted.
O Avoid using tight-napped or rough
cloths, such as washing mitts. Care must
be taken when removing caked-on dirt or
other foreign substances so the paint
surface is not scratched or damaged.
Rinse the vehicle again with plenty of
clean water.
Inside flanges, seams and folds on the
doors, hatches and hood are particularly
vulnerable to the effects of road salt.
Therefore, these areas must be regularly
cleaned. Make sure that the drain holes
in the lower edge of the door are open. Spray water under the body and in the
wheel wells to loosen the dirt and wash
away road salt.
Avoid leaving water spots on the paint
surface by using a damp chamois to dry
the vehicle.
WAXING Regular waxing protects the paint surface
and helps retain new vehicle appearance.
Polishing is recommended to remove
built-up wax residue and to avoid a
weathered appearance before re-applying
wax.
An INFINITI dealer can assist you in
choosing the proper product.
O Wax your vehicle only after a thorough
washing. Follow the instructions sup-
plied with the wax.
O Do not use a wax containing any abra-
sives, cutting compounds or cleaners
that may damage the vehicle finish.
Machine compounding or aggressive pol-
ishing on a base coat/clear coat paint fin-
ish may dull the finish or leave swirl
marks.CLEANING EXTERIOR
7-2 Appearance and care
w 06.1.4/V35-D/V5.0
X

REMOVING SPOTS Remove tar and oil spots, industrial dust,
insects, and tree sap as quickly as pos-
sible from the surface of the paint to
avoid lasting damage or staining. Special
cleaning products are available at an
INFINITI dealer or any automotive acces-
sory store.
UNDERBODY In areas where road salt is used in winter,
the underbody must be cleaned regularly.
This will prevent dirt and salt from
building up and causing underbody and
suspension corrosion. Before the winter
period and again in the spring, the under-
seal must be checked and, if necessary,
re-treated.
GLASS Use glass cleaner to remove smoke and
dust film from the glass surfaces. It is
normal for glass to become coated with a
film after the vehicle is parked in the hot
sun. Glass cleaner and a soft cloth will
easily remove this film. CAUTION When cleaning the inside of the windows, do
not use sharp-edged tools, abrasive
cleaners or chlorine-based disinfectant
cleaners. They could damage the electrical
conductors, radio antenna elements or rear
window defroster elements.
ALUMINUM ALLOY WHEELS Wash regularly, especially during winter
months in areas where road salt is used.
Salt could discolor the wheel if not re-
moved.
CHROME PARTS Clean all chrome parts regularly with a
non-abrasive chrome polish to maintain
the finish.
TIRE DRESSING INFINITI does not recommend the use of
tire dressings. Tire manufacturers apply a
coating to the tires to help reduce discol-
oration of the rubber. If a tire dressing is
applied to the tires, it may react with the
coating and form a compound. This com- pound may come off the tire while driving
and stain the vehicle paint.
If you choose to use a tire dressing, take
the following precautions:
O Use a water-based tire dressing. The
coating on the tire dissolves more
easily with an oil-based tire dressing.
O Apply a light coat of tire dressing to
help prevent it from entering the tire
tread/grooves (where it would be diffi-
cult to remove).
O Wipe off excess tire dressing using a
dry towel. Make sure the tire dressing
is completely removed from the tire
tread/grooves.
O Allow the tire dressing to dry as rec-
ommended by tire dressing manufac-
turer.
Appearance and care
7-3
w 06.1.4/V35-D/V5.0
X

Occasionally remove loose dust from the
interior trim, plastic parts and seats using
a vacuum cleaner or soft bristled brush.
Wipe the vinyl and leather surfaces with a
clean, soft cloth dampened in mild soap
solution, then wipe clean with a dry soft
bristled cloth.
Regular care and cleaning is required in
order to maintain the appearance of the
leather.
Before using any fabric protector, read
the manufacturer's recommendations.
Some fabric protectors contain chemicals
that may stain or bleach the seat mate-
rial.
Use a cloth dampened only with water, to
clean the meter and gauge lens.
CAUTIONO Never use gasoline, thinner, or any simi-
lar material. O Small dirt particles can be abrasive and
damaging to leather surfaces and should
be removed promptly. Do not use saddle
soap, car waxes, polishes, oils, cleaning
fluids, solvents, detergents or ammonia-
based cleaners as they may damage the
leather's natural finish.
O Never use fabric protectors unless rec-
ommended by the manufacturer.
O Do not use glass or plastic cleaner on
meter or gauge lens covers. It may
damage the lens cover.
FLOOR MATS The use of genuine INFINITI floor mats can
extend the life of your vehicle carpet and
make it easier to clean the interior. No
matter what mats are used, be sure they
are fitted for your vehicle and are properly
positioned in the footwell to prevent inter-
ference with pedal operation. Mats should
be maintained with regular cleaning and
replaced if they become excessively worn. Floor mat positioning aid
(driver's side only) This model includes a front floor mat
bracket
q A
to act as a floor mat posi-
tioning aid. INFINITI floor mats have been
specially designed for your vehicle model.
The driver's side floor mat has a grommet
hole incorporated in it. Simply position
the mat by placing the floor mat bracket
through the floor mat grommet hole while
centering the mat in the floorpan contour.
Periodically check to make certain that
the mats are properly positioned. SAI0012A
CLEANING INTERIOR
7-4 Appearance and care
w 06.1.4/V35-D/V5.0
X
