2006 INFINITI G35 Owners Manual

Coupe:
The rear seatback can be folded to allow
access to the trunk from the inside of the
vehicle.
To access the trunk:
1. Open the trunk lid.
2. Pull the handle located on the left side
of the trunk. The rear seatback will be
unlatched.
3. Fold the rear seatback down.
WARNING Properly secure all cargo to help prevent it
from sliding or shifting. Do not place cargo
higher than the seatbacks. In a sudden stop
or collision, unsecured cargo could cause
personal injury. To return the seatback:
1. Fold up the rear seatback.
2. Securely lock the seatback in position.
When the seatback is latched, the seat
lock indicator
q A
on the seatback will
be lowered.SSS0220 SSS0219 SSS0553
Safety Ð Seats, seat belts and supplemental restraint system
1-7
w 06.1.4/V35-D/V5.0
X

HEAD RESTRAINT ADJUSTMENT To raise the head restraint, just pull it up.
To lower, push the lock knob
q 1
and push
the head restraint down. Adjust the head restraints so the center is
level with the center of your ears.
WARNING Head restraints should be adjusted properly
as they may provide significant protection
against injury in an accident. Do not remove
them. Check the adjustment after someone
else uses the seat. ACTIVE HEAD RESTRAINT (front
seats)
WARNING O Always adjust the head restraints prop-
erly as specified in the previous section.
Failure to do so can reduce the effective-
ness of the active head restraint.
O Active head restraints are designed to
supplement other safety systems. Al-
ways wear seat belts. No system canSSS0288 SSS0178A SSS0508
1-8 Safety Ð Seats, seat belts and supplemental restraint system
w 06.1.4/V35-D/V5.0
X

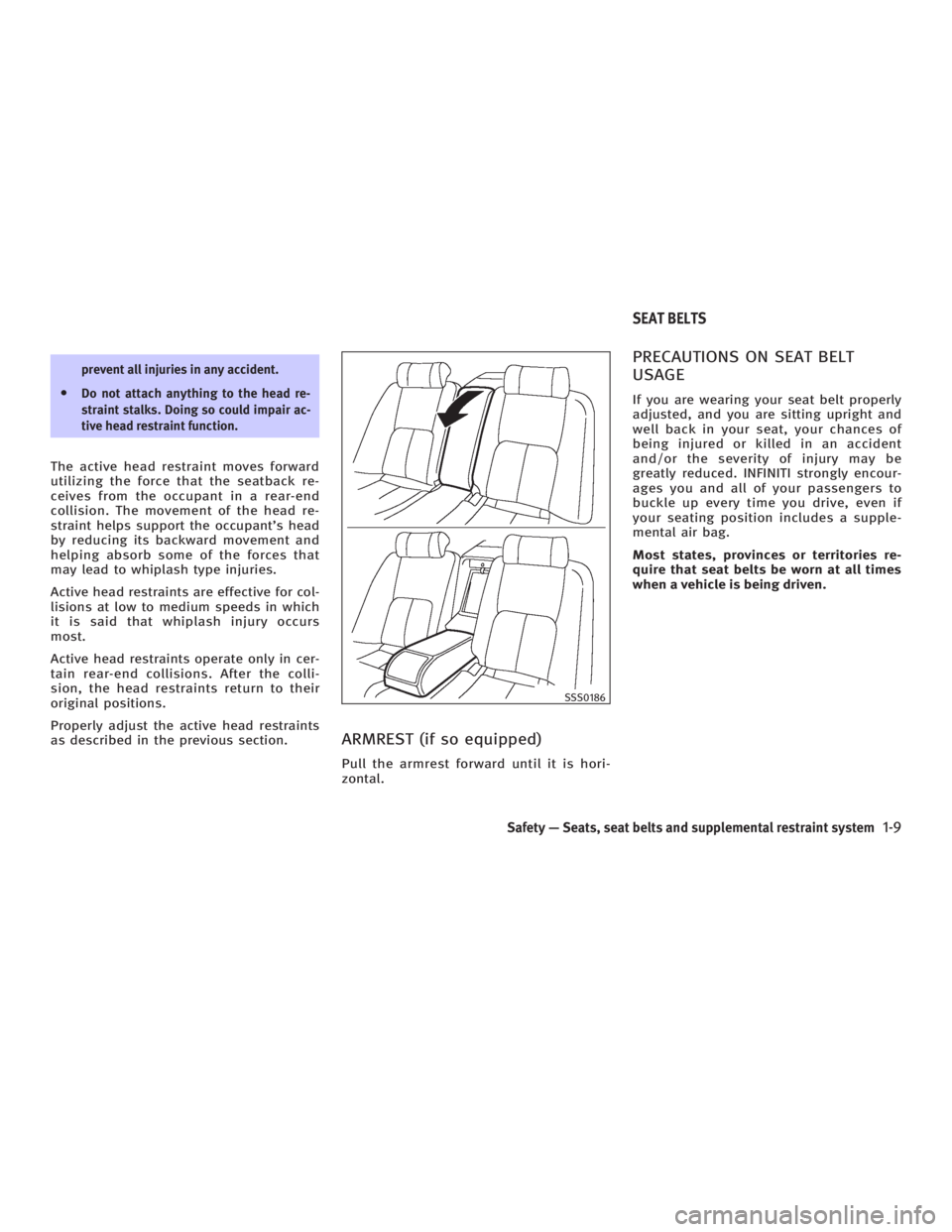

prevent all injuries in any accident.
O Do not attach anything to the head re-
straint stalks. Doing so could impair ac-
tive head restraint function.
The active head restraint moves forward
utilizing the force that the seatback re-
ceives from the occupant in a rear-end
collision. The movement of the head re-
straint helps support the occupant's head
by reducing its backward movement and
helping absorb some of the forces that
may lead to whiplash type injuries.
Active head restraints are effective for col-
lisions at low to medium speeds in which
it is said that whiplash injury occurs
most.
Active head restraints operate only in cer-
tain rear-end collisions. After the colli-
sion, the head restraints return to their
original positions.
Properly adjust the active head restraints
as described in the previous section.
ARMREST (if so equipped) Pull the armrest forward until it is hori-
zontal. PRECAUTIONS ON SEAT BELT
USAGE If you are wearing your seat belt properly
adjusted, and you are sitting upright and
well back in your seat, your chances of
being injured or killed in an accident
and/or the severity of injury may be
greatly reduced. INFINITI strongly encour-
ages you and all of your passengers to
buckle up every time you drive, even if
your seating position includes a supple-
mental air bag.
Most states, provinces or territories re-
quire that seat belts be worn at all times
when a vehicle is being driven. SSS0186SEAT BELTS
Safety Ð Seats, seat belts and supplemental restraint system
1-9
w 06.1.4/V35-D/V5.0
X

WARNINGO Every person who drives or rides in this
vehicle should use a seat belt at all
times. Children should be properly re-
strained in the rear seat and, if appropri-
ate, in a child restraint.
O The seat belt should be properly ad-
justed to a snug fit. Failure to do so may
reduce the effectiveness of the entire re-
straint system and increase the chance or severity of injury in an acci-
dent. Serious injury or death can occur if
the seat belt is not worn properly.
O Always route the shoulder belt over your
shoulder and across your chest. Never
run the belt behind your back, under
your arm or across your neck. The belt
should be away from your face and neck,
but not falling off your shoulder. O Position the lap belt as low and snug as
possible around the hips, not the waist.
A lap belt worn too high could increase
the risk of internal injuries in an acci-
dent.
O Be sure the seat belt tongue is securely
fastened to the proper buckle.
O Do not wear the seat belt inside out or
twisted. Doing so may reduce its effec-
tiveness.
O Do not allow more than one person to
use the same seat belt.
O Never carry more people in the vehicle
than there are seat belts.
O If the seat belt warning light glows con-
tinuously while the ignition is turned ON
with all doors closed and all seat belts
fastened, it may indicate a malfunction
in the system. Have the system checked
by an INFINITI dealer.
O Once the pre-tensioner seat belt has ac-
tivated, it cannot be reused and must be
replaced together with the retractor. See
an INFINITI dealer. SSS0136A
1-10 Safety Ð Seats, seat belts and supplemental restraint system
w 06.1.4/V35-D/V5.0
X

O Removal and installation of the pre-
tensioner seat belt system components
should be done by an INFINITI dealer.
O All seat belt assemblies, including re-
tractors and attaching hardware, should
be inspected after any collision by an
INFINITI dealer. INFINITI recommends
that all seat belt assemblies in use
during a collision be replaced unless the
collision was minor and the belts show
no damage and continue to operate
properly. Seat belt assemblies not in use during a collision should also be in-
spected and replaced if either damage or
improper operation is noted.
O All child restraints and attaching hard-
ware should be inspected after any colli-
sion. Always follow the restraint manu-
facturer's inspection instructions and re-
placement recommendations. The child
restraints should be replaced if they are
damaged. SSS0134A SSS0016
SSS0014
Safety Ð Seats, seat belts and supplemental restraint system
1-11
w 06.1.4/V35-D/V5.0
X

CHILD SAFETY Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in
this manual, child safety information is
available from many other sources, in-
cluding doctors, teachers, government
traffic safety offices, and community orga-
nizations. Every child is different, so be
sure to learn the best way to transport
your child.
There are three basic types of child re-
straint systems:
O Rear-facing child restraint
O Front-facing child restraint
O Booster seat
The proper restraint depends on the
child's size. Generally, infants (up to
about 1 year and less than 20 lb (9 kg)
should be placed in rear-facing child re-
straints. Front-facing child restraints are
available for children who outgrow rear-
facing child restraints and are at least 1
year old. Booster seats are used to help
position a vehicle lap/shoulder belt on a
child who can no longer use a front-facing
child restraint. WARNING Infants and children need special protection.
The vehicle's seat belts may not fit them
properly. The shoulder belt may come too
close to the face or neck. The lap belt may
not fit over their small hip bones. In an acci-
dent, an improperly fitting seat belt could
cause serious or fatal injury. Always use ap-
propriate child restraints.
All US states and provinces of Canada re-
quire the use of approved child restraints
for infants and small children. (See ªChild
restraintsº later in this section.)
Also, there are other types of child re-
straints available for larger children for
additional protection.
INFINITI recommends that all pre-teens
and children be restrained in the rear seat
if possible. According to accident statis-
tics, children are safer when properly re-
strained in the rear seat than in the front
seat.
This is especially important because your
vehicle has a supplemental restraint
system (air bag system) for the front pas- senger. See ªSupplemental Restraint
Systemº later in this section for precau-
tions.
Infants Infants up to at least 1 year old should be
placed in a rear-facing child restraint.
INFINITI recommends that infants be
placed in child restraints that comply with
Federal Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.
You should choose a child restraint that
fits your vehicle and always follow the
manufacturer's instructions for installa-
tion and use.
Small children Children that are over 1 year old and
weigh between 20 lb (9 kg) and 40 lb (18
kg) can be placed in a forward facing
child restraint. Refer to the manufactur-
er's instructions for minimum and
maximum weight and height recommen-
dations. INFINITI recommends that small
children be placed in child restraints that
comply with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle
Safety Standards. You should choose a
child restraint that fits your vehicle and
always follow the manufacturer's instruc-
tions for installation and use.
1-12 Safety Ð Seats, seat belts and supplemental restraint system
w 06.1.4/V35-D/V5.0
X

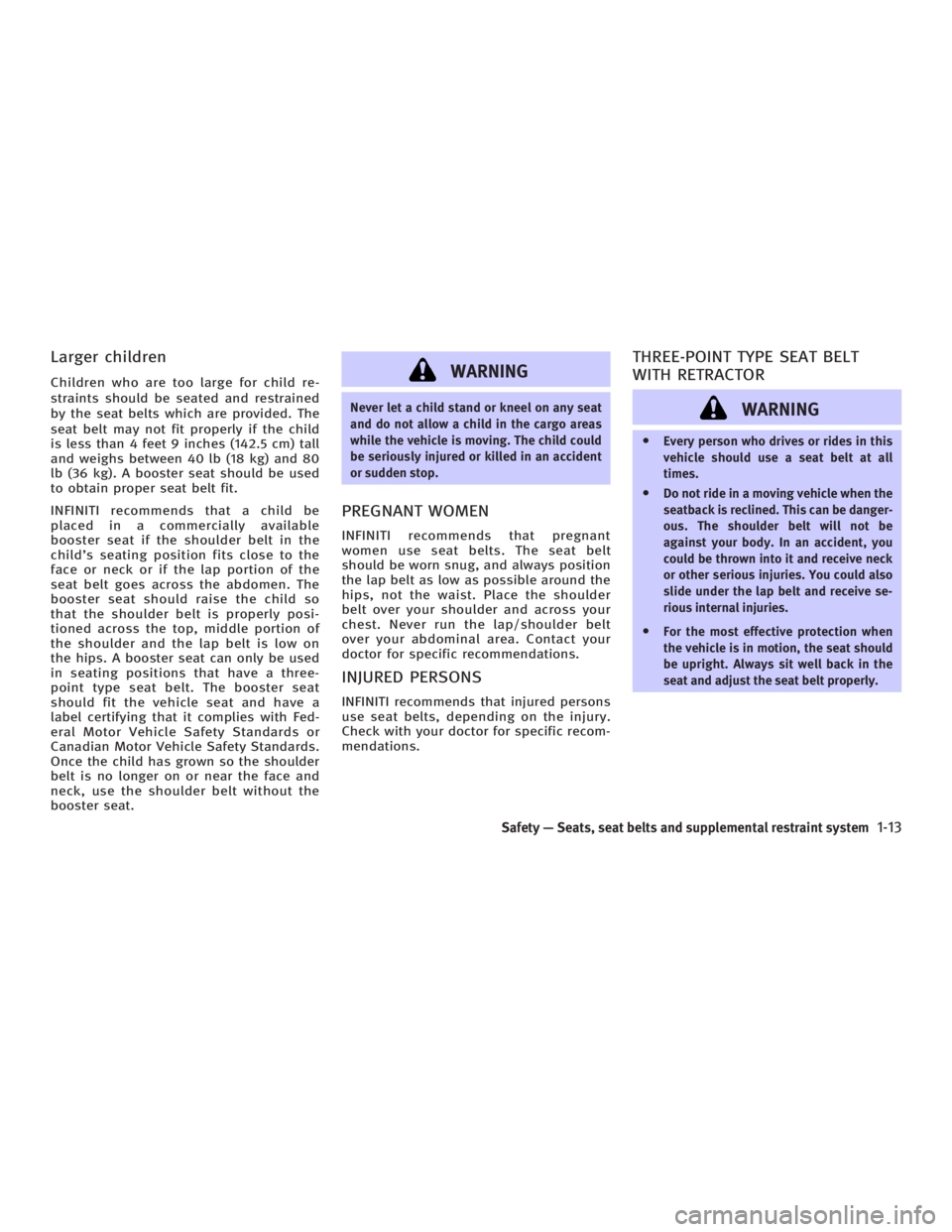

Larger children Children who are too large for child re-
straints should be seated and restrained
by the seat belts which are provided. The
seat belt may not fit properly if the child
is less than 4 feet 9 inches (142.5 cm) tall
and weighs between 40 lb (18 kg) and 80
lb (36 kg). A booster seat should be used
to obtain proper seat belt fit.
INFINITI recommends that a child be
placed in a commercially available
booster seat if the shoulder belt in the
child's seating position fits close to the
face or neck or if the lap portion of the
seat belt goes across the abdomen. The
booster seat should raise the child so
that the shoulder belt is properly posi-
tioned across the top, middle portion of
the shoulder and the lap belt is low on
the hips. A booster seat can only be used
in seating positions that have a three-
point type seat belt. The booster seat
should fit the vehicle seat and have a
label certifying that it complies with Fed-
eral Motor Vehicle Safety Standards or
Canadian Motor Vehicle Safety Standards.
Once the child has grown so the shoulder
belt is no longer on or near the face and
neck, use the shoulder belt without the
booster seat. WARNING Never let a child stand or kneel on any seat
and do not allow a child in the cargo areas
while the vehicle is moving. The child could
be seriously injured or killed in an accident
or sudden stop.
PREGNANT WOMEN INFINITI recommends that pregnant
women use seat belts. The seat belt
should be worn snug, and always position
the lap belt as low as possible around the
hips, not the waist. Place the shoulder
belt over your shoulder and across your
chest. Never run the lap/shoulder belt
over your abdominal area. Contact your
doctor for specific recommendations.
INJURED PERSONS INFINITI recommends that injured persons
use seat belts, depending on the injury.
Check with your doctor for specific recom-
mendations. THREE-POINT TYPE SEAT BELT
WITH RETRACTOR
WARNING O Every person who drives or rides in this
vehicle should use a seat belt at all
times.
O Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be
against your body. In an accident, you
could be thrown into it and receive neck
or other serious injuries. You could also
slide under the lap belt and receive se-
rious internal injuries.
O For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat and adjust the seat belt properly.
Safety Ð Seats, seat belts and supplemental restraint system
1-13
w 06.1.4/V35-D/V5.0
X

Fastening the seat belts 1. Adjust the seat. See ªSeatsº earlier in
this section.
2. Slowly pull the seat belt out of the re-
tractor and insert the tongue into the
buckle until it clicks.
· The retractor is designed to lock dur-
ing a sudden stop or on impact. A
slow pulling motion will permit the
belt to move, and allow you some
freedom of movement in the seat. · If the seat belt cannot be pulled from
its fully retracted position, firmly pull
the belt and release it. Then
smoothly pull the belt out of the re-
tractor. 3. Position the lap belt portion low and
snug on the hips as shown.
4. Pull the shoulder belt portion toward
the retractor to take up extra slack. Be
sure the shoulder belt is routed over
your shoulder and across your chest.
The front passenger and rear seat belts
have a locking mechanism for child re-
straint installation. It is referred to as the
automatic locking mode.
When the locking mechanism is activated
the seat belt cannot be extended again
until the seat belt tongue is detachedSSS0292
Front seat SSS0293
Rear seat SSS0290
Front seat
1-14 Safety Ð Seats, seat belts and supplemental restraint system
w 06.1.4/V35-D/V5.0
X
