BRC-8
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: 2006 December 2006 FX35/FX45
SYSTEM DESCRIPTIONPFP:00000
System DiagramNFS000N3
FunctionsNFS000N4
VDC

In addition to the TCS/ABS function, the driver steering amount and brake operation amount are detected
from steering angle sensor and pressure sensor, and the vehicle's driving status (amount of under steer-
ing / over steering) is determined from information from G sensor, wheel sensor, etc., and this information
is used to improve vehicle stability by controlling the braking and engine power to all four wheels.

SLIP indicator lamp flashes to inform the driver of VDC operation.

During VDC operation, body and brake pedal lightly vibrate and mechanical noises may be heard. This is
normal.

ABS warning lamp, VDC OFF indicator lamp, and SLIP indicator lamp might turn on when vehicle is sub-
ject to strong shaking or large vibration, such as when vehicle is on a turn table, a ship or a steep slope
such as bank while engine is running. In this case, restart engine on a normal road, and if ABS warning
lamp, VDC OFF indicator lamp, and SLIP indicator lamp turn off, there is no malfunction.
TCS

The wheel spin of the drive wheels is detected by ABS actuator and electric unit (control unit) from the
wheel speed signals from four wheels, so if wheel spin occurs, drive wheel right and left brake fluid pres-
sure control and engine fuel cut are performed while throttle value is restricted to reduce the engine
torque and decrease the amount of wheel spin. In addition, the degree throttle is opened is controlled to
achieve the optimum engine torque.

Depending on road circumstances, the driver may have a sluggish feel. This is normal, because the opti-
mum traction has the highest priority under TCS operation.

TCS may be activated any time vehicle suddenly accelerates, suddenly down/upshifts, or is driven on a
road with a varying surface friction coefficient.

During TCS operation, it informs a driver of system operation by flashing SLIP indicator lamp.
SFIA1160E

BRC-22
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Control Unit Input/Output Signal StandardNFS000NF
REFERENCE VALUE FROM CONSULT-II
CAUTION:
The display shows ABS actuator and electric unit (control unit) calculation data, so a normal value
might be displayed even in the event the output circuit (harness) is open or short-circuited.
Monitor item Display content Data monitor
Condition Reference value in
normal operation
SLCT LVR POSI A/T shift position P: P position
R: R position
N: N position
D: D position
GEAR A/T gear position 1: 1st gear
2: 2nd gear
3: 3rd gear
4: 4th gear
5: 5th gear
FR RH SENSOR
FR LH SENSOR
RR RH SENSOR
RR LH SENSOR Wheel speed Vehicle stopped 0 km/h
Vehicle running (Note 1) Almost in accor-
dance with speedom-
eter display
(within ± 10 %)
ACCEL POS SIG Open/close condition of throttle valve
(linked with accelerator pedal) Accelerator pedal not depressed
(ignition switch ON) 0 %
Depress accelerator pedal
(ignition switch ON) 0 to 100 %
ENGINE SPEED With engine running With engine stopped 0 rpm
Engine running Almost in accor-
dance with tachome-
ter display
STR ANGLE SIG Steering angle detected by steering angle
sensor Straight-ahead Approx. 0 deg
Steering wheel turned –756 to 756 deg
YAW RATE SEN Yaw rate detected by yaw rate sensor Vehicle stopped Approx. 0 d/s
Vehicle running –100 to 100 d/s
SIDE G-SENSOR Transverse G detected by side G sensor Vehicle stopped
Approx. 0 m/s
2
Vehicle running–16.7 to 16.7 m/s2
PRESS SENSOR Brake fluid pressure detected by pressure
sensor With ignition switch turned ON and brake
pedal released Approx. 0 bar
With ignition switch turned ON and brake
pedal depressed 0 to 170 bar
BATTERY VOLT Battery voltage supplied to ABS actuator
and electric unit (control unit) Ignition switch ON 10 to 16 V
STOP LAMP SW Brake pedal operation Brake pedal depressed ON
Brake pedal not depressed OFF
OFF SW VDC OFF switch ON/OFF status VDC OFF switch ON
(When VDC OFF indicator lamp is ON) ON
VDC OFF switch OFF
(When VDC OFF indicator lamp is OFF) OFF
ABS WARN LAMP ABS warning lamp ON condition (Note 2) ABS warning lamp ON ON
ABS warning lamp OFF OFF

BRC-26
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
DISPLAY ITEM LIST
Self-diagnostic item Malfunction detecting condition Check system
RR RH SENSOR- 1
[C1101] Circuit of rear RH wheel sensor is open, shorted or sensor power volt-
age is unusual.
BRC-36, "
Wheel Sensor Cir-
cuit" (Note 1)
RR LH SENSOR- 1
[C1102] Circuit of rear LH wheel sensor is open, shorted or sensor power volt-
age is unusual.
FR RH SENSOR- 1
[C1103] Circuit of front RH wheel sensor is open, shorted or sensor power volt-
age is unusual.
FR LH SENSOR- 1
[C1104] Circuit of front LH wheel sensor is open, shorted or sensor power volt-
age is unusual.
RR RH SENSOR- 2
[C1105] ABS actuator and electric unit (control unit) can not identify sensor
pulses, because of large gap between wheel sensor and sensor rotor.
RR LH SENSOR- 2
[C1106] ABS actuator and electric unit (control unit) can not identify sensor
pulses, because of large gap between wheel sensor and sensor rotor.
FR RH SENSOR- 2
[C1107] ABS actuator and electric unit (control unit) can not identify sensor
pulses, because of large gap between wheel sensor and sensor rotor.
FR LH SENSOR- 2
[C1108] ABS actuator and electric unit (control unit) can not identify sensor
pulses, because of large gap between wheel sensor and sensor rotor.
ABS SENSOR
[ABNORMAL SIGNAL]
[ C 111 5 ] Wheel sensor input is malfunction.
BATTERY VOLTAGE
[ABNORMAL]
[C1109] ABS actuator and electric unit (control unit) power voltage is too low. BRC-45, "
ABS Actuator and
Electric Unit (Control Unit)
Power Supply and Ground Cir-
cuit"
CONTROLLER FAILURE
[ C 111 0 ] Internal malfunction of ABS actuator and electric unit (control unit)
BRC-38, "VDC/TCS/ABS Con-
trol Unit Circuit"
PUMP MOTOR
[ C 1111 ] ( N o t e 3 ) During actuator motor operation with ON, when actuator motor turns
OFF or when control line for actuator motor relay is open. BRC-44, "Actuator Motor Cir-
cuit"During actuator motor operation with OFF, when actuator motor turns
ON or when control line for relay is shorted to ground.
G - SENSOR
[C1113] (Note 4) Decel G sensor is malfunctioning, or signal line of decel G sensor is
open or shorted. BRC-41, "
Yaw Rate/Side G
Sensor (2WD Models), Yaw
Rate/Side/Decel G Sensor
(AWD Models) Circuit"
STOP LAMP SW
[ C 111 6 ] Stop lamp switch circuit is open or shorted.
BRC-47, "Stop Lamp Switch
Circuit"

BRC-28
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
Note 1: After completing repairs of shorted sensor circuit, when turning ignition switch ON, ABS warning lamp turned on. Make t hat ABS
warning lamp turned off while driving vehicle at approximately 30 km/h (19 MPH) or more for approximately 1 minute according to self-
diagnosis procedure. In addition, if wheel sensor 2 is displayed for wheels, check wheel sensor circuit and also check ABS actu ator and
electric unit (control unit) power voltage.
Note 2: If multiple malfunctions are detected including CAN communication line [U1000], perform diagnosis for CAN communication line
first.
Note 3: “ACTUATOR RLY” on the CONSULT-II self-diagnostic results indicates the malfunction of actuator relay or circuit. Actuat or relay
is imbedded in ABS actuator and electric unit (control unit).
Note 4:Only AWD models. DECEL G SEN SET
[C1160] (Note 4) Neutral position correction of decel G sensor is not finished. BRC-49, "
When “DECEL G
SEN SET” Appears on Self-
diagnostic Results Display
(AWD Models)"
BRC-7, "Calibration of Decel G
Sensor (AWD Models)"
VARIANT CODING
[C1170] V coding is not functioning. ABS actuator and electric unit
(control unit) and circuit
ENGINE SIGNAL 1
[C1130] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine fuel cut system is malfunctioning.
BRC-38, "
Engine System"
ENGINE SIGNAL 2
[C1131] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine ETC system is malfunctioning.
ENGINE SIGNAL 3
[C1132] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine CAN system is malfunctioning.
ENGINE SIGNAL 4
[C1133] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine torque down system is malfunctioning.
ENGINE SIGNAL 6
[C1136] Based on the signal from ECM, ABS actuator and electric unit (control
unit) judges that engine control system is malfunctioning.
CAN COMM CIRCUIT
[U1000]

CAN communication line is open or shorted.

ABS actuator and electric unit (control unit) internal malfunction

Battery voltage for EMC is suddenly interrupted for approximately
0.5 seconds or more. BRC-50, "
CAN Communication
Circuit" (Note 2)
Self-diagnostic item Malfunction detecting condition Check system

TROUBLE DIAGNOSIS BRC-29
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 December 2006 FX35/FX45
Data MonitorNFS000OJ
OPERATION PROCEDURE
1. After turning ignition switch OFF, perform “CONSULT-II Starting Procedure”. Refer to GI-38, "CONSULT-II
Start Procedure" .
2. Turn ignition switch ON.
3. Touch “ABS”, “DATA MONITOR” in order on the CONSULT-II screen. CAUTION:
When “START (NISSAN BASED VHCL)” is touched immediately after starting engine or turning on
ignition switch, “ABS” might not be displayed in the “SYSTEM SELECTION” screen. In this case,
repeat the operation from step 1.
4. Return to the Monitor Item Selection screen, and touch “ECU INPUT SIGNALS”, “MAIN SIGNALS” or “SELECTION FROM MENU”. Refer to the following information.
5. When “START” is touched, the data monitor screen is displayed.
DISPLAY ITEM LIST
Item
(Unit) Data monitor item selection
Remarks
ECU INPUT
SIGNALS MAIN
SIGNALS SELECTION
FROM MENU
GEAR ××× Gear position judged by PNP switch signal is displayed.
SLCT LVR POSI ××× Shift position judged by PNP switch signal.
FR RH SENSOR
(km/h) ××× Wheel speed calculated by front RH wheel sensor signal is
displayed.
FR LH SENSOR
(km/h) ××× Wheel speed calculated by front LH wheel sensor signal is
displayed.
RR RH SENSOR
(km/h) ×××
Wheel speed calculated by rear RH wheel sensor signal is
displayed.
RR LH SENSOR
(km/h) ××× Wheel speed calculated by rear LH wheel sensor signal is
displayed.
BATTERY VOLT
(V) ××× Voltage supplied to ABS actuator and electric unit (control
unit) is displayed.
ENGINE SPEED
(rpm) ×××
Engine speed judged by CAN communication signal is dis-
played.
DECEL G-SEN
(G) (AWD models) ××× Longitudinal acceleration detected by decel G sensor is dis-
played.
OFF SW
(ON/OFF)
×× × VDC OFF switch (ON/OFF) status is displayed.
STOP LAMP SW
(ON/OFF) ×××
Stop lamp switch (ON/OFF) status is displayed.
YAW RATE SEN
(d/s) ××
– Yaw rate detected by yaw rate sensor is displayed.
ACCEL POS SIG
(%) ×
–– Throttle valve open/close status judged by CAN communica-
tion signal is displayed.
STR ANGLE SIG
(deg) ×
–– Steering angle detected by steering angle sensor is dis-
played.
SIDE G-SENSOR
(m/s
2 ) ×
– – Lateral acceleration detected by side G sensor is displayed.
PRESS SENSOR
(bar) ×
–– Brake fluid pressure detected by pressure sensor is dis-
played.
FLUID LEV SW
(ON/OFF) ×
– – Brake fluid level switch (ON/OFF) status is displayed.
ABS WARN LAMP
(ON/OFF) –
×× ABS warning lamp (ON/OFF) status is displayed.
SLIP LAMP
(ON/OFF) –
×× SLIP indicator lamp (ON/OFF) status is displayed.

TROUBLE DIAGNOSIS BRC-31
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 December 2006 FX35/FX45
× :Applicable
–:Not applicable
Note: Serves as EBD warning lamp.
Active TestNFS000RF
CAUTION:

Do not perform active test while driving.

Make sure to completely bleed air from the brake system.

Active test can not be performed when EBD, ABS, TCS or VDC operation is malfunction.

ABS and brake warning lamps turn on during the active test.
OPERATION PROCEDURE

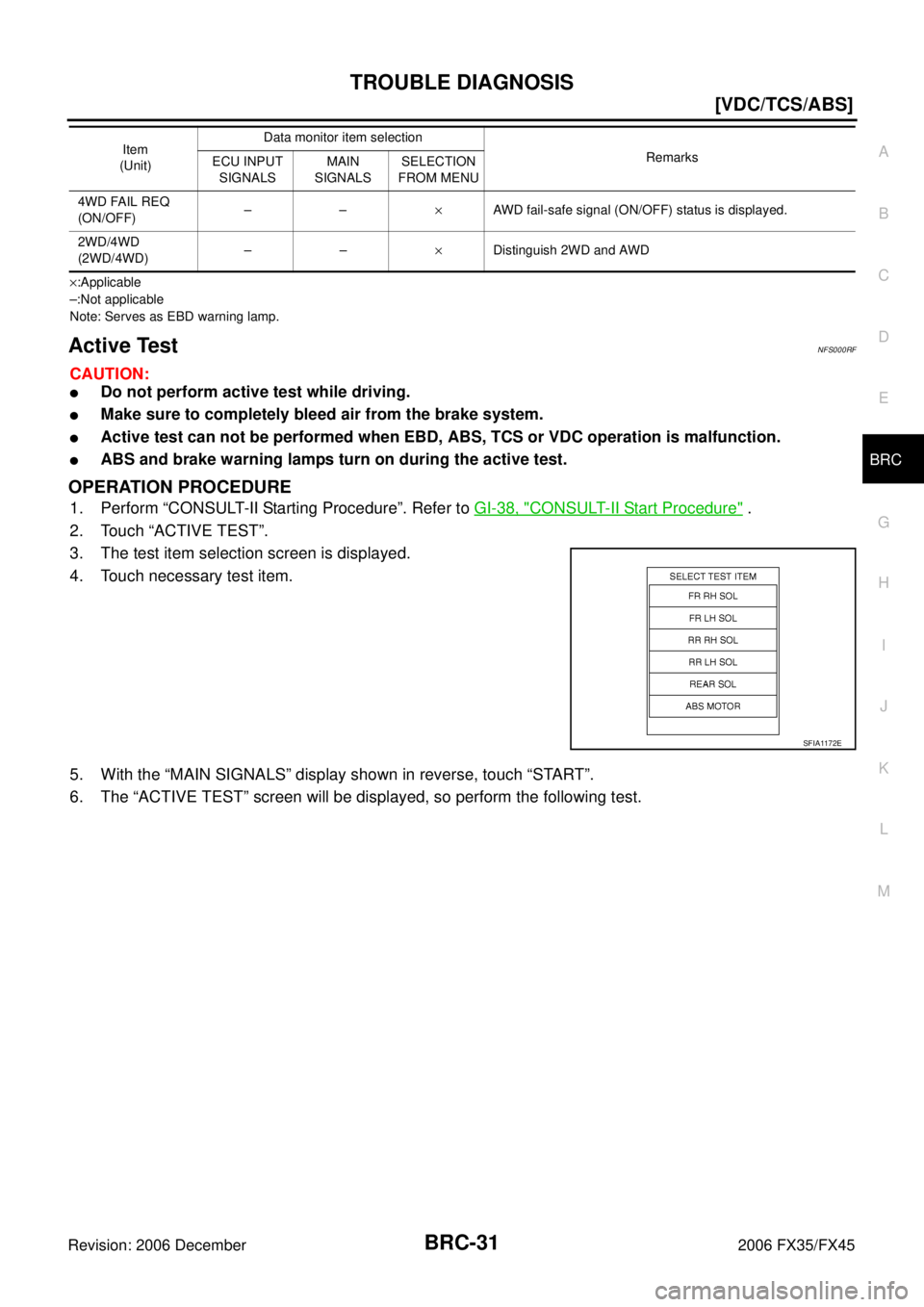

1. Perform “CONSULT-II Starting Procedure”. Refer to GI-38, "CONSULT-II Start Procedure" .
2. Touch “ACTIVE TEST”.
3. The test item selection screen is displayed.
4. Touch necessary test item.
5. With the “MAIN SIGNALS” display shown in reverse, touch “START”.
6. The “ACTIVE TEST” screen will be displayed, so perform the following test.
4WD FAIL REQ
(ON/OFF) ––
×AWD fail-safe signal (ON/OFF) status is displayed.
2WD/4WD
(2WD/4WD) ––
×Distinguish 2WD and AWD
Item
(Unit) Data monitor item selection
Remarks
ECU INPUT
SIGNALS MAIN
SIGNALS SELECTION
FROM MENU
SFIA1172E

TROUBLE DIAGNOSIS FOR SYSTEM BRC-37
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 December 2006 FX35/FX45
5. CHECK WHEEL SENSOR HARNESS
1. Turn ignition switch OFF and disconnect malfunctioning wheel sensor connector E46 (FR-LH), E33 (FR-RH) or B69 (RR) and
ABS actuator and electric unit (control unit) connector E56.
2. Check continuity between terminals. (Also check the continuity when steering wheel is turned right and left and when sensor
harness inside wheel well is moved.)
OK or NG
OK >> GO TO 6.
NG >> Repair or replace harness and connector that have malfunction.
6. CHECK WHEEL SENSOR
1. Replace wheel sensor that resulted in malfunction by self-diagnosis.
2. Reconnect connectors, drive vehicle at 30 km/h (19 MPH) or more for approximately 1 minute, and then perform self-diagnosis.
Is above displayed on self-diagnosis display?
OK >> Wheel sensor has malfunction.
NG >>

Replace ABS actuator and electric unit (control unit).

Perform to self-diagnosis again, and make sure that the result shows “NO DTC IS DETECTED.
FURTHER TESTING MAY BE REQUIRED”.
SFIA1186E
Power supply circuit Signal circuit Ground circuit
Wheel ABS actuator
and electric unit (control unit) Wheel sensor ABS actuator
and electric unit (control unit) Wheel sensor ABS actuator and elec-
tric unit (control unit) (signal) ABS actuator and elec-
tric unit (control unit) (ground)
Front RH 34 1 33 2 33, 34
16, 47
Front LH 45 1 46 2 45, 46
Rear RH 43 1 42 2 43, 42
Rear LH 36 3 37 4 36, 37
Power supply circuit : Continuity should exist.
Signal circuit : Continuity should exist.
Ground circuit : Continuity should not exist.

TROUBLE DIAGNOSIS FOR SYSTEM BRC-41
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 December 2006 FX35/FX45
4. CHECK STEERING WHEEL PLAY
Check steering wheel play. Refer to PS-10, "
CHECKING STEERING WHEEL PLAY" .
OK or NG
OK >> GO TO 5
NG >> Adjust steering wheel play.
5. PERFORM DATA MONITOR
1. Connect steering angle sensor and ABS actuator and electric unit (control unit) connectors.
2. Perform “DATA MONITOR” of the “STEERING ANGLE SIGNAL” to check if the status is normal.
OK or NG
OK >> Perform ABS actuator and electric unit (control unit) self-diagnosis again.
NG >> Replace steering angle sensor and adjust neutral position of steering angle sensor. Refer to BRC-
6, "Adjustment of Steering Angle Sensor Neutral Position" .
Yaw Rate/Side G Sensor (2WD Models), Yaw Rate/Side/Decel G Sensor (AWD
Models) Circuit
NFS000NO
DTC C1113, C1145, C1146
CAUTION:
Sudden turns (such as spin turns, acceleration turns), drifting, etc. may cause the G sensor circuit
indicate a malfunction. However, this is not a malfunction, if normal operation can be resumed after
restarting engine.
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.
CAUTION:
When on a turntable, such as at a parking structure entrance, or when on a moving object with engine
running, VDC OFF indicator lamp might turn on and self-diagnosis using CONSULT-II the yaw rate sen-
sor system might be displayed, but in this case there is no malfunction in yaw rate sensor circuit. As
soon as vehicle leaves turntable or moving object, restart engine to return the system to normal.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Disconnect G sensor connector and ABS actuator and electric unit (control unit) connector and check ter- minals for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or replace
terminal.
2. Reconnect connectors and perform a ABS actuator and electric unit (control unit) self-diagnosis again.
OK or NG
OK >> Connector terminal contact is loose, damaged, open or shorted.
NG >> GO TO 3.
Steering condition Data monitor
Straight-ahead -3.5 deg - +3.5 deg
Turn wheel to the right by 90 °. Approx. -90 deg
Turn wheel to the left by 90 °. Approx. +90 deg
Self-diagnostic results
YAW RATE SENSOR
SIDE G-SEN CIRCUIT
G-SENSOR (AWD models)
