2 DRIVING YOUR HYUNDAI
10
!
C090A01A-GAT
NOTE:
Depress the brake pedal and push the button when shifting. Push the button when shifting.The selector lever can be shifted freely.
For optimum fuel economy, accelerate gradually. The transaxle will automati-cally shift to the second, third and overdrive gears.
The highly efficient Hyundai automatic transaxle has four forward speeds and one reverse speed. It has a conven-tional shift pattern as shown in the illustration. At night, with the first posi- tion of the multi-function switch, theappropriate symbol on the shift pattern indicator will be illuminated according to the range selected.
CAUTION:
Never shift into "R" or "P" position whilst the vehicle is moving. AUTOMATIC TRANSAXLE
YC090A1-E Selector Positions o P (Park): With the selector in this position, no drive is transmitted from the engine and the transaxle output and therefore the front wheels locked. The engine may bestarted with the selector in this position.
!CAUTION:
The selector must NEVER be shifted to the "P" position whilst the vehicle is in motion, otherwise serioustransaxle damage will result. DC110C1-E o R (Reverse): With the selector in this position, re- verse gear will be engaged. The enginemay not be started with the selector in this position.
!
CAUTION:
The selector must NEVER be shifted to the "R" position whilst the vehicle is in motion.
DC110D1-E o N (Neutral): With the selector in this position, no gear is selected and no drive is trans- mitted from the engine. The engine maybe started with the selector in this position.
! CAUTION:
Do not coast with the selector at the "N" position.
C090A01FC-D

2
DRIVING YOUR HYUNDAI
11
DC110G2-E o L (Low Gear): With the selector in this position, first gear will be engaged from rest. Noupshift will occur regardless of vehicle speed and throttle opening. The engine may not be started with the selector inthis position. C090I02A-EAT
CAUTION:
o Shift into "R" and "P" only when the vehicle has completelystopped.
o Do not accelerate the engine in reverse or any of the forward
positions with the brakes applied.
o Always apply the footbrake when shifting from "P" or "N", to "R","D", "2" or "L" position.
o Do not use the "P" (Park) position in place of the parking brake. Al-ways set the parking brake, shiftthe transaxle into "P" (Park) and turn off the ignition when you leave the vehicle, even momentarily.Never leave the vehicle unattend- ed whilst the engine is running.
o Check the automatic transaxle fluid level regularly, and add fluid asnecessary. See the maintenance schedule forthe proper fluid recommendation.
!
DC110E1-E o D (Drive): With the selector in this position, first gear will be engaged from rest and thetransmission will automatically upshift to second, third and fourth depending upon the vehicle speed, throttle posi-tion and the position of the overdrive switch. The engine may not be started with the selector in this position. DC110F1-E o 2 (Second Gear): With the selector in this position, first gear will be engaged from rest. Thetransmission will upshift to second gear depending upon the vehicle speed and throttle position. No upshift to third orfourth will occur. The engine may not be started with the selector in this position.
!
CAUTION:
Do not move the selector to the 2 position when the vehicle speed is in excess of 60 m.p.h.
! CAUTION:
Do not move the selector to the "L" position when the vehicle speed is inexcess of 50 m.p.h. C090H01A-EAT NOTE:
o The brake pedal should be de- pressed when shifting from NEU- TRAL to a forward or reverse gear.
o The brake pedal fully depressed in order to move the shift lever fromthe "P" (Park) position to any of the other posi-tions.
o It is always possible to shift from "R", "N", "D", "2", "L" position.

2 DRIVING YOUR HYUNDAI
12
SC130A1-E Overdrive Switch The overdrive switch prevents the transaxle upshifting higher than third gear when the switch is turned "OFF".The transaxle will start from rest in first gear and upshift to second and third gear depending upon the roadspeedand throttle opening but will not upshift to fourth gear. When the overdrive switch is turned "ON", the transaxle will startfrom rest in first gear and will upshift, depending upon roadspeed and throttle opening to second, third and fourthgear. Therefore, when the overdrive switch is turned "OFF", the transaxle performs as a three speed unit and theoverdrive warning light located in the instrument cluster will be illuminated. HFC3023-D
When the overdrive switch is turned "ON", the transaxle functions as a fullyautomatic four speed unit with the maxi- mum fuel economy potential of the vehicle being realized. FC120D3-E General Operating Instructions
o The button in the selector handle
must be depressed before the selec- tor can be moved.
o The engine may only be started when the selector is at position "P" or "N".
o Ensure that the footbrake is firmly
applied when shifting from "P" or "N" to "D", "2", "L" or "R" and vice versa.
o Always engage the parking brake
when the vehicle is unattended, neveruse the "P" position in place of the parking brake.
o Under normal circumstances, the se- lector should be placed in the "D"position and the transaxle allowed to select the most ideal ratio for thecircumstances. In this position maxi- mum fuel economy will be achieved. o When descending steep gradients
where engine braking is required, the selector should be placed at the "2" or "L" position depending upon the vehicle speed.
o When ascending steep gradients using large throttle openings, thetransaxle may repeatedly changebetween two adjacent ratios. This is a normal characteristic and may be prevented by cancelling the over-drive facility if the shifting occurs between third and fourth ratios, se- lecting position "2" if the shiftingoccurs between third and second ratios or selecting position "1" if the shifting occurs between first andsecond ratios.
o Never move the selector to or from
the "P" or "N" position with the accel-erator depressed.
o Ensure that the overdrive switch is at
the "ON" position for maximumeconomy.
o If rapid acceleration is required, fully
depress the accelerator pedal. Inthis condition, the kickdown mecha- nism will be operated and the transaxle will automatically down-shift according to the vehicle speed.

2
DRIVING YOUR HYUNDAI
13

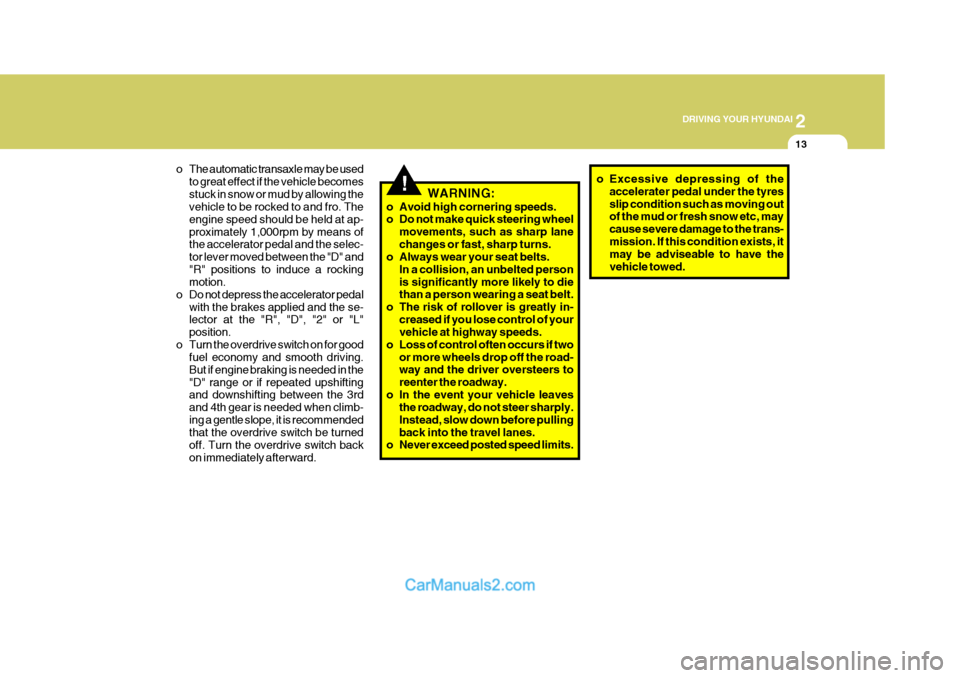

!WARNING:
o Avoid high cornering speeds.
o Do not make quick steering wheel movements, such as sharp lane changes or fast, sharp turns.
o Always wear your seat belts.
In a collision, an unbelted personis significantly more likely to die than a person wearing a seat belt.
o The risk of rollover is greatly in- creased if you lose control of yourvehicle at highway speeds.
o Loss of control often occurs if two or more wheels drop off the road-way and the driver oversteers to reenter the roadway.
o In the event your vehicle leaves the roadway, do not steer sharply.Instead, slow down before pullingback into the travel lanes.
o Never exceed posted speed limits. o Excessive depressing of the
accelerater pedal under the tyresslip condition such as moving out of the mud or fresh snow etc, may cause severe damage to the trans-mission. If this condition exists, it may be adviseable to have the vehicle towed.
o The automatic transaxle may be used
to great effect if the vehicle becomesstuck in snow or mud by allowing the vehicle to be rocked to and fro. The engine speed should be held at ap-proximately 1,000rpm by means of the accelerator pedal and the selec- tor lever moved between the "D" and"R" positions to induce a rocking motion.
o Do not depress the accelerator pedal
with the brakes applied and the se-lector at the "R", "D", "2" or "L" position.
o Turn the overdrive switch on for good fuel economy and smooth driving.But if engine braking is needed in the"D" range or if repeated upshifting and downshifting between the 3rd and 4th gear is needed when climb-ing a gentle slope, it is recommended that the overdrive switch be turned off. Turn the overdrive switch backon immediately afterward.

2 DRIVING YOUR HYUNDAI
14ANTI-LOCK BRAKE SYSTEM (ABS)
SC140B2-E (Not all models) The Anti-Lock Brake System (ABS) is designed to prevent wheel lock-up dur-ing sudden braking or on hazardous road surfaces. The ABS control module monitors the wheel speed and controlsthe pressure applied to each brake. Thus, in emergency situations or on slick roads, ABS will increase vehiclecontrol during braking. NOTE: A click sound may be heard in the engine compartment when the ve- hicle begins to move after the engine is started. These conditions are nor-mal and indicate that the anti-lock brake system (Electronic Stability Program) is functioning properly. During ABS (ESP) operation, a slight pulsation may be felt in the brake pedalwhen the brakes are applied. Also, a noise may be heard in the engine com- partment whilst braking. These condi-tions are normal and indicate that the anti-lock brake system is functioning properly. WARNING:
ABS (ESP) will not prevent accidents due to improper or dangerous driv-ing maneuvers. Even though vehicle control is improved during emer- gency braking, always maintain a safe distance between you and ob- jects ahead. Vehicle speeds should always be reduced during extreme road conditions. The braking distance for cars equipped with an anti-lock braking system may be longer than for those without it, in the following road con- ditions.
o Driving on rough, gravel or snow- covered roads.
o Driving with tyre chains installed.
o Driving on roads where the road surface is pitted or has differentsurface height.
These roads should be driven at reduced speeds. The safety features of an ABS (ESP) equipped vehicle should not be tested by high speed driving or cornering. This could en- danger the safety of yourself or oth- ers.
!
BRAKE TRACTION CON- TROL SYSTEM (BTCS)
C300A01O-EAT (Not all models) On slippery road surfaces, the traction control system (TCS) limits the drive wheels from spinning excessively, thushelping the car to accelerate. It alsoprovides sufficient driving force andsteering performance as the car turns at accelerated speeds. SLIP Control Limits the drive wheels from spinning excessively during starting or whilstmaking accelerated turns on slipperyroads to avoid losing the driving force of the front wheels. Driving hints TCS does not actively apply brakes. Be sure to decelerate the car sufficiently
before entering curves.

2
DRIVING YOUR HYUNDAI
15
!
CAUTION:
When the TCS indicator blinks, SLIP control has been activated. It also means that the road is slippery or your car is accelerating excessively. In this situation, release foot pres- sure from the accelerator pedal and maintain moderate speed.!
WARNING:
Traction control is only a driving aid; all normal precautions for driving in inclement weather and on slipperydriving surfaces should be observed. C300B01O-GAT TCS ON Mode In the TCS ON mode, the indicator in the instrument cluster will not be illumi-nated. NOTE:
1) Turn off the engine. Then restart
the engine, and the TCS mode will automatically turn "ON".
2) When the traction control is oper-
ating properly, you can feel a slightpulsation in the vehicle. This is only the effect of brake control and indicates nothing unusual.
3) When the engine starts, a click is heard from the engine compart-ment; however, this is only thesound of traction control being checked.
4) When moving out of the mud or fresh snow, pressing the accelera-tor pedal may not cause the en- gine speed to increase. C300D02O-GAT Indicator and Warning The indicator should illuminate when
the ignition key is turned to "ON" or "START",but should go out after three seconds. If the indicator does not illuminate, have it checked by an Hyundai authorisedrepairer. Should there be any unusual conditions in the device, TCS illuminates as a warning. If TCS illuminates, pull your car to asafe place and stop the engine. Then, start the engine again to check if the TCS indicator goes out.If the indicator remains lit even after the engine has been started, have your car checked by an Hyundai authorised re-pairer. NOTE: When TCS illuminates, traction con- trol is automatically deactivated forsafety.

2 DRIVING YOUR HYUNDAI
16
!
Factors including speed, road condi- tions and driver steering input can allaffect whether ESP will be effective in preventing a loss of control. It is still your responsibility to drive and cornerat reasonable speeds and to leave a sufficient margin of safety.
CAUTION:
Driving with varying tyre or wheel size may cause the ESP system to malfunction. When replacing tyres, make sure they are the same size asyour original tyres.
WARNING:
Electronic stability program is onlya driving aid; all normal precautions for driving in inclement weather and on slippery road surfaces should beobserved.
!
ELECTRONIC STABILITY PROGRAM (ESP)
C310A01JM-EAT (Not all models) The Electronic Stability Program (ESP) system is designed to stabilise thevehicle during cornering manuevers. ESP checks where you are steering and where the vehicle is actually going.ESP applies the brakes at individual wheels and intervenes in the engine management system to stabilize thevehicle. The Electronic Stability Program (ESP) system is an electronic system de- signed to help the driver maintain ve- hicle control under adverse conditions.It is not a substitute for safe driving practices. C310A01FC-D
C310B01JM-AAT ESP ON/OFF Mode When the ESP is operating, the ESP indicator in the instrument cluster willblink. If you turn the system off by pressing the ESP switch, the ESP-OFF indica-tor will come on and stay on. In the ESP-OFF mode, the stability control will be deactivated. Adjust your drivingaccordingly. To turn the system back on, press the switch again. The ESP- OFF indicator should go off. NOTE: The ESP mode will automatically be turned ON after the engine is turnedoff and restarted.

2
DRIVING YOUR HYUNDAI
17
C310D01JM-EAT Indicators and Warning The indicators should illuminate when the ignition key is turned to ON orSTART but should go out after three seconds. If the indicators do not illuminate, or theESP or ESP-OFF indicator does not go out after 3 seconds, have the vehicle checked by Hyundai authorised repairer. Should there be any unusual conditions in the device whilst driving, ESP-OFFindicator illuminates as a warning. If ESP-OFF indicator illuminates, pull your car to a safe place and stop theengine. Then, start the engine again to check if the ESP-OFF indicator goes out. If the indicator remains lit even after the engine has been started, have your carchecked by Hyundai authorised repairer.EFFECTIVE BRAKING
SC140A2-E Braking system performance and fric- tion material life are greatly affected by the driving style adopted. The following suggestions are made to assist inachieving the best results from the braking system.
o Anticipate the road and conditions ahead in order that heavy braking may be avoided.
o When descending long gradients, use the engine to assist in retarding thevehicle to minimize the possibility of brake fade occurring.
o When trailer towing, ensure that the trailer brakes function correctly anduse engine braking to assist thevehicle braking system.
o Use only genuine Hyundai replace-
ment brake pads and shoes to en-sure consistent friction characteris- tics and wear rates.
o After driving through deep water (e.g. fording), the brakes may become wetand performance reduced. Always check brake efficiency after emerg-ing from the water and dry the brakes by lightly depressing the brake pedal several times whilst driving slowly. o Apply the parking brake only when
the vehicle is at rest.
o Since the power assistance provided by the brake servo is derived fromthe engine, coasting with the engineturned off or towing of the vehicle with the engine turned off will result in greatly increased pedal pressuresbeing required to stop the vehicle.
o Do not hold the vehicle on the up-
grade with the accelerator pedal. Thiscan cause the transmission to over- heat. Always use the brake pedal or parking brake.
o Use caution when parking on a hill. Engage the parking brake and placethe gear selector lever in "P" (auto-matic transaxle) or in first or reverse gear (manual transaxle). If your car is facing downhill, turn the frontwheels into the curb to help keep the car from rolling. If your car is facing uphill, turn the front wheels awayfrom the curb to help keep the car from rolling. If there is no curb or if it is required by other conditions tokeep the car from rolling, block the wheels.
