2006 Hyundai Matrix Owner's Manual

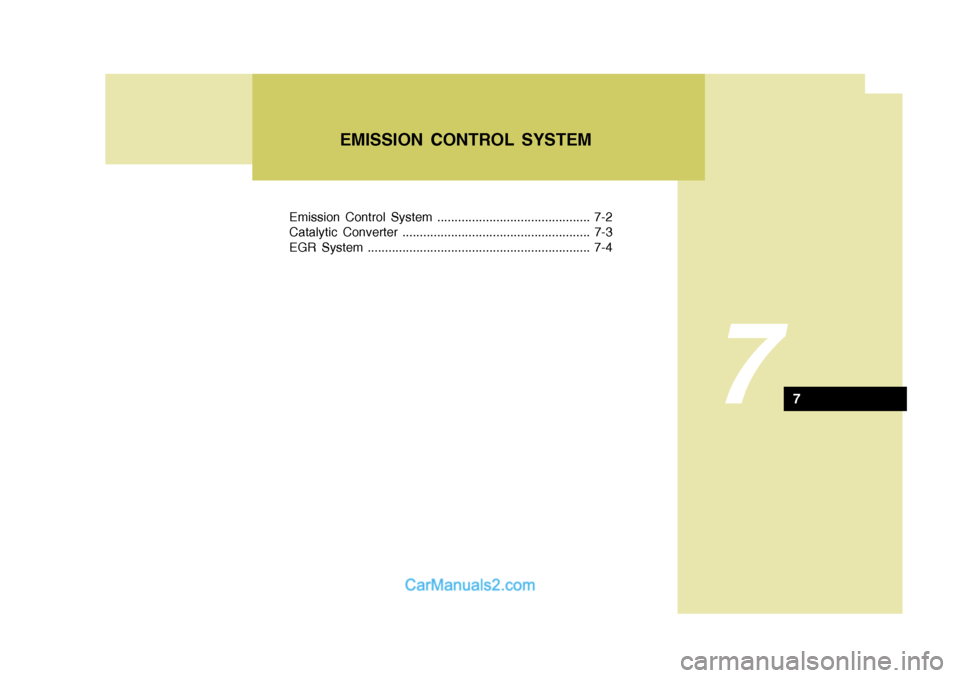

Emission Control System ............................................ 7-2
Catalytic Converter ...................................................... 7-3
EGR System ................................................................ 7-4
7
EMISSION CONTROL SYSTEM
7

7EMISSION CONTROL SYSTEMS
2EMISSION CONTROL SYSTEMS
H010A01A-GAT
(If Installed)
Your Hyundai is equipped with an
emission control system to meet all requirements of the Emission prohibi- tion rules of your province.
There are three emission control sys-
tems which are as follows.
(1) Crankcase emission control sys- tem
(2) Evaporative emission control sys- tem
(3) Exhaust emission control system
In order to assure the proper function
of the emission control systems, it is recommended that you have your carinspected and maintained by an au- thorized Hyundai dealer in accordance with the maintenance schedule in thismanual. H010B01A-AAT
1. Crankcase Emission Control
System
The positive crankcase ventilation
system is employed to prevent airpollution caused by blow-by gasesbeing emitted from the crankcase. This system supplies fresh filtered air to the crankcase through the air in-take hose. Inside the crankcase, the fresh air mixes with blow-by gases, then passes through the PCV valveinto the induction system.
H010C01E-GAT
2. Evaporative Emission Control
System
The Evaporative Emission Control
System is designed to prevent fuel vapors from escaping into the atmo- sphere. Canister
While the engine is inoperative, fuel
vapors generated inside the fuel tank are absorbed and stored in the canis- ter. When the engine is running, thefuel vapors absorbed in the canister are drawn into the induction system through the purge control solenoidvalve. Purge Control Solenoid Valve (PCSV)
The purge control solenoid valve is
controlled by the Engine Control Mod- ule (ECM); when the engine coolant temperature is low during idling, the PCSV closes so that evaporated fuelis not taken into the engine. After the engine warms-up during ordinary driv- ing, the PCSV opens so as to intro-duce evaporated fuel to the engine.
H010D01A-AAT
3. Exhaust Emission Control
System
The Exhaust Emission Control Sys-
tem is a highly effective system which controls exhaust emissions while maintaining good vehicle performance.

7
EMISSION CONTROL SYSTEMS
3CATALYTIC CONVERTER
H020A01A-GAT
(If Installed) ; For a gasoline engine
HFC505
The catalytic converter is part of the
exhaust emission control system. Its purpose is to remove certain engine emission products from the engine'sexhaust. It looks something like a muffler and is located underneath the car in the exhaust system.
Catalytic Converter H020B01A-GAT
About the Catalytic Converter
Exhaust gases passing through the
catalytic converter cause it to operate at very high temperatures. As a re- sult, the introduction of large amounts of unburned gasoline may cause it tooverheat and create a fire hazard. This can be avoided by observing the following:
o Use unleaded fuel only.
o Maintain your engine in good con- dition. Extremely high converter temperatures can result from im-proper operation of the electrical, ignition or fuel injection systems. o If your engine stalls, pings, knocks,
or is hard to start, take your car to your Hyundai dealer as soon as possible and have the difficulty corrected.
o Avoid driving with a very low fuel level. If your run out of gasoline, itcould cause the engine to misfireand result in excessive loading of the catalytic converter.
o Avoid idling the engine for periods longer than 10 minutes.
o Your Hyundai should not be either pushed or pulled to get it started.This can cause the catalytic con- verter to overload.
o Take care not to stop your Hyundai
over any combustible material suchas grass, paper, leaves or rags. As these materials could come in con- tact with the catalytic converter andcould cause a fire.
o Do not touch the catalytic con-
verter or any other part of the ex-haust system while the engine is running as it is very hot and could result in burns.
o Remember that your Hyundai
dealer is your best source of assis-tance.
H020D01S-GAT
; For a diesel engine
All Hyundai vehicles are equipped
with oxidation type catalytic converter to reduce the carbon monoxide, hy- drocarbons and particulate containedin the exhaust gas.

7EMISSION CONTROL SYSTEMS
4EGR SYSTEM
H020C01S-GAT ; For a diesel engine This system helps control oxides of nitrogen by recirculating a part of the exhaust gas into the engine.

Vehicle Identification Number (VIN) ............................ 8-2
Engine Number ............................................................ 8-2
Recommended Inflation Pressures ............................. 8-3
Snow Tires ................................................................... 8-4
Tire Chains ................................................................... 8-4
Tire Rotation ................................................................ 8-5
Tire Balancing .............................................................. 8-5
Tire Traction ................................................................. 8-5
When to Replace Tires ................................................ 8-6
Spare Tire and Tools ................................................... 8-7
8
CONSUMER INFORMATION
8

8CONSUMER INFORMATION
2VEHICLE IDENTIFICATION NUMBER (VIN)
I010B01A-GAT
Engine Number
I010A01FC-GAT The vehicle identification number (VIN) is the number used in register- ing your car and in all legal matters pertaining to its ownership, etc.
The engine number is stamped on
the engine block as shown in thedrawing.
HFC6001 SSA8010B
I010B02E
Gasoline engine (1.6 DOHC)
Diesel engine
Gasoline engine (1.8 DOHC)
I010B02B
HFC600
It can be found on the identificationplate attached to apron panel locatedon the driver's side of the engine compartment.

8
CONSUMER INFORMATION
3TIRE
I020A01A-AAT TIRE INFORMATION The tires supplied on your new Hyundai are chosen to provide the best performance for normal driving. I030A01FC-GAT RECOMMENDED INFLATION PRESSURES
The tire label located on the driver's
side "C" pillar outer panel gives the tire pressures recommended for your vehicle. These pressures were chosen to pro-
vide the most satisfactory combina-tion of ride comfort, tire wear andstability under normal conditions. Tire pressures should be checked at least monthly. Proper tire inflation pres-sures should be maintained for these reasons:
o Lower-than-recommended tire
pressures cause uneven tread wear and poor handling.
o Higher-than-recommended tire pressures increase the chance of damage from impacts and cause uneven tread wear.
I030A02FC
5.5Jx14 5.5Jx15 6.0Jx153.5Jx153.5Jx15
TIRE
SIZE
RIM
SIZE PRESSURE, kPa (PSI)
185/65R14 195/55R15
205/5A5R15 T115/70D15 T115/70R15 REAR
210(30)210(30)210(30)420(60) 420(60) FRONT
250(36)250(36) 250(36)420(60)420(60)
UP TO 2
PERSONS UP TO
MAX. LOAD
REAR
250(36) 250(36) 250(36)420(60)420(60)
FRONT210(30)210(30) 210(30) 420(60)420(60)

8CONSUMER INFORMATION
4
!
I050A01E-GAT TIRE CHAINS Tire chains, if necessary should be installed on the front wheels. Be sure that the chains are installed in accor- dance with the manufacturer's instruc-tions.To minimize tire and chain wear, donot continue to use tire chains when they are no longer needed.
WARNING:
o When driving on roads covered with snow or ice, drive at less than 30 km/h (20 mph).
o Use the SAE "S" class or wire &
plastic chains.
o If you have noise caused by chains contacting the body, re-tighten the chain to avoid con- tact with the vehicle body.
o To prevent body damage, re- tighten the chains after driving0.5 ~ 1 km.
I040A01S-GAT SNOW TIRES If you equip your car with snow tires, they should be the same size and have the same load capacity as the original tires. Snow tires should beinstalled on all four wheels; other- wise, poor handling may result. Snow tires should carry 28 kPa (4 psi) more air pressure than the pres- sure recommended for the standardtires on the tire label on, or up to the maximum pressure shown on the tire sidewall whichever is less. Do not drive faster than 120 km/h (75 mph) when your car is equipped with snow tires.
CAUTION:
Always observe the following:
o Check pressures when the tires are cold. That is, after the car has been parked for at least three hours and hasn't been drivenmore than 1.6 km or one mile since starting up.
o Check the pressure of your spare tire each time you check the pressure of other tires.
o Never overload your car. Be es- pecially careful about overload-ing if you equip your car with a luggage rack or car top carrier.
!
