2006 HUMMER H2 Owners Manual

Lower Anchors and Tethers for
Children (LATCH)
Your vehicle has the LATCH system. The LATCH
system holds a child restraint during driving or in a
crash. This system is designed to make installation of a
child restraint easier. The LATCH system uses
anchors in the vehicle and attachments on the child
restraint that are made for use with the LATCH system
Make sure that a LATCH-compatible child restraint
is properly installed using the anchors, or use the
vehicle’s safety belts to secure the restraint, following
the instructions that came with that restraint, and
also the instructions in this manual. When installing a
child restraint with a top tether, you must also use either
the lower anchors or the safety belts to properly
secure the child restraint. A child restraint must never
be installed using only the top tether and anchor.In order to use the LATCH system in your vehicle, you
need a child restraint equipped with LATCH
attachments. The child restraint manufacturer will
provide you with instructions on how to use the child
restraint and its attachments. The following explains how
to attach a child restraint with these attachments in
your vehicle.
Your vehicle has lower anchors and top tether anchors.
Your child restraint may have lower attachments and
a top tether.
Not all vehicle seating positions or child restraints have
lower anchors and attachments or top tether anchors
and attachments.
1-43

Lower Anchors
Lower anchors (A) are metal bars built into the vehicle.
There are two lower anchors for each LATCH seating
position that will accommodate a child restraint with
lower attachments (B).
Top Tether Anchor
A top tether (A, C) anchors the top of the child restraint
to the vehicle. A top tether anchor is built into the
vehicle. The top tether attachment (B) on the child
restraint connects to the top tether anchor in the vehicle
in order to reduce the forward movement and rotation
of the child restraint during driving or in a crash.
1-44

Your child restraint may have a single tether (A) or a
dual tether (C). Either will have a single attachment (B)
to secure the top tether to the anchor.
Some top tether-equipped child restraints are designed
for use with or without the top tether being attached.
Others require the top tether always to be attached. In
Canada, the law requires that forward-facing child
restraints have a top tether, and that the tether be
attached. In the United States, some child restraints also
have a top tether. Be sure to read and follow the
instructions for your child restraint.
If the child restraint does not have a top tether, one can
be obtained, in kit form, for many child restraints. Ask
the child restraint manufacturer whether or not a kit
is available.Lower Anchor and Top Tether Anchor
Locations
i(Top Tether Anchor):
Seating positions with top
tether anchors.
j(Lower Anchor):
Seating positions with
two lower anchors.
i(Top Tether Anchor):
Seating positions with top
tether anchors.
j(Lower Anchor):
Seating positions with
two lower anchors. Second Row
Seats — SUV
Second Row
Seats — SUT
1-45

i(Top Tether Anchor):
Seating positions with top
tether anchors.
For SUV models, there are exposed metal anchors
for the second row center and passenger side
seating positions.
For SUT models, there are exposed metal anchor for
the second row center seating position.
For SUV models, the top tether anchors are located at
the bottom rear of the seat cushion for each position
in the second row. Be sure to use the anchor located
nearest to the seating position where the child restraint
will be placed.For SUT models, the top tether anchor is located at the
bottom rear of the seat cushion for the center position
in the second row. You may need to fold the seatback of
the passenger side seat forward in order to access
this anchor. Third Row Seats — SUV
Second Row Seats — SUV
1-46

For SUV models with third row seating, the top tether
anchor is located at the bottom rear of the seat cushion
for the seating position in the third row.Do not secure a child restraint in the right front
passenger’s position, or in the second row outboard
positions of a SUT model, if a national or local law
requires that the top tether be attached, or if the
instructions that come with the child restraint say that
the top tether must be attached. There is no place
to attach the top tether in this position.
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat. See
Where to Put the Restraint on page 1-42for additional
information. Second Row Seats — SUT
Third Row Seat — SUV
1-47

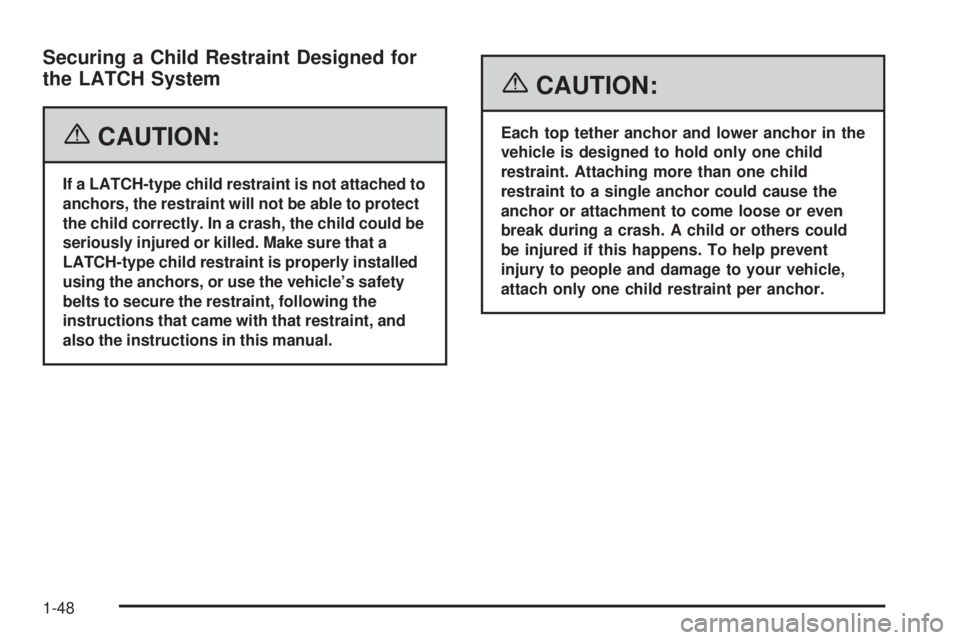

Securing a Child Restraint Designed for
the LATCH System
{CAUTION:
If a LATCH-type child restraint is not attached to
anchors, the restraint will not be able to protect
the child correctly. In a crash, the child could be
seriously injured or killed. Make sure that a
LATCH-type child restraint is properly installed
using the anchors, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with that restraint, and
also the instructions in this manual.
{CAUTION:
Each top tether anchor and lower anchor in the
vehicle is designed to hold only one child
restraint. Attaching more than one child
restraint to a single anchor could cause the
anchor or attachment to come loose or even
break during a crash. A child or others could
be injured if this happens. To help prevent
injury to people and damage to your vehicle,
attach only one child restraint per anchor.
1-48

Second Row Center Position — SUT
1. If the child restraint manufacturer recommends that
the top tether be attached, attach the top tether to
the top tether anchor, if equipped. Refer to the
child restraint instructions and the following steps:
1.1. To access the top tether anchor, raise
the passenger side seat cushion by pulling
up on the strap loop at the rear of the
seat cushion and fold the seat cushion
forward. Then fold the seatback forward. See
60/40 Split Bench Seat on page 1-6for
additional information.
1.2. Place the child restraint in the center seating
position.
1.3. Find the top tether anchor at the rear base of
the center seat.
1.4. Route and attach the top tether according to
your child restraint instructions and the
following instructions:
If your child restraint has a
single tether, route the
tether over the seatback.If your child restraint has a
dual tether, route the
tether over the seatback.
2. Attach the lower attachments to the lower anchors.
If the child restraint does not have lower
attachments or the desired seating position does
not have lower anchors, secure the child restraint
with the top tether and the safety belts. Refer
to your child restraint manufacturer instructions and
the instructions in this manual.
2.1. Find the lower anchors for the desired
seating position.
2.2. Attach and tighten the lower attachments on
the child restraint to the lower anchors.
1-49

3. Tighten the top tether.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
4. Return the rear passenger side seatback to its
upright position. Ensure that the seatback locks
and the safety belt is routed properly. Then lower
the seat cushion until the seatback and the
seat cushion lock into position.
5. Push and pull the child restraint in different
directions to be sure it is secure.
Second and Third Row Positions — SUV
1. Attach and tighten the lower attachments to
the lower anchors. If the child restraint does
not have lower attachments or the desired seating
position does not have lower anchors, secure
the child restraint with the top tether and the safety
belts. Refer to your child restraint manufacturer
instructions and the instructions in this manual.
1.1. Find the lower anchors for the desired
seating position.
1.2. Put the child restraint on the seat.
1.3. Attach and tighten the lower attachments on
the child restraint to the lower anchors.
