2006 HONDA RIDGELINE display

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .56
............................
Instrument Panel .57
..........
Instrument Panel Indicators .59
.............................................
Gauges .67
Controls Near the Steering
...........................................
Wheel .71
........................
Multi-Control Lever .72
...................
Headlight Control Dial .73
........
Instrument Panel Brightness .75
.................
Hazard Warning Button .76
..........
Steering Wheel Adjustment .76
..................................................
Keys .77
........................
Immobilizer System .78
................................
Ignition Switch .79
......................................
Door Locks .80
.......................
Remote Transmitter .86
.......................
Dual-Action Tailgate .89
...............................
In-Bed Trunk .92
.................................................
Seats .95
..................................
Seat Heaters .101
............................
Power Windows .102
.......................................
Moonroof .105
...............................
Parking Brake .106
...........................................
Mirrors .107 .........
Interior Convenience Items .109
.........................
Center Console .110
.......
Console Compartments .110
.........................
Cargo Hooks .111
.................
Beverage Holders .111
..................................
Glove Box .112
................................
Coat Hooks .112
....................
Sunglasses Holder .112
........
Accessory Power Sockets .113
...................................
Sun Visor .114
............................
Vanity Mirror .114
...............................
Interior Lights .115
.....................................
Bed Lights .117
Instruments and Controls
Inst rument s and Cont rols
55
TM
—
—y

y
(yy

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II).
If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
ON (II), there is a problem with the
VSA system. Take your vehicle to a
dealer to have it checked. Without
VSA, your vehicle still has normal
driving ability, but will not have VSA
traction and stability enhancement.
See page for more information
on the VSA system.This indicator has three f unctions:
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). For more
inf ormation, see page . This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
inf ormation display. See page f or
more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
1.
2.
3.
205 205
205 225
Vehicle Stability Assist
(VSA ) System Indicator
VSA A ctivation Indicator Maintenance Minder
Indicator
Instrument Panel Indicators
64
—
—y


y
(yy

To switch the information display
between the odometer, trip meter
and outside temperature (if
equipped), and engine oil lif e and
maintenance service items, press the
SELECT button repeatedly.
This shows the total distance your
vehicle has been driven. It measures
miles in U.S. models and kilometers
in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
Gauges
Odometer
Inst rument s and Cont rols
67
SPEEDOMETER
TACHOMETER TEMPERATURE GAUGE
ODOMETER/
CHECK FUEL CAP
INDICATORFUEL GAUGE
SELECT
BUTTON
TRIP METER RESET
BUTTON
OUTSIDE
TEMPERATURE
INDICATOR
U.S. model is shown. INFORMATION
DISPLAY
—
—y
y
(yy

This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: TRIP A
and TRIP B. Switch between these
displays by pressing the SELECT
button repeatedly. Each trip meter
works independently, so you can
keep track of two dif f erent distances.To reset a trip meter, display it, and
then press and hold the RESET
button until the number resets to
‘‘0.0’’. Both trip meters will reset if
the vehicle’s battery goes dead or is
disconnected. And both continue to
track mileage, even when only one is
displayed.
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. Driving
uphill or make turns can cause the
needle to f luctuate or the low f uel
indicator to come on early. The
needle returns to the bottom after
you turn of f the ignition.
Trip Meter Fuel Gauge
Gauges
68
SELECT BUTTON
RESET BUTTON
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
—
—y
y
(yy

¶¶µµ
µµµ
µµµ
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper zone. If it reaches the red
(hot) mark, pull saf ely to the side of
the road. See page f or
instructions and precautions on
checking the engine’s cooling
system. This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models).
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h).
The sensor delays the indicator
update until it reaches the correct
outside temperature. This may take
several minutes.
If the outside temperature is
incorrectly displayed, you can adjust
it up 5°F in U.S. models ( 3°C in
Canadian models) warmer or cooler.NOTE: The temperature must be
stabilized bef ore doing this
procedure.
To adjust the outside temperature
indicator, make sure the outside
temperature indicator is shown in
thedisplay,thenpressandholdthe
RESET button f or 10 seconds (the
TRIP A or B is also reset). The
f ollowing sequence will appear f or 1
secondeach:0,1,2,3,4,5, 5, 4,
3, 2, 1, 0 (U.S.) or 0, 1, 2, 3,
3, 2, 1, 0 (Canada).
When it reaches the desired value,
release the RESET button. You
should see the new outside
temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
276
If equipped
Gauges
Temperature Gauge
Outside Temperature Indicator
Inst rument s and Cont rols
69
—
—y

y
(yy

If your f uel f ill cap is loose or
missing, a ‘‘CHECK FUEL CAP’’
message appears in the odometer
display af ter you start the engine.
The message goes f rom CHECK to
FUEL CAP repeatedly. You will also
hear a beep.
Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
the cap, then retighten it at least 3
clicks. When you restart the engine,
the message appears again. To clear
the message, press and hold the
RESET button until the odometer
display returns.If the system still detects a loose or
missing f uel f ill cap, the malf unction
indicator lamp (MIL) comes on.
Turn the engine of f , and check or
retighten the f uel f ill cap at least 3
clicks. The MIL goes out af ter 3 days
of normal driving once the cap is
tightened or replaced. If it does not
go out, have your dealer inspect the
vehicle. For more inf ormation, see
page .
The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.
279 225
Check Fuel Cap Indicator Maintenance Minder Display
Gauges
70
—
—y
y
(yy

Vents, Heating, and A/C
120

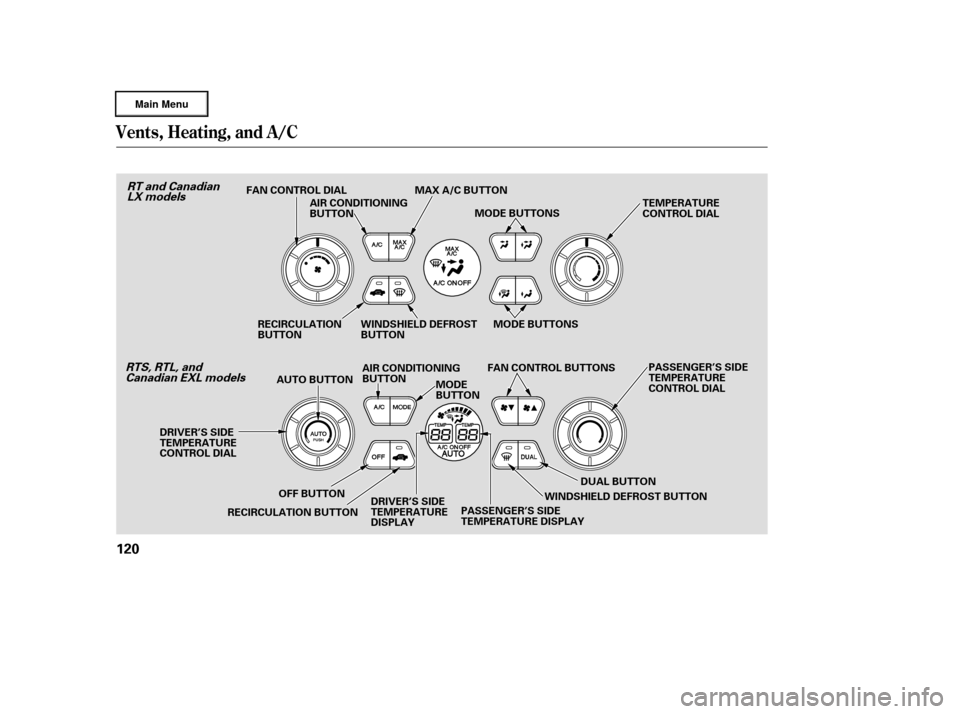

FAN CONTROL DIALMODE BUTTONSTEMPERATURE
CONTROL DIAL
RECIRCULATION
BUTTON WINDSHIELD DEFROST
BUTTON
PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL OFF BUTTON WINDSHIELD DEFROST BUTTONDUAL BUTTON
AIR CONDITIONING
BUTTON
MAX A/C BUTTON
MODE BUTTONS
AIR CONDITIONING
BUTTON
AUTO BUTTON
DRIVER’S SIDE
TEMPERATURE
DISPLAY
RECIRCULATION BUTTON
PASSENGER’S SIDE
TEMPERATURE DISPLAY
MODE
BUTTON
FAN CONTROL BUTTONSRT and Canadian
LX models
RTS, RTL, andCanadian EXL models
—
—y

y
(y
y

Turn the dial clockwise to increase
the fan speed and airflow. Turn the
dial counterclockwise to decrease it.Turning this dial clockwise increases
the temperature of the airflow.
On RTS, RTL, and Canadian EXL
models, see pages and f or
inf ormation on automatic climate
control and semi-automatic operation.
Select the f an speed by pressing the
fan control buttons ( or ).
The f an speed is shown in vertical
bars on the display.
When the indicator in the DUAL
button is of f , both sides adjust to the
driver’s side temperature. Push the DUAL button. When the
indicator in the button is on, turn the
dials to adjust the temperature. The driver and passenger can select
independent temperature settings.
You can set the temperatures for the
driver’s side and the passenger’s side
separately when this button is
pressed (indicator on). When the
indicator in the DUAL button is of f ,
you can adjust both sides to the
same temperature with the driver’s
side temperature control dial. Press the DUAL button to select
dual temperature control mode (see
page ).
126 127
128
CONT INUED
On RT and Canadian LX modelsOn RT and Canadian LX models
On RTS, RTL, and Canadian EXL models On RTS, RTL, and Canadian EXL
models On RTS, RTL, and Canadian EXL
models
Vents, Heating, and A/C
Fan Control Temperature Control Dual Button
Features
121
—
