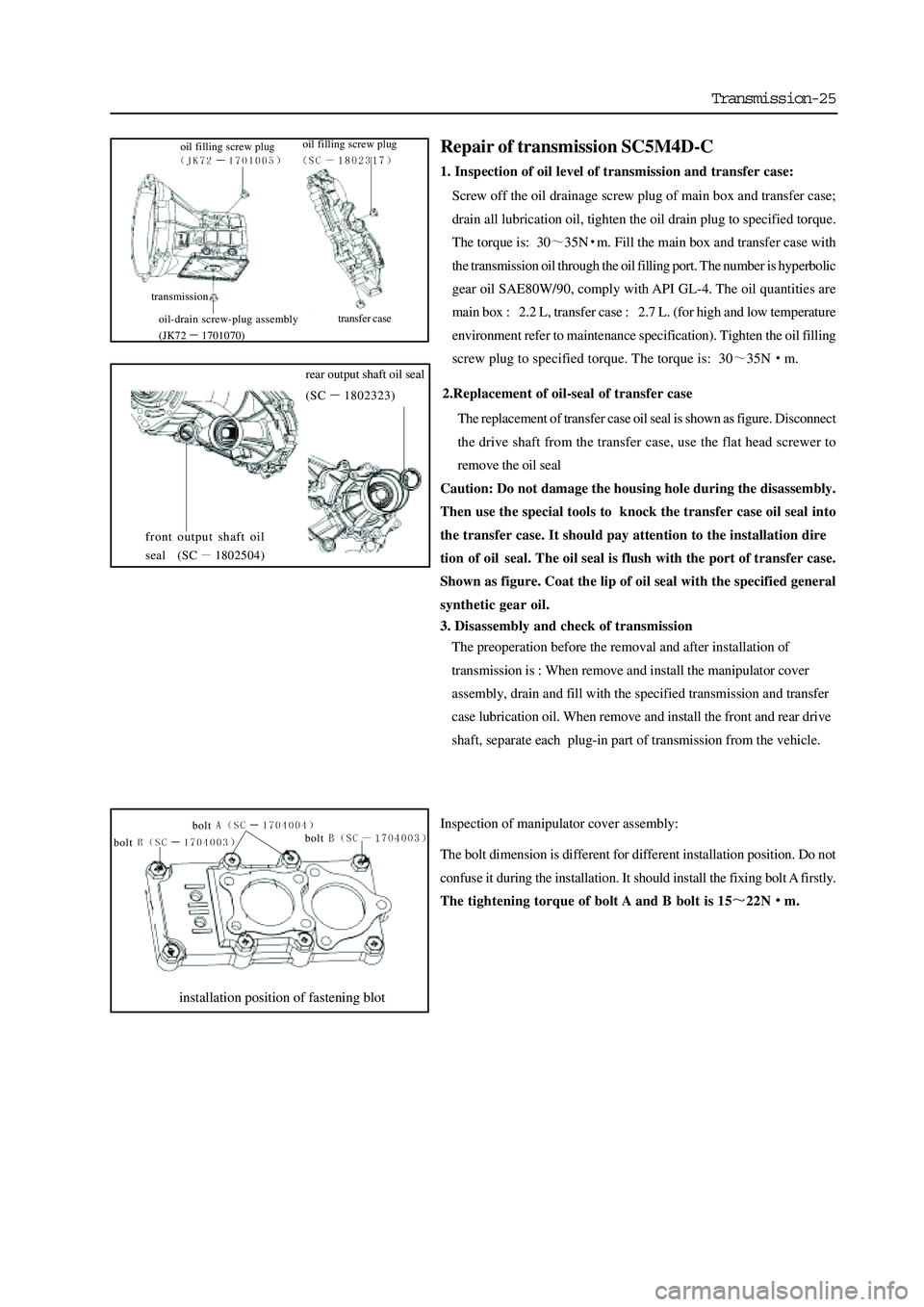

Transmission-25
2.Replacement of oil-seal of transfer case
The replacement of transfer case oil seal is shown as figure. Disconnect
the drive shaft from the transfer case, use the flat head screwer to
remove the oil seal
Caution: Do not damage the housing hole during the disassembly.
Then use the special tools to knock the transfer case oil seal into
the transfer case. It should pay attention to the installation dire
tion of oil seal. The oil seal is flush with the port of transfer case.
Shown as figure. Coat the lip of oil seal with the specified general
synthetic gear oil.
3. Disassembly and check of transmission
The preoperation before the removal and after installation of
transmission is : When remove and install the manipulator cover
assembly, drain and fill with the specified transmission and transfer
case lubrication oil. When remove and install the front and rear drive
shaft, separate each plug-in part of transmission from the vehicle.
Inspection of manipulator cover assembly:
The bolt dimension is different for different installation position. Do not
confuse it during the installation. It should install the fixing bolt A firstly.
The tightening torque of bolt A and B bolt is 15
22Nm.
installation position of fastening blot
bolt
bolt bolt
Repair of transmission SC5M4D-C
1. Inspection of oil level of transmission and transfer case:
Screw off the oil drainage screw plug of main box and transfer case;
drain all lubrication oil, tighten the oil drain plug to specified torque.
The torque is: 30
35Nm. Fill the main box and transfer case with
the transmission oil through the oil filling port. The number is hyperbolic
gear oil SAE80W/90, comply with API GL-4. The oil quantities are
main box : 2.2 L, transfer case : 2.7 L. (for high and low temperature
environment refer to maintenance specification). Tighten the oil filling
screw plug to specified torque. The torque is: 30
35Nm.
front output shaft oil
seal (SC
1802504)
rear output shaft oil seal
(SC
1802323)
transmission
transfer case
oil filling screw plug
oil-drain screw-plug assembly
(JK72
1701070) oil filling screw plug

CD Player and Air Conditioning System-2
CD Player
Function Overview
This product is a kind of car audio system with VFD multi-information integrated display screen with such functions as PLL
electronic tuning radio, CD playing and operation & control of air conditioning system, it can receive AM, FM and FM stereo
radio broadcast programs, play CDs, electronically operate and control the air conditioning system of the car. The integrated
display screen can display the working state of the radio, CD player, air conditioning system, operating mode as well as
information concerning the equalizer, clock and the temperature inside and outside.
Wiring Instructions(see the diagram)
with the speakers: the amplifier of main unit of this system is designed with 4-channel BTL output, each speaker must
be wired individually; the phase position and place of the speaker must be connected correctly; please disconnect the
player from the power supply before connecting the speaker so as to avoid the short-circuit.
2. Connecting main unit with the integrated display screen:
Use the specially-supplied 12-pin connector cable to connect the VFD integrated display screen and main unit.
3. Connection of power supply, output and communication line of main unit:
At first, connect the communication cable of the 20-pin connector plug to the air conditioner ECU, then connect the speaker
output line to other lines, finally connect the yellow memory power supply cord (10A fuse tube) directly to the positive role of
accumulator; when all the wiring is completed, connect the red power supply cord (1A fuse tube) to the positive power supply
of the ignition lock.
4. Connecting main unit with the antenna
T ypical antenna: insert the plug of coaxial cable of car’s antenna into the antenna socket of main unit.
Automatic antenna: insert the plug of coaxial cable of car’s antenna into the antenna socket of main unit, then connect the blue
antenna control cable in the 20-pin connector to the automatic antenna control end, connect the positive pole line of power
supply of automatic antenna to the positive pole of accumulator and the negative pole line to the earth.
5. Connecting main unit with CD-change box
CD player and the CD-change box are connected with the signal cables.
Prior to the installation, please be sure to remove three protective screws on the CD-change box and have it pasted with
ant-dust paper. If the protective screws are not removed, CD can not be played normally.
Attention: Improper wiring may result in the damage to the player!
(Figure 7-1) Wiring Diagram integrated display screen 12-pin connector cable20-pin connector cable
antenna adaptor
main unit

Safety airbag-14
Power-supply
Failure code
$9032 Low power-supply voltage for SRS safety airbag system electronic-control unit
Test condition Warning
The test condition of this failure is the failure code that may not emerge before the test, DTC conducts the test,
and the preparatory work must be done before the test because the damage to working personnel or system
may be caused by the incorrect op eration during the test.
The voltage for SRS safety airbag system unit connector clip is stitch 5 and 6 is under 9V
Possible
caus es Accumulator low voltage
Failure with the wiring harness between accumulator and SRS safety airbag system electronic-control unit
Procedure Test Operation
Yes Next step
1 Check accumulator
Test accumulator voltage
Is the voltage above 9V No Accumulator low voltage, test the
recharging/discharging system
Yes Next step
2 Check the wiring harness between accumulator and fuse
panel
Remove fuse panel without releasing the connector clips
Place the ignition switch in ON position
Test the potential of two fuse corresponding contactors, the
potential above 9V? No Check the wiring harness
Yes Next step
3 Check the wiring harness between fuse panel and SRS
safety airbag system unit connector clip
Warning:
If not correctly handled, the safety airbag module as well
as pretension safety belt may possibly be trigged, released
and tensioned, thus make serene damage to people.
Ther efor e, pleas e carefully r ead the r epairing warning
before trouble handling. Please take references in safety
airbag system repairing warning
Place the ignition switch in LOCK position
Release accumulator negative wire and wait for 1 minute
plus
Remove steering pillar shell
Release the clock spring connection clips
Remove the PAB trim cover, glove box (passengers’ side
safety airbag is under the trim cover)
Release passengers’ side safety airbag module connector
clips
Release all SRS safety airbag system unit connector clips
Install back the accumulator negative wire,
Place the ignition switch in ON position
Is the potential of SRS safety airbag system unit connector
clips stitch 5,6(grounding) above 9V? No Replace wiring harness
