Engine
For the structure and main technical parameter of engine see Table 2.

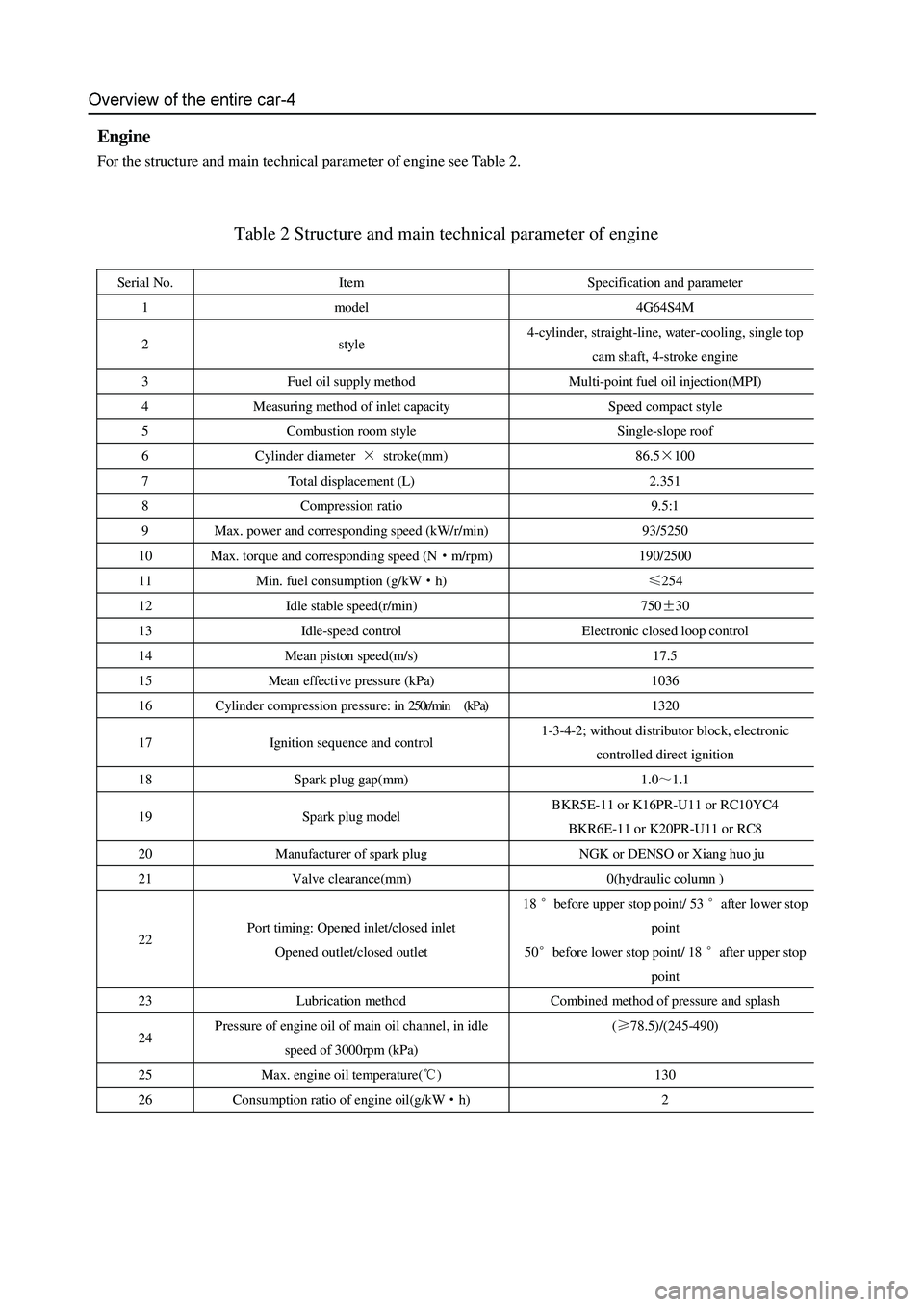

Table 2 Structure and main technical parameter of engine
Serial No. Item Specification and parameter
1 model 4G64S4M
2 style 4-cylinder, straight-line, water-cooling, single top
cam shaft, 4-stroke engine
3 Fuel oil supply method Multi-point fuel oil injection(MPI)
4 Measuring method of inlet capacity Speed compact style
5 Combustion room style Single-slope roof
6 Cylinder diameter × stroke(mm) 86.5×100
7 Total displacement (L) 2.351
8 Compression ratio 9.5:1
9 Max. power and corresponding speed (kW/r/min) 93/5250
10 Max. torque and corresponding speed (N·m/rpm) 190/2500
11 Min. fuel consumption (g/kW·h) ≤254
12 Idle stable speed(r/min) 750±30
13 Idle-speed control Electronic closed loop control
14 Mean piston speed(m/s) 17.5
15 Mean effective pressure (kPa) 1036
1 6 C y l i n d e r c o m p r e s s i o n p r e s s u r e : i n 250r/min (kPa) 1 3 2 0
17 Ignition sequence and control 1-3-4-2; without distributor block, electronic
controlled direct ignition
18 Spark plug gap(mm) 1.0～1.1
19 Spark plug model BKR5E-11 or K16PR-U11 or RC10YC4
BKR6E-11 or K20PR-U11 or RC8
20 Manufacturer of spark plug NGK or DENSO or Xiang huo ju
21 Valve clearance(mm) 0(hydraulic column )
22 Port timing: Opened inlet/closed inlet
Opened outlet/closed outlet 18 °before upper stop point/ 53 °after lower stop
point
50°before lower stop point/ 18 °after upper stop
point
23 Lubrication method Combined method of pressure and splash
24 Pressure of engine oil of main oil channel, in idle
speed of 3000rpm (kPa) (≥78.5)/(245-490)
25 Max. engine oil temperature(℃) 130
26 Consumption ratio of engine oil(g/kW·h) 2
Air-conditioning system
The structure and parameter of the air-conditioning s ystem is shown in table 8.
Table 8 The structure and parameter of the air-conditioning system
Serial No. Item Structure and Paramet er
1 Structure and
shape
Front and rear heating and cooling air conditioner, vapor compression type
cooling, hot-wat er heating
2 Performance and
parameters
Refrigerating capacity 3.5kW, heat exchange capacity 3.5kW, fan capacity
350m
3/h
3 Operation
Control board button type operation, temperature auto control, air door micro
motor drive, the temperature in the car can be controlled automatically, the
fanning position mode, heating/ cooling mode, air int ern/external cycling mode
and wind speed and t emperature can b e selected and adjusted
4 Refrigerant R134a
5 Compressor SD7V16 variable capacity compressor, with a maximum capacity of 160ml
6 Condenser Parallel stream mode structure, flat pipe thickness of 26mm
7 Evaporator Two box es structure, cascading evaporator, F expansion valve, centrifugal
blower
8 Drying fluid
collector
External diameter φ60.5mm
9
Refrigerating
pipe and
wa r m wa t er pi p e
Refrigerating pipe: complex structure of rubber refrigeration soft tube and
aluminum tube. The warm water pipe: rubber molding pipe
10 Transducer Outdoor temp erature sensor, indoor t emperature sensor, evaporator temperature
sensor
11 pressure switch Three-state pressure switch
