Page 17 of 232

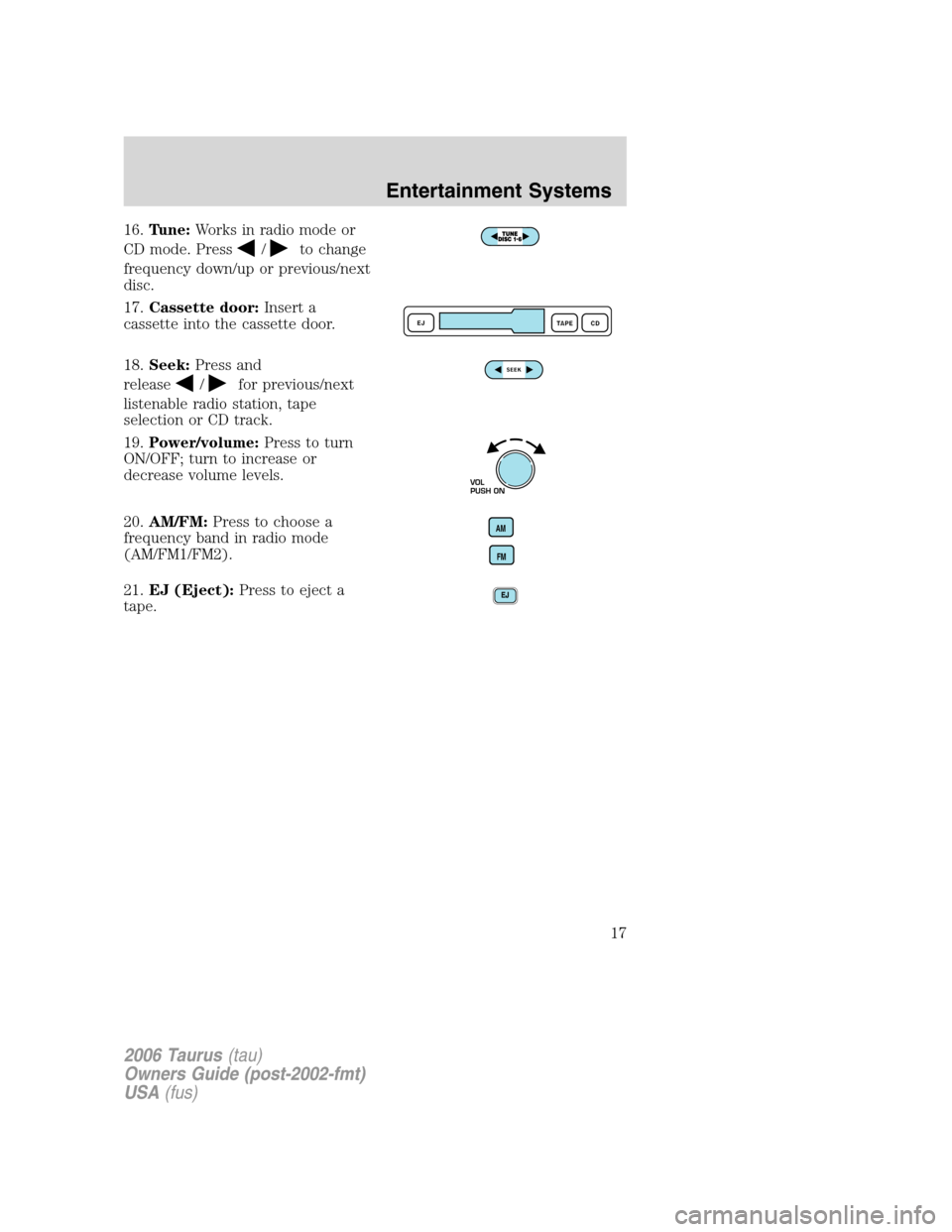

16.Tune:Works in radio mode or
CD mode. Press
/to change
frequency down/up or previous/next
disc.
17.Cassette door:Insert a
cassette into the cassette door.
18.Seek:Press and
release
/for previous/next
listenable radio station, tape
selection or CD track.
19.Power/volume:Press to turn
ON/OFF; turn to increase or
decrease volume levels.
20.AM/FM:Press to choose a
frequency band in radio mode
(AM/FM1/FM2).
21.EJ (Eject):Press to eject a
tape.
VOL
PUSH ON
AM
FM
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
17
Page 18 of 232
Audio System with AM/FM Stereo/Single CD Player (if equipped)
1.Clock:To set the hour, press and
hold the H control. When the
desired hour appears, release the
control.
To set the minute, press and hold
the M control. When the desired
minute appears, release the control.
2.Bass:Press
/to
decrease/increase the bass output.
3.Treble:Press
/to
decrease/increase the treble output.
4.Balance:Press
/to shift
sound to the left/right speakers.
5.Fade:Press
/to shift
sound to the rear/front speakers.
12111098
1612317
5
4
15
14
13
76
BASS
TREB
BAL
FADE
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
18
Page 19 of 232

6.Scan:Press to hear a brief
sampling of all listenable radio
stations or CD tracks. Press again to
stop.
7.CD:Press to play a CD. Press
again to toggle between single CD
mode and CD Changer mode (if
equipped).
8.Shuffle:Press to play CD tracks
in random order.
9.COMP (compression):Press to
bring soft and loud passages
together for a more consistent
listening level.
10.FF (fast forward):Press and
hold until desired selection is
reached.
11.REW (rewind):Press and hold
until desired selection is reached.
12.Memory preset buttons:To
set a station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns.
13.Tune:Press
/to change
radio frequency down/up. With CD
changer (if equipped), press to
select the previous/next CD.
14.Seek:Press and
release
/for previous/next
listenable radio station or
previous/next CD track.
15.Power/volume:Press to turn
ON/OFF; turn to increase or
decrease volume levels.
VOL
PUSH ON
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
19
Page 20 of 232
16.EJ (Eject):Press to eject a CD.
17.AM/FM:Press to choose a
frequency band (AM/FM1/FM2).
CD changer (if equipped)
Your CD changer is either located in the trunk or the center console.
1. Slide the door to access the CD
changer magazine.
2. Press
to eject the magazine.
3. Turn the magazine (A) over.
4. Using the disc holder release
knob (C), pull the disc holder (B)
out of the magazine.
Do not pull too hard on the disc holder as the disc holder may come
completely out of the magazine. If this happens, reinsert the disc holder
back into the magazine while pressing on the lever.
AM
FM
AB
C
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
20
Page 21 of 232

5. Line up the CD with the groove
of the disc holder. Ensure that the
label on the CD faces downwards.
6. Press the disc holder until it locks
securely into the magazine.
Ensure that the disc holder is
evenly inserted and at the same
level as the magazine (A). The unit
will not operate if the disc holder is
not inserted at the same level (B).
GENERAL AUDIO INFORMATION
Radio frequencies:AM and FM frequencies are established by the
Federal Communications Commission (FCC) and the Canadian Radio and
Telecommunications Commission (CRTC). Those frequencies are:
AM - 530, 540–1700, 1710 kHz
FM- 87.7, 87.9–107.7, 107.9 MHz
Radio reception factors:There are three factors that can affect radio
reception:
•Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
Cassette/player care:
Do:
•Use only cassettes that are 90 minutes long or less.
•Tighten very loose tapes by inserting a finger or pencil into the hole
and turning the hub.
A
B
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
21
Page 22 of 232

•Remove loose labels before inserting tapes.
•Allow tapes which have been subjected to extreme heat, humidity or
cold to reach a moderate temperature before playing.
•Clean the cassette player head with a cassette cleaning cartridge after
10–12 hours of play to maintain good sound/operation.
Don’t:
•Expose tapes to direct sunlight, extreme humidity, heat or cold.
•Leave tapes in the cassette player for a long time when not being
played.
CD/CD player care:
Do:
•Handle discs by their edges only. Never touch the playing surface.
•Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
Don’t:
•Expose discs to direct sunlight or heat sources for extended periods
of time.
•Insert more than one disc into each slot of the CD changer magazine.
•Clean using a circular motion.
CD units are designed to play commercially pressed 4.75 in
(12 cm) audio compact discs only. Due to technical
incompatibility, certain recordable and re-recordable compact
discs may not function correctly when used in Ford CD players.
Irregular shaped CDs, CDs with a scratch protection film
attached, and CDs with homemade paper (adhesive) labels should
not be inserted into the CD player. The label may peel and cause
the CD to become jammed. It is recommended that homemade
CDs be identified with permanent felt tip marker rather than
adhesive labels. Ballpoint pens may damage CDs. Please contact
your dealer for further information.
Audio system warranty and service:Refer to theWarranty Guide
for audio system warranty information. If service is necessary, see your
dealer or qualified technician.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
22
Page 23 of 232

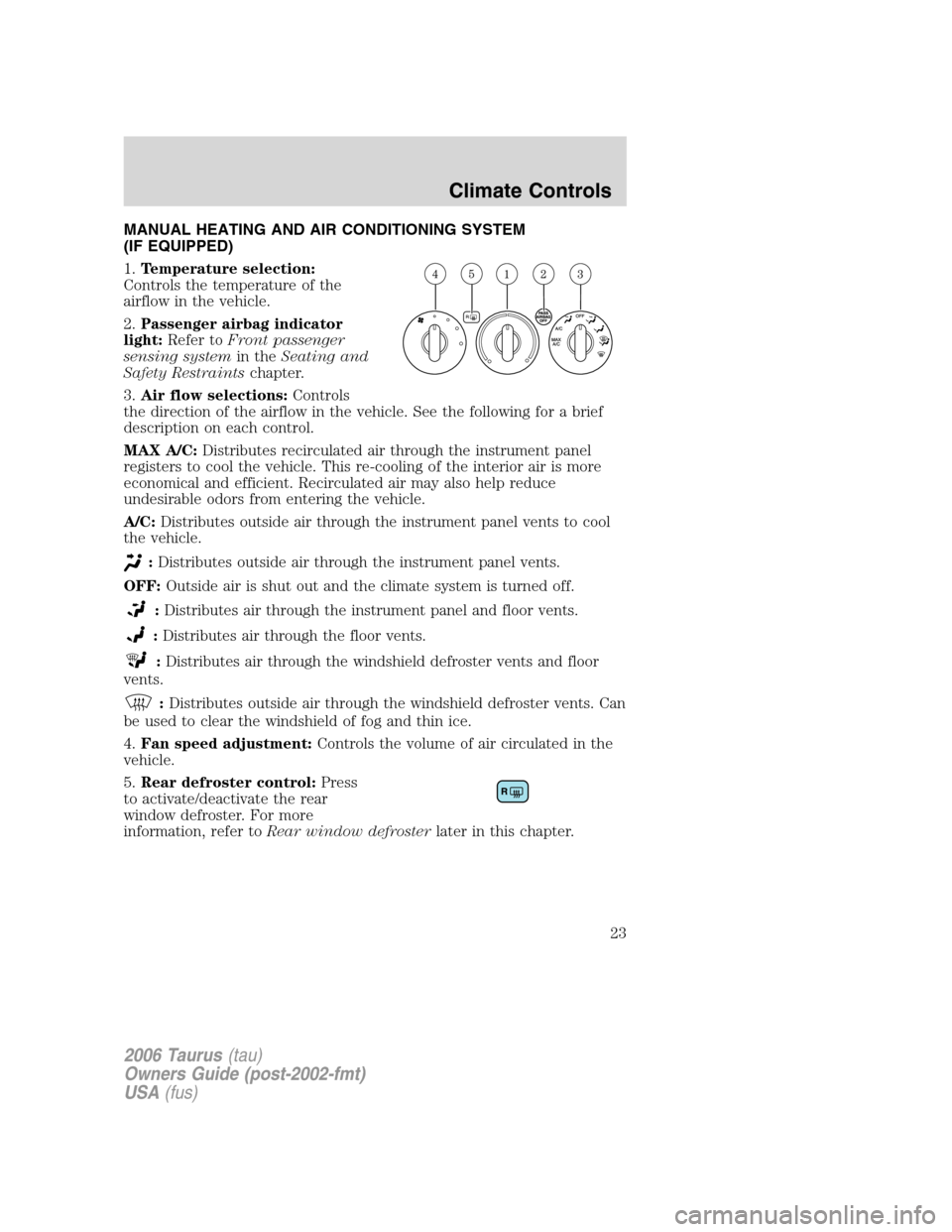

MANUAL HEATING AND AIR CONDITIONING SYSTEM
(IF EQUIPPED)
1.Temperature selection:
Controls the temperature of the
airflow in the vehicle.
2.Passenger airbag indicator
light:Refer toFront passenger
sensing systemin theSeating and
Safety Restraintschapter.
3.Air flow selections:Controls
the direction of the airflow in the vehicle. See the following for a brief
description on each control.
MAX A/C:Distributes recirculated air through the instrument panel
registers to cool the vehicle. This re-cooling of the interior air is more
economical and efficient. Recirculated air may also help reduce
undesirable odors from entering the vehicle.
A/C:Distributes outside air through the instrument panel vents to cool
the vehicle.
:Distributes outside air through the instrument panel vents.
OFF:Outside air is shut out and the climate system is turned off.
:Distributes air through the instrument panel and floor vents.
:Distributes air through the floor vents.
:Distributes air through the windshield defroster vents and floor
vents.
:Distributes outside air through the windshield defroster vents. Can
be used to clear the windshield of fog and thin ice.
4.Fan speed adjustment:Controls the volume of air circulated in the
vehicle.
5.Rear defroster control:Press
to activate/deactivate the rear
window defroster. For more
information, refer toRear window defrosterlater in this chapter.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
23
Page 24 of 232

Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity buildup within the cabin, do not drive with the
selector in the OFF or MAX A/C position when outside temperature is
below 40°F (3°C).
•To improve A/C cool down, drive with the windows slightly open for
the first 2–3 minutes after starting the vehicle or until the vehicle has
“aired out.”
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
•For best cooling results when using the MAX A/C mode, move the
temperature control to full cold and initially set the fan to highest
speed, then adjust the temperature and fan to maintain comfort.
To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Adjust the temperature control to maintain comfort.
3. Set the fan speed to the highest setting.
4. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
24
