Page 217 of 232

Use of a non-approved automatic transmission fluid may cause
internal transaxle component damage.
If necessary, add fluid in 1/2 pint (250 mL) increments through the filler
tube until the level is correct.
If an overfill occurs, excess fluid
should be removed by a qualified
technician.
An overfill condition of
transmission fluid may cause shift and/or engagement concerns
and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
MOTORCRAFT PART NUMBERS
Component 3.0L V6 Vulcan
engine3.0L FFV V6
engine
Air filter element
1FA-1683 FA-1683
Fuel filter FG-1060 FG-1060
Battery BXT-36R BXT-36R
Oil filter FL-400-S FL-400-S
PCV valve
2
Spark plugs3
1
Do not use oil-impregnated air filter elements. Failure to use the correct
air filter element may result in severe engine damage. The customer
warranty may be voided for any damage to the engine if the correct air
filter element is not used.
2The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your dealer or a qualified service
technician. Refer to thescheduled maintenance informationfor the
appropriate intervals for changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
DON’T ADD IF IN CROSSHATCH AREA--CHECH WHEN HOT-IDLING
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
217
Page 218 of 232

3For spark plug replacement, see your dealer or a qualified service
technician. Refer toscheduled maintenance informationfor the
appropriate intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
REFILL CAPACITIES
Fluid Ford Part Name Capacity
Brake fluid Motorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidFill to line on reservoir
Engine coolant
1Motorcraft Premium
Gold Engine Coolant
(yellow-colored)11.6 quarts (11.0L)
Engine oil (includes
filter change)
2Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor Oil
(Canada)4.5 quarts (4.25L)
Fuel tank capacity N/A 18.0 gallons (68.1L)
Power steering fluid Motorcraft
MERCONAT FFill to line on dipstick
Automatic transaxle
- 4F50NMotorcraft
MERCONVATF13.5 quarts (12.8L)
Windshield washer
fluidMotorcraft Premium
Windshield Washer
Concentrate94.7 oz (2.8L.)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
218
Page 219 of 232

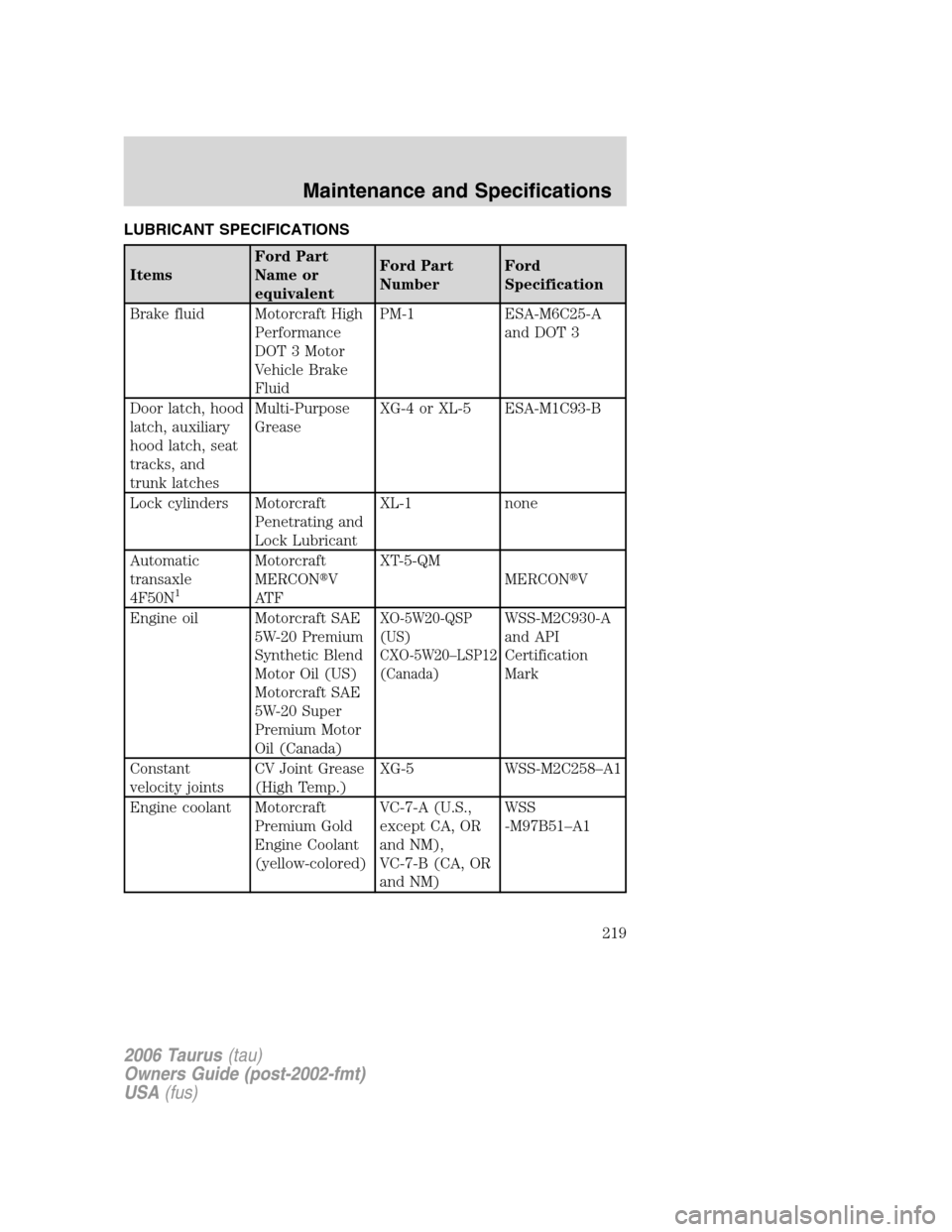

LUBRICANT SPECIFICATIONS
ItemsFord Part
Name or
equivalentFord Part
NumberFord
Specification
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Door latch, hood
latch, auxiliary
hood latch, seat
tracks, and
trunk latchesMulti-Purpose
GreaseXG-4 or XL-5 ESA-M1C93-B
Lock cylinders Motorcraft
Penetrating and
Lock LubricantXL-1 none
Automatic
transaxle
4F50N
1
Motorcraft
MERCONV
AT FXT-5-QM
MERCONV
Engine oil Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)
XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C930-A
and API
Certification
Mark
Constant
velocity jointsCV Joint Grease
(High Temp.)XG-5 WSS-M2C258–A1
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA, OR
and NM),
VC-7-B (CA, OR
and NM)WSS
-M97B51–A1
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
219
Page 220 of 232

ItemsFord Part
Name or
equivalentFord Part
NumberFord
Specification
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to yourscheduled maintenance informationto
determine the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
ENGINE DATA
Engine 3.0L V6 Vulcan
engine3.0L FFV V6 engine
Cubic inches 182 182
Required fuel 87 octane 87 octane or Ethanol
(E 85)
Firing order 1-4-2-5-3-6 1-4-2-5-3-6
Ignition system EDIS EDIS
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
220
Page 221 of 232
Engine 3.0L V6 Vulcan
engine3.0L FFV V6 engine
Spark plug gap 0.042–0.046 inch
(1.1–1.2mm)0.042–0.046 inch
(1.1–1.2mm)
Compression ratio 9.7:1 9.7 :1
VEHICLE DIMENSIONS
Vehicle dimensions Inches (mm)
(1) Overall length 197.6 (5020)
(2) Overall width 73.0 (1855)
(3) Overall height 56.1 (1426)
(4) Wheelbase 108.5 (2757)
(5) Track - Front 61.6 (1566)
(5) Track - Rear 62.1 (1577)
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
221
Page 222 of 232

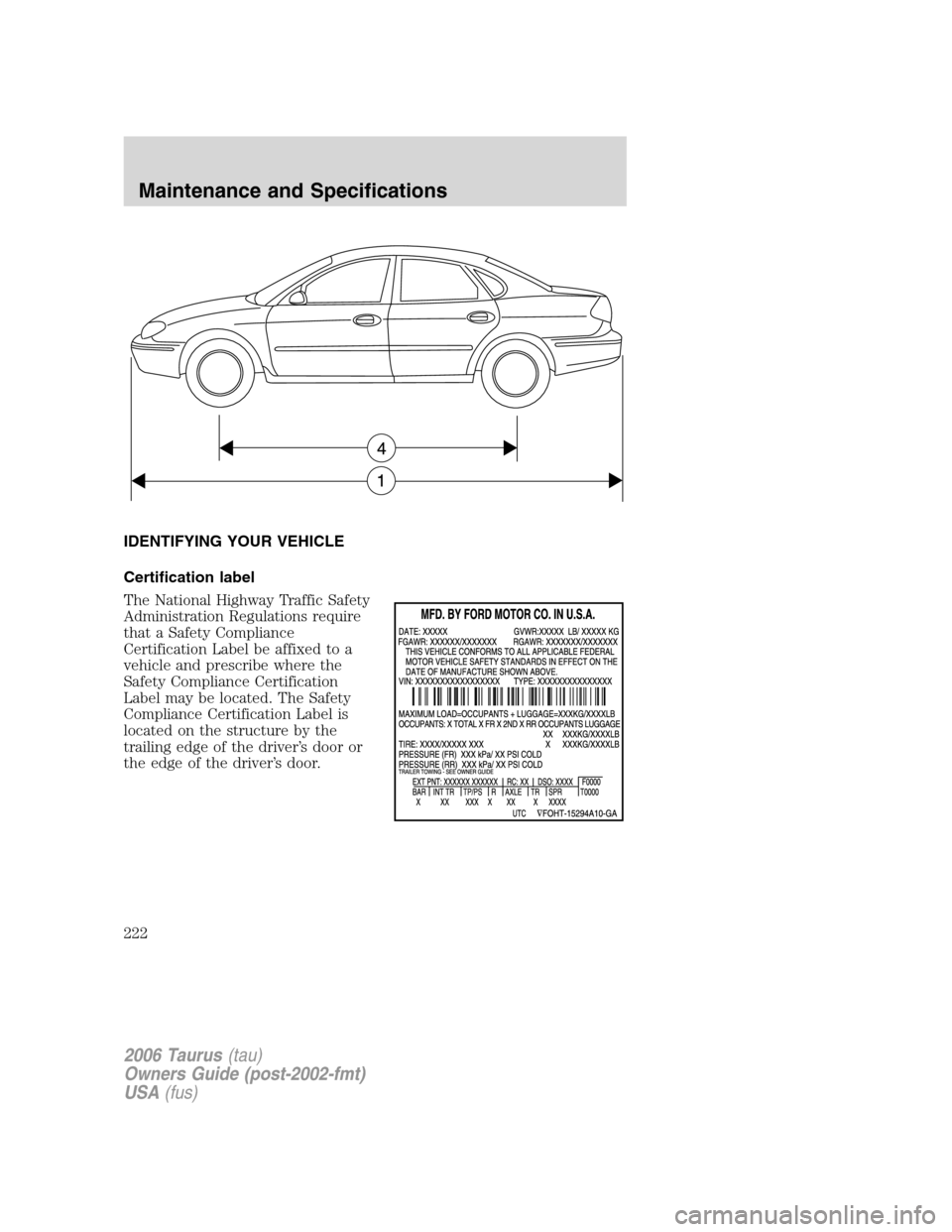

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door.
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
222
Page 223 of 232

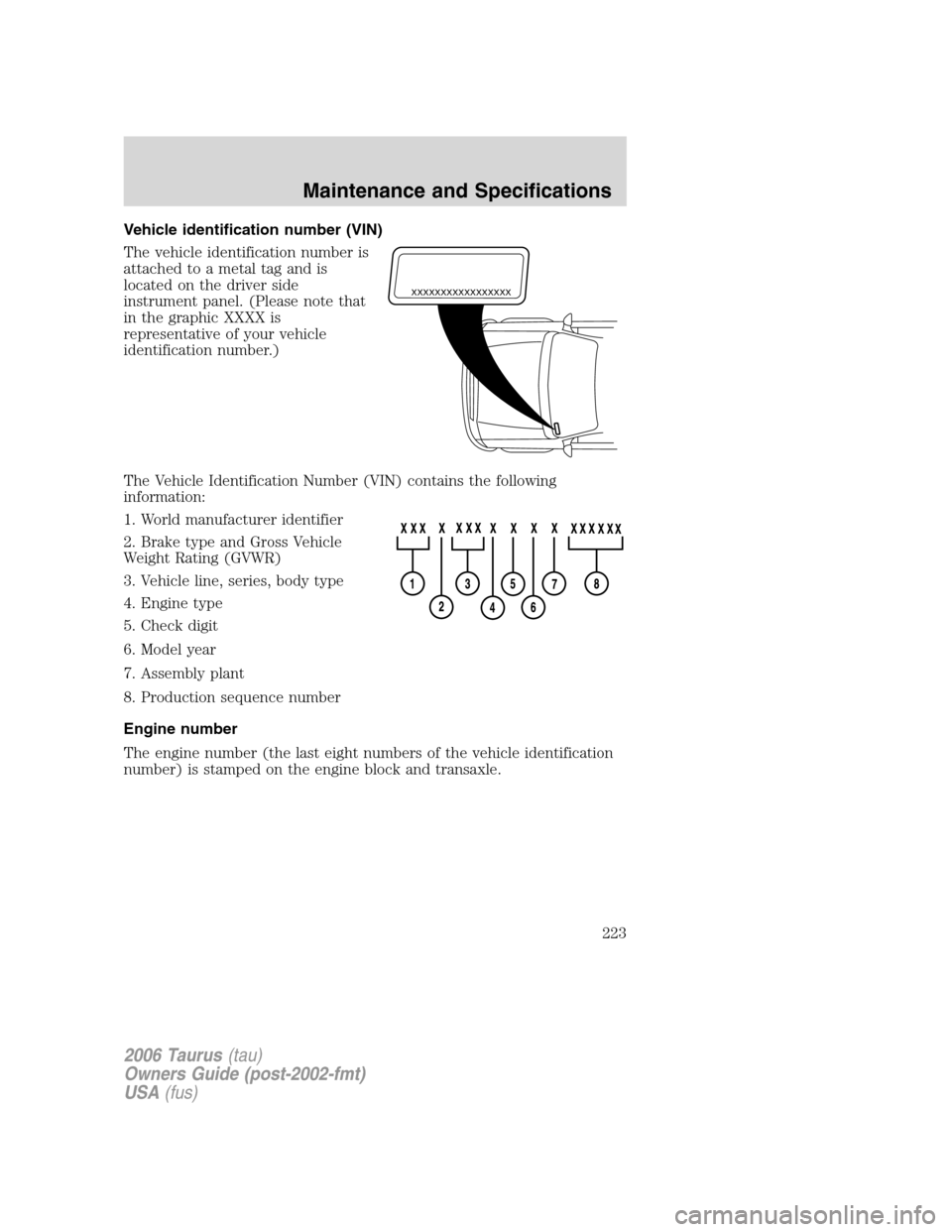

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake type and Gross Vehicle
Weight Rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block and transaxle.
XXXXXXXXXXXXXXXXX
2006 Taurus(tau)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
223
Page 224 of 232

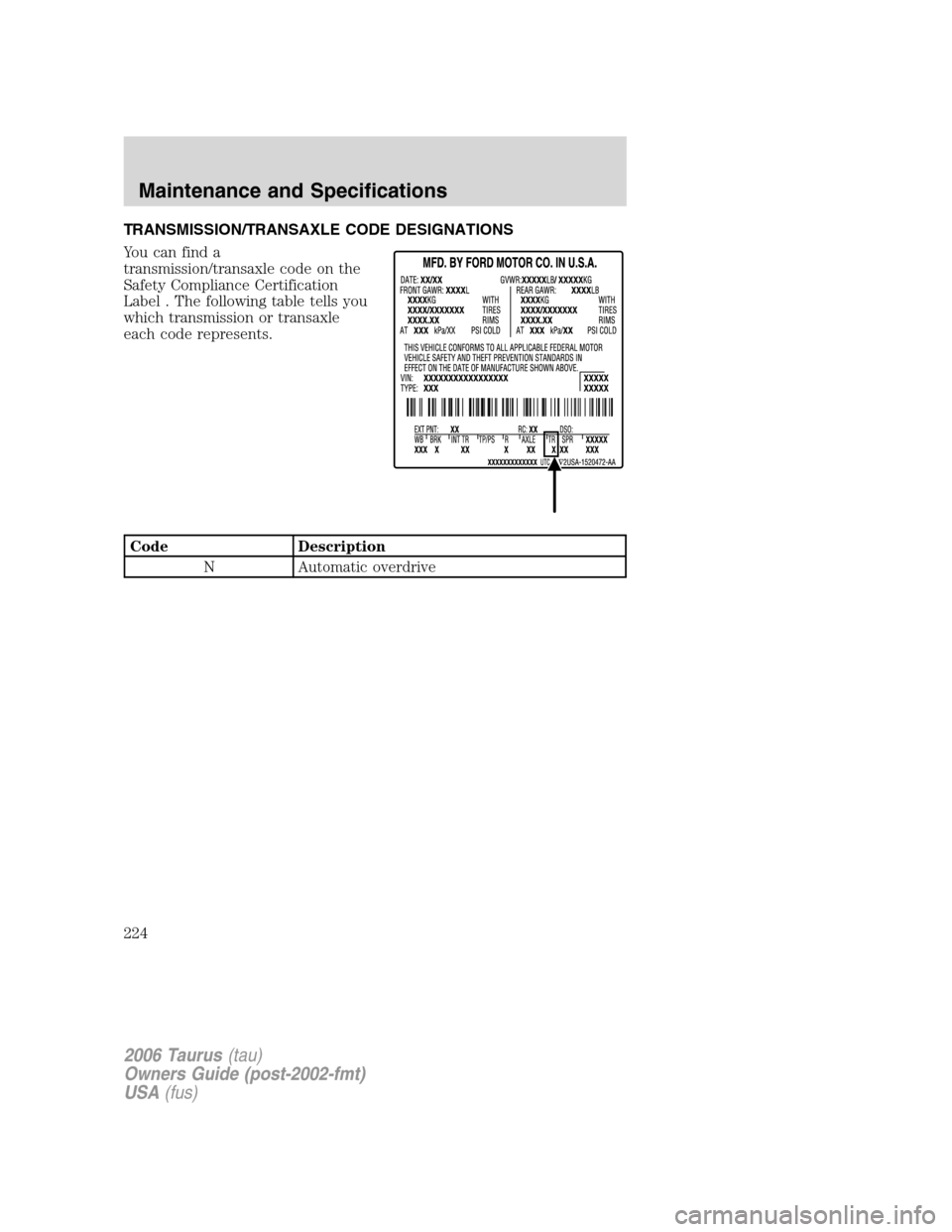

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label . The following table tells you
which transmission or transaxle
each code represents.
Code Description
N Automatic overdrive
