2006 FIAT STILO technical specifications

100
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IMPORTANT After eliminating the in-
convenience, to check the system com-
pletely, Fiat Dealerships are obliged to run
a bench test and, if necessary, road tests
which may also call for a long journey.SOUND SYSTEM
(where provided)
The Fiat Stilo sound system is of the fixed
type: the instructions for use are given in
the attached Supplement.
ACTUAL versions are provided with pre-
setting for sound system with aerial, wiring
and speakers.
To install the sound system, loosen screw
A-fig. 124and remove the oddment
compartment, install the compartment
provided with the sound system and the
power cables for the electric connection. If turning the ignition key to
MAR, the warning light
Udoes not turn on or if, while
travelling it turns on glowing
steadily or flashing (together with the
message on the display), contact Fiat
Dealership as soon as possible. Warn-
ing light
Uoperation can be checked
by means of special equipment by traf-
fic agents. Always comply with the traf-
fic regulations in force in the country
where you are travelling.
fig. 124F0C0440m
IMPORTANT To guarantee proper sound
and mechanical properties (e.g. water
tightness and door soundproofing) at Lin-
eaccessori Fiat is available a kit including
an aerial adapter that improves AM fre-
quency reception through the amplifier on
the aerial support.

101
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ACCESSORIES
PURCHASED BY THE
OWNER
If after buying the car, you decide to install
electrical accessories that require a per-
manent electric supply (alarm, satellite an-
titheft system, etc.) or accessories that in
any case burden the electric supply, con-
tact Fiat Dealership, whose qualified per-
sonnel, besides suggesting the most suit-
able devices belonging to Lineaccessori Fi-
at, will also evaluate the overall electric ab-
sorption, checking whether the car’s elec-
tric system is able to withstand the load
required, or whether it needs to be inte-
grated with a more powerful battery.
INSTALLATION OF
ELECTRIC/ELECTRONIC
DEVICES
Electric/electronic devices installed after
buying the car or in aftermarket shall bear
the and marking:
Fiat Auto S.p.A. authorizes the installation
of transceivers provided that installation
is carried out at a specialized shop, work-
manlike performed and in compliance with
manufacturer's specifications.
IMPORTANT Installation of devices re-
sulting in modifications of car characteris-
tics may cause driving license seizing by
traffic agents and also the lapse of the war-
ranty as concerns defects due to the
abovementioned modification or traceable
back to it directly or indirectly.
Fiat Auto S.p.A. declines all responsibility
for damages caused by the installation of
non-genuine accessories or not recom-
mended by Fiat Auto S.p.A. and installed
not in compliance with the specified re-
quirements.
RADIO TRANSMITTERS
AND CELLULAR
TELEPHONES
Mobile phones and other radio transceiv-
er equipment (e.g.: HAM radio systems
and the like) shall not be used inside the
car unless a separate aerial is mounted.
IMPORTANT The use of mobile phones,
HAM radio systems or other similar de-
vices inside the passenger compartment
(without separate aerial) may cause elec-
tronic systems equipping the car to mal-
function. This could compromise safety in
addition to constituting a potential hazard
for the passengers.
In addition, transmission and reception of
these devices may be affected by the
shielding effect of the car body.
As concerns the use of mobile phones
(GSM, GPRS, UMTS) with homolo-
gation, keep strictly to the mobile phone
manufacturer's specifications.
Take care when fitting addi-
tional spoilers, alloy rims and
non-standard wheel caps: they might
reduce ventilation of the brakes, thus
their efficiency, during abrupt and re-
peated braking, or long downhill
slopes. Make sure that nothing (mats,
etc.) gets in the way of the pedals
when they are pushed down.
WARNING

102
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
“DUALDRIVE” ELECTRIC
POWER STEERING
SYSTEM
The car is provided with the electrically
controlled power steering system called
“Dualdrive” working only with ignition key
at MARand engine running, that can be
customised by the driver according to the
driving conditions.
IMPORTANT When turning quickly the
ignition key, power steering full operation
is obtained after 1-2 seconds.ACTIVATION/DEACTIVATION
(CITY function)
To connect/disconnect the CITY function,
push the button A-fig. 125located on the
central tunnel on the side of the gearbox
control lever.
Connection of this function is reported by
the word CITY on the “Multifunction dis-
play”.
When the CITY function is on the steer-
ing wheel effort is lighter and thus parking
operations are easier: therefore this func-
tion is particularly useful for driving in city
centres.FAILURE INDICATIONS
Any failure is indicated by warning light
gcoming on (together with the message on
the display) (see section “Warning lights
and messages”).
In the event of electric power steering sys-
tem failure, the car can be driven with me-
chanical steering.
IMPORTANT Under certain circum-
stances, factors independent from the
electric power steering could cause the il-
lumination of the warning light
gon the
instrument panel. We suggest to stop im-
mediately the car, turn off the engine for
about 20 seconds and then re-start the
car. If the warning light
gstays on (to-
gether with the message on the display),
contact Fiat Dealership.
IMPORTANT The steering may become
slightly stiff following parking manoeuvres
including a great deal of steering. This is
normal and caused by a system to prevent
motor overheating. No servicing is re-
quired. The electrical power steering sys-
tem will return to normal operation the
next time the car is used.
fig. 125F0C0065m

103
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
PARKING SENSORS
(where provided)
Parking sensors are located in the rear
bumper fig. 126(saloon versions) and
fig. 127 (Multi Wagon versions) and their
function is to inform the driver, through
an intermittent buzzer, about the pres-
ence of obstacles behind the car.
ACTIVATION
Sensors are automatically activated when
the reverse gear is engaged.
As the distance from the obstacle behind
the car decreases, the acoustic alarm be-
comes more frequent.
BUZZER WARNINGS
When the reverse gear is engaged an in-
termittent acoustic signal is automatically
activated.
The acoustic signal:
❒becomes louder as the reduction of dis-
tance between the car and the obstacle
decreases;
❒becomes continuous when the distance
between the car and the obstacle is less
that 30 cm and stops immediately if the
distance raises.
❒is constant if the distance is unvaried.
If this situation takes place for side sen-
sors, the signal is stopped after about 3
seconds to prevent sound indications
when performing manoeuvres near
walls.
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the car with homolo-
gation requirements.
WARNING
Always switch the engine off,
remove the key from the
starting device and actuate the steer-
ing lock before carrying out any main-
tenance operation, especially when
the wheels are raised from the
ground. In case this is not possible
(e.g. when the key must be in MAR
position or the engine running), re-
move the electric power steering
main fuse before carrying out any
maintenance operation.
WARNING
fig. 126F0C0301m
fig. 127F0C0364m

104
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Detection distances
Central action radius ......................150 cm
Side action radius ............................ 60 cm
If several obstacles are detected, the con-
trol unit indicates the nearest one.
FAILURE INDICATIONS
In the event of sensor failures, when en-
gaging the reverse gear the driver is
warned by the turning on of warning light
èon the instrument panel and by the rel-
evant message on the display (see section
“Warning lights and messages”).
OPERATION WITH TRAILER
Parking sensor operation is deactivated
automatically when the trailer electric ca-
ble plug is fitted into the car tow hook
socket.
Sensors are reactivated when removing
the trailer cable plug.GENERAL WARNINGS
❒When parking, take the utmost care to
obstacles set above or under the sen-
sors.
❒Objects set close to the car front or
rear part, under certain circumstances
are not detected and could therefore
cause damages to the car.
❒Indications sent by the sensors can be
altered by dirt, snow or ice deposited
on the sensors or by ultrasound sys-
tems (e.g.: truck pneumatic brakes or
pneumatic hammers) set nearby the
car. For proper operation, the
parking sensors set on the
bumpers shall be clean from
mud, dirt, snow or ice. When
cleaning the sensors, take the utmost
care to prevent their damaging; do not
use therefore dry or rough clothes. Sen-
sors shall be washed with clean water
and car detergent, if required. In wash-
ing stations, clean sensors quickly keep-
ing the vapour jet/high pressure wash-
ing nozzles at 10 cm at least from the
sensors.
Parking manoeuvres howev-
er are always under the dri-
ver’s responsibility that shall always
check the absence of people (spe-
cially children) or animals in the ma-
noeuvre space. This system is just a
help for the driver but she/he shall
never reduce attention during dan-
gerous manoeuvres even if performed
at low speed.
WARNING

105
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

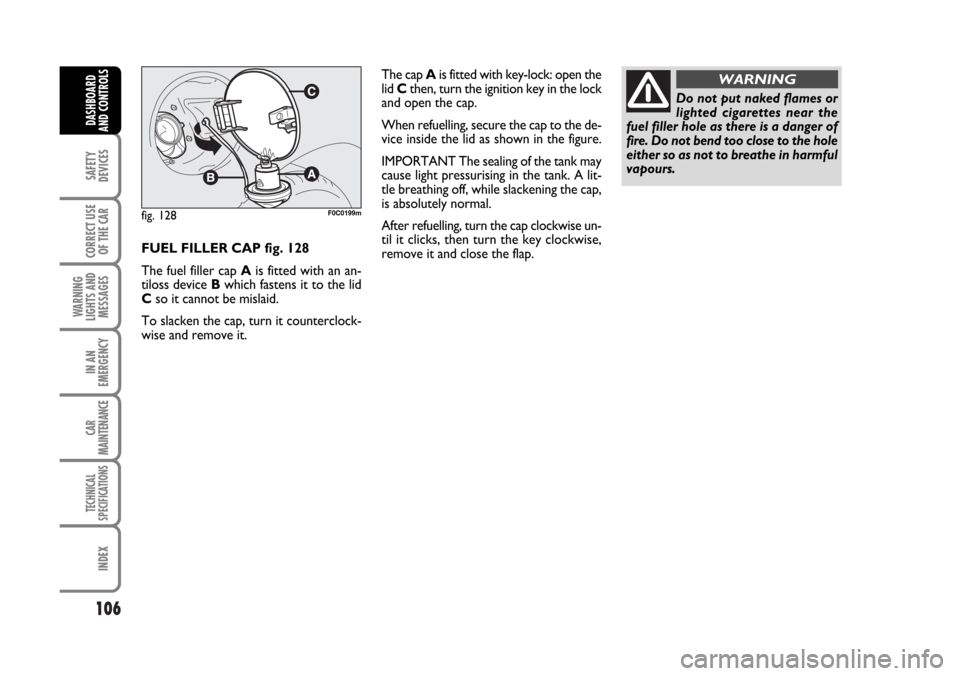

AT THE FILLING
STATION
PETROL ENGINES
Use only unleaded petrol.
To prevent errors, the diameter of the fu-
el tank filler is too small to introduce a lead
petrol pump filler. Use petrol with a rat-
ed octane number (R.O.N.) not lower
than 95.
IMPORTANT An inefficient catalyst leads
to harmful exhaust emissions, thus con-
tributing to air pollution.
IMPORTANT Never use leaded petrol,
even in small amount or in an emergency,
as this would damage the catalyst beyond
repair.DIESEL ENGINES
If the outside temperature is very low, the
diesel thickens due to the formation of
paraffins and could clog the diesel fuel filter.
In order to avoid these problems, different
types of diesel are distributed according to
the season: summer type, winter type arc-
tic type (mountains/cold areas).
If refuelling with diesel fuel not suitable for
the current temperature, mix diesel fuel
with TUTELA DIESEL ART additive in the
proportions stated on the can, putting first
the antifreeze in the tank and then the
diesel fuel.
Refuel with local diesel fuel if the car is
used/parked in the mountains or in cold
areas for a long period. In this event you
are recommended to keep an amount of
fuel higher than 50% in the tank.The car must only be filled
with diesel fuel for motor ve-
hicles, in compliance with Eu-
ropean Specification EN590.
The use of other products or mixtures
may irreparably damage the engine
with invalidation of the warranty due
to the damage caused. In the event of
accidentally filling with another type
of fuel, do not start the engine and
empty the tank. If the engine has been
run even for only a very short time, in
addition to the tank, it is also necessary
to drain out the whole fuel circuit.
REFUELLING
To guarantee full tank filling, carry out two
refuelling operations after the first click of
the fuel delivery gun. Avoid further top-
ping up operations that could cause dam-
ages to the fuel system.

106
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FUEL FILLER CAP fig. 128
The fuel filler cap Ais fitted with an an-
tiloss device Bwhich fastens it to the lid
Cso it cannot be mislaid.
To slacken the cap, turn it counterclock-
wise and remove it.The cap Ais fitted with key-lock: open the
lid Cthen, turn the ignition key in the lock
and open the cap.
When refuelling, secure the cap to the de-
vice inside the lid as shown in the figure.
IMPORTANT The sealing of the tank may
cause light pressurising in the tank. A lit-
tle breathing off, while slackening the cap,
is absolutely normal.
After refuelling, turn the cap clockwise un-
til it clicks, then turn the key clockwise,
remove it and close the flap.
fig. 128F0C0199m
Do not put naked flames or
lighted cigarettes near the
fuel filler hole as there is a danger of
fire. Do not bend too close to the hole
either so as not to breathe in harmful
vapours.
WARNING

107
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FUEL LID EMERGENCY
OPENINGS
Saloon versions
Open flap A-fig. 129set on the right side
of the boot and pull the string located in-
side the flap.
fig. 129F0C0088mfig. 130F0C0358mfig. 131F0C0359m
❒pull the string Elocated inside the flap. Multi Wagon versions
Proceed as follows:
❒turn the knob A-fig. 130and open the
flap Bset on the right side of the boot;
❒hold the tongue C-fig. 131to open the
second flap D;
