2006 FIAT STILO technical specifications

4
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLSDASHBOARD ........................................................................ 5
INSTRUMENT PANEL ......................................................... 6
SYMBOLS ................................................................................. 8
THE FIAT CODE SYSTEM ................................................... 8
THE KEYS ................................................................................ 10
ALARM ..................................................................................... 17
IGNITION SWITCH.............................................................. 20
INSTRUMENTS ....................................................................... 21
MULTIFUNCTION DISPLAY ............................................. 23
TRIP COMPUTER ................................................................. 34
SEATS ........................................................................................ 37
HEAD RESTRAINTS .............................................................. 41
STEERING WHEEL ............................................................... 42
REARVIEW MIRRORS ........................................................... 43
HEATING/CLIMATE CONTROL SYSTEM .................... 44
HEATING AND VENTILATION ....................................... 46
MANUAL CLIMATE CONTROL SYSTEM .................... 48
AUTOMATIC TWO-ZONE
CLIMATE CONTROL SYSTEM ......................................... 51
EXTERNAL LIGHTS .............................................................. 57
WINDOW WASHING......................................................... 60CRUISE CONTROL ............................................................. 64
CEILING LIGHTS .................................................................. 67
CONTROLS ........................................................................... 68
INTERIOR FITTINGS ............................................................ 70
“SKYWINDOW”(BLADE SUNROOF) ........................... 74
DOORS .................................................................................... 79
POWER WINDOWS ........................................................... 80
BOOT ........................................................................................ 81
BONNET .................................................................................. 92
ROOF RACK/SKI RACK ..................................................... 93
HEADLIGHTS .......................................................................... 94
ABS SYSTEM ........................................................................... 95
ESP SYSTEM ............................................................................ 97
EOBD SYSTEM ....................................................................... 99
SOUND SYSTEM .................................................................... 100
ACCESSORIES PURCHASED BY THE OWNER ......... 101
“DUALDRIVE” ELECTRIC POWER
STEERING SYSTEM .............................................................. 102
PARKING SENSORS ............................................................ 103
AT THE FILLING STATION .............................................. 105
PROTECTING THE ENVIRONMENT ............................ 108
D D
A A
S S
H H
B B
O O
A A
R R
D D
A A
N N
D D
C C
O O
N N
T T
R R
O O
L L
S S

DASHBOARD
The presence and the position of the instruments and warning lights may vary according to the versions.
1.Side window air vent - 2.Adjustable and swivel air vent - 3.External light stalk - 4.Instrument panel - 5.Adjustable and swivel
air vent - 6.Hazard light switch - 7.Sound system controls - 8.Front passenger air bag - 9.Upper glovebox - 10.Lower glovebox
- 11.Controls for heating, ventilation and climate control - 12.Windscreen/rear window wiper/trip computer stalk - 13.Ignition
key and ignition switch - 14.Driver air bag - 15.Steering wheel locking/release stalk - 16.Control unit access door - 17.Bonnet
opening lever - 18.Set of switches for lights and menu opening/setting.
5
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0C0155mfig. 1

6
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
INSTRUMENT PANEL1.416V- 1.616V- 1.816Vversions
ARev counter
BEngine coolant temperature gauge and
excessive temperature warning light
CFuel level gauge with reserve warning
light
DSpeedometer (speed indicator)
EMultifunction display.
The rev counter of versions with Sele-
speed transmission is fitted with warning
light t.
1.9 Multijet versions
ARev counter
BEngine coolant temperature gauge and
excessive temperature warning light
CFuel level gauge with reserve warning
light
DSpeedometer (speed indicator)
EMultifunction display.
The rev counter of versions with Sele-
speed transmission is fitted with warning
light t.
F0C0521m
F0C0522m
fig. 3 fig. 2

7
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

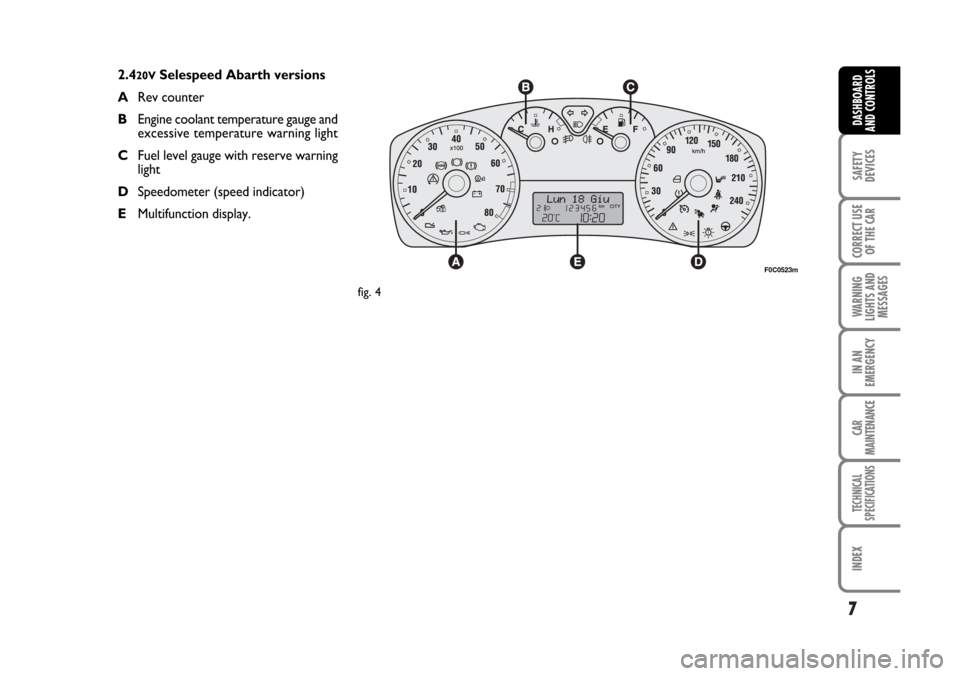

2.420VSelespeed Abarth versions
ARev counter
BEngine coolant temperature gauge and
excessive temperature warning light
CFuel level gauge with reserve warning
light
DSpeedometer (speed indicator)
EMultifunction display.
F0C0523m
fig. 4

8
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SYMBOLS
Special coloured labels have been attached
near or actually on some of the compo-
nents of your car. These labels bear sym-
bols that remind you of the precautions
to be taken as regards that particular com-
ponent.
The plate summarising the symbols used
can be found under the bonnet fig. 5.
THE FIAT CODE SYSTEM
To further protect you car from theft, it
has been fitted with an engine immobilis-
ing system. This system is automatically ac-
tivated when the ignition key is removed.
An electronic device, in fact, is fitted in
each ignition key grip. The device trans-
mits a radio-frequency signal when the en-
gine is started through a special aerial built
into the ignition switch. The modulate sig-
nal, which changes each time the engine is
started, is the “password” by means of
which the control unit recognises the key
and enables to start the engine.
fig. 5F0C0145m

9
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
OPERATION
Each time the car is started turning the ig-
nition key to MAR, the Fiat CODE sys-
tem control unit sends a recognition code
to the engine control unit to deactivate
the inhibitor.
The code is sent only if the Fiat CODE
system control unit has recognised the
code transmitted from the key.
Each time the ignition key is turned to
STOP, the Fiat CODE system deactivates
the functions of the engine electronic con-
trol unit.
If the code has not been recognised cor-
rectly, the instrument panel warning light
Ywill turn on.
In this case, the key should be moved to
the STOPposition and then back to
MAR; if the lock continues, possibly try
again with the other key provided with the
car. If it is still not possible to start the car
contact a Fiat Dealership.IMPORTANT Every key has its own code,
which must be memorised by the system
control unit. To memorise new keys, up
to a maximum of eight, apply solely to Fi-
at Dealership taking with you the CODE
card and the keys, a personal identity doc-
ument and the car’s ownership docu-
ments. The codes of the keys not provid-
ed during the new memorising procedure
are erased from the memory. This is to
ensure that any lost or stolen keys can no
longer be used to start the car.
The electronic components in-
side the key may be damaged
if the key is submitted to sharp
knocks.
Warning light Ycoming
on when driving
❒If the warning light Yturns on, this
means that the system is running a self-
test (for example for a voltage drop).
❒If the warning light Ycontinues to stay
on, contact a Fiat Dealership.

10
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
THE KEYS
CODE CARD
Together with the keys you will receive
the CODE card fig. 6to be presented to
Fiat Dealership when requesting additional
keys.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never
be exposed to direct sunlight.
KEY WITHOUT REMOTE
CONTROL (where provided)
The key is fitted with a metal insert A-
fig. 7, operating:
❒the ignition switch
❒doors and tailgate locks
❒the fuel lid locking/unlocking (on ver-
sions featuring fuel filler cap with lock)
❒windows and Skywindow sunroof
(where provided) opening/closing
❒the dead lock device (where provided)
❒the switch to deactivate the passenger’s
air bag and rear side bags (where pro-
vided). All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
fig. 6F0C0001mfig. 7F0C0508m

11
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
KEY WITH REMOTE CONTROL
The key is fitted with a metal insert A-
fig. 8, operating:
❒the ignition switch
❒doors and tailgate locks
❒the fuel lid locking/unlocking (on ver-
sions featuring fuel filler cap with lock)
❒windows and Skywindow sunroof
(where provided) opening/closing
❒the dead lock device (where provided)
❒the switch to deactivate the passenger’s
air bag and rear side bags (where pro-
vided).
fig. 8F0C0327m
Button Ëfor remote unlocking of doors,
tailgate and fuel filler cap. Button Áfor re-
mote locking of doors, tailgate and fuel
filler cap. Button
Rfor remote open-
ing of the tailgate. Button Bfor power-as-
sisted opening of the metal insert A.
To refit the metal insert into the key grip,
keep button Bpressed and turn the met-
al insert in the direction shown by the ar-
row until hearing the click as it locks into
place. Then release button B. Led C
(where provided) comes on when send-
ing the control to the alarm system re-
ceiver. To know the operating logics of
the key with remote control and every
possible and modifiable setting, see para-
graph “Alarm” in this section.If locking button
Áis inadver-
tently pressed from the pas-
senger compartment, when
getting out of the car only the doors
being used will unlock; the tailgate will
stay locked. To realign the system,
press again the locking/unlocking but-
tons
Á/Ë.
Button B-fig. 8 should only
be pressed when the key is
away from the body, in particular
from the eyes and from objects that
can be spoilt (e.g. clothes). Make sure
the key can never be touched by oth-
ers, especially children, who may in-
advertently press the button.
WARNING
