2006 CHEVROLET UPLANDER Owners Manual

Six-Way Power Seats
Your vehicle may have this
feature. If it does, the
six-way power seat control
is located on the outboard
side of the driver’s
seat. Your vehicle may
also have a passenger’s
six-way power seat.
Move the front of the control up or down to adjust
the front portion of the seat up or down.
Move the rear of the control up or down to adjust
the rear portion of the seat up or down.
Slide the control forward or rearward to move the
seat forward or rearward.
Heated Seats
Your vehicle may have this feature. If it does, the heated
seat buttons are located on the climate control panel.
This feature will heat the lower cushions of the driver’s
and front passenger’s seats.Press this button once to
turn the heated seat on to
the high setting.
Both indicator lights next to the heated seat symbol will
be lit to indicate that it is on the high setting. Press
the button a second time to go to the low setting.
One indicator will be lit. Press the button a third time to
turn the heated seat off.
This feature will turn off automatically when the ignition
is turned off.
Driver’s Side Button
shown, Passenger’s
Side similar
1-3
ProCarManuals.com

Reclining Seatbacks
To adjust a seatback, pull up on the lever located on
the outboard side of the driver’s or front passenger’s
seats. Release the lever to lock the seatback where you
want it. Push and pull on the seat to make sure it is
locked into position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
Pull up on the lever, and the seat will go to its original
upright position.
1-4
ProCarManuals.com

Do not have a seatback reclined if your vehicle is
moving.
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash, you could go into it,
receiving neck or other injuries.
The lap belt cannot do its job either. In a
crash, the belt could go up over your
abdomen. The belt forces would be there, not
at your pelvic bones. This could cause serious
internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
1-5
ProCarManuals.com

Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
The head restraints are adjustable on the rst and
second row seats. They are not adjustable on the
third row seat, if equipped. To adjust a head restraint,
slide it up or down.
Rear Seats
Rear Seat Operation
The rear seats in your vehicle have levers and straps
used to adjust, remove, and reinstall the seats. By using
the levers and straps in the correct order, you can
easily remove the seats from the vehicle. If your vehicle
has second row captain chairs with airbags, the seats
cannot be removed.
When reinstalling the seats, make sure the seats are in
the proper positions.
If your vehicle has a second row center console, it can
be removed. SeeSecond Row Center Console on
page 2-51. Do not put a seat in the center position
because the safety belt cannot be worn properly in this
position. SeeSafety Belts: They Are for Everyone
on page 1-21.
1-6
ProCarManuals.com

Bucket Seats
Your vehicle may have bucket seats in the second row.
These seats can be adjusted several different ways.
Fold and Tumble Feature
The second row bucket seats can be folded and
tumbled forward. Use this feature for exiting and
entering third row seats, if the vehicle has them.
1. Make sure the adjustable head restraints are
in the fully lowered position.
2. Fold the seatback at
on the seat, by either
pulling on the nylon
strap, located on
the rear right hand side
of the seat, or by
lifting the recline lever,
located on the front
right hand side of
the seatback.
3. Slide the seat all the
way back in this
position.4. Release the rear set of
seat hooks from the
oor pins by pulling
either the nylon strap,
located at the base of
the seat, or the release
handle located on the
side of the seat. Use
the strap to guide the
seat forward.
To return the seat to the original position, do the
following:
1. Align the seat so that the rear hooks on the seat
are over the rear oor pins. Push down rmly on
the rear of the seat so that the rear hooks attach to
the rear oor pins.
2. Try to raise the seat to check that it is locked
to the oor.
1-7
ProCarManuals.com

3. Pull the nylon strap, located on the rear right hand
side of the seat, or lift the recline lever, located on
the front right hand side of the seatback, to
raise the seatback to the upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
4. Push and pull on the seatback to check that it is
locked.
One of the bucket seats may be equipped with a built-in
child restraint. SeeBuilt-In Child Restraint on page 1-64.
Adjusting the Bucket Seats Forward
and Rearward
There are two adjustment levers on the second row
bucket seats that enable them to move forward or
rearward.
One is located below the front of the seat.
1-8
ProCarManuals.com

The other lever is located
on the rear of the seat.
To adjust the second row bucket seats forward or
rearward, do the following:
1. Lift up either lever and slide the seat forward or
rearward.
2. Release the lever when the seat is in the desired
position.
3. Push and pull on the seat to make sure it is locked.Folding or Reclining the Seatbacks
The seatback on a bucket seat can either be folded
forward or reclined using the nylon strap or the
recline lever.
To fold the seatback forward, do the following:
1. Pull the nylon strap, located on the rear right hand
side of the seat, or lift the recline lever, located on
the front right hand side of the seatback to
release the seatback.
2. Fold the seatback forward.
Nylon StrapRecline Lever
1-9
ProCarManuals.com

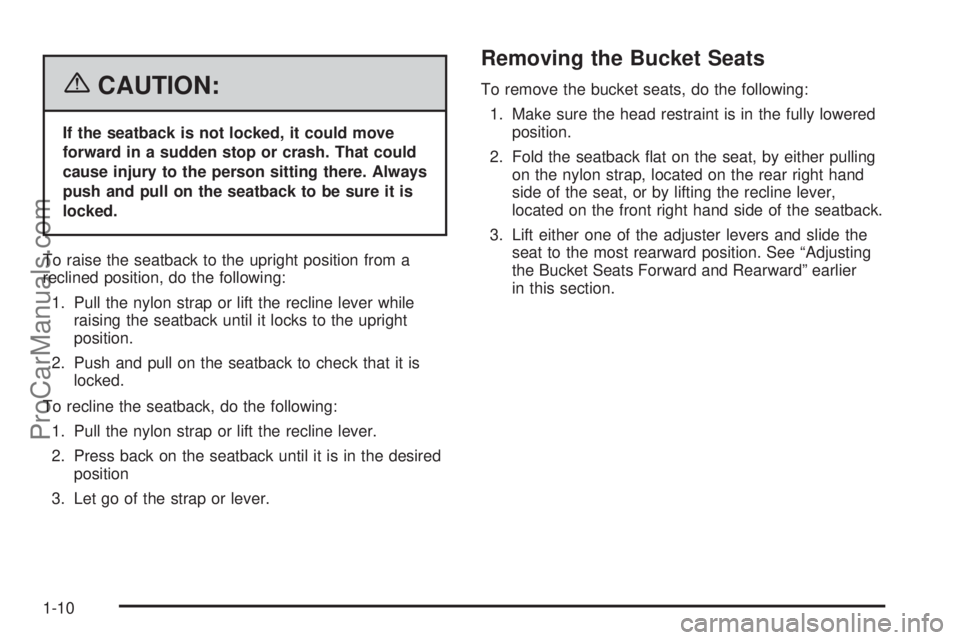

{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
To raise the seatback to the upright position from a
reclined position, do the following:
1. Pull the nylon strap or lift the recline lever while
raising the seatback until it locks to the upright
position.
2. Push and pull on the seatback to check that it is
locked.
To recline the seatback, do the following:
1. Pull the nylon strap or lift the recline lever.
2. Press back on the seatback until it is in the desired
position
3. Let go of the strap or lever.
Removing the Bucket Seats
To remove the bucket seats, do the following:
1. Make sure the head restraint is in the fully lowered
position.
2. Fold the seatback at on the seat, by either pulling
on the nylon strap, located on the rear right hand
side of the seat, or by lifting the recline lever,
located on the front right hand side of the seatback.
3. Lift either one of the adjuster levers and slide the
seat to the most rearward position. See “Adjusting
the Bucket Seats Forward and Rearward” earlier
in this section.
1-10
ProCarManuals.com
