Checking the Fluid Level
Prepare the vehicle as follows:
1. Park the vehicle on a level place. Keep the engine
running.
2. With the parking brake applied, place the shift lever
in PARK (P).
3. With your foot on the brake pedal, move the
shift lever through each gear, pausing for about
three seconds in each one. Then, position the shift
lever in PARK (P).
4. Let the engine run at idle for three to ve minutes.
Then, without shutting off the engine, follow these steps:
The transaxle uid dipstick
handle has this symbol on
it, and is located near
the rear of the engine
compartment. SeeEngine
Compartment Overview
on page 5-12for more
information on location.
1. Pull out the dipstick and wipe it with a clean rag or
paper towel.
2. Push it back in all the way, wait three seconds and
then pull it back out again.3. Check both sides of the dipstick, and read the
lower level. The uid level must be in the
crosshatched area.
4. If the uid level is in the acceptable range, push the
dipstick back in all the way.
5-25

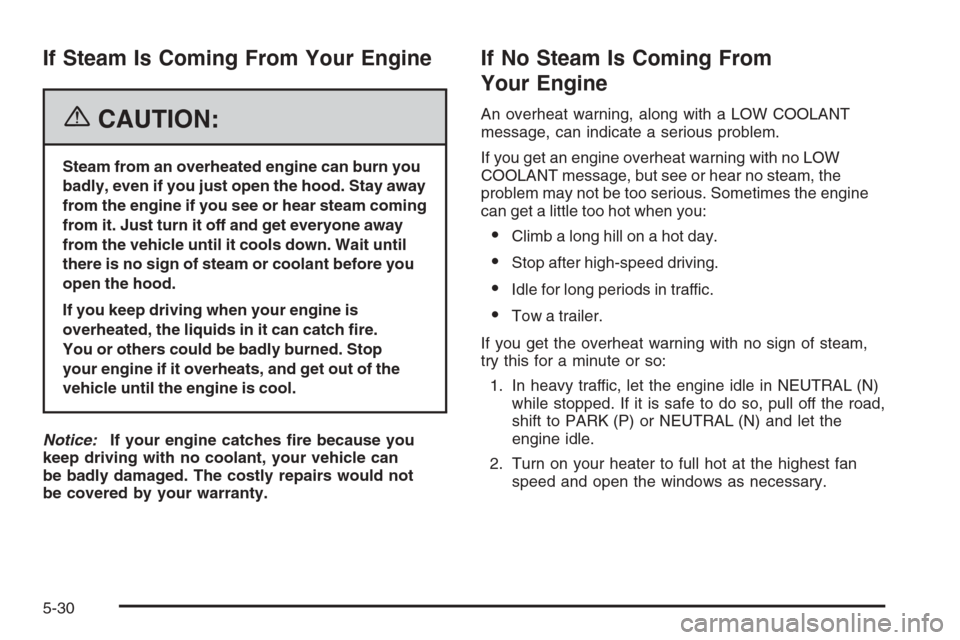

If Steam Is Coming From Your Engine
{CAUTION:
Steam from an overheated engine can burn you
badly, even if you just open the hood. Stay away
from the engine if you see or hear steam coming
from it. Just turn it off and get everyone away
from the vehicle until it cools down. Wait until
there is no sign of steam or coolant before you
open the hood.
If you keep driving when your engine is
overheated, the liquids in it can catch re.
You or others could be badly burned. Stop
your engine if it overheats, and get out of the
vehicle until the engine is cool.
Notice:If your engine catches re because you
keep driving with no coolant, your vehicle can
be badly damaged. The costly repairs would not
be covered by your warranty.
If No Steam Is Coming From
Your Engine
An overheat warning, along with a LOW COOLANT
message, can indicate a serious problem.
If you get an engine overheat warning with no LOW
COOLANT message, but see or hear no steam, the
problem may not be too serious. Sometimes the engine
can get a little too hot when you:
Climb a long hill on a hot day.
Stop after high-speed driving.
Idle for long periods in traffic.
Tow a trailer.
If you get the overheat warning with no sign of steam,
try this for a minute or so:
1. In heavy traffic, let the engine idle in NEUTRAL (N)
while stopped. If it is safe to do so, pull off the road,
shift to PARK (P) or NEUTRAL (N) and let the
engine idle.
2. Turn on your heater to full hot at the highest fan
speed and open the windows as necessary.
5-30

Changing a Flat Tire
If a tire goes at, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your vehicle’s
hazard warning ashers. SeeHazard Warning Flashers
on page 3-6for more information.
{CAUTION:
Changing a tire can be dangerous. The vehicle
can slip off the jack and roll over or fall on you
or other people. You and they could be badly
injured or even killed. Find a level place to
change your tire. To help prevent the vehicle
from moving:
1. Set the parking brake rmly.
2. Put the shift lever in PARK (P).
CAUTION: (Continued)
CAUTION: (Continued)
3. Turn off the engine and do not restart
while the vehicle is raised.
4. Do not allow passengers to remain in
the vehicle.
To be even more certain the vehicle will not
move, you should put blocks at the front and
rear of the tire farthest away from the one
being changed. That would be the tire, on the
other side, at the opposite end of the vehicle.
5-72

Fuses Usage
POWER MIRRORS Power Mirrors
EPS Electric Power Steering
RUN/CRANKCruise Control, Electronic Range
Select, Driver Shift Control
HVAC BLOWER
HIGH (Relay)Climate Control System
CLUSTER/ THEFTInstrument Panel Cluster,
Theft Deterrent System
ONSTAR OnStar
®System
NOT INSTALLED Not Used
AIRBAG (IGN) Airbag System
HVAC CTRL
(BATT)Climate Control System
PEDALAdjustable Throttle and Brake
Pedal
WIPER SW Windshield Wiper/Washer Switch
IGN SENSOR Ignition Switch
NOT INSTALLED Not Used
NOT INSTALLED Not Used
RADIO Audio System
INTERIOR LIGHTSOverhead Lighting,
Trunk/Cargo Lighting
Fuses Usage
REAR WIPERRear Wiper System/
Washer Pump
HVAC CTRL (IGN) Climate Control System
HVAC BLOWER Climate Control System
DOOR LOCK Automatic Door Lock System
ROOF/HEAT SEATSunroof, Heated Seats,
Automatic Dimming Rearview
Mirror, Compass, Rear Wiper/
Washer System
POWER
WINDOWSPower Window Switch
NOT INSTALLED Not Used
NOT INSTALLED Not Used
AIRBAG (BATT) Airbag System
FUSE PULLER Fuse Puller
SPARE FUSE
HOLDERSpare
SPARE FUSE
HOLDERSpare
SPARE FUSE
HOLDERSpare
SPARE FUSE
HOLDERSpare
5-101

Automatic Transaxle Shift Lock Control
System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle. It should be parked on a level
surface.
2. Firmly apply the parking brake. SeeParking Brake
on page 2-33.
Be ready to apply the regular brake immediately if
the vehicle begins to move.3. With the engine off, turn the ignition to ON, but do
not start the engine. Without applying the regular
brake, try to move the shift lever out of PARK (P)
with normal effort. If the shift lever moves out
of PARK (P), contact your GM Goodwrench
®dealer
for service.
Ignition Transaxle Lock Check
While parked, and with the parking brake set, try to turn
the ignition to OFF in each shift lever position.
The ignition should turn to OFF only when the shift
lever is in PARK (P).
The key should come out only in OFF.
Contact your GM Goodwrench
®dealer if service is
required.
6-10

Parking Brake and Automatic Transaxle
Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in
case it begins to roll. Be ready to apply the
regular brake at once should the vehicle
begin to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake,
set the parking brake.
To check the parking brake’s holding ability: With
the engine running and transaxle in NEUTRAL (N),
slowly remove foot pressure from the regular
brake pedal. Do this until the vehicle is held by the
parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK (P). Then
release the parking brake followed by the regular
brake.
Contact your GM Goodwrench
®dealer if service is
required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
6-11

O
Odometer......................................................3-34
Odometer, Trip...............................................3-34
Off-Road Recovery..........................................4-15
Oil
Engine.......................................................5-17
Pressure Light.............................................3-44
Oil, Engine Oil Life System..............................5-20
Older Children, Restraints................................1-34
Online Owner Center........................................ 7-3
OnStar
®System, see OnStar®Manual...............2-44
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-31
Outlet(s), Accessory Power...............................3-21
Outside
Convex Mirror.............................................2-43
Power Heated Mirrors..................................2-43
Power Mirrors.............................................2-43
Overheated Engine Protection Operating Mode . . . 5-31
Owner Checks and Services.............................. 6-8
Owners, Canadian............................................... ii
P
Paint, Damage...............................................5-96
Parade Dimming.............................................3-19
Park (P)
Shifting Into................................................2-34
Shifting Out of............................................2-35
Park (P) Headlamps Off in Park (P)..................3-16
Parking
Brake........................................................2-33
Over Things That Burn.................................2-36
Passing.........................................................4-15
PASS-Key
®III+..............................................2-20
PASS-Key®III+ Operation................................2-21
Power ............................................................. 1-3
Accessory Outlet(s)......................................3-21
Door Locks.................................................2-12
Electrical System.........................................5-99
Lift Seat.....................................................1-10
Retained Accessory (RAP)............................2-24
Steering Fluid.............................................5-36
Windows....................................................2-17
Pretensioners, Safety Belt................................1-34
Programmable Automatic Door Locks.................2-13
Q
Questions and Answers About Safety Belts.........1-18
9

S
Safety Belt
Pretensioners..............................................1-34
Reminder Light............................................3-34
Safety Belts
Care of ......................................................5-93
Driver Position............................................1-19
How to Wear Safety Belts Properly................1-19
Questions and Answers About Safety Belts.....1-18
Rear Safety Belt Comfort Guides...................1-30
Rear Seat Passengers.................................1-27
Right Front Passenger Position......................1-27
Safety Belt Extender....................................1-34
Safety Belt Use During Pregnancy.................1-27
Safety Belts Are for Everyone.......................1-14
Shoulder Belt Height Adjuster........................1-26
Safety Warnings and Symbols.............................. iii
Scheduled Maintenance..................................... 6-4
Seatback, Folding Passenger............................. 1-8
Seats
Head Restraints............................................ 1-7
Heated Seats............................................... 1-4
Manual........................................................ 1-2
Manual Lumbar............................................. 1-3
Passenger Folding Seatback........................... 1-8
Power Lift Seat...........................................1-10
Rear Seat Operation....................................1-10Seats (cont.)
Reclining Seatbacks...................................... 1-4
Six-Way Power Driver.................................... 1-3
Securing a Child Restraint
Rear Seat Position......................................1-54
Right Front Seat Position..............................1-56
Security Light.................................................3-45
Service........................................................... 5-3
Accessories and Modications......................... 5-3
Adding Equipment to the Outside of Your
Vehicle..................................................... 5-5
California Proposition 65 Warning.................... 5-3
Doing Your Own Work................................... 5-4
Engine Soon Light.......................................3-41
Publications Ordering Information...................7-15
Servicing Your Airbag-Equipped Vehicle..............1-69
Setting the Time
Radios with Radio Data Systems (RDS).........3-55
Radios without Radio Data Systems (RDS).....3-55
Sheet Metal Damage.......................................5-96
Shifting Into Park (P).......................................2-34
Shifting Out of Park (P)...................................2-35
Shoulder Belt Height Adjuster...........................1-26
Signals, Turn and Lane-Change.......................... 3-8
Spare Tire
Compact....................................................5-88
Installing....................................................5-76
Removing...................................................5-73
Storing.......................................5-82, 5-84, 5-86
11
