Remove screw4for the
bracket of the end silencer
from the rear footrest.
Turn the end silencer out.
Engage first gear. Remove studs
5from the
rear wheel, holding the
wheel as you do so.
If you are using the BMW
Motorrad rear-wheel stand:
remove the retaining disc.
Lower the rear wheel to the
ground.
Roll the rear wheel out to-
ward the rear.
If you are using the BMW
Motorrad rear-wheel stand:
reinstall the retaining disc.
Installing rear wheel
Threaded fasteners not
tightened to the spe-
cified torque can work loose
or their threads can suffer
damage.
Always have the security of
the fasteners checked by a
specialist workshop, prefer-
ably an authorised BMW Mo-
torrad dealer.
If you are using the BMW
Motorrad rear-wheel stand:
remove the retaining disc.
Roll the rear wheel into po-
sition in the rear-wheel ad-
apter.
Seat the rear wheel on the
rear-wheel adapter.
If you are using the BMW
Motorrad rear-wheel stand:
reinstall the retaining disc.
7103zMaintenance

Install wheel studs5and
tighten to the specified
torque in diagonally
opposite sequence.
Rear wheel to wheel
flange
Tightening sequence:
Tighten in diagonally op-
posite sequence
60 Nm
Tightening sequence:
Tighten in diagonally op-
posite sequence
60 Nm Turn the end silencer to its
initial position.
Install screw
4for the
bracket of the end silencer
in the rear footrest, but do
not tighten it at this point. Align clamp
3on the end
silencer with mark A(arrow)
on oxygen sensor B.
Tighten clamp 3on the end
silencer to the specified
tightening torque.
Silencer to manifold
35 Nm
7104zMaintenance

If the gap between the
rear wheel and the end
silencer is too small, the rear
wheel can overheat.
The clearance between the
rear wheel and the end silen-
cer must be at least 10 mm.
Tighten screw 4for the
bracket of the end silencer
in the rear footrest to the
specified torque.
Silencer to rear
footrest, right
16 Nm Push silencer cover
2with
guides Ainto retainers B.
Install screw 1in silencer
cover 2.
Remove the auxiliary stand,
if installed.
Front-wheel standFront-wheel standA front wheel stand for
simple, safe changing of
the front wheel is available
from BMW Motorrad. The
BMW special tool number is
36 3 971 and the front-wheel
stand is available from your
authorised BMW Motorrad
dealer. You also need the
adapters with the BMW
special tool number 36 3 973.
The BMW Motorrad
front wheel stand is
not designed to support
motorcycles not fitted with a
centre stand or without other
auxiliary stands. A motorcycle
resting only on the front wheel
stand and the rear wheel can
topple.
Place the motorcycle on its
centre stand or another aux-
iliary stand before lifting the
7105zMaintenance

front wheel with the BMW
Motorrad front-wheel stand.Fitting the front wheel
standPlace the motorcycle on an
auxiliary stand; BMW Motor-
rad recommends the BMW
Motorrad rear-wheel stand.
Fitting the rear wheel stand
( 107)
with OA Centre stand:
Make sure the ground is
level and firm and place
the motorcycle on its centre
stand. Slacken adjusting screws
1.
Push the two pins 2apart
until the front suspension
fits between them.
Use locating pins 3to set
the front wheel stand to the
desired height.
Centre the front-wheel
stand relative to the front
wheel and push it against
the front axle. Push both mounting pins
2
through the triangles of the
brake caliper anchorages
just far enough to allow
the front wheel to be rolled
between them.
There is a risk of dam-
aging the ABS sensor
ring of the BMW Integral ABS.
Push the pin in just far
enough to ensure that it
clears the sensor ring of the
BMW Integral ABS.
Tighten adjusting screws 1.
7106zMaintenance

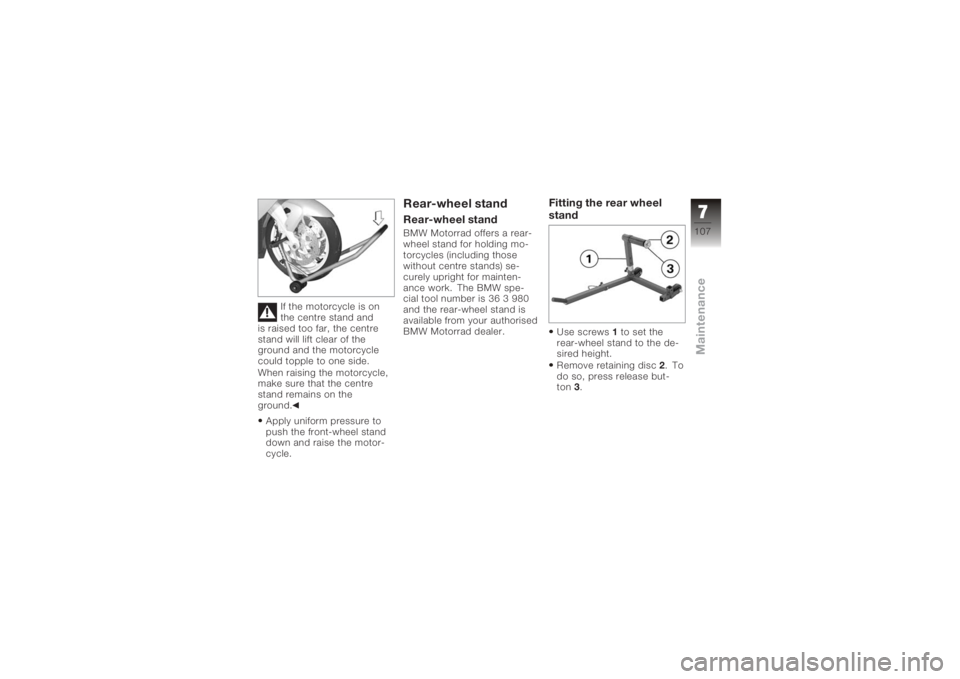

If the motorcycle is on
the centre stand and
is raised too far, the centre
stand will lift clear of the
ground and the motorcycle
could topple to one side.
When raising the motorcycle,
make sure that the centre
stand remains on the
ground.
Apply uniform pressure to
push the front-wheel stand
down and raise the motor-
cycle.
Rear-wheel standRear-wheel standBMW Motorrad offers a rear-
wheel stand for holding mo-
torcycles (including those
without centre stands) se-
curely upright for mainten-
ance work. The BMW spe-
cial tool number is 36 3 980
and the rear-wheel stand is
available from your authorised
BMW Motorrad dealer.
Fitting the rear wheel
standUse screws 1to set the
rear-wheel stand to the de-
sired height.
Remove retaining disc 2.To
do so, press release but-
ton 3.
7107zMaintenance

Push the rear wheel stand
from the left into the rear
axle.
Install the retaining disc
from the right; to do so,
press the unlock button.
Place your left hand on the
left grab handle of the mo-
torcycle4, and your right
hand on the lever of the rear
wheel stand 5. Lift the motorcycle upright,
simultaneously pressing the
lever down until the stand
supports the motorcycle in
the upright position.
Press the lever down to the
ground.
BulbsGeneral instructionsThe 'bulb defect' symbol ap-
pears in the display if a bulb
is defective. If the brake or
rear light fails, the symbol is
accompanied by the general
warning light, which lights up
yellow. If the rear light fails
the second filament of the
brake light shines at reduced
brightness to double as a rear
light. Even though you have
7108zMaintenance

this substitute rear light, the
indicators in the display tell
you that a bulb defect has oc-
curred.A defective bulb places
your safety at risk be-
cause it is easier for other
users to oversee you and
your motorcycle.
Replace defective bulbs as
soon as possible; always
carry a complete set of spare
bulbs if possible.
The bulb is pressurised
and can cause injury if
damaged.
Wear protective goggles
and gloves when changing
bulbs.
The types of bulb fitted
to your motorcycle are
listed in the section entitled
"Technical data". Do not touch the glass
of new bulbs with your
fingers. Use a clean, dry cloth
to hold the bulbs when hand-
ling them. Dirt deposits, in
particular oil and grease, in-
terfere with heat radiation
from the bulb. This leads to
overheating and shortens the
bulb's operating life.
Replacing low-beam
headlight bulb
If it is not standing firmly,
the motorcycle could
topple in the course of the
operations described below.
Always make sure that the
motorcycle is stable and
firmly supported.
Turn the handlebars
to the left to facilitate
access. Make sure the ground is
level and firm and place the
motorcycle on its stand.
Switch off the ignition.
Turn cover
1counter-
clockwise and remove
it.
7109zMaintenance

Disconnect plug2.
Release spring clip 3at left
and right and swing it up. Remove bulb
4.
Replace the defective bulb.
Low-beam headlight
bulb
H7/12V/55W Install bulb
4; make sure
that tab 5is pointing up.
Engage spring retainer 3on
left and right.
