2006 BMW 325XI SPORTS WAGON fuel tank capacity

Everything under control

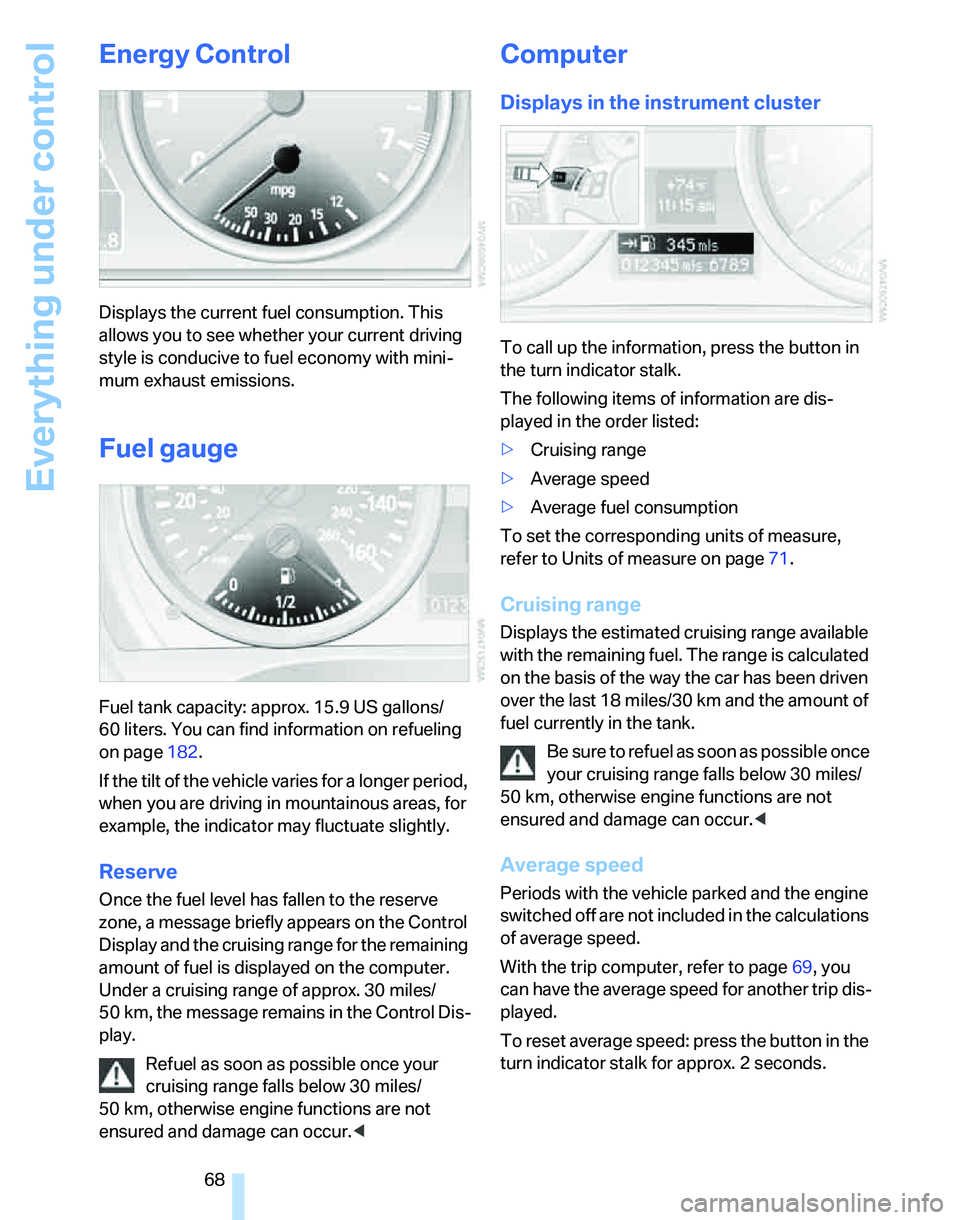

68
Energy Control
Displays the current fuel consumption. This
allows you to see whether your current driving
style is conducive to fuel economy with mini-
mum exhaust emissions.
Fuel gauge
Fuel tank capacity: approx. 15.9 US gallons/
60 liters. You can find information on refueling
on page182.
If the tilt of the vehicle varies for a longer period,
when you are driving in mountainous areas, for
example, the indicator may fluctuate slightly.
Reserve
Once the fuel level has fallen to the reserve
zone, a message briefly appears on the Control
Display and the cruising range for the remaining
amount of fuel is displayed on the computer.
Under a cruising range of approx. 30 miles/
50 km, the message remains in the Control Dis-
play.
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km, otherwise engine functions are not
ensured and damage can occur.<
Computer
Displays in the instrument cluster
To call up the information, press the button in
the turn indicator stalk.
The following items of information are dis-
played in the order listed:
>Cruising range
>Average speed
>Average fuel consumption
To set the corresponding units of measure,
refer to Units of measure on page71.
Cruising range
Displays the estimated cruising range available
with the remaining fuel. The range is calculated
on the basis of the way the car has been driven
over the last 18 miles/30 km and the amount of
fuel currently in the tank.
Be sure to refuel as soon as possible once
your cruising range falls below 30 miles/
50 km, otherwise engine functions are not
ensured and damage can occur.<
Average speed
Periods with the vehicle parked and the engine
switched off are not included in the calculations
of average speed.
With the trip computer, refer to page69, you
can have the average speed for another trip dis-
played.
To reset average speed: press the button in the
turn indicator stalk for approx. 2 seconds.

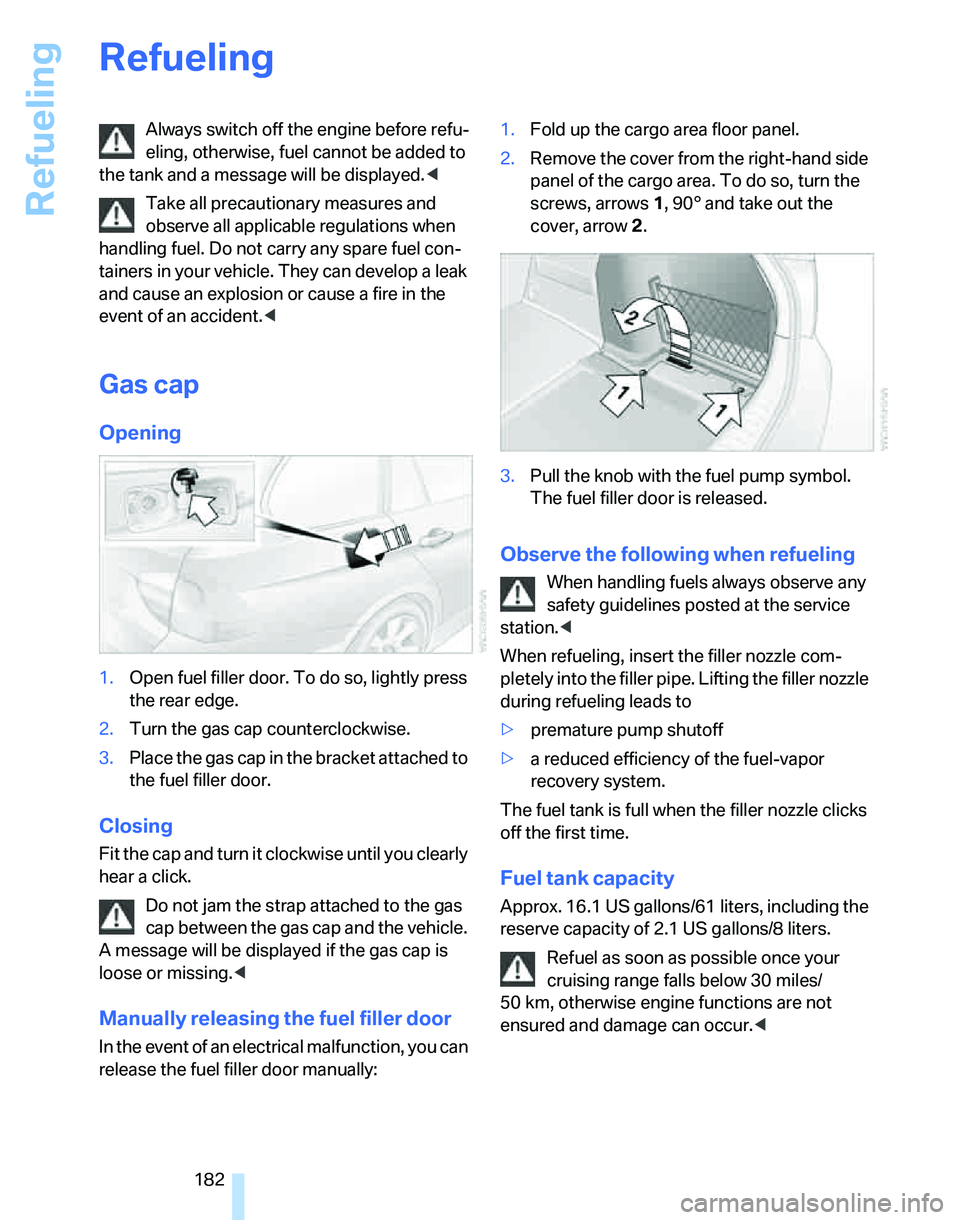

Refueling
182
Refueling
Always switch off the engine before refu-
eling, otherwise, fuel cannot be added to
the tank and a message will be displayed.<
Take all precautionary measures and
observe all applicable regulations when
handling fuel. Do not carry any spare fuel con-
tainers in your vehicle. They can develop a leak
and cause an explosion or cause a fire in the
event of an accident.<
Gas cap
Opening
1.Open fuel filler door. To do so, lightly press
the rear edge.
2.Turn the gas cap counterclockwise.
3.Place the gas cap in the bracket attached to
the fuel filler door.
Closing
Fit the cap and turn it clockwise until you clearly
hear a click.
Do not jam the strap attached to the gas
cap between the gas cap and the vehicle.
A message will be displayed if the gas cap is
loose or missing.<
Manually releasing the fuel filler door
In the event of an electrical malfunction, you can
release the fuel filler door manually:1.Fold up the cargo area floor panel.
2.Remove the cover from the right-hand side
panel of the cargo area. To do so, turn the
screws, arrows 1, 90° and take out the
cover, arrow 2.
3.Pull the knob with the fuel pump symbol.
The fuel filler door is released.
Observe the following when refueling
When handling fuels always observe any
safety guidelines posted at the service
station.<
When refueling, insert the filler nozzle com-
pletely into the filler pipe. Lifting the filler nozzle
during refueling leads to
>premature pump shutoff
>a reduced efficiency of the fuel-vapor
recovery system.
The fuel tank is full when the filler nozzle clicks
off the first time.
Fuel tank capacity
Approx. 16.1 US gallons/61 liters, including the
reserve capacity of 2.1 US gallons/8 liters.
Refuel as soon as possible once your
cruising range falls below 30 miles/
50 km, otherwise engine functions are not
ensured and damage can occur.<

Everything from A - Z
224 Footbrake, refer to Braking
safely113
Footwell lamps93
For your own safety5
Front airbags88
Front seat adjustment41
"FTM"86
FTM, refer to Flat Tire
Monitor85
Fuel183
– display68
– high-quality brands183
– quality183
– specifications183
– tank capacity213
Fuel clock, refer to Fuel
gauge68
Fuel consumption, refer to
Average fuel
consumption69
Fuel display, refer to Fuel
gauge68
Fuel filler door182
– releasing in the event of
electrical malfunction182
Fuses202
G
Garage door opener, refer to
Integrated universal remote
control100
Gasoline, refer to Required
fuel183
Gasoline display, refer to Fuel
gauge68
Gasoline engine, checking oil
level191
Gear indicator
– automatic transmission with
Steptronic55
Gearshift lever
– automatic transmission with
Steptronic56
– manual transmission55
Gearshifts
– with automatic
transmission56
– with manual transmission55General driving notes112
Glass sunroof, electric
– closing after electrical
malfunction39
– convenient operation30,32
– operation with convenient
access36
– remote control30
Glove compartment103
– rechargeable flashlight103
GPS navigation, refer to
Navigation system120
Grills94
Gross vehicle weight, refer to
Weights212
H
Halogen lamps
– replacing bulbs198
Handbrake55
– indicator lamp55
Hand lamp, refer to
Rechargeable flashlight103
Hands-free system14
Hazard warning flashers14
HD, refer to High Definition
Radio147
Head airbags88
Headlamp control,
automatic90
Headlamp cover198
Headlamp flasher57
– indicator lamp11,13
Headlamps
– care, refer to Caring for your
vehicle brochure
– replacing bulbs198
Head restraints43
– sitting safely41
Heated
– mirrors47
– rear window97
– seats44
Heating
– mirrors47
– rear window97
– seats44Heating while at a standstill,
refer to Using residual
heat96
Heavy loads, refer to Stowing
cargo115
Height, refer to
Dimensions211
Height adjustment
– seats42
– steering wheel48
High beams92
– headlamp flasher92
– indicator lamp13
– replacing bulbs198
High Definition Radio147
High water, refer to Driving
through water113
Highways, refer to Route
criteria131
Hills113
Holders for cups104
"Home address" in
navigation130
Homepage4
Hood190
Horn10
Hot exhaust system112
"Hour memo"76
"House number" in
destination entry124
Hydraulic brake assist, refer to
Dynamic Brake Control82
Hydroplaning113
I
IBOC, refer to High Definition
Radio147
Ice warning67
ID3 tag, refer to Information
about the track154
