2006 BMW 325XI SPORTS WAGON Owners Manual

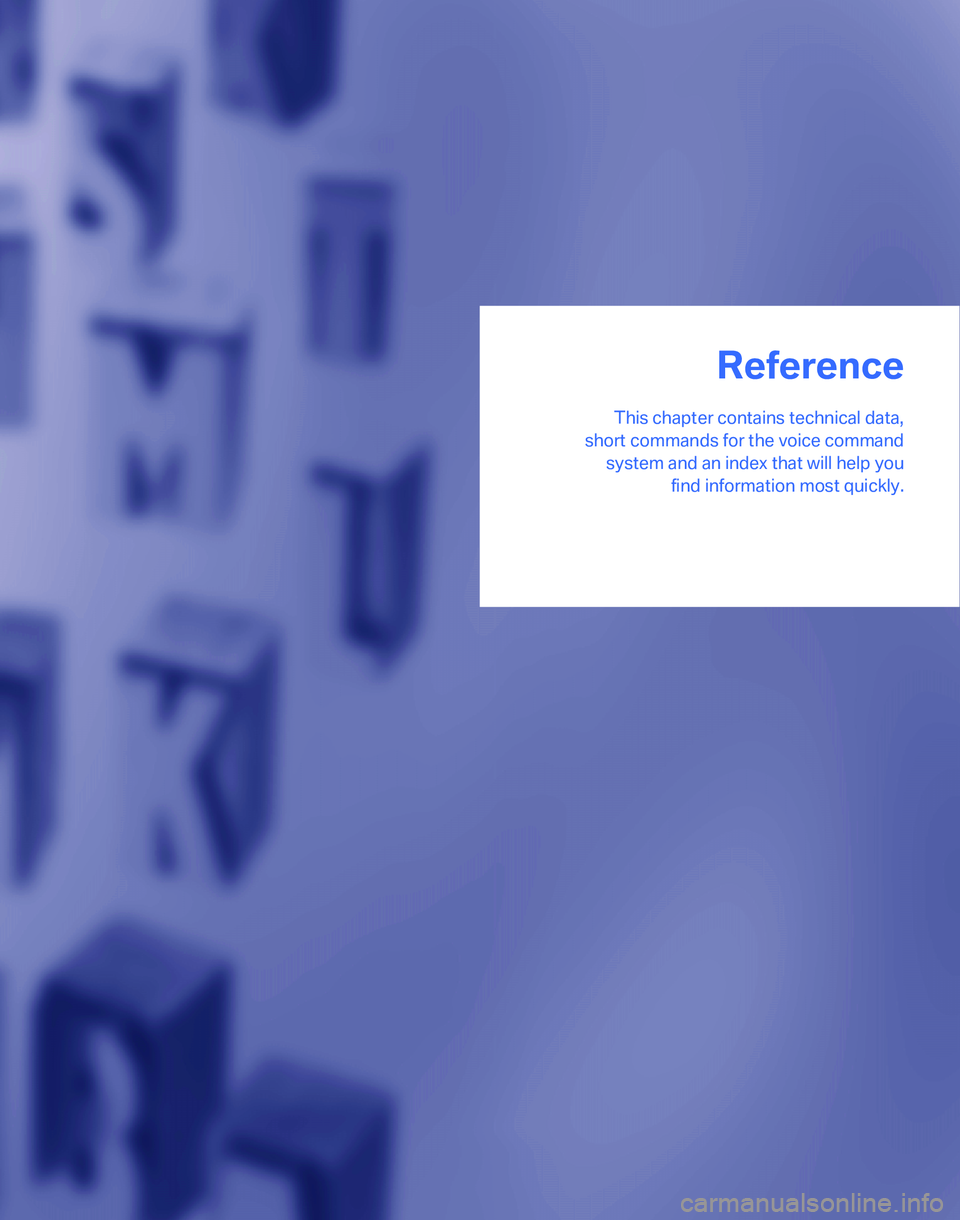

Reference
This chapter contains technical data,
short commands for the voice command
system and an index that will help you
find information most quickly.
Reference

Technical data
210
Technical data
Engine data
325xi
Displacement cu in/cmµ182.8/2,996
Number of cylinders6
Maximum power output hp 215
at engine speed rpm 6,250
Maximum torque lb ft/Nm 185/251
at engine speed rpm 2,750

Reference 211
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

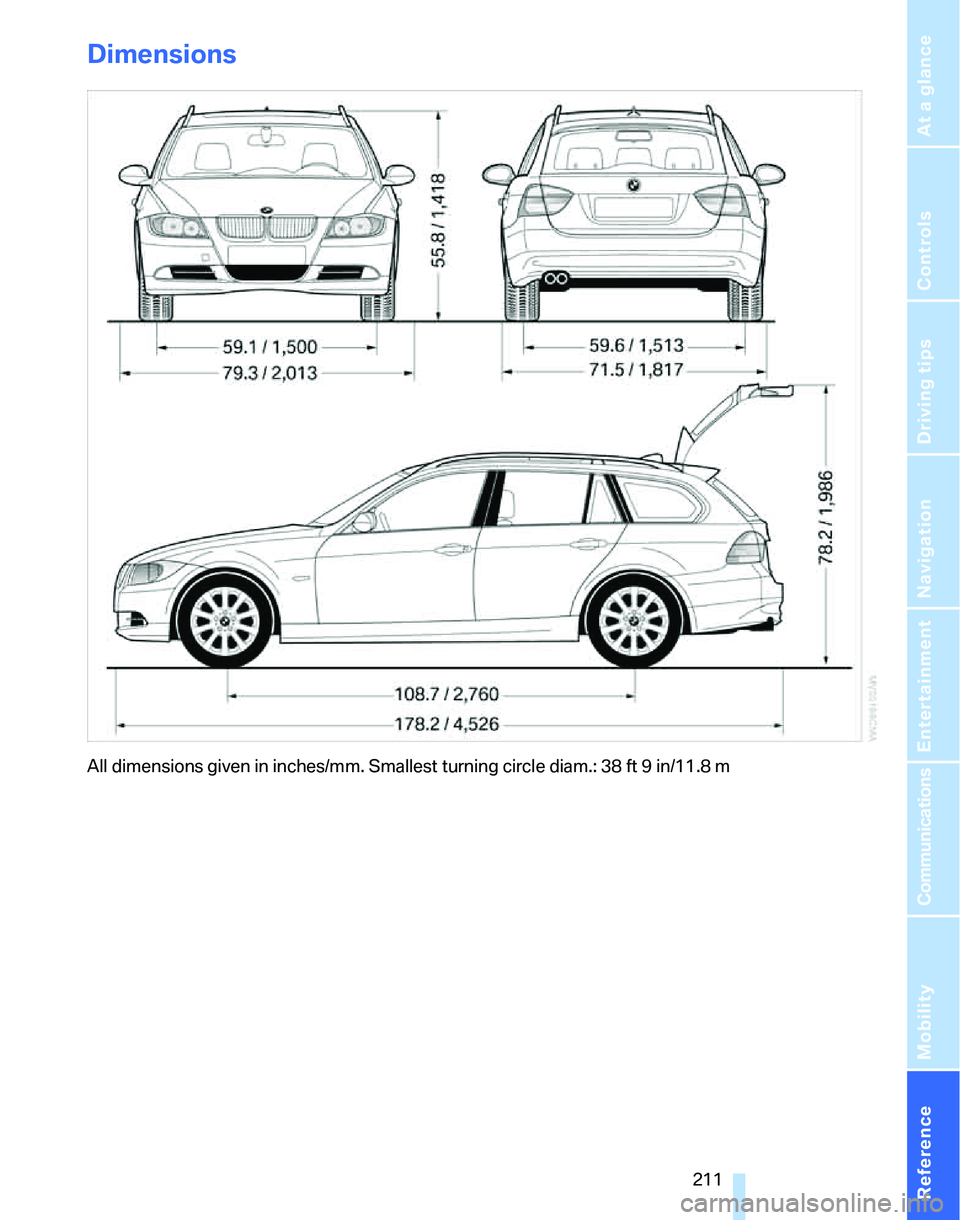

Dimensions
All dimensions given in inches/mm. Smallest turning circle diam.: 38 ft 9 in/11.8 m

Technical data
212

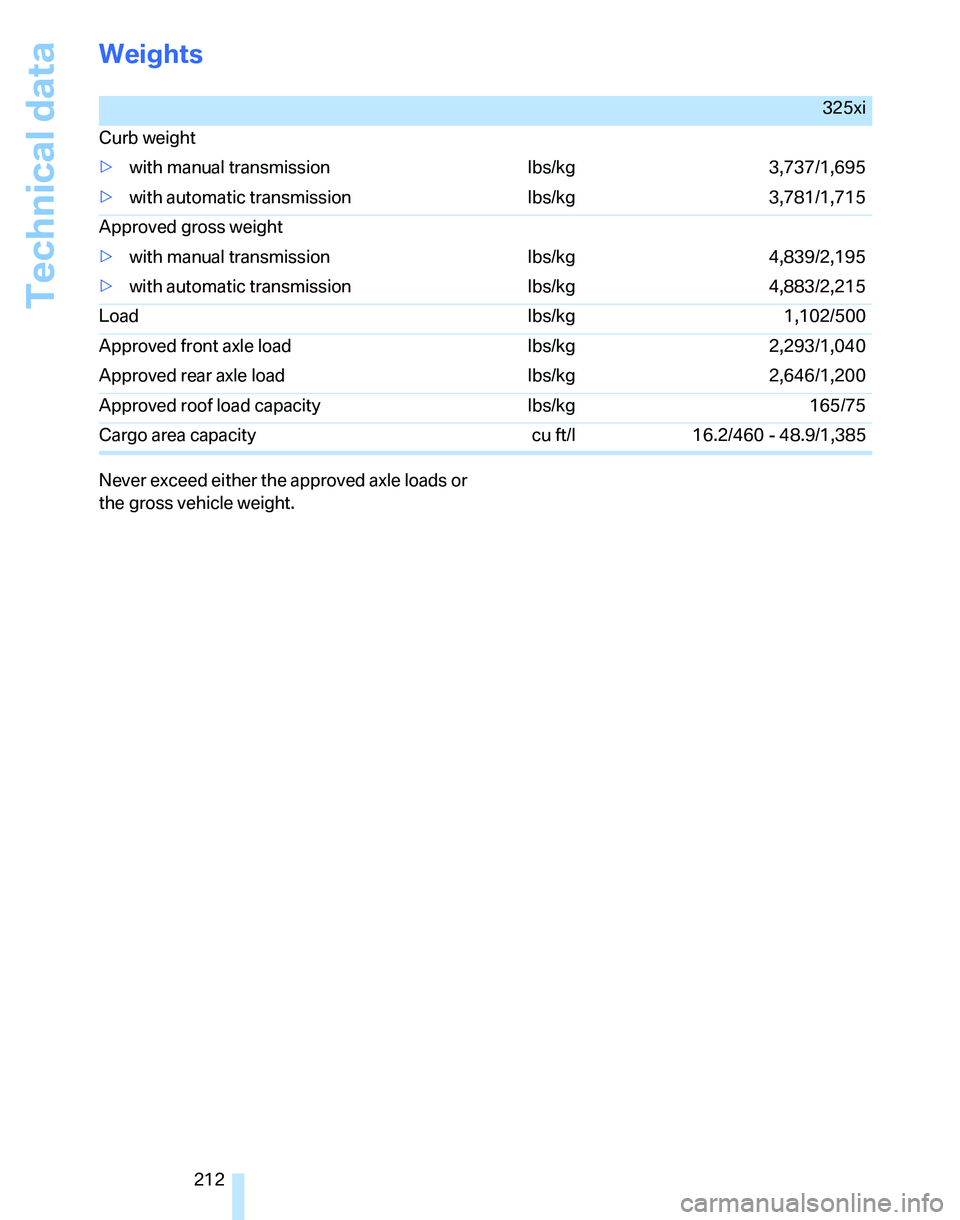

Weights
Never exceed either the approved axle loads or
the gross vehicle weight.
325xi
Curb weight
>with manual transmission lbs/kg 3,737/1,695
>with automatic transmission lbs/kg 3,781/1,715
Approved gross weight
>with manual transmission lbs/kg 4,839/2,195
>with automatic transmission lbs/kg 4,883/2,215
Load lbs/kg 1,102/500
Approved front axle load lbs/kg 2,293/1,040
Approved rear axle load lbs/kg 2,646/1,200
Approved roof load capacity lbs/kg 165/75
Cargo area capacity cu ft/l 16.2/460 - 48.9/1,385

Reference 213
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility

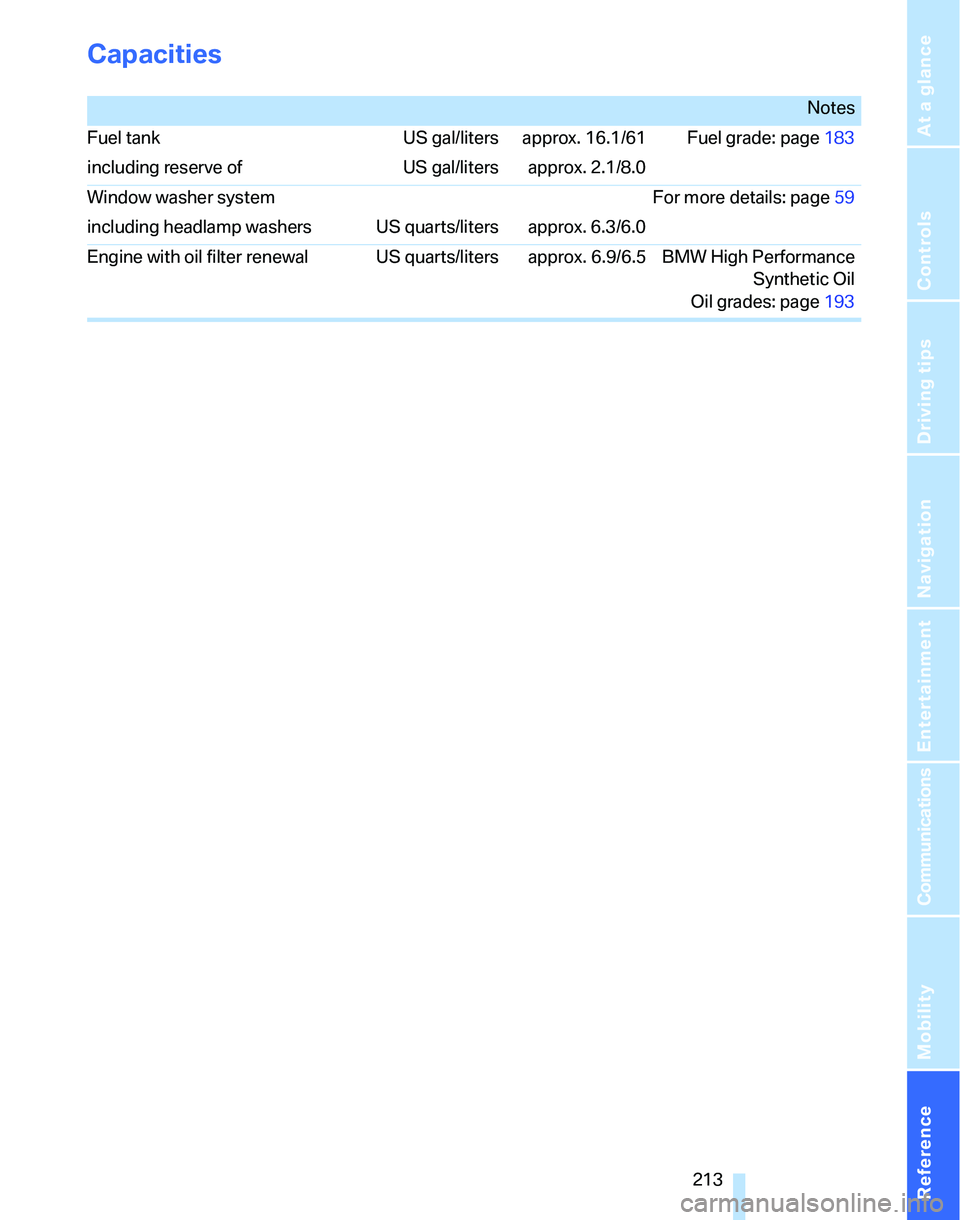

Capacities
Notes
Fuel tank US gal/liters approx. 16.1/61 Fuel grade: page183
including reserve of US gal/liters approx. 2.1/8.0
Window washer system For more details: page59
including headlamp washers US quarts/liters approx. 6.3/6.0
Engine with oil filter renewal US quarts/liters approx. 6.9/6.5 BMW High Performance
Synthetic Oil
Oil grades: page193

Short commands for the voice command system
214
Short commands for the voice command
system
With short commands you can carry out certain
functions directly, regardless of which menu item is selected. Here are the important short
commands for the voice command system.
Assistance window
Communication
*
FunctionCommand
To call up assistance window20{Assistance window}
To select display in the assistance window20{Assistance window map facing north},
{Assistance window map direction of travel},
{Assistance window arrow display},
{Assistance window perspective},
{Assistance window current position},
{Assistance window trip computer} or
{Assistance window onboard info}
To change the scale in the assistance
window134{Assistance window scale ... feet} or
{Assistance window scale ... miles}
FunctionCommand
To open phone167{Phone}
To dial phone number167{Dial number}
To display phone book167{A to Z}
To select from phone book167{Call ...} or
{Dial name}
To display "Top 8"167{Top 8}
Redialing167{Redial}
To display "Received calls"167{Received calls}
To display "Missed calls"167{Missed calls}
To display "Bluetooth"163{Bluetooth}
To call up BMW Assist174{BMW Assist}
To open "BMW Service"176{BMW Service}
To open "BMW Contact"177{BMW Contact}
To open "BMW Contact Numbers"177{BMW Contact numbers}

Reference 215
At a glance
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Navigation
Onboard info
FunctionCommand
To call up navigation126{Navigation}
To display current position136{Current position}
To open "Enter address"121{Enter address}
To open "New destination"121{New destination}
To display "Input map"125{Input map}
To open "Information"126{Info menu}
To display address book128{Address book} or
{From address book}
To display destination list127{Destination list}
To switch on destination guidance132{Start guidance}
To switch off destination guidance132{Stop guidance}
To display route criteria131{Route preference}
To switch on voice instructions135{Navigation info on}
To switch off voice instructions135{Navigation info off}
To repeat voice instructions135{Repeat navigation info}
To show arrow display133{Arrow display}
To display map134{Map}, {Map facing north},
{Map direction of travel} or
{Perspective}
To call up a route123, 132
{Route}
To open "New route"136{New route}
To change scale134{Scale ... miles} or
{Scale ... feet}
To display towns/cities and streets along the
route135{Route list}
FunctionCommand
To open "Car Data"69{Car Data}
To display onboard info69{Onboard info}
To display trip computer69{Trip computer}
To open speed limit79{Limit}
To open stopwatch79{Stopwatch}
