2006.5 Peugeot 207 Dag Owner's Manual

2COMFORT
52

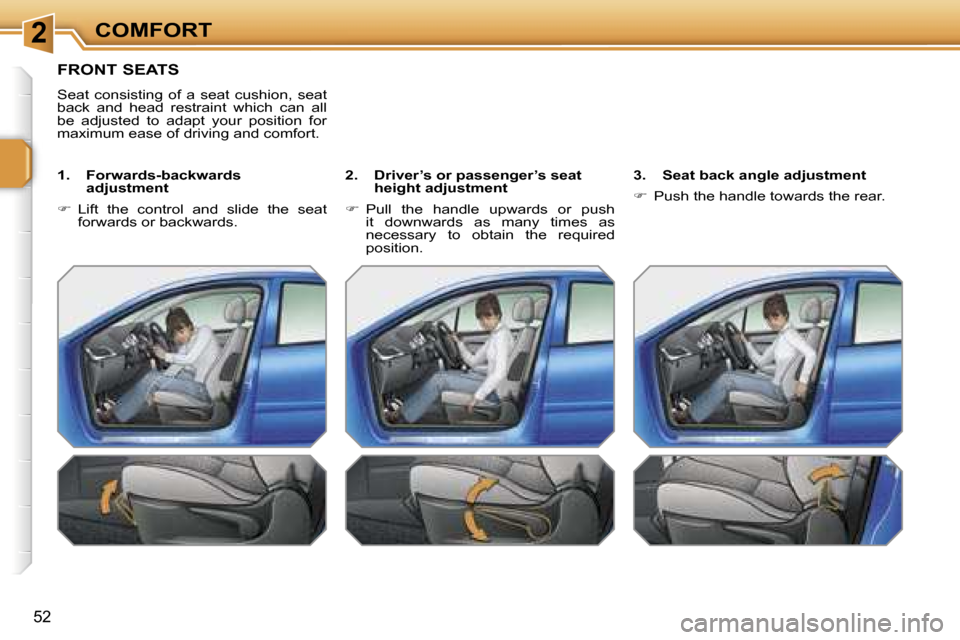

FRONT SEATS
Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to adapt your position for
maximum ease of driving and comfort.
1. Forwards-backwards adjustment
 Lift the control and slide the seat
forwards or backwards. 2. Driver’s or passenger’s seat
height adjustment
 Pull the handle upwards or push
it downwards as many times as
necessary to obtain the required
position. 3.
Seat back angle adjustment
 Push the handle towards the rear.

2
!
!
COMFORT
53
No person or object must prevent
the seat slide from returning to its
initial position; return to this posi-
tion is necessary for the seat to
lock in place.

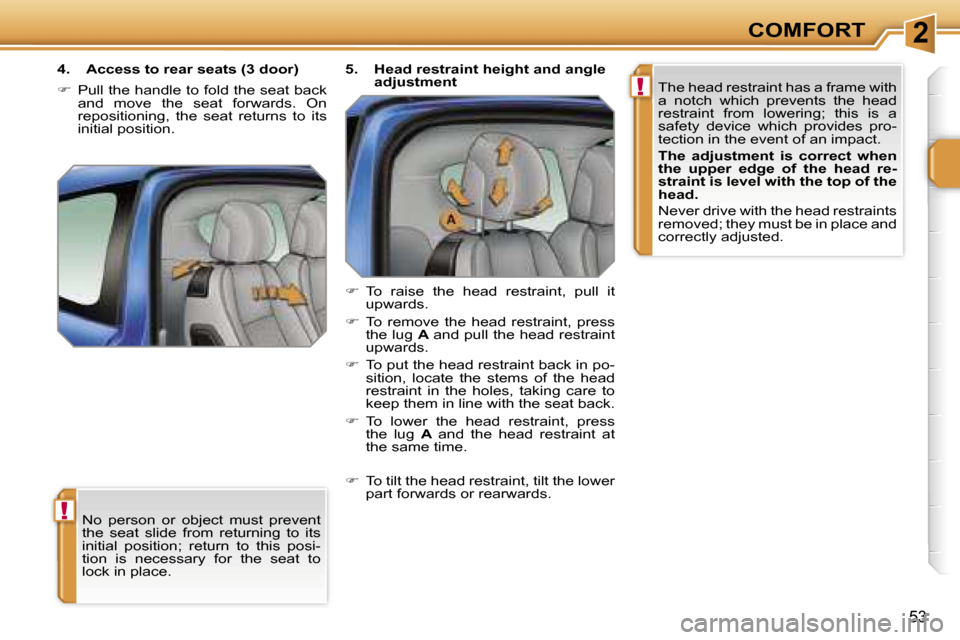

4. Access to rear seats (3 door)

Pull the handle to fold the seat back
and move the seat forwards. On
repositioning, the seat returns to its
initial position. 5. Head restraint height and angle
adjustment
 To raise the head restraint, pull it
upwards.
 To remove the head restraint, press
the lug A and pull the head restraint
upwards.
 To put the head restraint back in po-
sition, locate the stems of the head
restraint in the holes, taking care to
keep them in line with the seat back.
 To lower the head restraint, press
the lug A and the head restraint at
the same time.
 To tilt the head restraint, tilt the lower
part forwards or rearwards. The head restraint has a frame with
a notch which prevents the head
restraint from lowering; this is a
safety device which provides pro-
tection in the event of an impact.
The adjustment is correct when
the upper edge of the head re-
straint is level with the top of the
head.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.

2
!i
COMFORT
54

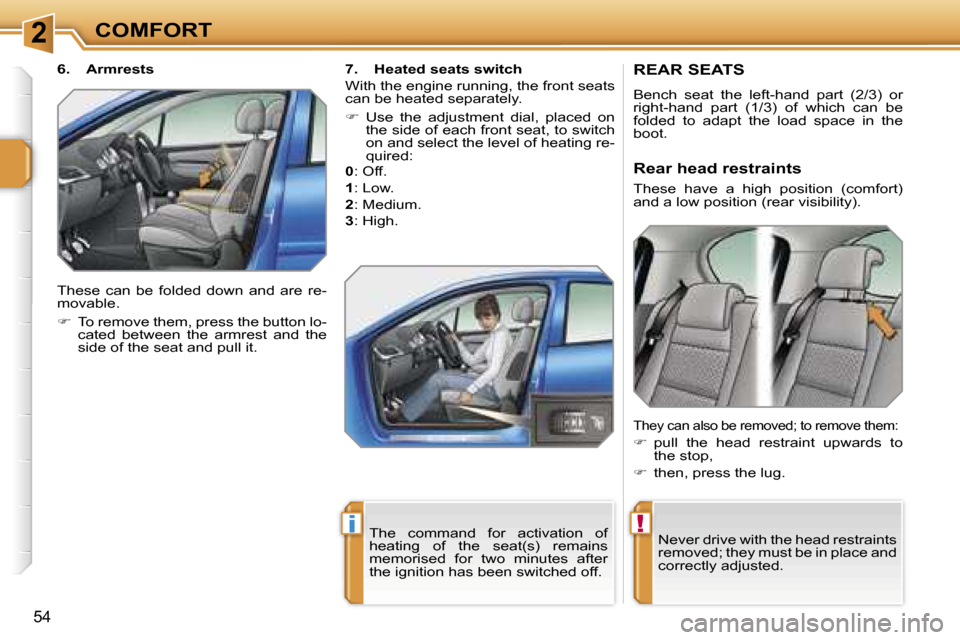

REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot.Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Rear head restraints
These have a high position (comfort)
and a low position (rear visibility).
The command for activation of
heating of the seat(s) remains
memorised for two minutes after
the ignition has been switched off.
7. Heated seats switch

With the engine running, the front seats
can be heated separately.
 Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0 : Off.
1 : Low.
2 : Medium.
3 : High.
They can also be removed; to remove them:
 pull the head restraint upwards to
the stop,
 then, press the lug.
6. Armrests
These can be folded down and are re-
movable.

To remove them, press the button lo-
cated between the armrest and the
side of the seat and pull it.

2
!i
COMFORT
54
REAR SEATS
Bench seat the left-hand part (2/3) or
right-hand part (1/3) of which can be
folded to adapt the load space in the
boot.Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
Rear head restraints
These have a high position (comfort)
and a low position (rear visibility).
The command for activation of
heating of the seat(s) remains
memorised for two minutes after
the ignition has been switched off.
7. Heated seats switch

With the engine running, the front seats
can be heated separately.
 Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0 : Off.
1 : Low.
2 : Medium.
3 : High.
They can also be removed; to remove them:
 pull the head restraint upwards to
the stop,
 then, press the lug.
6. Armrests
These can be folded down and are re-
movable.

To remove them, press the button lo-
cated between the armrest and the
side of the seat and pull it.

2
!
COMFORT
55

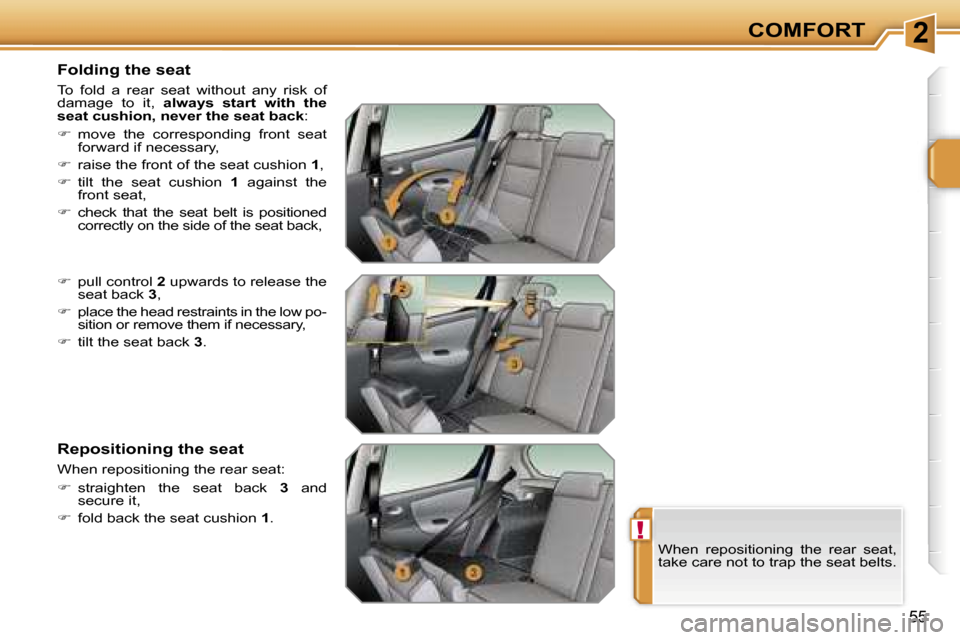

Folding the seat
To fold a rear seat without any risk of
damage to it, always start with the
seat cushion, never the seat back :
 move the corresponding front seat
forward if necessary,
 raise the front of the seat cushion 1,
 tilt the seat cushion 1 against the
front seat,
 check that the seat belt is positioned
correctly on the side of the seat back,
Repositioning the seat
When repositioning the rear seat:
 straighten the seat back 3 and
secure it,
 fold back the seat cushion 1.

pull control 2 upwards to release the
seat back 3,
 place the head restraints in the low po-
sition or remove them if necessary,
 tilt the seat back 3.
When repositioning the rear seat,
take care not to trap the seat belts.

2
i
!
COMFORT
56

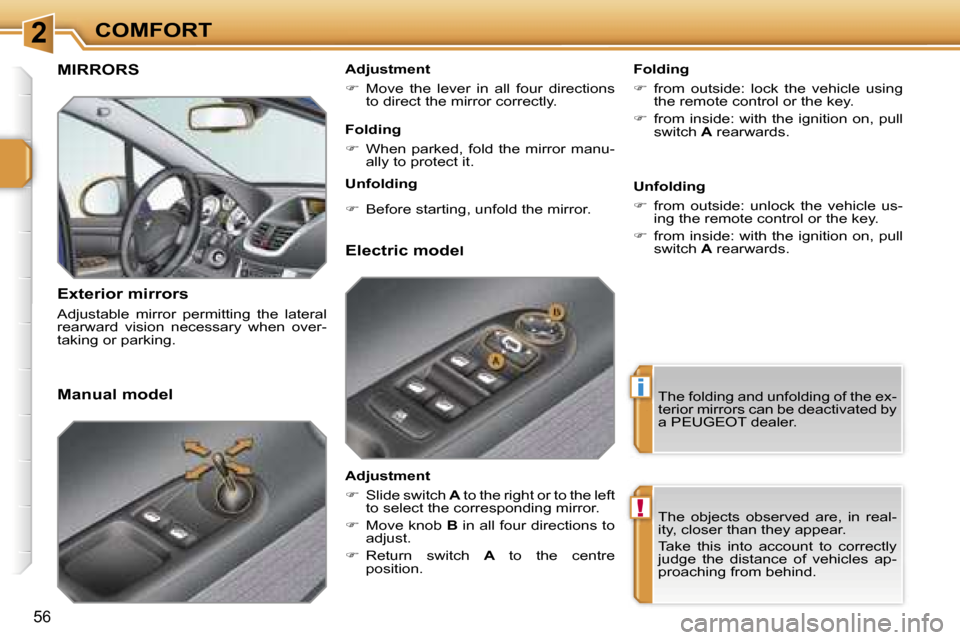

MIRRORS
Exterior mirrors
Adjustable mirror permitting the lateral
rearward vision necessary when over-
taking or parking.Folding

from outside: lock the vehicle using
the remote control or the key.
 from inside: with the ignition on, pull
switch A rearwards.
Manual model
Adjustment
 Move the lever in all four directions
to direct the mirror correctly.
The folding and unfolding of the ex-
terior mirrors can be deactivated by
a PEUGEOT dealer.
Folding

When parked, fold the mirror manu-
ally to protect it.
Unfolding
 Before starting, unfold the mirror.
Electric model
Adjustment
 Slide switch A to the right or to the left
to select the corresponding mirror.
 Move knob B in all four directions to
adjust.
 Return switch A to the centre
position. Unfolding

from outside: unlock the vehicle us-
ing the remote control or the key.
 from inside: with the ignition on, pull
switch A rearwards.
The objects observed are, in real-
ity, closer than they appear.
Take this into account to correctly
judge the distance of vehicles ap-
proaching from behind.

2
!
i
COMFORT
57
Interior mirror
Adjustable mirror permitting central
rearward vision.
Adjustment
 Adjust the mirror to direct it correctly
in the "day" position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot". In order to provide optimum vis-
ibility during your manoeuvres, the
mirror clears automatically when
reverse gear is engaged.
Automatic day/night model
System which automatically and gradu-
ally changes between the day and night
uses.
To avoid glare, the interior mirror dark-
ens automatically in relation to the in-
tensity of the light from the rear.
It clears as soon as the light (light beam
of vehicles behind, sun...) decreases,
so providing optimum visibility.Switching on

Switch on the ignition and press
switch 1.
The indicator light 2 comes on and the
mirror operates in automatic mode.
Manual model
The mirror is fitted with a night anti-
dazzle device.
Day/night position
 Pull the lever to change to the "night"
anti-dazzle position.
 Push the lever to change to the
normal "day" position. Switching off

Press switch 1.
The indicator light 2 switches off and
the mirror remains at its clearest.

2
!
i
COMFORT
58

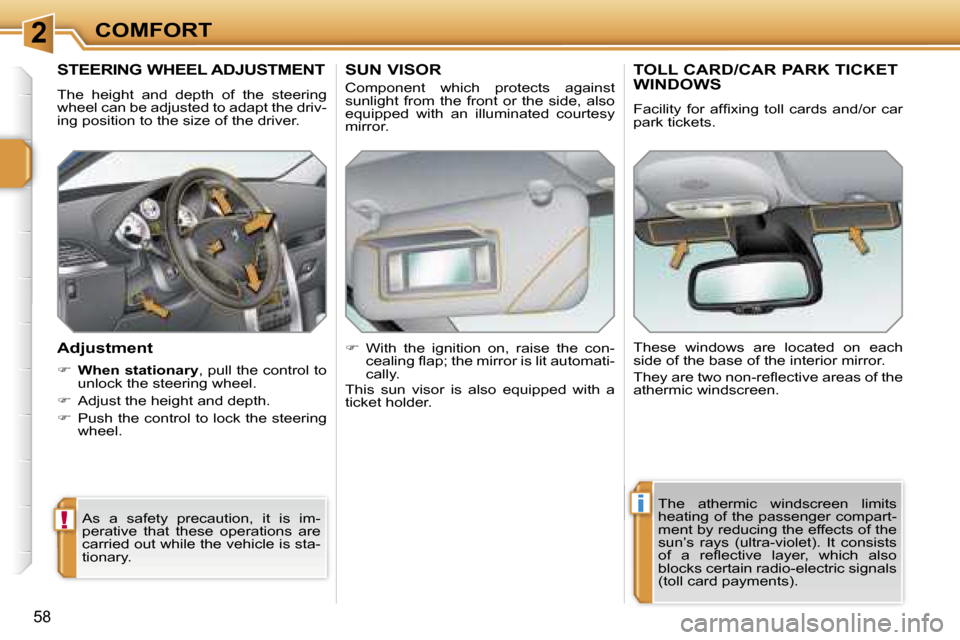

STEERING WHEEL ADJUSTMENT
The height and depth of the steering
wheel can be adjusted to adapt the driv-
ing position to the size of the driver.
Adjustment
 When stationary , pull the control to
unlock the steering wheel.
 Adjust the height and depth.
 Push the control to lock the steering
wheel.
As a safety precaution, it is im-
perative that these operations are
carried out while the vehicle is sta-
tionary.
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
 With the ignition on, raise the con-
cealing flap; the mirror is lit automati-
cally.
This sun visor is also equipped with a
ticket holder.
TOLL CARD/CAR PARK TICKET
WINDOWS
Facility for affixing toll cards and/or car
park tickets.
These windows are located on each
side of the base of the interior mirror.
They are two non-reflective areas of the
athermic windscreen.
The athermic windscreen limits
heating of the passenger compart-
ment by reducing the effects of the
sun’s rays (ultra-violet). It consists
of a reflective layer, which also
blocks certain radio-electric signals
(toll card payments).
