2006.5 Peugeot 207 Dag Owner's Manual

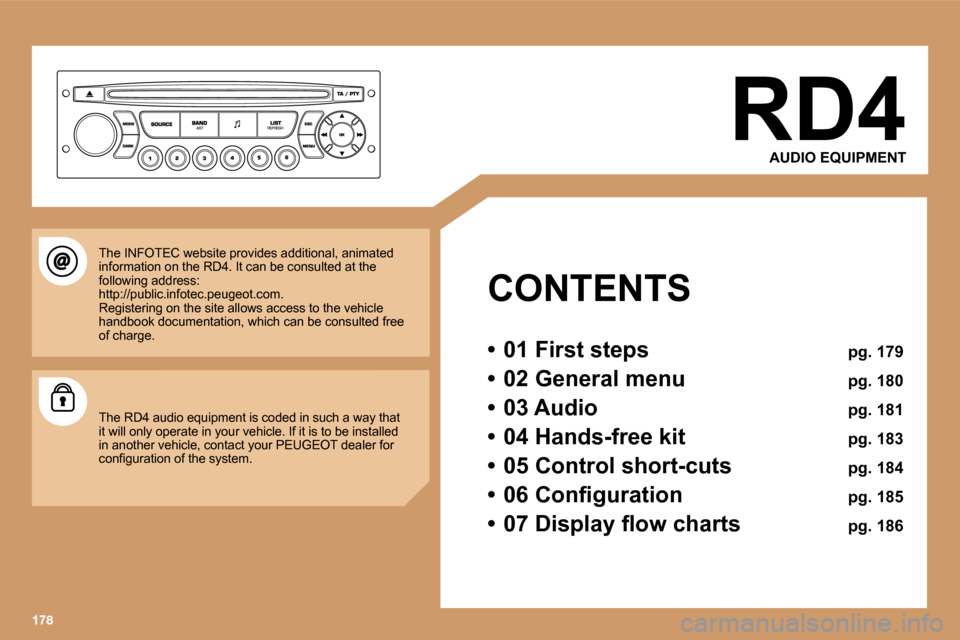

RD4AUDIO EQUIPMENT
CONTENTS
• 01 First steps pg. 179
• 02 General menu pg. 180
• 03 Audio pg. 181
• 04 Hands-free kit pg. 183
• 05 Control short-cuts pg. 184
• 06 Configuration pg. 185
• 07 Display flow charts pg. 186
The INFOTEC website provides additional, animated
information on the RD4. It can be consulted at the
following address:
http://public.infotec.peugeot.com.
Registering on the site allows access to the vehicl
e
handbook documentation, which can be consulted free
of charge.
The RD4 audio equipment is coded in such a way that
it will only operate in your vehicle. If it is to b e installed
in another vehicle, contact your PEUGEOT dealer for
configuration of the system.
17 8

179

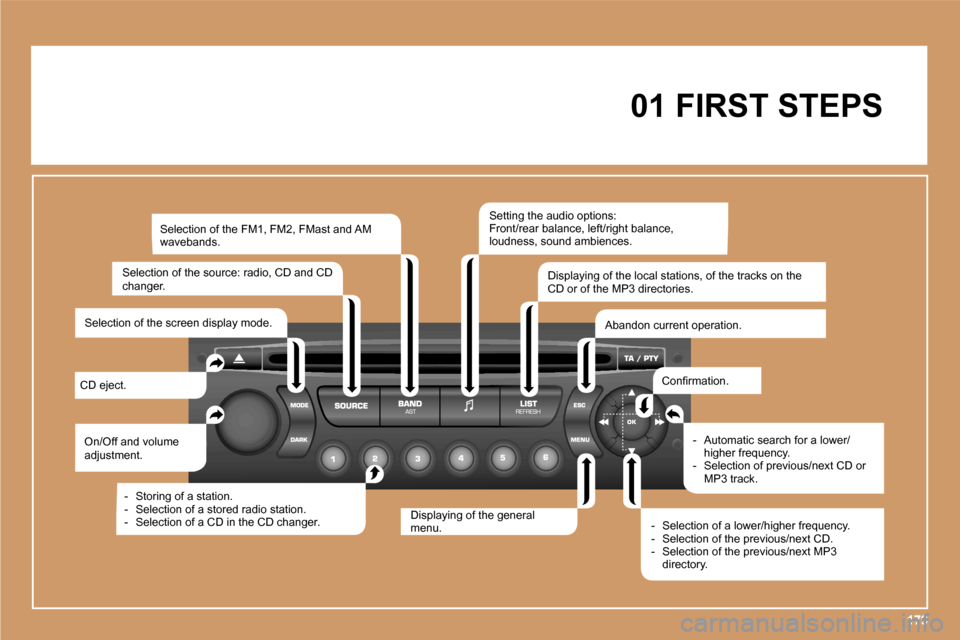

01 FIRST STEPS
On/Off and volume
adjustment.
CD eject. Selection of the FM1, FM2, FMast and AM
wavebands.
Displaying of the general
menu.- Selection of a lower/higher frequency.
- Selection of the previous/next CD.
- Selection of the previous/next MP3
directory. - Automatic search for a lower/
higher frequency.
- Selection of previous/next CD or MP3 track.
Selection of the source: radio, CD and CD
changer.
- Storing of a station.
- Selection of a stored radio station.
- Selection of a CD in the CD changer. Setting the audio options:
Front/rear balance, left/right balance,
loudness, sound ambiences.
Displaying of the local stations, of the tracks on the
CD or of the MP3 directories.
Abandon current operation.
Selection of the screen display mode.
Confirmation.

180

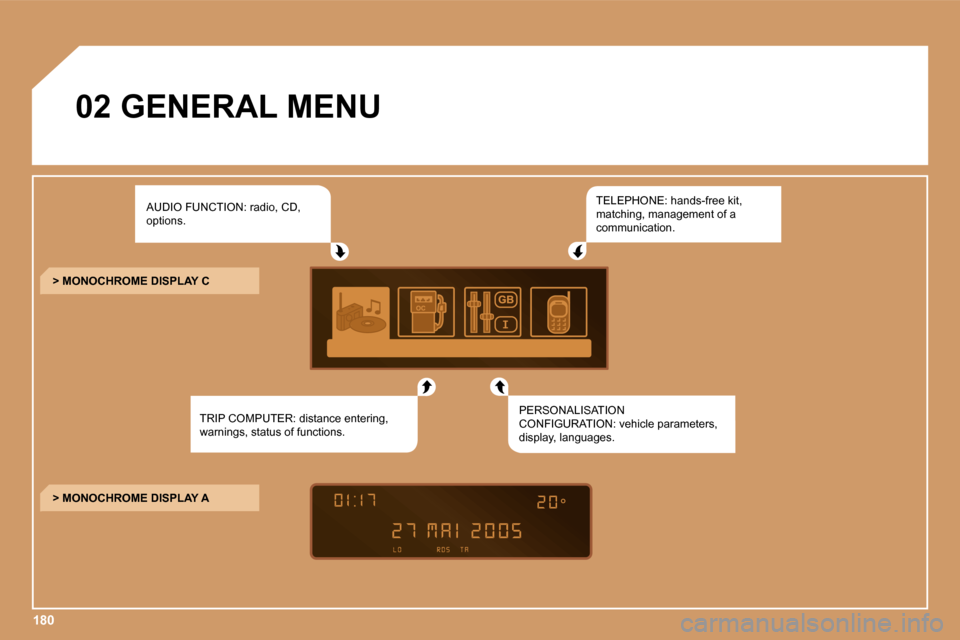

02 GENERAL MENUAUDIO FUNCTION: radio, CD,
options. TELEPHONE: hands-free kit,
matching, management of a
communication.
TRIP COMPUTER: distance entering,
warnings, status of functions.
> MONOCHROME DISPLAY C
PERSONALISATION
CONFIGURATION: vehicle parameters,
display, languages.
> MONOCHROME DISPLAY A

1
2
34
1
181

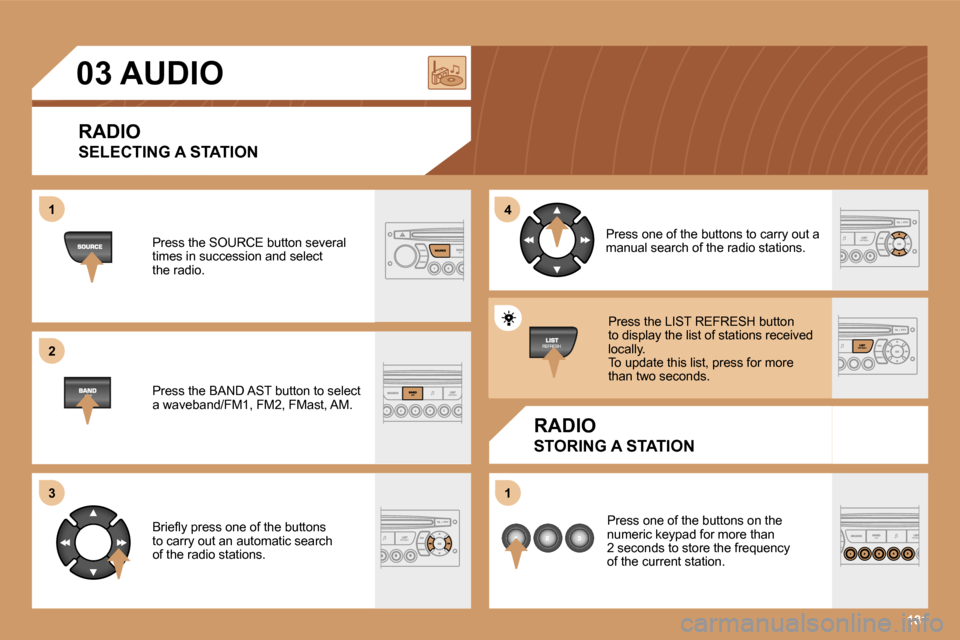

03 AUDIO
RADIO
SELECTING A STATION
RADIO
STORING A STATION
Press the SOURCE button several
times in succession and select
the radio.
Press the BAND AST button to select
a waveband/FM1, FM2, FMast, AM.
Briefly press one of the buttons
to carry out an automatic search
of the radio stations. Press one of the buttons to carry out a
manual search of the radio stations.
Press one of the buttons on the
numeric keypad for more than
2 seconds to store the frequency
of the current station.Press the LIST REFRESH button
to display the list of stations received
locally.
To update this list, press for more
than two seconds.

1
2
3
182
1
2

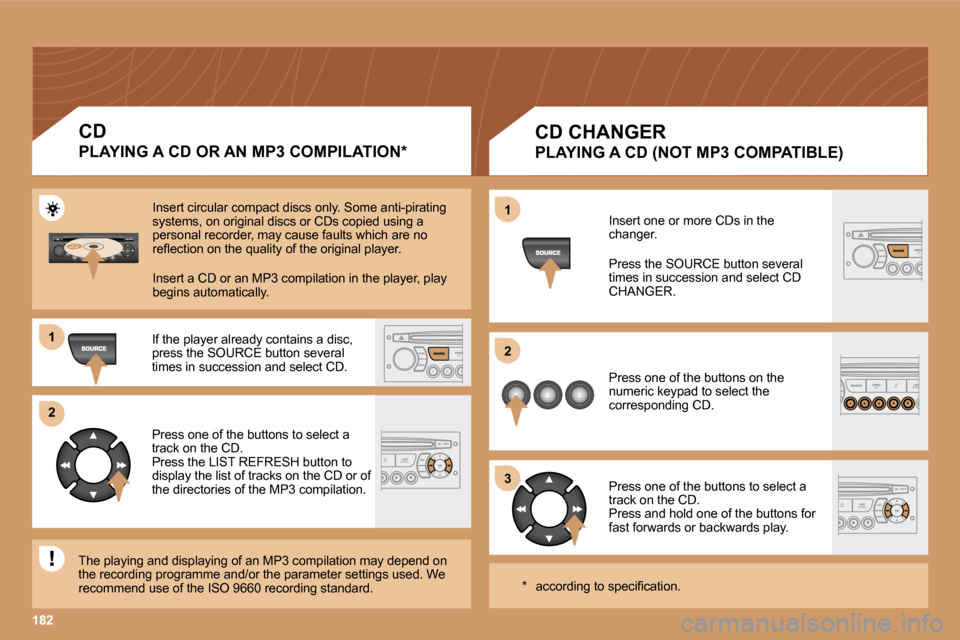

CD CHANGER
PLAYING A CD (NOT MP3 COMPATIBLE)
Insert one or more CDs in the
changer.
Press the SOURCE button several
times in succession and select CD
CHANGER.
Press one of the buttons on the
numeric keypad to select the
corresponding CD.
Press one of the buttons to select a
track on the CD.
Press and hold one of the buttons for
fast forwards or backwards play.
CD
PLAYING A CD OR AN MP3 COMPILATION*
Insert circular compact discs only. Some anti-pirating
systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no
reflection on the quality of the original player.
Insert a CD or an MP3 compilation in the player, pl ay
begins automatically.
If the player already contains a disc,
press the SOURCE button several
times in succession and select CD.
Press one of the buttons to select a
track on the CD.
Press the LIST REFRESH button to
display the list of tracks on the CD or of
the directories of the MP3 compilation.
The playing and displaying of an MP3 compilation ma y depend on
the recording programme and/or the parameter settin gs used. We
recommend use of the ISO 9660 recording standard. * according to specification.

1
21
2
3
4
1

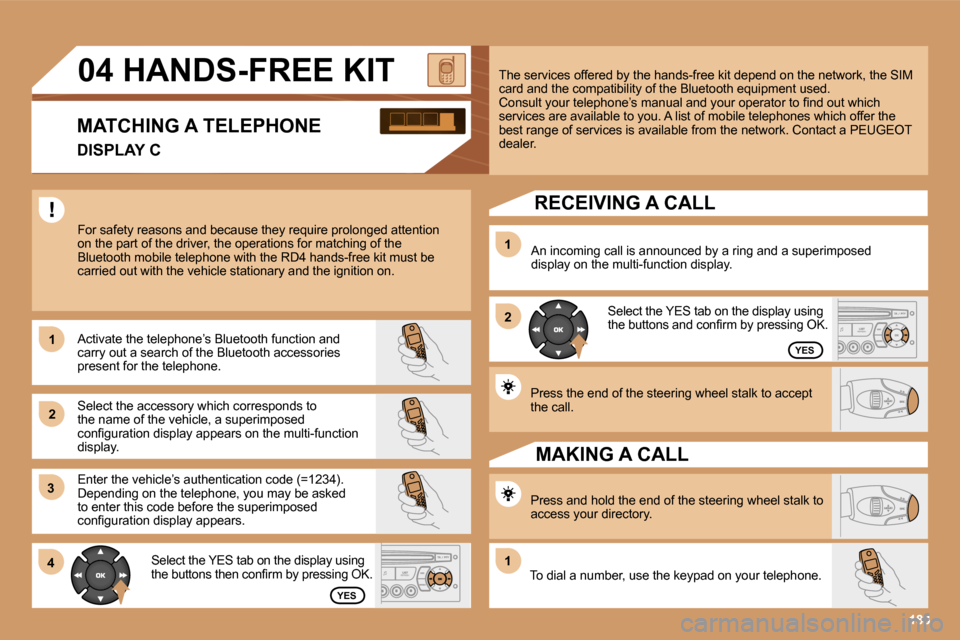

Press the end of the steering wheel stalk to accept
the call.
The services offered by the hands-free kit depend o
n the network, the SIM
card and the compatibility of the Bluetooth equipme nt used.
Consult your telephone’s manual and your operator t o find out which
services are available to you. A list of mobile tel ephones which offer the
best range of services is available from the networ k. Contact a PEUGEOT
dealer.
MAKING A CALL
Press and hold the end of the steering wheel stalk to
access your directory.
To dial a number, use the keypad on your telephone.
04 HANDS-FREE KIT
MATCHING A TELEPHONE
DISPLAY C
For safety reasons and because they require prolong ed attention
on the part of the driver, the operations for match ing of the
Bluetooth mobile telephone with the RD4 hands-free kit must be
carried out with the vehicle stationary and the ign ition on.
Activate the telephone’s Bluetooth function and
carry out a search of the Bluetooth accessories
present for the telephone.
Select the accessory which corresponds to
the name of the vehicle, a superimposed
configuration display appears on the multi-function
display.
Enter the vehicle’s authentication code (=1234).
Depending on the telephone, you may be asked
to enter this code before the superimposed
configuration display appears.
Select the YES tab on the display using
the buttons then confirm by pressing OK.
RECEIVING A CALL
An incoming call is announced by a ring and a super imposed
display on the multi-function display.
Select the YES tab on the display using
the buttons and confirm by pressing OK.
183
YES
YES

184

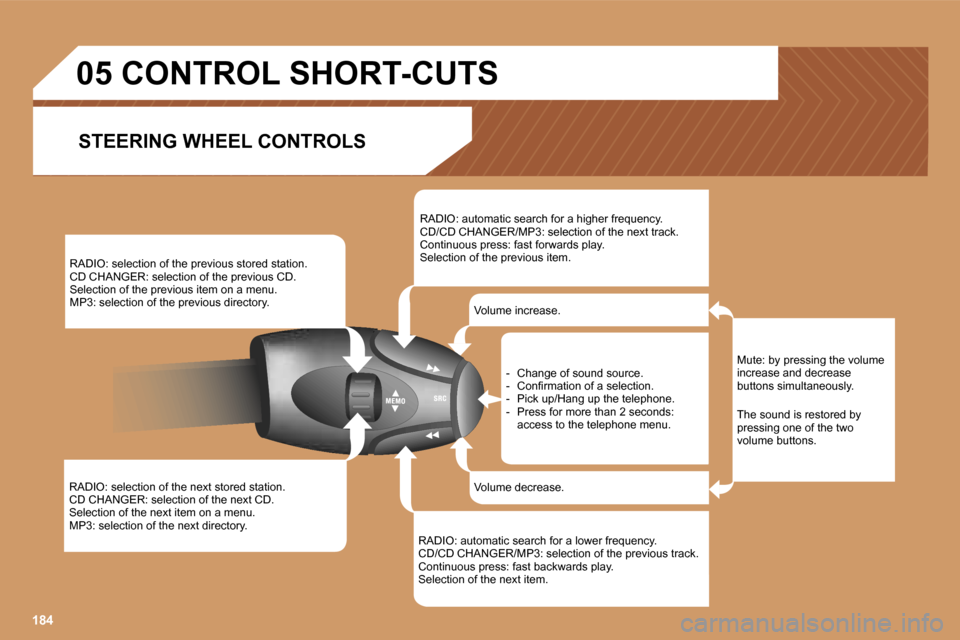

RADIO: selection of the next stored station.
CD CHANGER: selection of the next CD.
Selection of the next item on a menu.
MP3: selection of the next directory.RADIO: selection of the previous stored station.
CD CHANGER: selection of the previous CD.
Selection of the previous item on a menu.
MP3: selection of the previous directory.
RADIO: automatic search for a higher frequency.
CD/CD CHANGER/MP3: selection of the next track.
Continuous press: fast forwards play.
Selection of the previous item.
RADIO: automatic search for a lower frequency.
CD/CD CHANGER/MP3: selection of the previous track.
Continuous press: fast backwards play.
Selection of the next item. Volume increase.
Volume decrease.
05 CONTROL SHORT-CUTS
Mute: by pressing the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.
- Change of sound source.
- Confirmation of a selection.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds:
access to the telephone menu.
STEERING WHEEL CONTROLS

5
6
7
8
185
1
2
3
4
06 CONFIGURATIONADJUSTING THE DATE AND TIME
DISPLAY C
Press the MENU button.
Using the arrows, select
the PERSONALISATION
CONFIGURATION
function.
Press to confirm the selection.
Using the arrows, select the
DISPLAY CONFIGURATION function. Press to confirm the selection.
Press to confirm the selection.
Using the arrows, select the
ADJUST DATE AND TIME function.
Adjust the parameters one by one
confirming by pressing the OK button.
Next select the OK tab on the display
then confirm.
DISPLAY CONFIGURATION
ADJUST DATE AND TIME
OK
PERSONALISATION CONFIGURATION
