2006.5 Peugeot 207 Dag Owner's Manual

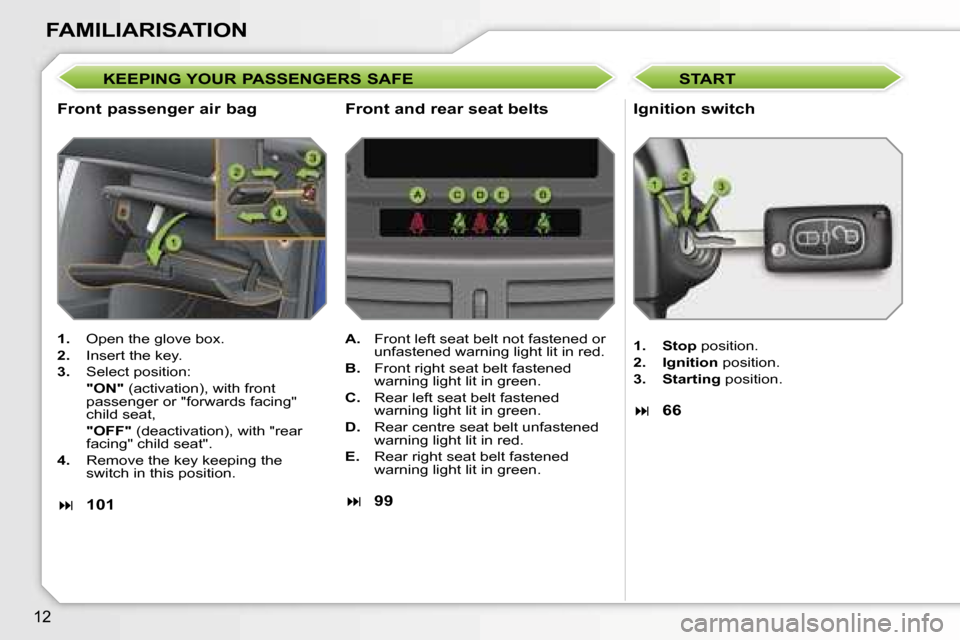

12
FAMILIARISATION
KEEPING YOUR PASSENGERS SAFE
Front passenger air bag
Ignition switch
1. Open the glove box.
2. Insert the key.
3. Select position:
"ON" (activation), with front
passenger or "forwards facing"
child seat,
"OFF" (deactivation), with "rear
facing" child seat".
4. Remove the key keeping the
switch in this position.
 101
1. Stop position.
2. Ignition position.
3. Starting position.
 66
A. Front left seat belt not fastened or
unfastened warning light lit in red.
B. Front right seat belt fastened
warning light lit in green.
C. Rear left seat belt fastened
warning light lit in green.
D. Rear centre seat belt unfastened
warning light lit in red.
E. Rear right seat belt fastened
warning light lit in green.
 99
Front and rear seat belts START

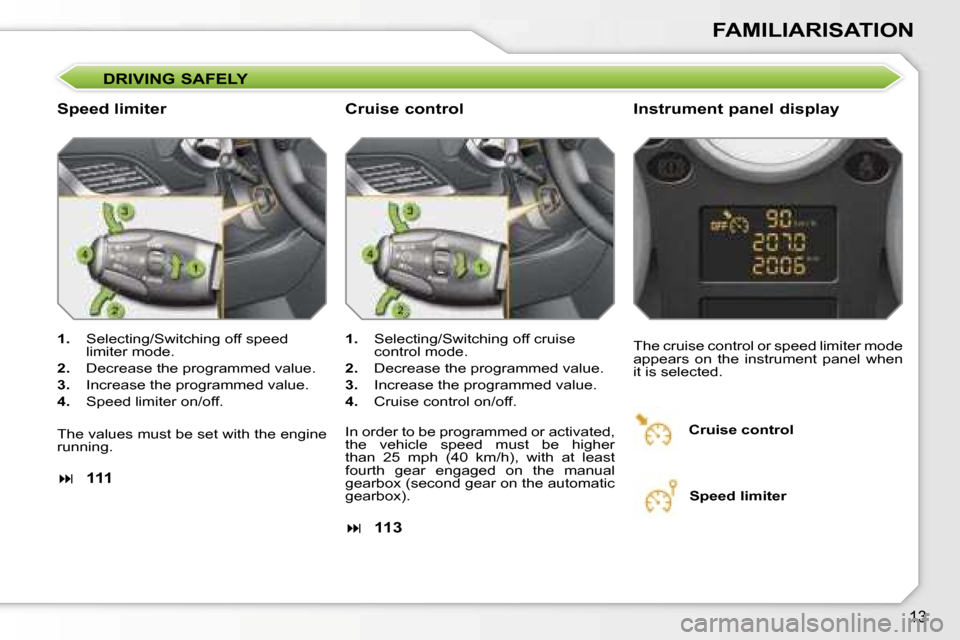

13
FAMILIARISATION
DRIVING SAFELY
Speed limiterInstrument panel display
1. Selecting/Switching off speed
limiter mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Speed limiter on/off.
The values must be set with the engine
running.
 111
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
1.
Selecting/Switching off cruise
control mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Cruise control on/off.
In order to be programmed or activated,
the vehicle speed must be higher
than 25 mph (40 km/h), with at least
fourth gear engaged on the manual
gearbox (second gear on the automatic
gearbox).
 113
Cruise control
Cruise control
Speed limiter

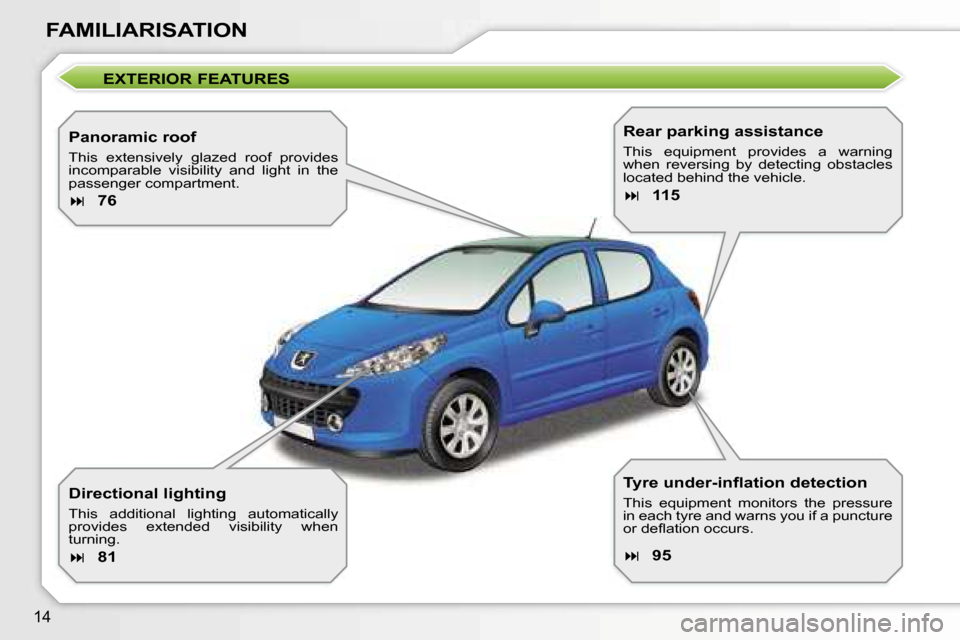

14
FAMILIARISATION
EXTERIOR FEATURES
Panoramic roof
This extensively glazed roof provides
incomparable visibility and light in the
passenger compartment.
 76
Directional lighting
This additional lighting automatically
provides extended visibility when
turning.
 81
Rear parking assistance
This equipment provides a warning
when reversing by detecting obstacles
located behind the vehicle.
 115
Tyre under-inflation detection
This equipment monitors the pressure
in each tyre and warns you if a puncture
or deflation occurs.
 95

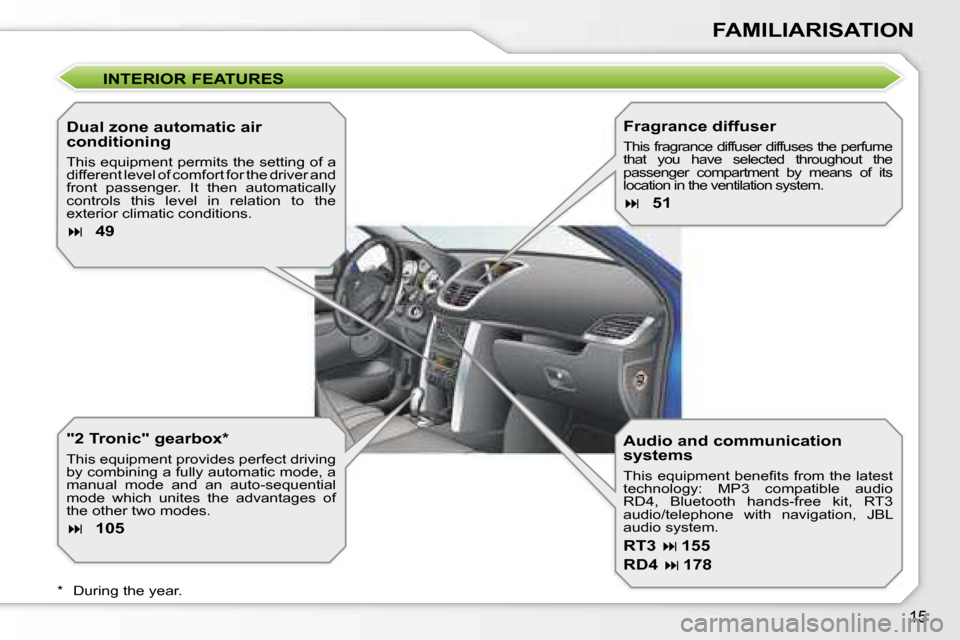

15
FAMILIARISATION
INTERIOR FEATURES
Dual zone automatic air
conditioning
This equipment permits the setting of a
different level of comfort for the driver and
front passenger. It then automatically
controls this level in relation to the
exterior climatic conditions.
 49
"2 Tronic" gearbox*
This equipment provides perfect driving
by combining a fully automatic mode, a
manual mode and an auto-sequential
mode which unites the advantages of
the other two modes.
 105 Fragrance diffuser
This fragrance diffuser diffuses the perfume
that you have selected throughout the
passenger compartment by means of its
location in the ventilation system.

51
Audio and communication
systems
This equipment benefits from the latest
technology: MP3 compatible audio
RD4, Bluetooth hands-free kit, RT3
audio/telephone with navigation, JBL
audio system.
RT3  155
RD4  178
* During the year.

1WARNING LIGHTS AND INDICATORS

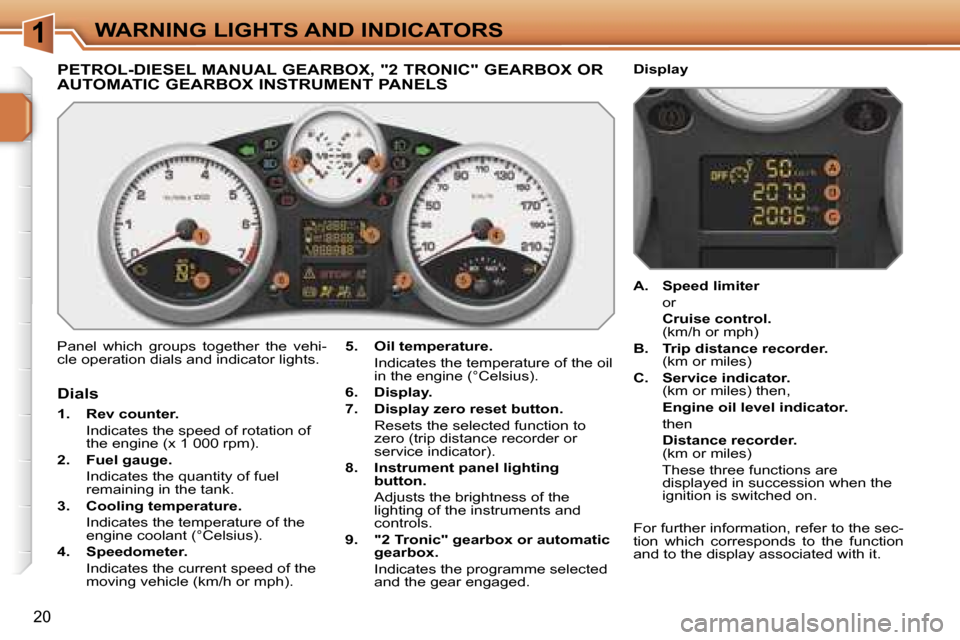

20
PETROL-DIESEL MANUAL GEARBOX, "2 TRONIC" GEARBOX OR
AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel which groups together the vehi-
cle operation dials and indicator lights.5.
Oil temperature.
Indicates the temperature of the oil
in the engine (°Celsius).
6. Display.
7. Display zero reset button.
Resets the selected function to
zero (trip distance recorder or
service indicator).
8. Instrument panel lighting
button.
Adjusts the brightness of the
lighting of the instruments and
controls.
9. "2 Tronic" gearbox or automatic
gearbox.
Indicates the programme selected
and the gear engaged.
Dials
1. Rev counter.
Indicates the speed of rotation of
the engine (x 1 000 rpm).
2. Fuel gauge.
Indicates the quantity of fuel
remaining in the tank.
3. Cooling temperature.
Indicates the temperature of the
engine coolant (°Celsius).
4. Speedometer.
Indicates the current speed of the
moving vehicle (km/h or mph). A.
Speed limiter
or
Cruise control.
(km/h or mph)
B. Trip distance recorder.
(km or miles)
C. Service indicator.
(km or miles) then,
Engine oil level indicator.
then
Distance recorder. (km or miles)
These three functions are displayed in succession when the
ignition is switched on.
For further information, refer to the sec-
tion which corresponds to the function
and to the display associated with it.
Display

1
!
WARNING LIGHTS AND INDICATORS
21
The indicator/warning light comes
on continuously or flashes.
Some indicator/warning lights may
light in two different ways. Only by
relating the type of lighting to the
vehicle operating status can it be
ascertained whether the situation
is normal or whether a fault has oc-
curred.
Indicator and warning lights
Visual indicators which inform the driv-
er when a system comes into opera-
tion (operation or deactivation indicator
lights) or of the occurrence of a fault
(warning light).Associated warnings
The lighting of certain indicator/warning
lights may be accompanied by an audi-
ble signal and a message on the multi-
function display.Operation indicator lights
The lighting of one of the following in-
dicator lights confirms that the corre-
sponding system has come into opera-
tion.
Left-hand direction indicator.
Handbrake applied.
Right-hand direction indicator.
Main beam headlamps.
Dipped headlamps.
Diesel engine pre-heating.
Wait until this switches off be-
fore operating the starter.
Front fog lamps.
Rear fog lamps.
When the ignition is switched on
The warning lights come on for a few
seconds when the vehicle ignition is
switched on.
When the engine is started, these warn-
ing lights should switch off.
If they remain on, before moving off,
consult the text relating to the warning
light concerned.

1WARNING LIGHTS AND INDICATORS

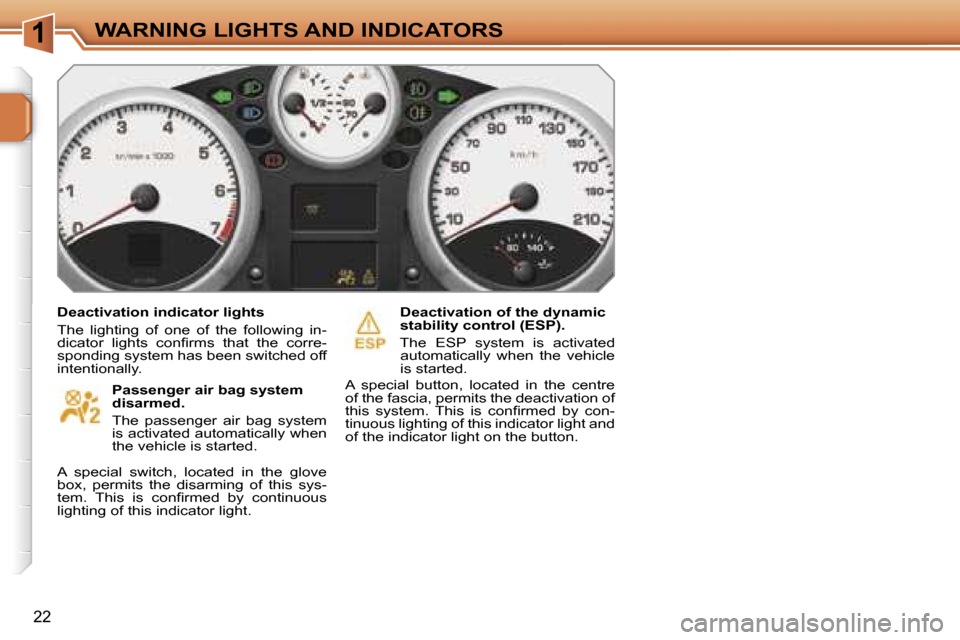

22
Deactivation indicator lights
The lighting of one of the following in-
dicator lights confirms that the corre-
sponding system has been switched off
intentionally.Passenger air bag system
disarmed.
The passenger air bag system
is activated automatically when
the vehicle is started.
A special switch, located in the glove
box, permits the disarming of this sys-
tem. This is confirmed by continuous
lighting of this indicator light. Deactivation of the dynamic
stability control (ESP).
The ESP system is activated
automatically when the vehicle
is started.
A special button, located in the centre
of the fascia, permits the deactivation of
this system. This is confirmed by con-
tinuous lighting of this indicator light and
of the indicator light on the button.

1
!
WARNING LIGHTS AND INDICATORS

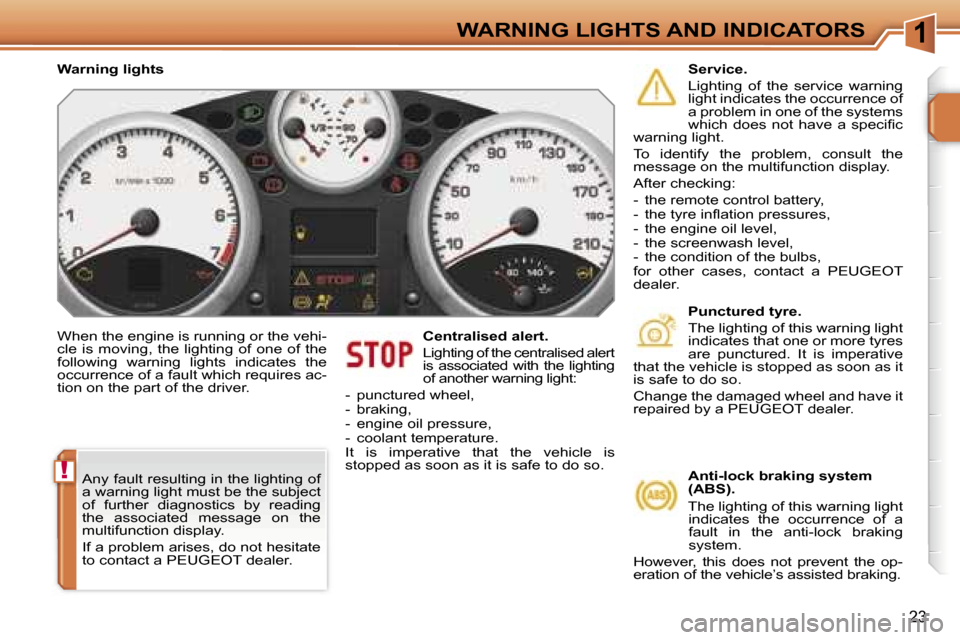

23
When the engine is running or the vehi-
cle is moving, the lighting of one of the
following warning lights indicates the
occurrence of a fault which requires ac-
tion on the part of the driver.Centralised alert.
Lighting of the centralised alert
is associated with the lighting
of another warning light:
- punctured wheel,
- braking,
- engine oil pressure,
- coolant temperature.
It is imperative that the vehicle is
stopped as soon as it is safe to do so. Service.
Lighting of the service warning
light indicates the occurrence of
a problem in one of the systems
which does not have a specific
warning light.
To identify the problem, consult the
message on the multifunction display.
After checking:
- the remote control battery,
- the tyre inflation pressures,
- the engine oil level,
- the screenwash level,
- the condition of the bulbs,
for other cases, contact a PEUGEOT
dealer.
Punctured tyre.
The lighting of this warning light
indicates that one or more tyres
are punctured. It is imperative
that the vehicle is stopped as soon as it
is safe to do so.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
Anti-lock braking system
(ABS).
The lighting of this warning light indicates the occurrence of a
fault in the anti-lock braking
system.
However, this does not prevent the op-
eration of the vehicle’s assisted braking.
Any fault resulting in the lighting of
a warning light must be the subject
of further diagnostics by reading
the associated message on the
multifunction display.
If a problem arises, do not hesitate
to contact a PEUGEOT dealer.
Warning lights
