2005 YAMAHA TDM 900 Owners Manual

SPECIFICATIONS
8-2
2
3
4
5
6
7
89 Gear ratio:

1st:
33/12 (2.750)
2nd:
37/19 (1.947)
3rd:
34/22 (1.545)
4th:
31/25 (1.240)
5th:
26/25 (1.040)
6th:
24/26 (0.923)
Chassis:
Frame type:
Diamond
Caster angle:
25.50 °
Trail:
114.0 mm (4.49 in)
Front tire:
Type:
Tubeless
Size:
120/70 ZR18M/C (59W)
Manufacturer/model:
DUNLOP/D220FSTJ
Rear tire:
Type:
Tubeless
Size:
160/60 ZR17M/C (69W)Manufacturer/model:
DUNLOP/D220STJ
Loading:
Maximum load:
200 kg (441 lb)
* (Total weight of rider, passenger, cargo
and accessories)

Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm
2

)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2

)
Loading condition:
90–200 kg (198–441 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm
2

)
Rear:
290 kPa (42 psi) (2.90 kgf/cm
2

)
High-speed riding:
Front:
225 kPa (33 psi) (2.25 kgf/cm
2

)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2

)
Front wheel:
Wheel type:
Cast wheel
Rim size:
18M/C x MT3.50
Rear wheel:
Wheel type:
Cast wheel
Rim size:
17M/C x MT5.00
Front brake:
Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4
Front suspension:
Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
150.0 mm (5.91 in)
Rear suspension:
Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
133.0 mm (5.24 in)

SPECIFICATIONS
8-3
1
2
3
4
5
6
7
8
9Electrical system:

Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magneto
Battery:
Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage x quantity:
Headlight:
12 V, 55.0 W
×
2
Tail/brake light:
12 V, 5.0 W/21.0 W
×
1
Front turn signal light:
12 V, 10.0 W
×
2
Rear turn signal light:
12 V, 10.0 W
×
2
Auxiliary light:
12 V, 5.0 W
×
1
Meter lighting:
14 V, 2.0 W
×
2
Neutral indicator light:
14 V, 1.2 W
×
1
High beam indicator light:
14 V, 1.4 W
×
1
Oil level warning light:
LEDTurn signal indicator light:
14 V, 1.2 W
×
1
Engine trouble warning light:
14 V, 1.4 W
×
1
ABS warning light:
14 V, 1.4 W
×
1
Immobilizer system indicator light:
LED

Fuses:
Main fuse:
40.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Turn signal light and hazard fuse:
10.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
Backup fuse:
10.0 A

9-1
2
3
4
5
6
7
8
9

CONSUMER INFORMATION
EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUM-
BER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
NOTE:

The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
1

CONSUMER INFORMATION
9-2
1
2
3
4
5
6
7
8
9

EAU26540
Model label
The model label is affixed to the frame
under the seat. (See page 3-14.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Model label
1

INDEX
A
ABS (for ABS models) .............................3-11
ABS warning light (for ABS models) ..........3-4
Air filter element, replacing ......................6-12
Anti-theft alarm (optional) ..........................3-8
Auxiliary light bulb, replacing ...................6-31
B
Battery .....................................................6-27
Brake and clutch levers, checking and
lubricating ..............................................6-24
Brake and shift pedals, checking and
lubricating ..............................................6-24
Brake fluid, changing ...............................6-21
Brake fluid level, checking .......................6-20
Brake lever ..............................................3-10
Brake pedal .............................................3-11
C
Cables, checking and lubricating .............6-23
Care ...........................................................7-1
Catalytic converter ...................................3-14
Clutch lever ..............................................3-10
Clutch lever free play, adjusting ..............6-18
Coolant ....................................................6-10
Coolant temperature gauge .......................3-6
Cowlings and panels, removing and
installing ..................................................6-5
D
Dimmer switch ...........................................3-9
Drive chain, cleaning and lubricating .......6-23
Drive chain slack .....................................6-21
E
Engine break-in .........................................5-3
Engine idling speed .................................6-13
Engine oil and oil filter element ..................6-7Engine stop switch .................................... 3-9
Engine trouble warning light ...................... 3-4
F
Front and rear brake pads, checking....... 6-19
Front fork, adjusting................................. 3-15
Front fork, checking ................................. 6-25
Fuel ......................................................... 3-13
Fuel consumption, tips for reducing .......... 5-3
Fuel level warning indicator ....................... 3-4
Fuel tank breather hose .......................... 3-13
Fuel tank cap ........................................... 3-12
Fuses, replacing ...................................... 6-28
H
Handlebar switches ................................... 3-8
Hazard switch ............................................ 3-9
Headlight bulb, replacing ......................... 6-29
High beam indicator light ........................... 3-4
Horn switch................................................ 3-9
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-19
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-4
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
L
Luggage strap holders............................. 3-18
M
Main switch/steering lock .......................... 3-2
Model label ................................................ 9-2
Multi-function display ................................. 3-7
N
Neutral indicator light................................. 3-4
O
Oil level warning light ................................ 3-4
P
Parking ...................................................... 5-4
Part locations ............................................ 2-1
Pass switch ............................................... 3-9
Periodic maintenance and lubrication
chart ........................................................ 6-2
Pre-operation check list............................. 4-2
R
Rear brake light switch, adjusting ........... 6-19
Rear suspension, lubricating ................... 6-25
S
Safety information ..................................... 1-1
Seat ......................................................... 3-14
Shifting ...................................................... 5-2
Shift pedal ............................................... 3-10
Shock absorber assembly, adjusting ...... 3-17
Sidestand ................................................ 3-19
Sidestand, checking and lubricating........ 6-25
Spark plugs, checking ............................... 6-6
Specifications ............................................ 8-1
Starting the engine .................................... 5-1
Start switch................................................ 3-9
Steering, checking................................... 6-26
Storage...................................................... 7-3
Storage compartment.............................. 3-15
Supporting the motorcycle ...................... 6-32
T
Tachometer unit ........................................ 3-5
Tail/brake light bulb, replacing ................ 6-30
Throttle cable free play, checking ........... 6-14
Throttle grip and cable, checking and
lubricating ............................................. 6-24

INDEX
Tires ........................................................ 6-15
Tool kit ...................................................... 6-1
Troubleshooting ...................................... 6-32
Troubleshooting charts ........................... 6-33
Turn signal indicator light .......................... 3-3
Turn signal light bulb, replacing .............. 6-31
Turn signal switch ..................................... 3-9
V
Valve clearance ...................................... 6-14
Vehicle identification number .................... 9-1
W
Wheel bearings, checking ....................... 6-27
Wheels .................................................... 6-17

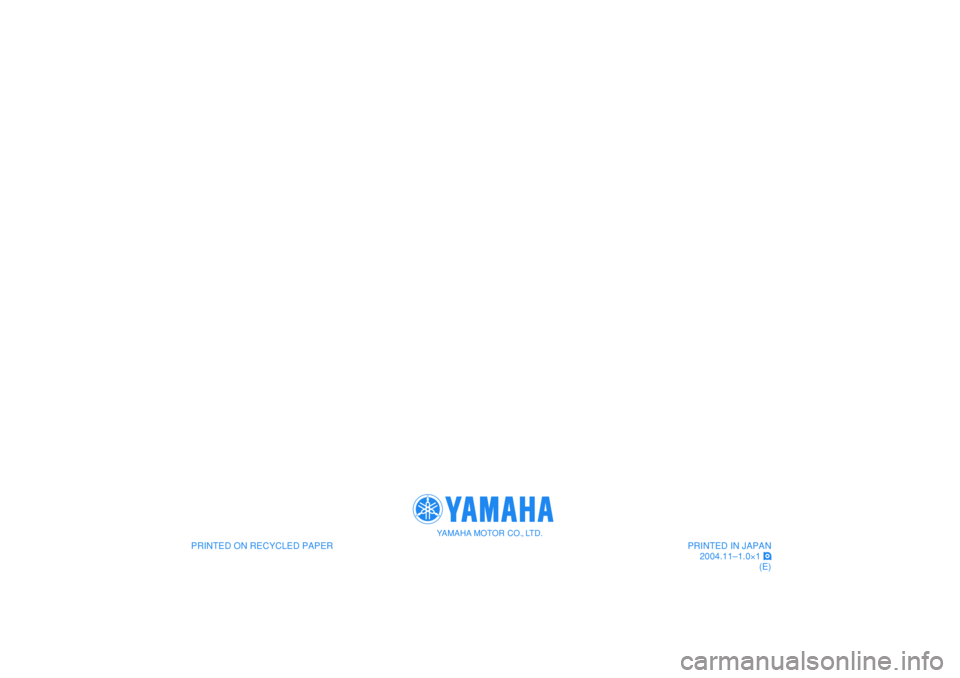

PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2004.11–1.0×1 !
(E)

PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2004.11–1.0×1 !
(E)
