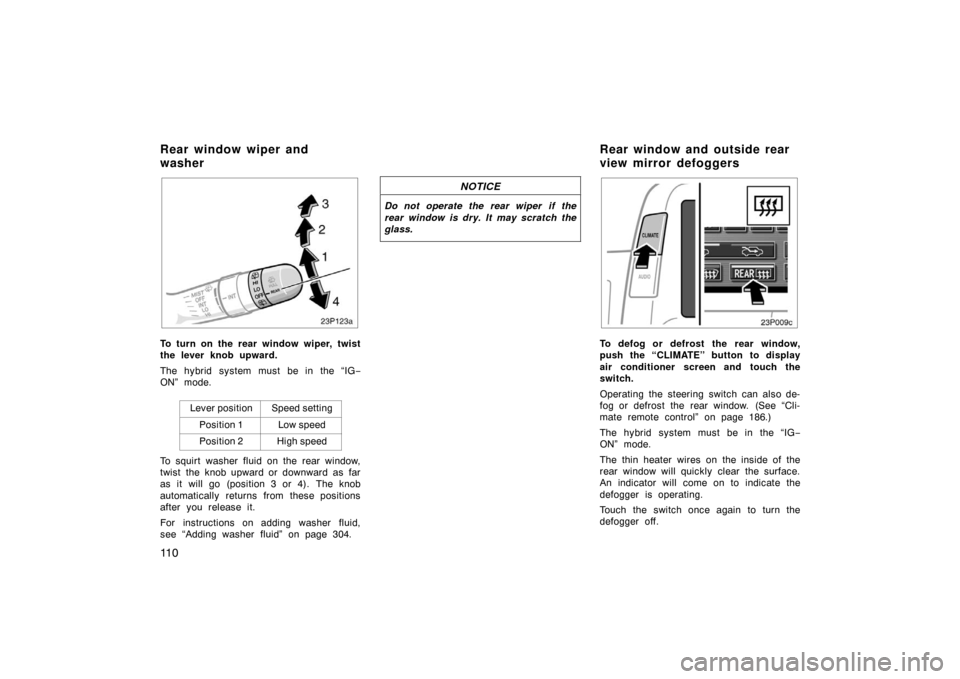

To turn on the rear window wiper, twist
the lever knob upward.
The hybrid system must be in the “IG−
ON” mode.
Lever position
Speed setting
Position 1Low speed
Position 2High speed
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 304.
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
23p009c
To defog or defrost the rear window,
push the “CLIMATE” button to display
air conditioner screen and touch the
switch.
Operating the steering switch can also de-
fog or defrost the rear window. (See “Cli-
mate remote control” on page 186.)
The hybrid system must be in the “IG −
ON” mode.
The thin heater wires on the inside of the
rear window will quickly clear the surface.
An indicator will come on to indicate the
defogger is operating.
Touch the switch once again to turn the
defogger off.
Rear window wiper and
washer Rear window and outside rear
view mirror defoggers
Page 114 of 336
11 4
24p001b

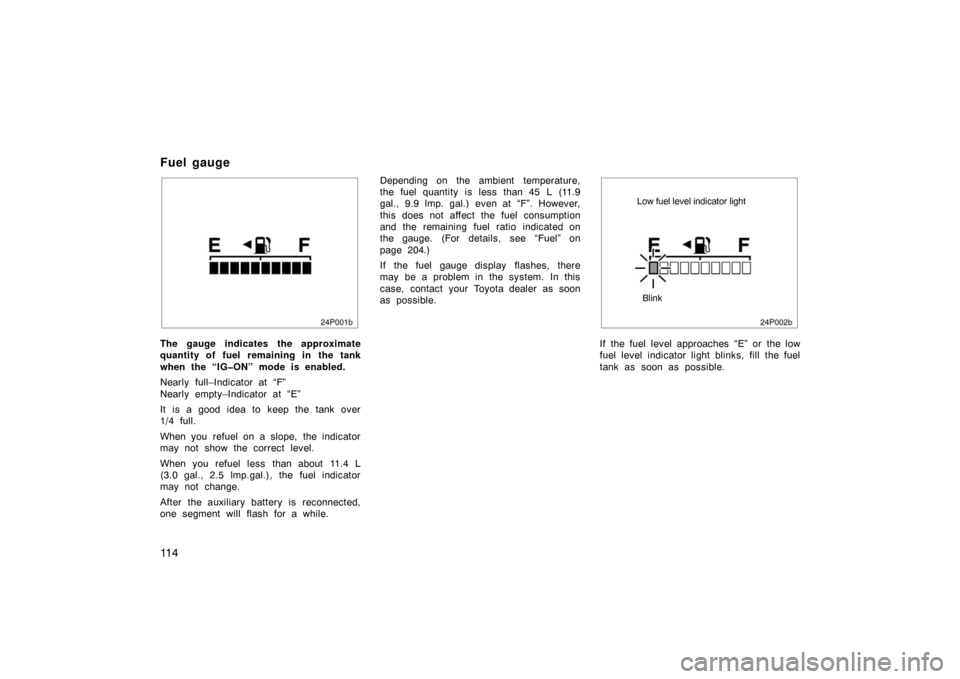

The gauge indicates the approximate
quantity of fuel remaining in the tank
when the “IG ON” mode is enabled.
Nearly full–Indicator at “F”
Nearly empty–Indicator at “E”
It is a good idea to keep the tank over
1/4 full.
When you refuel on a slope, the indicator
may not show the correct level.
When you refuel less than about 11.4 L
(3.0 gal., 2.5 lmp.gal.), the fuel indicator
may not change.
After the auxiliary battery is reconnected,
one segment will flash for a while.Depending on the ambient temperature,
the fuel quantity is less than 45 L (11.9
gal., 9.9 lmp. gal.) even at “F”. However,
this does not affect the fuel consumption
and the remaining fuel ratio indicated on
the gauge. (For details, see “Fuel” on
page 204.)
If the fuel gauge display flashes, there
may be a problem in the system. In this
case, contact your Toyota dealer as soon
as possible.
24p002b
Low fuel level indicator light
Blink
If the fuel level approaches “E” or the low
fuel level indicator light blinks, fill the fuel
tank as soon as possible.
Fuel gauge
Page 115 of 336
11 5
24p109a

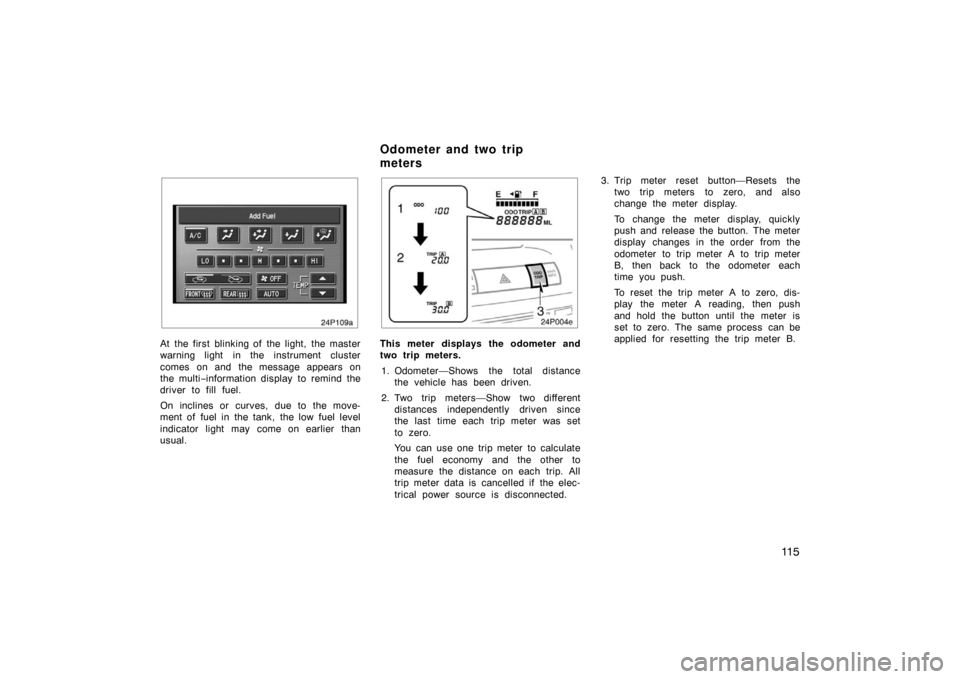

At the first blinking of the light, the master
warning light in the instrument cluster
comes on and the message appears on
the multi−information display to remind the
driver to fill fuel.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
indicator light may come on earlier than
usual.
24p004e
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected. 3. Trip meter reset button—Resets the
two trip meters to zero, and also
change the meter display.
To change the meter display, quickly
push and release the button. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the button until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
Odometer and two trip
meters
Page 116 of 336
11 6
Km/h or MPH button
24p005c

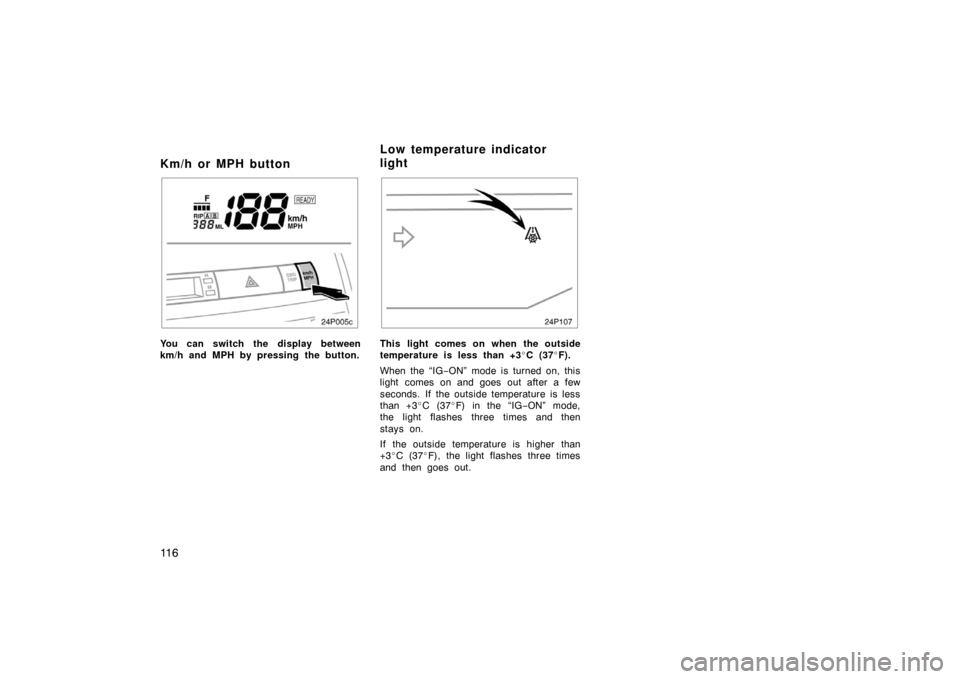

You can switch the display between
km/h and MPH by pressing the button.
24p107
This light comes on when the outside
temperature is less than +3C (37 F).
When the “IG −ON” mode is turned on, this
light comes on and goes out after a few
seconds. If the outside temperature is less
than +3 C (37 F) in the “IG −ON” mode,
the light flashes three times and then
stays on.
If the outside temperature is higher than
+3 C (37 F), the light flashes three times
and then goes out.
Low temperature indicator
light
Page 117 of 336
11 7
If the indicator or buzzer comes on...Do this.
(a)
or
(red indicator and buzzer)If parking brake is off, stop immediately and contact Toyota dealer.
(yellow indicator)
Take vehicle to Toyota dealer. If red brake system warning light is also on, stop imme-
diately and contact Toyota dealer.
(b)
(indicator and buzzer)
Fasten driver ’s seat belt.
(c)Fasten front passenger ’s seat belt.
(d)orTake vehicle to Toyota dealer.
(e)See multi −information display.
(f)orTake vehicle to Toyota dealer. If red brake system warning light is also on, stop imme-
diately and contact Toyota dealer.
If any warning comes on, the hybrid system may not start by pu shing the “POWER” switch. In that case, push it once again.
Service reminder indicators and warning buzzers
Page 121 of 336
121
Emissions inspection and maintenance
(I/M) programs
Your vehicle may not pass a state emis-
sion inspection if the malfunction indicator
lamp remains on. Contact your Toyota
dealer to check your vehicle’s emission
control system and OBD (On−Board Diag-
nostics) system before taking your vehicle
for the inspection.
For details, see “Emissions inspection and
maintenance (I/M) programs” on page 276.
(e) Master Warning Light
()
If the master warning light comes on, the
warning light for the faulty system is high-
lighted or the message such as “Please
press “P” to engage Park.” and “The bat-
teries will not be charged if the transaxle
is in Neutral N.” appears on the multi −in-
formation display. (See “Service reminder
indicators and warning buzzers— —Multi −
information display” on page 124 or “Pre-
cautions for use” on page 14 or “Fuel
gauge” on page 114 for instructions.) (f) “ABS” Warning Light
The light comes on when the “IG
−ON”
mode is enabled. If the anti −lock brake
system and the brake assist system work
properly, the light turns off after the
“READY” light comes on. Thereafter if the
system malfunctions, the light comes on
again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate,
but the brake system still operates con-
ventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate
but the brake assist system still operates.
In this case, the wheels could lock up
during a sudden braking or braking on
slippery road surfaces.
If either of the following conditions
occurs, this indicates a malfunction
somewhere in the parts monitored by
the warning light system. Contact your
Toyota dealer as soon as possible so
service the vehicle.
The light does not come on when the
“IG −ON” mode is enabled, or the light
remains on after the “READY” light
comes on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the red brake system
warning light, immediately stop your
vehicle at a safe place and contact
your Toyota dealer.
In this case, not only the anti lock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
Either of the following conditions may
occur, but does not indicate the mal-
function:
The light may stay on for about 60
seconds after the hybrid system is
started. It is normal if it turns off after
a whi l e.
Page 122 of 336
122
Depressing the brake pedal repeatedly
may turn on the light. It is normal if
it turns off after a few seconds.
(g) SRS Warning Light
This light will come on when the “IG
ON” mode is enabled. After about 6
seconds, the light will go off. This
means the system of the airbag and
front seat belt pretensioners are operat-
ing properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors,
driver ’s seat position sensor, driver ’s seat
belt buckle switch, front passenger ’s seat
belt buckle switch, seat belt pretensioner
assemblies, warning light, interconnecting
wiring and power sources.
If either of the following conditions occurs,
this indicates a malfunction somewhere in
the parts monitored by the warning light
system. Contact your Toyota dealer as
soon as possible to service the vehicle.
The light does not come on when the
“IG −ON” mode is enabled or remains
on for more than 6 seconds.
The light comes on while driving. (h) Open Door Warning Light
This light remains on until all the doors
are completely closed.
(i) Low Fuel Level Indicator Light
This light blinks when the fuel level in the
tank becomes nearly empty. Fill up the
tank as soon as possible.
At the first blinking of the light, the mes-
sage appears on the display to remind the
driver to fill fuel.
Contact your Toyota dealer in the following
case:
All the segments blink.
(j) Engine Oil Replacement Reminder Light (for vehicles sold in U.S.A.)
This light acts as a reminder to replace
the engine oil.
This light will come on when the “IG −ON”
mode is enabled, and will go off after
about a few seconds. When you drive for about 7200 km (4500
miles) after engine oil replacement, this
light illuminates for about 3 seconds and
then flashes for about 12 seconds when
the hybrid system is in the “IG
−ON”
mode. If you continue driving without en-
gine oil replacement, and if the driving
range exceeds 8000 km (5000 miles), the
light will come on after the “IG −ON” mode
is enabled. The light will remain on there-
after.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace the oil as soon as possible.
The system must be reset after the en-
gine oil replacement. Reset the system by
the following procedure:
1. Press the “POWER” switch to the “OFF” mode
with the odometer reading
shown. (For details, see “Odometer and
two trip meters” on page 115.)
2. Press the “POWER” switch twice to select the “IG −ON” mode while holding
down the trip meter reset button.
Page 124 of 336
124
24p006e

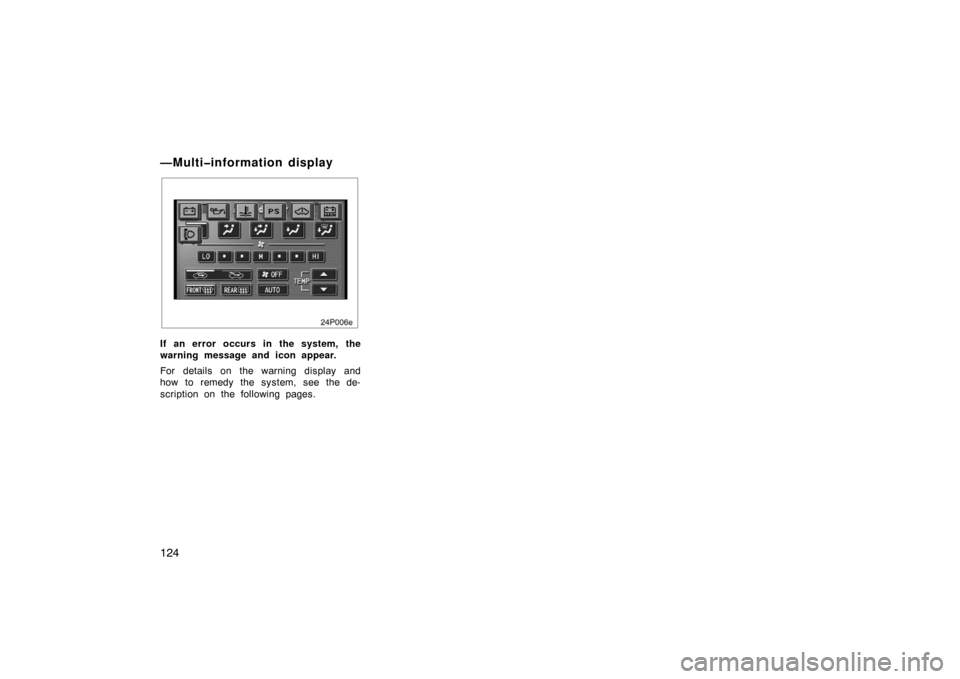

If an error occurs in the system, the
warning message and icon appear.
For details on the warning display and
how to remedy the system, see the de-
scription on the following pages.
—Multi information display
