2005 TOYOTA AVENSIS Circuit

I36055
05±1724
±
DIAGNOSTICS CRUISE CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
HINT:
In case of using the hand±held tester, start the inspection from step 1, and in case of not using the hand±held
tester, start from step 2.
1READ VALUE OF HAND±HELD TESTER
(a)Connect the hand±held tester to the DLC3.
(b)Turn the ignition switch to the ON position, and turn the hand±held te\
ster main switch ON.
(c)Select the item ºCCS READYº in the DATA LIST and read its prompts displayed on the hand±held tes- ter.
ItemMeasurement Item /
Display (Range)Normal Condition
CCS READY MCruise control system standby
condition (Main CPU) / ON or OFFON
OFF: Change ON/OFF
each time Main SW is pushed in.
CCS READY SCruise control system standby
condition (Sub CPU) / ON or OFFON
OFF: Change ON/OFF
each time Main SW is pushed in.
NGPROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
(See page 05±1709)
OK

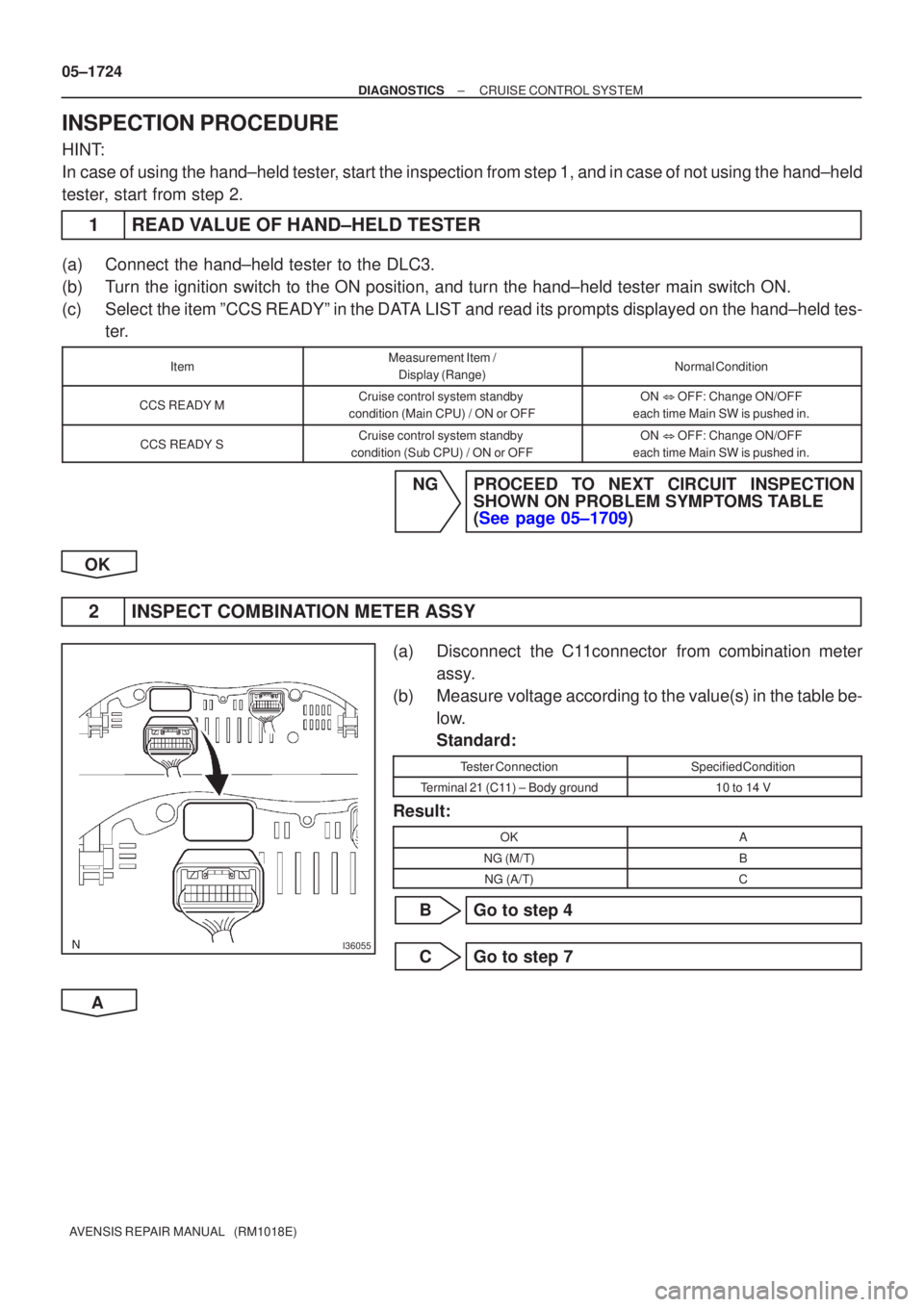

2 INSPECT COMBINATION METER ASSY
(a) Disconnect the C11connector from combination meter assy.
(b) Measure voltage according to the value(s) in the table be- low.
Standard:
Tester ConnectionSpecified Condition
Terminal 21 (C11) ± Body ground10 to 14 V
Result:
OKA
NG (M/T)B
NG (A/T)C
B Go to step 4
C Go to step 7
A

05±1726
±
DIAGNOSTICS CRUISE CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

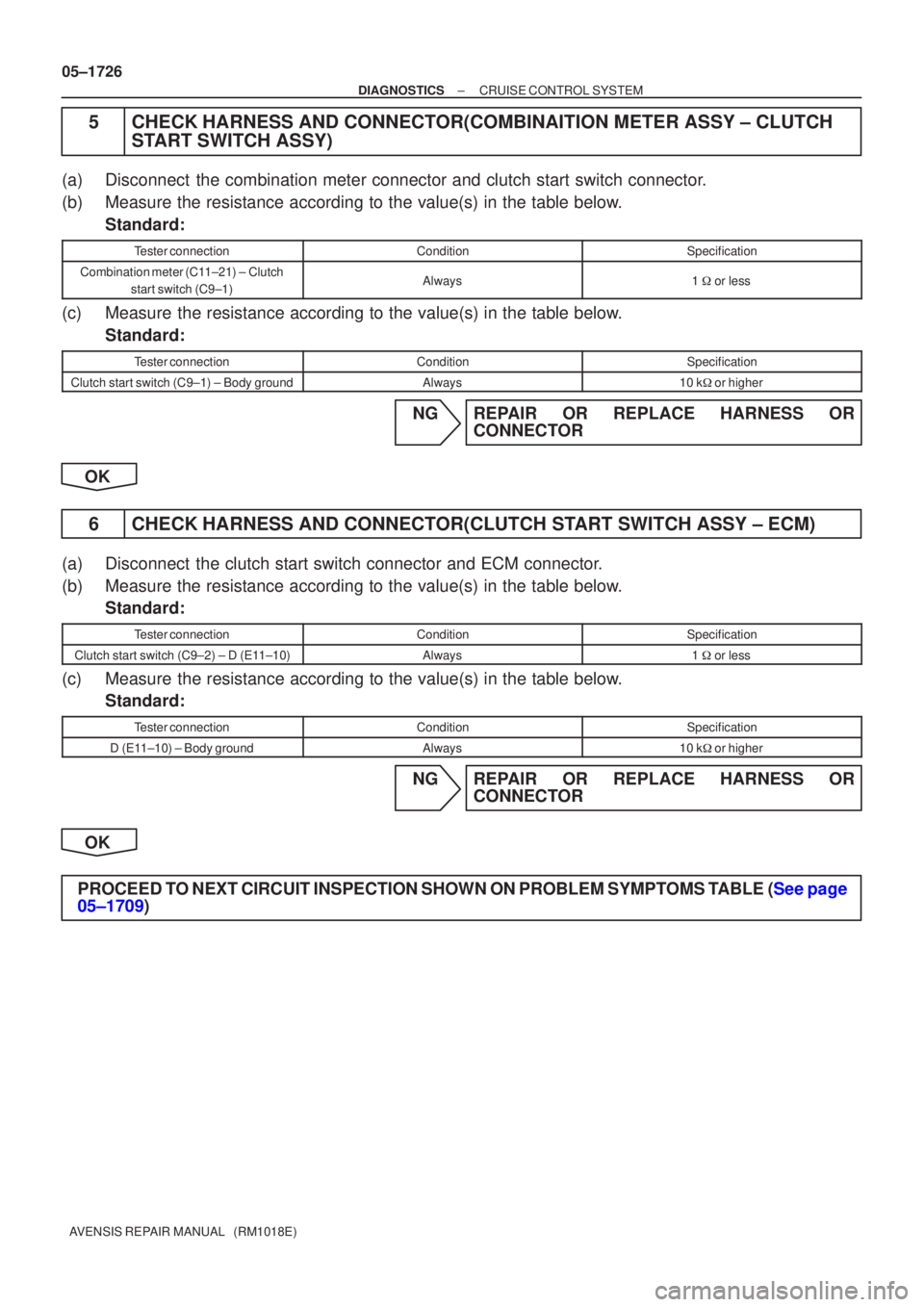

5CHECK HARNESS AND CONNECTOR(COMBINAITION METER ASSY ± CLUTCH START SWITCH ASSY)
(a)Disconnect the combination meter connector and clutch start switch connector.
(b)Measure the resistance according to the value(s) in the table below.
Standard:
Tester connectionConditionSpecification
Combination meter (C11±21) ± Clutch
start switch (C9±1)Always1
or less
(c)Measure the resistance according to the value(s) in the table below.
Standard:
Tester connectionConditionSpecification
Clutch start switch (C9±1) ± Body groundAlways10 k
or higher
NGREPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
6CHECK HARNESS AND CONNECTOR(CLUTCH START SWITCH ASSY ± ECM)
(a)Disconnect the clutch start switch connector and ECM connector.
(b)Measure the resistance according to the value(s) in the table below. Standard:
Tester connectionConditionSpecification
Clutch start switch (C9±2) ± D (E11±10)Always1
or less
(c)Measure the resistance according to the value(s) in the table below.
Standard:
Tester connectionConditionSpecification
D (E11±10) ± Body groundAlways10 k
or higher
NGREPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See page
05±1709)

05±1728
±
DIAGNOSTICS CRUISE CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

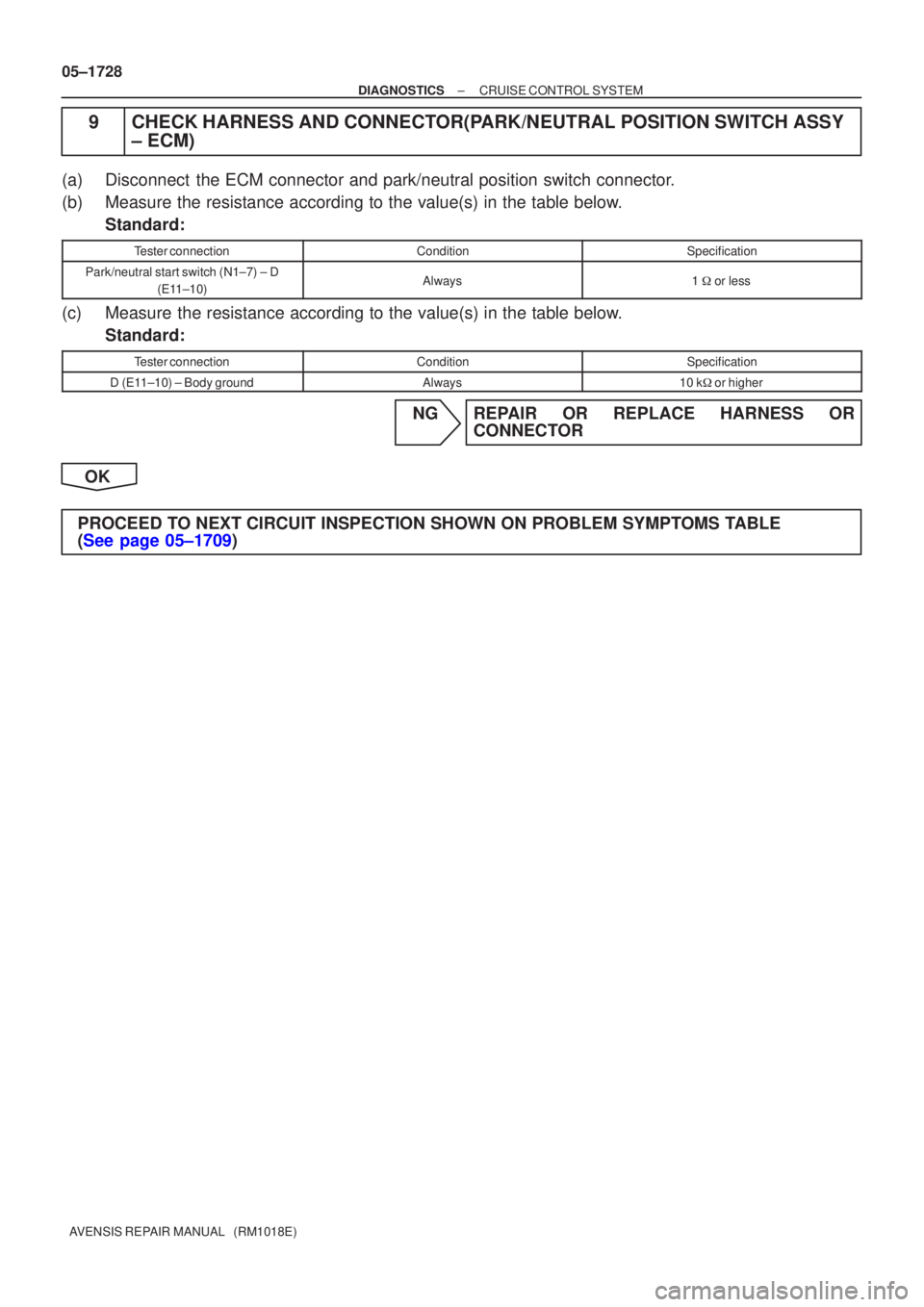

9CHECK HARNESS AND CONNECTOR(PARK/NEUTRAL POSITION SWITCH ASSY ± ECM)
(a)Disconnect the ECM connector and park/neutral position switch connector.
(b)Measure the resistance according to the value(s) in the table below.
Standard:
Tester connectionConditionSpecification
Park/neutral start switch (N1±7) ± D
(E11±10)Always1
or less
(c)Measure the resistance according to the value(s) in the table below.
Standard:
Tester connectionConditionSpecification
D (E11±10) ± Body groundAlways10 k
or higher
NGREPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
(See page 05±1709)

I35711
C14
Combination SW
CANCEL SET/COASTRES/ACC
CRUISE
CCS
CCSW24
E11
J/C
E J13
J13
J13
J12 ECC 3
BR
BR
BR2 1AZ±FSE
ECU
EE
E
E
D
Cruise Control Main Switch Assy 05±1718
± DIAGNOSTICSCRUISE CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
CRUISE CONTROL SWITCH CIRCUIT
CIRCUIT DESCRIPTION
This circuit carries the SET/COAST, RES/ACC and CANCEL signals (each voltage) to the ECM.
WIRING DIAGRAM
05C4T±01

05±1720
± DIAGNOSTICSCRUISE CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
INSPECTION PROCEDURE
HINT:
In case of using the hand±held tester, start the inspection from step 1, and in case of not using the hand±held
tester, start from step 2.
1 READ VALUE OF HAND±HELD TESTER
(a) Connect the hand±held tester to the DLC3.
(b) Turn the ignition switch to the ON position, and turn the hand±held tester main switch ON.
(c) Select the item ºCCS READYº in the DATA LIST and read its prompts displayed on the hand±held tes-
ter.
ItemMeasurement Item /
Display (Range)Normal ConditionDiagnostic Note
CCS READY MCruise control system standby
condition (Main CPU) / ON or OFFON ± OFF : Change ON/OFF
each time Main SW is pushed in.º1º
CCS READY SCruise control system standby
condition (Sub CPU) / ON or OFFON ± OFF : Change ON/OFF
each time Main SW is pushed in.º1º
NG Go to step 2
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE

I35702
±
DIAGNOSTICS CRUISE CONTROL SYSTEM
05±1721
AVENSIS REPAIR MANUAL (RM1018E)
2INSPECT CRUISE CONTROL MAIN SWITCH ASSY
(a)Remove the horn button assy.
(b)Disconnect the cruise control main switch connector.
(c)Measure the resistance according to the value(s) in the
table below.
Standard:
Switch conditionTester connectionResistance(
)
Neutral2 ± 3
(No continuity)
RES/ACC2 ± 3210 to 270
SET/COAST2 ± 3560 to 700
CANCEL2 ± 31,380 to 1,700
(d)Measure the resistance according to the value(s) in the
table below.
Standard:
Switch conditionTester connectionSpecification
OFF2 ± 310 k
or higher
ON2 ± 31
or less
HINT:
When malfunction is found with the cruise control main switch
assy, replace the steering wheel assy.
NGREPLACE STEERING WHEEL ASSY
OK
3CHECK HARNESS AND CONNECTOR(CRUISE CONTROL MAIN SWITCH, BODY GROUND ± ECM)
(a)Disconnect the cruise control switch connector and ECM connector.
(b)Measure the resistance according to the value(s) in the table below.
Standard:
Tester connectionConditionSpecification
CCS (S14 ± 2) ± CCS (E11 ± 24)Always1
or less
(c)Measure the resistance according to the value(s) in the table below.
Standard:
Tester connectionConditionSpecification
CCS (E11 ± 24) ± Body groundAlways10 k
or higher
NGREPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See page
05±1709)

±
DIAGNOSTICS CRUISE CONTROL SYSTEM
05±1717
AVENSIS REPAIR MANUAL (RM1018E)
DTC P0607/54 CONTROL MODULE PERFORMANCE
CIRCUIT DESCRIPTION
This DTC indicates the internal abnormalities of ECM.
DTC No.Detection ItemTrouble Area
P0607/54
The ECM has a supervisory CPU and control ECU inside.
When each input STP signal is different for 0.15 sec. or more,
the malfunction code is output.
The malfunction code is output after 0.4 sec. have passed from
the time the cruise cancel input signal (STP input) is input into
the ECM.
HINT:

When a malfunction code is detected, the fail safe must be
kept on until the ignition switch is turned off.

ECM
INSPECTION PROCEDURE
1REPLACE ECM (See page 01±32)
05C4S±01

± DIAGNOSTICSCRUISE CONTROL SYSTEM
05±1711
AVENSIS REPAIR MANUAL (RM1018E)
DTC P0571/52 BRAKE SWITCH ºAº CIRCUIT
CIRCUIT DESCRIPTION
When the brake pedal is depressed, the stop lamp switch assy sends a signal to the ECM. When the ECM
receives this signal, it cancels the cruise control.
A fail±safe function is provided so that it functions normally, even if there is a malfunction in the stop lamp
signal circuit.
The cancel condition occurs when battery positive voltage is supplied to terminal STP.
When the brake is on, battery positive voltage is normally applied through the STOP fuse and the stop lamp
switch assy to terminal STP of the ECM, and the ECM turns the cruise control OFF.
If the harness connected to terminal STP has an open circuit, terminal STP will have battery positive voltage
and the cruise control will be turned OFF.
DTC No.DTC Detection ConditionTrouble Area
P0571/52
The malfunction code is output when the voltage of the STP
terminal and that of the ST1 terminal on the ECM are less than
1 V for 0.5 sec. or more.
When the following conditions are realized, a malfunction is
detected.

The STP terminal voltage is less than 1 V.

The ST1 terminal voltage is less than 1 V.

For more than 0.5 sec. or more.

Stop lamp switch assy

Stop lamp switch assy circuit

ECM
05C4R±01
