2005 TOYOTA AVENSIS radio antenna

670S4±01
± AUDIO & VISUAL SYSTEMAUDIO & VISUAL SYSTEM
67±1
AVENSIS REPAIR MANUAL (RM1018E)
AUDIO & VISUAL SYSTEM
PRECAUTION
1. OBSERVE HANDLING AND OPERATIONAL PRECAUTIONS
(a) Please explain to the customer that when the negative terminal is disconnected from the battery, the
channel information memory of the AM/FM broadcast stations in the radio receiver is cleared. If neces-
sary, make a note of the recorded channel information before the negative terminal is disconnected,
then reset the information after the negative terminal is reconnected.
(b) The removal/installation of the radio receiver should be performed after all the cassette tapes and au-
dio CDs are ejected from the radio receiver.
HINT:
If the cassette tapes and the audio CDs cannot be ejected due to the malfunction of the radio receiver, do
not try to drag them out by force. Bring the vehicle to the repair plant.
(c) Fasten the earth bolt securely when the antenna cord is removed or installed.
HINT:
Failing to fasten the earth bolt securely causes noise at the time of radio wave reception.
(d) Do not touch the cone paper of the speaker.

670SD±02
±
AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (WAGON MODELS)
67±19
AVENSIS REPAIR MANUAL (RM1018E)
AMPLIFIER ANTENNA ASSY (WAGON MODELS)
REPLACEMENT
1. DISCONNEC T B ATTE RY NEG ATIVE TERMINAL ( See page 60±1)
2 . REMOVE INSTRUMENT CLUSTER FINISH P ANEL GARNISH NO.2 ( See page 71±11 )
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6 )
4 . REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) ( See page 41±11 )
5 . REMOVE CONSOLE PANEL SUB±ASSY UPPER ( See page 71±11 )
6 . REMOVE RADIO RECEIVER ASSEMB LY W/BRACKET ( See page 67±5)
7 . REMOVE CONSOLE BOX ASSY RR ( See page 71±11 )
8 . REMOVE HE ATER T O REGISTER DUCT NO.2 ( See page 71±11 )
9 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
10 . REMOVE FRONT DOOR SCUFF PL ATE RH ( See page 76±36 )
1 1 . REMOVE REAR DOOR SCUFF PL ATE RH ( See page 76±36 )
12 . REMOVE COWL SIDE TRIM BOARD RH ( See page 76±36)
13 . REMOVE FRONT DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
14 . REMOVE REAR DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
15. REMOVE REAR SEAT CUSHION ASSEMBLY (See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
16. REMOVE REAR SEATBACK ASSY
(See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
17. REMOVE REAR SIDE SEAT BACK ASSY RH (See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
18. REMOVE TONNEAU COVER ASSY
19 . REMOVE BACK DOOR WE ATHERSTRIP ( See page 76±54 )
20 . REMOVE DECK BOARD SUB±ASSY ( See page 76±54)
21 . REMOVE DECK FLOOR BOX REAR ( See page 76±54)
22 . REMOVE DECK FLOOR BOX FRONT ( See page 76±54)
23 . REMOVE DECK FLOOR BOX RH ( See page 76±54)
24 . REMOVE REAR FLOOR FINISH PL ATE ( See page 76±54 )
25 . REMOVE DECK TRIM SIDE BOARD RH ( See page 76±54)
26 . REMOVE ROOF SIDE GARNISH INNER RH ( See page 76±54)
27. REMOVE FLOOR CARPET ASSY FRONT

670SG±02
67±24
±

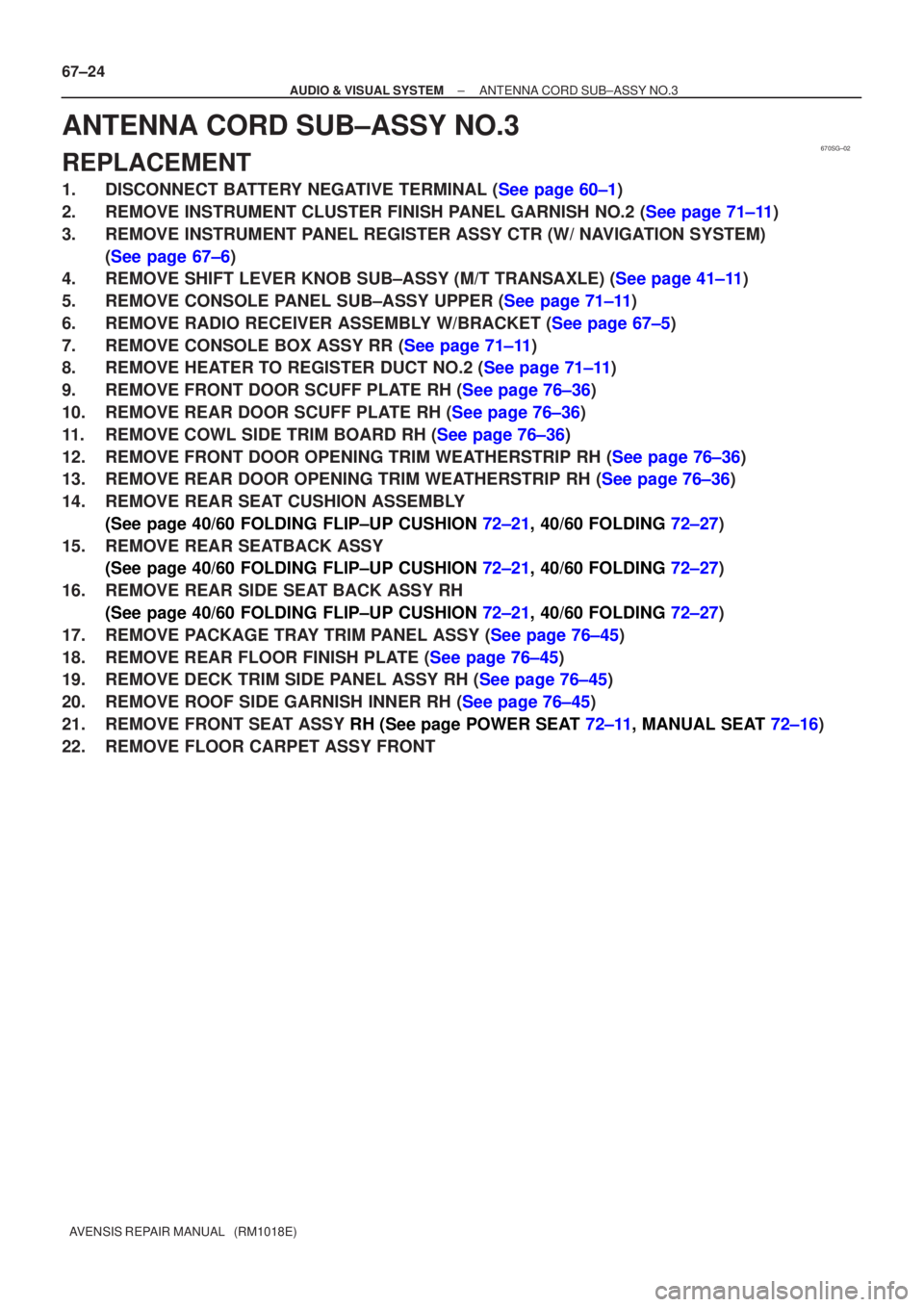

AUDIO & VISUAL SYSTEM ANTENNA CORD SUB±ASSY NO.3
AVENSIS REPAIR MANUAL (RM1018E)
ANTENNA CORD SUB±ASSY NO.3
REPLACEMENT
1 . DISCONNEC T B ATTE RY NEG ATIVE TERMINAL ( See page 60±1)
2 . REMOVE INSTRUMENT CLUSTER FINISH P ANEL GARNISH NO.2 ( See page 71±11 )
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6 )
4 . REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) ( See page 41±11 )
5 . REMOVE CONSOLE PANEL SUB±ASSY UPPER ( See page 71±11 )
6 . REMOVE RADIO RECEIVER ASSEMB LY W/BRACKET ( See page 67±5)
7 . REMOVE CONSOLE BOX ASSY RR ( See page 71±11 )
8 . REMOVE HE ATER T O REGISTER DUCT NO.2 ( See page 71±11 )
9 . REMOVE FRONT DOOR SCUFF PL ATE RH ( See page 76±36 )
10 . REMOVE REAR DOOR SCUFF PL ATE RH ( See page 76±36 )
1 1 . REMOVE COWL SIDE TRIM BOARD RH ( See page 76±36)
12 . REMOVE FRONT DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
13 . REMOVE REAR DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
14. REMOVE REAR SEAT CUSHION ASSEMBLY (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
15. REMOVE REAR SEATBACK ASSY (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
16. REMOVE REAR SIDE SEAT BACK ASSY RH (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
17 . REMOVE P ACKAGE TR AY TRIM P ANEL ASSY ( See page 76±45 )
18 . REMOVE REAR FLOOR FINISH PL ATE ( See page 76±45 )
19 . REMOVE DECK TRIM SIDE P ANEL ASSY RH ( See page 76±45)
20 . REMOVE ROOF SIDE GARNISH INNER RH ( See page 76±45)
21 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
22. REMOVE FLOOR CARPET ASSY FRONT

670SC±03
67±16
±
AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (SEDAN MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
AMPLIFIER ANTENNA ASSY (SEDAN MODELS)
REPLACEMENT
1 . DISCONNEC T B ATTE RY NEG ATIVE TERMINAL ( See page 60±1)
2 . REMOVE INSTRUMENT CLUSTER FINISH P ANEL GARNISH NO.2 ( See page 71±11 )
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6 )
4 . REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) ( See page 41±11 )
5 . REMOVE CONSOLE PANEL SUB±ASSY UPPER ( See page 71±11 )
6 . REMOVE RADIO RECEIVER ASSEMB LY W/BRACKET ( See page 67±5)
7 . REMOVE CONSOLE BOX ASSY RR ( See page 71±11 )
8 . REMOVE HE ATER T O REGISTER DUCT NO.2 ( See page 71±11 )
9 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
10 . REMOV E FRONT DOOR SCUFF PL ATE RH ( See page 76±36 )
1 1 . REMOVE REAR DOOR SCUFF PL ATE RH ( See page 76±36 )
12 . REMOVE COWL SIDE TRIM BOARD RH ( See page 76±36)
13 . REMOVE FRONT DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
14 . REMOVE REAR DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
15 . REMOVE REAR SE AT CUSHION ASSEMB LY ( See page 72±32 )
16 . REMOVE REAR SE ATBACK ASSY ( See page 40/60 FOLDING 72±27 , UNITED FIXED 72±32 )
17 . REMOVE ROOF SIDE GARNISH INNER RH ( See page 76±36)
18. REMOVE FLOOR CARPET ASSY FRONT
