B68928
Adhesive
B70122
Screw
B64044
1 2
± ENGINE HOOD/DOORFRONT DOOR
75±13
AVENSIS REPAIR MANUAL (RM1018E)

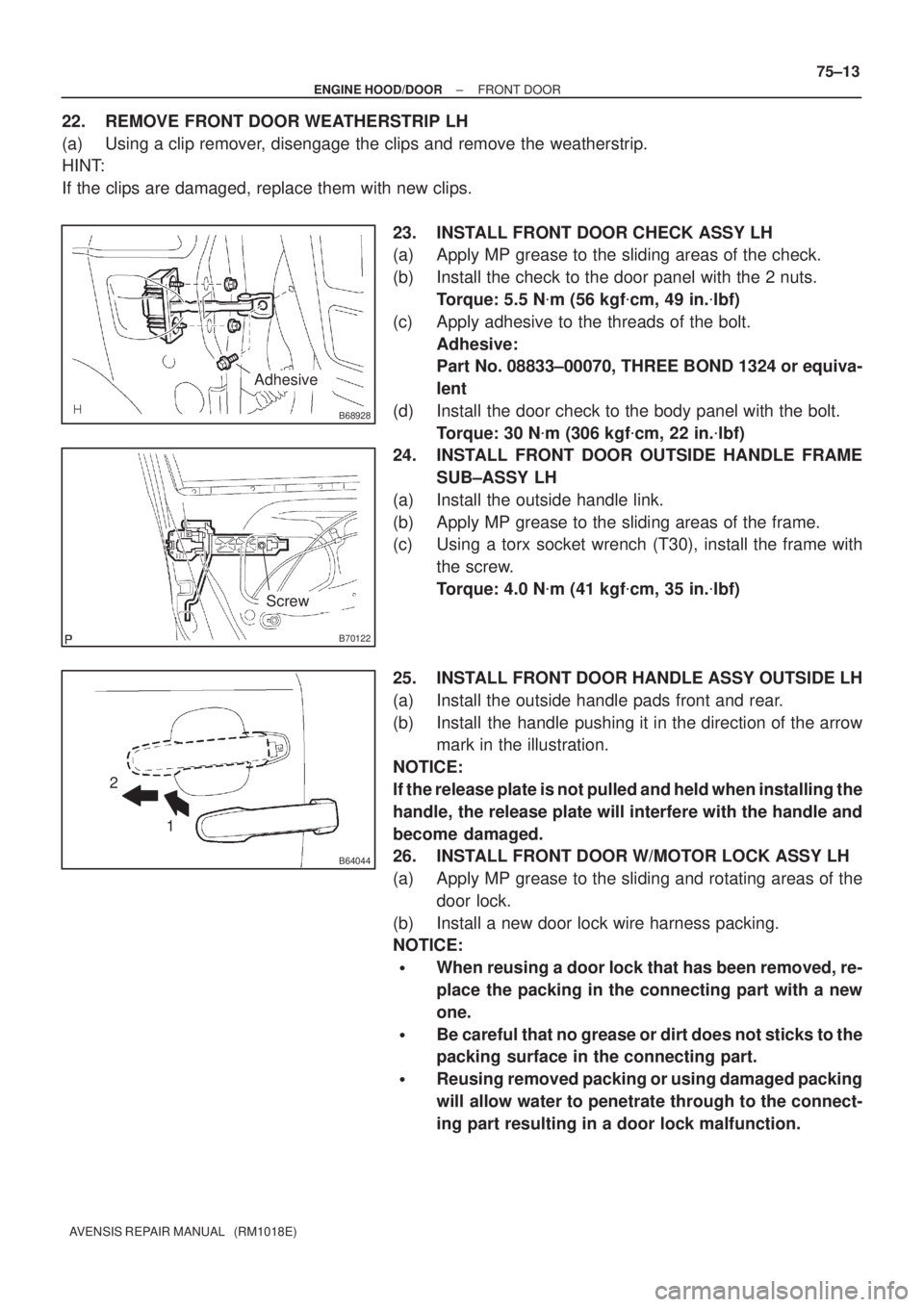

22. REMOVE FRONT DOOR WEATHERSTRIP LH
(a) Using a clip remover, disengage the clips and remove the weatherstrip.
HINT:
If the clips are damaged, replace them with new clips.
23. INSTALL FRONT DOOR CHECK ASSY LH
(a) Apply MP grease to the sliding areas of the check.
(b) Install the check to the door panel with the 2 nuts.
Torque: 5.5 Nm (56 kgfcm, 49 in.lbf)
(c) Apply adhesive to the threads of the bolt.
Adhesive:
Part No. 08833±00070, THREE BOND 1324 or equiva-
lent
(d) Install the door check to the body panel with the bolt.
Torque: 30 Nm (306 kgfcm, 22 in.lbf)
24. INSTALL FRONT DOOR OUTSIDE HANDLE FRAME
SUB±ASSY LH
(a) Install the outside handle link.
(b) Apply MP grease to the sliding areas of the frame.
(c) Using a torx socket wrench (T30), install the frame with
the screw.
Torque: 4.0 Nm (41 kgfcm, 35 in.lbf)
25. INSTALL FRONT DOOR HANDLE ASSY OUTSIDE LH
(a) Install the outside handle pads front and rear.
(b) Install the handle pushing it in the direction of the arrow
mark in the illustration.
NOTICE:
If the release plate is not pulled and held when installing the
handle, the release plate will interfere with the handle and
become damaged.
26. INSTALL FRONT DOOR W/MOTOR LOCK ASSY LH
(a) Apply MP grease to the sliding and rotating areas of the
door lock.
(b) Install a new door lock wire harness packing.
NOTICE:
When reusing a door lock that has been removed, re-
place the packing in the connecting part with a new
one.
Be careful that no grease or dirt does not sticks to the
packing surface in the connecting part.
Reusing removed packing or using damaged packing
will allow water to penetrate through to the connect-
ing part resulting in a door lock malfunction.
750NB±01
B65104
AB ab 75±48
± ENGINE HOOD/DOORBACK DOOR STAY
AVENSIS REPAIR MANUAL (RM1018E)
DISPOSAL
HINT:
Use the same procedures on the RH side as on the LH side.
1. DISPOSE OF BACK DOOR STAY ASSY LH
(a) Horizontally fix the stay in a vise with the piston±rod pulled
out.
(b) Wearing safety glasses, gradually cut a part between A
and B as shown in the illustration using a metal saw to
gradually release the gas.
Standard dimension:
a80 mm (3.15 in.)
b20 mm (0.80 in.)
NOTICE:
Although the gas inside the stay is colorless, odorless and
harmless, there is a possibility that metal debris from cut-
ting could be blown out. Therefore, cover it with clothes or
thr like.
