2005 SUBARU LEGACY stop start

8-41
Driving tips
– CONTINUED –
"Sufficient time should be taken to learn the “feel” of
the vehicle/trailer combination before starting out on a
trip. In an area free of traffic, practice turning, stopping
and backing up. ! Driving with a trailer
" You should allow for considerably more stopping
distance when towing a trailer. Avoid sudden braking because it may result in skidding or jackknifing and
loss of control." Avoid abrupt starts and sudden accelerations. If
your vehicle has a manual transmission, always start
out in first gear and release the clutch at moderate en-
gine revolution. " Avoid uneven steering, sharp turns and rapid lane
changes. " Slow down before turning. Make a longer than nor-
mal turning radius because the trailer wheels will be
closer than the vehicle wheels to the inside of the turn.
In a tight turn, the trailer could hit your vehicle. " Crosswinds will adversely affect the handling of
your vehicle and trailer, causing sway. Crosswinds
can be due to weather conditions or the passing of large trucks or buses. If swaying occurs, firmly grip the
steering wheel and slow down immediately but gradu-
ally. " When passing other vehicles, considerable dis-
tance is required because of the added weight and length caused by attaching the trailer to your vehicle.
A) Left turn
B) Right turn
" Backing up with a trailer is difficult and takes prac-
tice. When backing up with a trailer, never accelerate
or steer rapidly. When turning back, grip the bottom of
the steering wheel with one hand and turn it to the left
for a left turn, and turn it to the right for a right turn. " If the ABS warning light illuminates while the vehicle
is in motion, stop towing the trailer and have repairs
performed immediately by the nearest SUBARU deal- er.
A B
UB8502BB

9-20
In case of emergency
5. Start the engine of the vehicle with the booster bat-
tery and run it at moderate speed. Then start the en-
gine of the vehicle that has the discharged battery.
6. When finished, carefully disconnect the cables in
exactly the reverse order.Engine overheating
Never attempt to remove the radiator cap until
the engine has been shut off and has fully
cooled down. When the engine is hot, the cool-
ant is under pressure. Removing the cap while
the engine is still hot could release a spray of
boiling hot coolant, which could burn you very
seriously.
If the engine overheats, safely pull off the road and
stop the vehicle in a safe place. ! If steam is coming from the engine
compartment
Turn the engine off and get everyone away from the
vehicle until it cools down. ! If no steam is coming from the engine
compartment
1. Keep the engine running at idling speed.
2. Open the hood to ventilate the engine compart- ment.

11 -1 5
Maintenance and service
– CONTINUED –
washer after the oil has completely drained out.
6. Remove the under cover.
7. Remove the oil filter with an oil filter wrench.
8. Before installing a new oil filter, apply a thin coat of
engine oil to the seal.
9. Clean the rubber seal seating area of the bottom of
engine and install the oil filter by hand turning. Be
careful not to twist or damage the seal.
10.Tighten the oil filter by the amount indicated in the
following table after the seal makes contact with the
bottom of engine.
Never over tighten the oil filter because that can
result in an oil leak.
11.Reinstall the cover under the oil filter.
12.Pour engine oil through the filler neck.
Oil capacity (Guideline): 2.5-liter models: 4.2 US qt (4.0 liters, 3.5 Imp qt)
3.0-liter models: 5.8 US qt (5.5 liters, 4.8 Imp qt)
The oil quantity indicated above is only a guideline.
The necessary quantity of oil depends on the quantity
of oil that has been drained. The quantity of drained oil
differs slightly depending on the temperature of the oil
and the time the oil is left flowing out. After refilling the
engine with oil, therefore, you must use the dipstick to
confirm that the level is correct.
13.Start the engine and make sure that no oil leaks ap-
pear around the filter’s rubber seal and drain plug.
14.Run the engine until it reaches the normal operat-
ing temperature. Then stop the engine and wait a few
minutes to allow the oil drain back. Check the oil level
again and if necessary, add more engine oil.
Model Oil filter color Part number Amount of
rotation
2.5-liter
non-turbo
models Black 15208AA080 1 rotation
White 15208AA060 15208AA09A 2/3 – 3/4
rotation
2.5-liter
turbo models Black 15208AA080 1 rotation
White 15208AA09A 2/3 – 3/4 rotation
3.0-liter
models Black 15208AA031 3/4 rotation

11 -2 3
Maintenance and service
– CONTINUED –

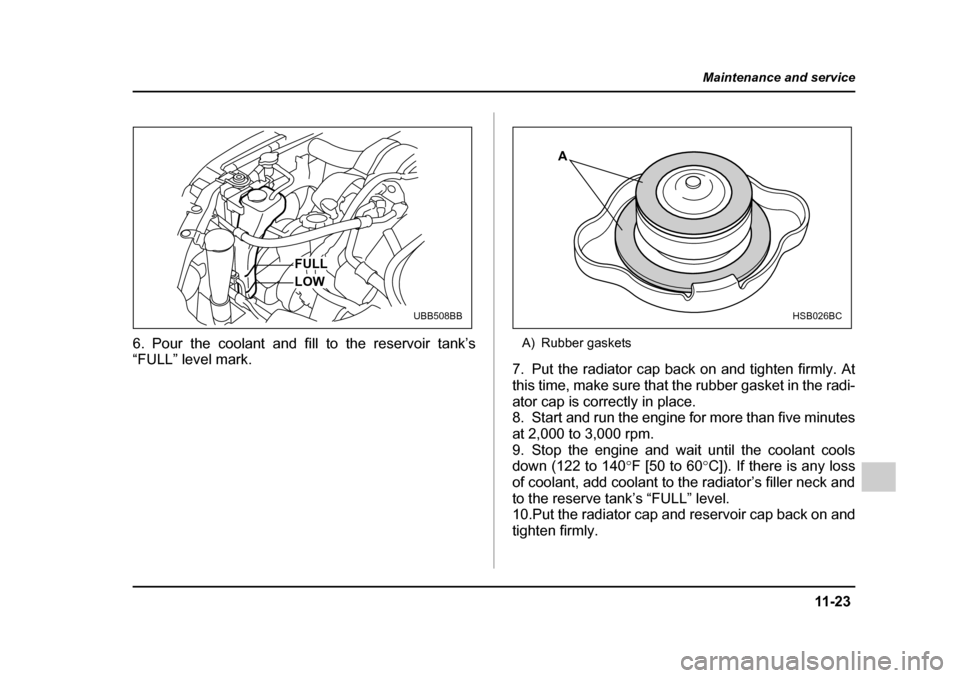

6. Pour the coolant and fill to the reservoir tank’s
“FULL” level mark. A) Rubber gaskets
7. Put the radiator cap back on and tighten firmly. At
this time, make sure that the rubber gasket in the radi-
ator cap is correctly in place.
8. Start and run the engine for more than five minutes
at 2,000 to 3,000 rpm.
9. Stop the engine and wait until the coolant cools
down (122 to 140 °F [50 to 60 °C]). If there is any loss
of coolant, add coolant to the radiator’s filler neck and
to the reserve tank’s “FULL” level.
10.Put the radiator cap and reservoir cap back on and
tighten firmly.
FULL
LOW
UBB508BB
A
HSB026BC

11 - 4 4
Maintenance and service
Check the fluid level on the outside of the reservoir. If
the level is below “MIN” level mark, add the recom-
mended clutch fluid to “MAX” level mark.
Use only clutch fluid from a sealed container. !
Recommended clutch fluid
FMVSS No. 116, fresh DOT 3 or 4 brake fluid
Brake booster
If the brake booster does not operate as described be-
low, have it checked by your SUBARU dealer.
1. With the engine off, depress the brake pedal sever-
al times, applying the same pedal force each time. The
distance the pedal travels should not vary.
2. With the brake pedal depressed, start the engine.
The pedal should move slightly down to the floor.
3. With the brake pedal depressed, stop the engine
and keep the pedal depressed for 30 seconds. The
pedal height should not change.
4. Start the engine again and run for about one minute
then turn it off. Depress the brake pedal several times
to check the brake booster. Brake booster operates
properly if the pedal stroke decreases with each de-
pression.
UBB566BA

14-4
Index
Cup holder
Front passenger’s ......................................... 6-12
Rear passenger’s ......................................... 6-13
D
Daytime running light system ............................ 3-46
Differential gear oil Front ........................................................... 11-35
Rear ............................................................ 11-37
Dimensions ........................................................ 12-2
Disarming the system ........................................ 2-26
Disc brake pad wear warning indicators ............ 7-38
Dome light ................................................ 6-2, 11-82
Door locks ........................................................... 2-6
Door open warning light .................................... 3-31
Drive belts ....................................................... 11-30
Driving All-wheel drive vehicle .................................. 3-31
Car phone/mobile phone ................................. 10
Drinking ............................................................. 9
Drugs ................................................................. 9
Foreign countries ............................................ 8-7
Pets ................................................................. 11
Snowy and icy roads .................................... 8-13
Tips ..................................... 7-15, 7-23, 7-33, 8-7
Tired or sleepy ................................................. 10 E
Electrical system ............................................... 12-3
Electronic Brake Force Distribution (EBD)
system ........................................................... 7-41
Emergency Locking Retractor (ELR) ................ 1-18
Engine
Compartment overview ................................ 11-8
Coolant ....................................................... 11-19
Exhaust gas (Carbon monoxide) ................ 8, 8-3
Hood ............................................................. 11-5
Oil ............................................................... 11-12
Overheating .................................................. 9-20
Starting ......................................................... 7-10
Stopping ....................................................... 7-12
Exterior care ...................................................... 10-2 F
Flat tires .............................................................. 9-5
Floor mat ........................................................... 6-22
Fluid level
Automatic transmission .............................. 11-33
Brake .......................................................... 11-42
Clutch ......................................................... 11-43
Power steering ........................................... 11-41
Fog light switch ................................................. 3-50
Front
Differential gear oil ..................................... 11-35

14-5
Index
Fog light ...................................................... 11-76
Seatbelt pretensioners .................................. 1-33
Seats .............................................................. 1-2
Fuel ..................................................................... 7-2
Economy hints ................................................ 8-2
Filler lid and cap ............................................. 7-4
Gauge ........................................................... 3-11
Requirements ................................................. 7-2
Fuses ............................................................... 11-68
Fuses and circuits ............................................. 12-6 G
GAWR (Gross Axle Weight Rating) ................... 8-20
Glove box ............................................................ 6-7
GVWR (Gross Vehicle Weight Rating) .............. 8-20 H
Hazard warning flasher ....................................... 3-7
Head restraint adjustment (Front) ........................ 1-8
Headlight Flasher .......................................................... 3-46
Indicator light ................................................ 3-35
Headlights .............................................. 3-45, 11-74
Heater operation .................................................. 4-7
High beam indicator light ................................... 3-35
High mount stop light ....................................... 11-86
Horn ................................................................... 3-64 Hose and connections ..................................... 11-19 I
Ignition switch ...................................................... 3-3
Light ................................................................ 3-6
Illuminated entry ................................................ 2-15
Illumination brightness control ........................... 3-47
Immobilizer system .............................................. 2-4 Indicator light ................................................ 3-33
Indicator light Cruise control ............................................... 3-35
Cruise control set .......................................... 3-35
Front fog ....................................................... 3-35
Headlight ...................................................... 3-35
High beam .................................................... 3-35
Selector lever position .................................. 3-34
Turn signal .................................................... 3-34
Information display ............................................ 3-37
Inside mirror ...................................................... 3-59
Interior light .......................................................... 6-2
Internal trunk lid release handle ........................ 2-37 J
Jack ................................................................... 9-33
Jack handle ....................................................... 9-34
Jump starting ..................................................... 9-17

14-8
Index
License plate light ....................................... 11-80
Map light ..................................................... 11-83
Parking light ................................................ 11-76
Rear combination light ................................ 11-76
Trunk light ................................................... 11-86
Rocking the vehicle ........................................... 8-17
Roof rail and crossbar ....................................... 8-21 S Safety Precautions when driving .................................. 6
Symbol .............................................................. 3
Warnings ........................................................... 3
Seat Fabric ........................................................... 10-6
Heater ........................................................... 1-10
Seatbelt .................................................................. 6 Maintenance ................................................. 1-33
Pretensioners ............................................... 1-33
Safety tips ..................................................... 1-16
Warning light and chime ............................... 1-19
Seatbelts ........................................................... 1-16
Selector lever ........................................... 7-17, 7-26 Position indicator .......................................... 3-34
Shift lock release ...................................... 7-24, 7-35
Snow tires ......................................................... 8-15
Sounding a panic alarm ..................................... 2-15 Spark plugs ..................................................... 11-29
Specifications .................................................... 12-2
Speedometer ....................................................... 3-9 SRS
Curtain airbag ............................................... 1-80
Frontal airbag ............................................... 1-65
Side airbag ................................................... 1-80
SRS airbag (Supplemental Restraint System airbag) ....................................................... 6, 1-59
SRS airbag system warning light ...................... 3-24
Starting the engine ............................................ 7-10
State emission testing (U.S. only) ....................... 7-8
Steering wheel
Power ........................................................... 7-36
Tilt ................................................................. 3-63
Stopping the engine .......................................... 7-12
Storage compartment .......................................... 6-7
Sun shades ....................................................... 2-43
Sun visors ........................................................... 6-5
Supplemental Restraint System airbag (SRS) .. 1-59
Synthetic leather upholstery .............................. 10-6 T
Tachometer ....................................................... 3-11
Temperature gauge ........................................... 3-13
Temporary spare tire ........................................... 9-3
Tie-down hooks ................................................. 9-22
