2005 SUBARU LEGACY fuse box

19
–
CONTINUED –
!Instrument panel
123456 7 8
9
10
11
12
13
14
UBF509CB
1) Door locks (page 2-6)
2) Illumination brightness control
(page 3-47)
3) Remote control mirror (page 3-
61)
4) Windshield wiper deicer (page
3-56)
5) Vehicle Dynamics Control OFF switch (page 7-48)
6) Light control lever (page 3-44)
7) Combination meter (page 3-7/ page 3-14)
8) Wiper control lever (page 3-51)
9) Cruise control (page 7-53)
10) Horn (page 3-64)
11) SRS airbag (page 1-59)
12) Fuse box (page 11-68)
13) Hood lock release knob (page 11-5)
14) Power window (page 2-31)

11 - 8
Maintenance and service
Engine compartment overview !
2.5-liter non-turbo models
12 3 45 6
7
8
9
10
11
13 12
UBB207BB
1) Power steering fluid reservoir
(page 11-41)
2) Manual transmission oil level gauge (MT) (page 11-31) or Dif-
ferential gear oil level gauge
(AT) (page 11-35)
3) Clutch fluid reservoir (page 11-
43)
4) Automatic transmission fluid lev- el gauge (page 11-33)
5) Brake fluid reservoir (page 11- 42)
6) Fuse box (page 11-68)
7) Battery (page 11-67)
8) Windshield washer tank (page 11-58)
9) Engine oil filler cap (page 11-12)
10) Engine coolant reservoir (page 11-19)
11) Radiator cap (page 11-19)
12) Engine oil level gauge (page 11- 12)
13) Air cleaner element (page 11- 24)

11 - 9
Maintenance and service
– CONTINUED –
!2.5-liter non-turbo California-spec. models
123 45 6
7
8
9
10
11
13 12
UBB202BB
1) Power steering fluid reservoir
(page 11-41)
2) Manual transmission oil level gauge (MT) (page 11-31) or Dif-
ferential gear oil level gauge
(AT) (page 11-35)
3) Clutch fluid reservoir (page 11-
43)
4) Automatic transmission fluid lev- el gauge (page 11-33)
5) Brake fluid reservoir (page 11- 42)
6) Fuse box (page 11-68)
7) Battery (page 11-67)
8) Windshield washer tank (page 11-58)
9) Engine oil filler cap (page 11-12)
10) Engine coolant reservoir (page 11-19)
11) Radiator cap (page 11-19)
12) Engine oil level gauge (page 11- 12)
13) Air cleaner element (page 11- 24)

11 - 1 0
Maintenance and service !

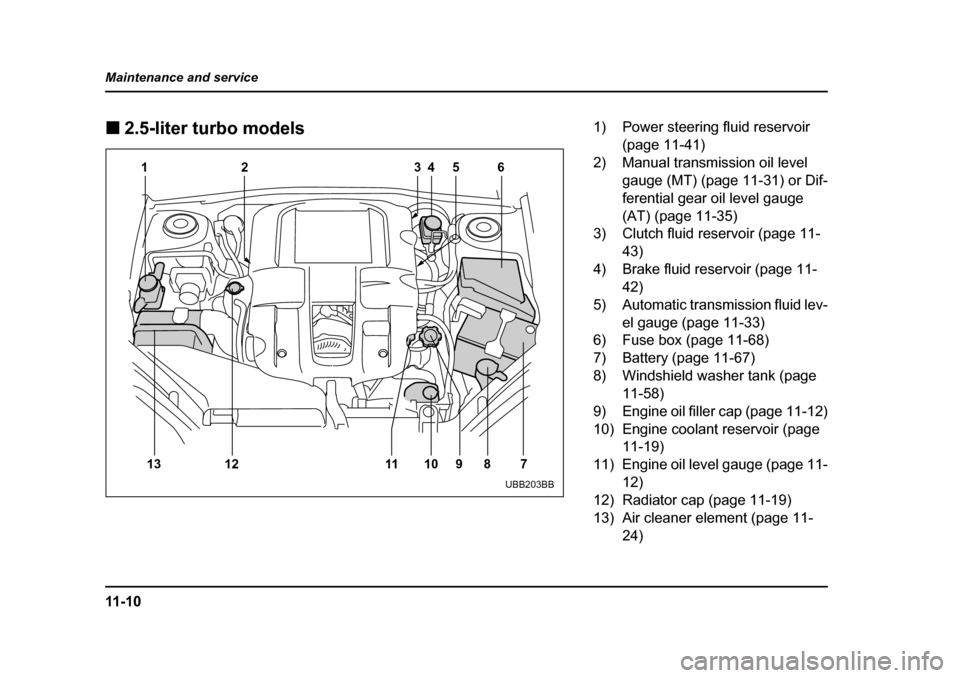

2.5-liter turbo models
12 4 6
35
13 12 11 10 9 8 7
UBB203BB
1) Power steering fluid reservoir (page 11-41)
2) Manual transmission oil level gauge (MT) (page 11-31) or Dif-
ferential gear oil level gauge
(AT) (page 11-35)
3) Clutch fluid reservoir (page 11-
43)
4) Brake fluid reservoir (page 11- 42)
5) Automatic transmission fluid lev- el gauge (page 11-33)
6) Fuse box (page 11-68)
7) Battery (page 11-67)
8) Windshield washer tank (page 11-58)
9) Engine oil filler cap (page 11-12)
10) Engine coolant reservoir (page 11-19)
11) Engine oil level gauge (page 11- 12)
12) Radiator cap (page 11-19)
13) Air cleaner element (page 11- 24)

11-11
Maintenance and service
– CONTINUED –
!3.0-liter models
12 3 45
12 10
11 9 8 76
UBB564BB
1) Power steering fluid reservoir
(page 11-41)
2) Differential gear oil level gauge (AT) (page 11-35)
3) Automatic transmission fluid lev- el gauge (page 11-33)
4) Brake fluid reservoir (page 11-
42)
5) Fuse box (page 11-68)
6) Battery (page 11-67)
7) Windshield washer tank (page 11-58)
8) Engine oil filler cap (page 11-12)
9) Engine coolant reservoir (page 11-19)
10) Radiator cap (page 11-19)
11) Engine oil level gauge (page 11- 12)
12) Air cleaner element (page 11-
24)

11 - 6 8
Maintenance and service
Fuses
Never replace a fuse with one having a higher
rating or with material other than a fuse be-
cause serious damage or a fire could result.
The fuses are designed to melt during an overload to
prevent damage to the wiring harness and electrical
equipment. The fuses are located in two fuse boxes.
One is located under the instrument panel behind the
fuse box cover on the driver’s seat side. Open the lid that is located above the hood release
knob and pull it toward you to remove it.
UBB569BA
UBB584BA

11 -6 9
Maintenance and service
– CONTINUED –
The other one is housed in the engine compartment. The spare fuses are stored in the main fuse box cover
in the engine compartment.
UBB527BAUBB528BA

11 - 7 0
Maintenance and service
The fuse puller is stored in the main fuse box in the en-
gine compartment.
A) Good
B) Blown
If any lights, accessories or other electrical controls do
not operate, inspect the corresponding fuse. If a fuse
has blown, replace it.
1. Turn the ignition switch to the “LOCK” position and
turn off all electrical accessories.
2. Remove the cover.
(For behind the coin tray: open the coin tray and pull it
horizontally to remove it.)
3. Determine which fuse may be blown. The back side
of each fuse box cover and the “Fuses and circuits”
section in chapter 12 in this manual show the circuit for
UB9569BA
AB
HSB067BB
